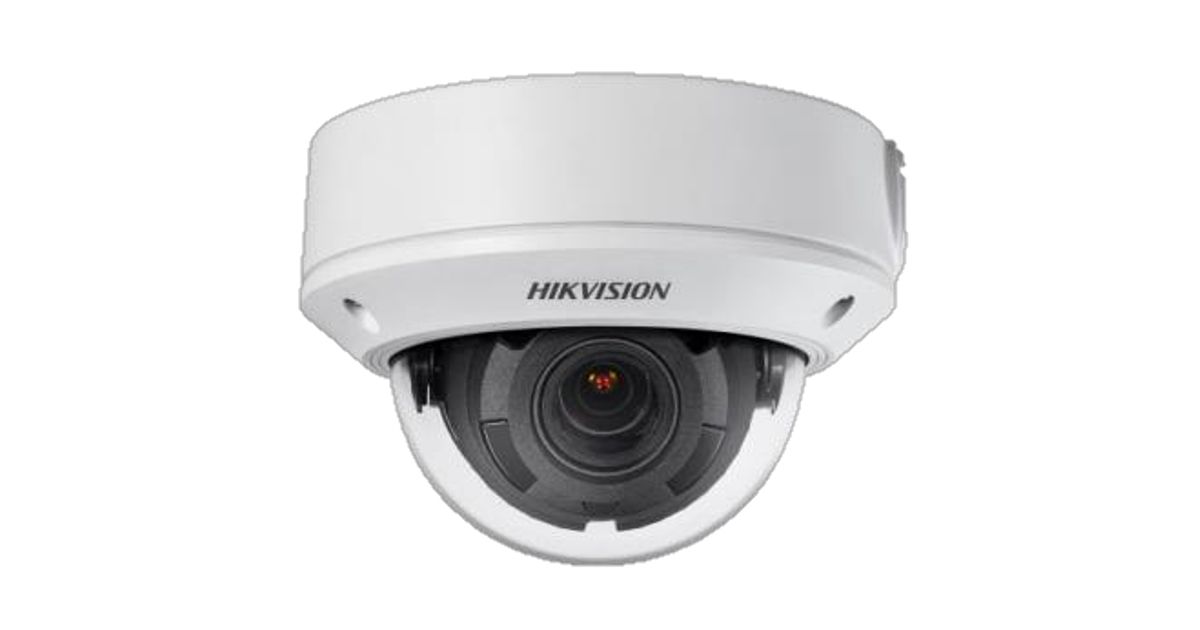

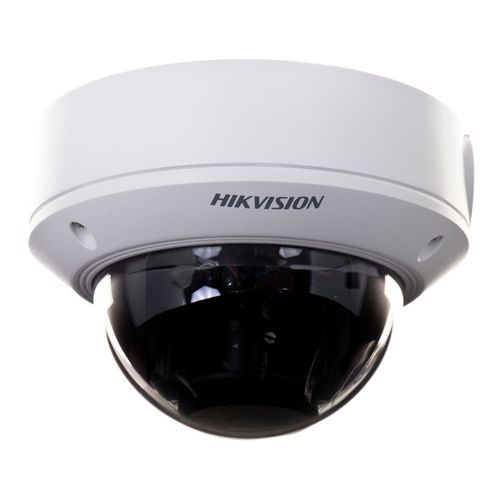

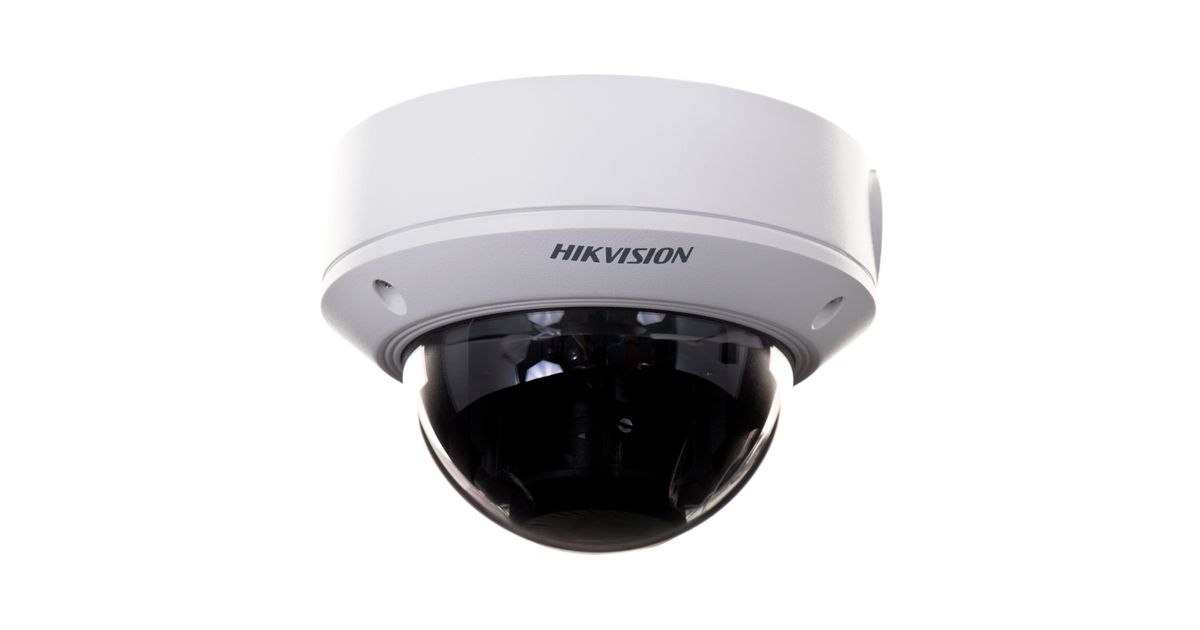

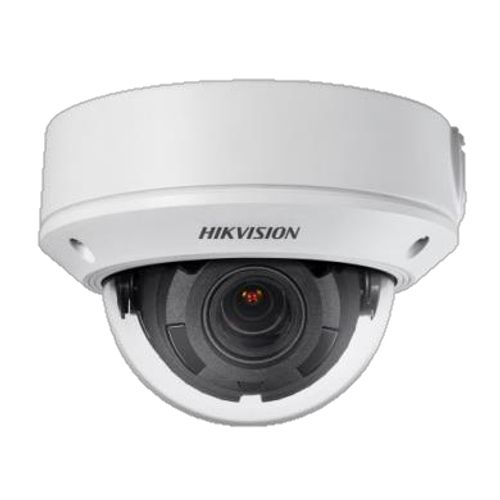

DS-2CD1723G0-I(2.8-12MM)
Toote andmed
| Üldandmed | |
|---|---|
| Tootja | Hikvision |
| Tootekood | 143509074 |
| EAN | 06954273667078 |
| Tootja kood | DS-2CD1723G0-I(2.8-12MM) |
| Kategooria | Alarmsüsteemid / kaamerad |
| Muud andmed | |
|---|---|
| Quality of Service (QoS) support | Y |
| Package height | 154 mm |
| Product colour | White |
| Power source type | PoE |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | N |
| Operating relative humidity (H-H) | 0 - 95% |
| IK code | IK10 |
| Package depth | 140 mm |
| Card reader integrated | Y |
| Ethernet LAN | Y |
| Connectivity Technology | Wired |
| Reset button | Y |
| Wi-fi | N |
| Form Factor | Dome |
| Maximum resolution | 1920 x 1080 pixels |
| Viewing angle, horizontal | 98° |
| Tilt angle range | 0 - 70° |
| Supported graphics resolutions | 640 x 480 (VGA) |
| Package width | 140 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Operating temperature (T-T) | -30 - 50 °C |
| Compatible memory cards | MicroSD (TransFlash) |
| Type | IP security camera |
| Power consumption (max) | 6 W |
| Web-based management | Y |
| Weight | 830 g |
| Bit rate | 32 Kbps - 8 Mbps |
| Networking standards | IEEE 802.1x |
| Package weight | 1.07 kg |
| Height | 99.9 mm |
| Viewing angle, vertical | 52° |
| International Protection (IP) code | IP67 |
| Number of cameras | 1 |
| Night vision distance | 30 m |
| Number of lenses | 1 |
| Number of sensors | 1 |
| Day/night mode | Y |
| Video compression formats | H.265 |
| Password protection | Y |
| Maximum aperture number | 1.6 |
| Video motion detection | Y |
| Privacy masking | Y |
| LED type | IR |
| Maximum memory card size | 128 GB |
| Built-in HDD | N |
| Focal length range | 2.8 - 12 mm |
| Number of users | 32 user(s) |
| Frame rate | 30 fps |
| Focus | Motorized |
| Camera shutter speed | 1/3 - 1/100000 s |
| Total megapixels | 2 MP |
| Gain control type | Auto |
| Power consumption (Power over Ethernet (PoE)) | 8 W |
| Digital watermark | Y |
| Camera tilt control | N |
| Sensor type | CMOS |
| Anti-flicker | Y |
| Mounting type | Ceiling/wall |
| Diameter | 14.1 cm |
| Auto Focus | N |
| Digital Wide Dynamic Range (DWDR) | Y |
| Infra-red wavelength | 850 nm |
| Region of Interest (ROI) encoding | Y |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Angle of rotation | 360° |
| Housing material | Metal |
| Pan range | 0 - 355° |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Infrared (IR) cut-off filter | Y |
| DC output current | 0.5 A |
| Back Light Compensation (BLC) | Y |
| Image quality adjustment | Saturation |
| Progressive scan | Y |
| Mirror | Y |
| Heartbeat | Y |
| Noise reduction technology | 3D noise reduction |
| Night Vision | Y |
| Placement supported | Indoor & outdoor |
| Camera pan control | N |
| DC output voltage | 12 |
