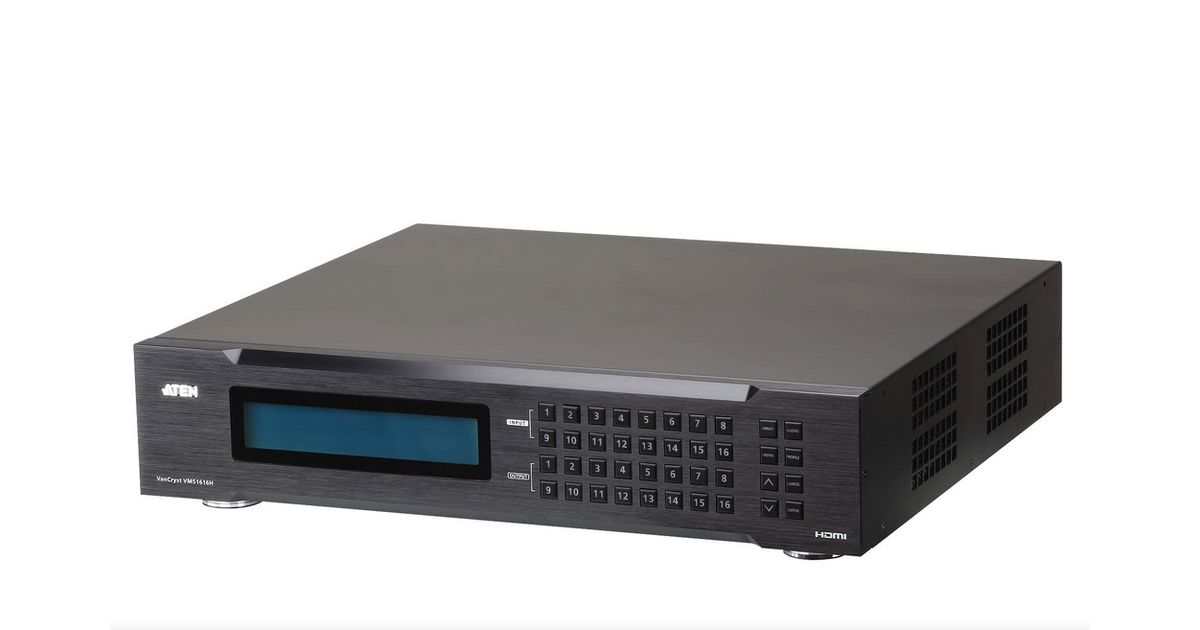

ATEN 16x16 HDMI Matrix Switch + Videowall + Scaler and seamless switching
ATEN 16x16 HDMI Matrix Switch + Videowall + Scaler and seamless switching, Scaling matrix switcher, 6.75 Gbit/s, 1920 x 1080 pixels, Black, Metal, 2U
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ATEN |
| Product code | 21823693 |
| EAN | 04719264646072 |
| Manufacturer part number | VM51616H-AT-G |
| Category | VM switches and accessories |
| Design | |
|---|---|
| Product type | Scaling matrix switcher |
| Housing material | Metal |
| Rack mounting | Y |
| Rack capacity | 2U |
| LED indicators | Y |
| Features | |
|---|---|
| Data transfer rate | 6.75 Gbit/s |
| HDCP | Y |
| HDCP version | 1.4 |
| Extended display identification data (EDID) | Y |
| EDID management | Y |
| Housing colour | Black |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Other features | |
|---|---|
| 3D | Y |
| Ports & interfaces | |
|---|---|
| HDMI input ports quantity | 16 |
| HDMI output ports quantity | 16 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
| Power | |
|---|---|
| Power consumption (max) | 124.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case gross weight | 9.79 kg |
| Master (outer) case length | 57.5 cm |
| Master (outer) case width | 50.5 cm |
| Master (outer) case height | 17.5 cm |
| Master (outer) case net weight | 8.09 kg |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 381.8 mm |
| Depth | 432.4 mm |
| Height | 88 mm |
| Weight | 8.09 kg |
| Package weight | 9.79 kg |
| Packaging data | |
|---|---|
| Package width | 505 mm |
| Package depth | 575 mm |
| Package height | 175 mm |
| Packaging content | |
|---|---|
| Cables included | AC |
| Rack mount kit | Y |
Product Description
The VM51616H is a 16 x 16 HDMI Matrix Switch that offers an easy and affordable way to route any of 16 HDMI video and audio sources to 16 HDMI displays, with a quick view of all port connections via the front panel LCD or local HDMI output for multiple source preview.
1x VM51616H 16 x 16 HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x Rack Mounting Kit
1x User Instructions
1x VM51616H 16 x 16 HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x Rack Mounting Kit
1x User Instructions
