FLIR DM 285-FK thermal imaging camera Black 160 x 120 pixels Built-in display TFT
FLIR DM 285-FK, 50°, 38°, Grayscale, Ironbow, 99 Hz, 150 mK, 160 x 120 pixels
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | FLIR |
| Product code | 14361757 |
| EAN | 00793950373880 |
| Manufacturer part number | DM 285-FK |
| Category | Thermal cameras |
Product Description

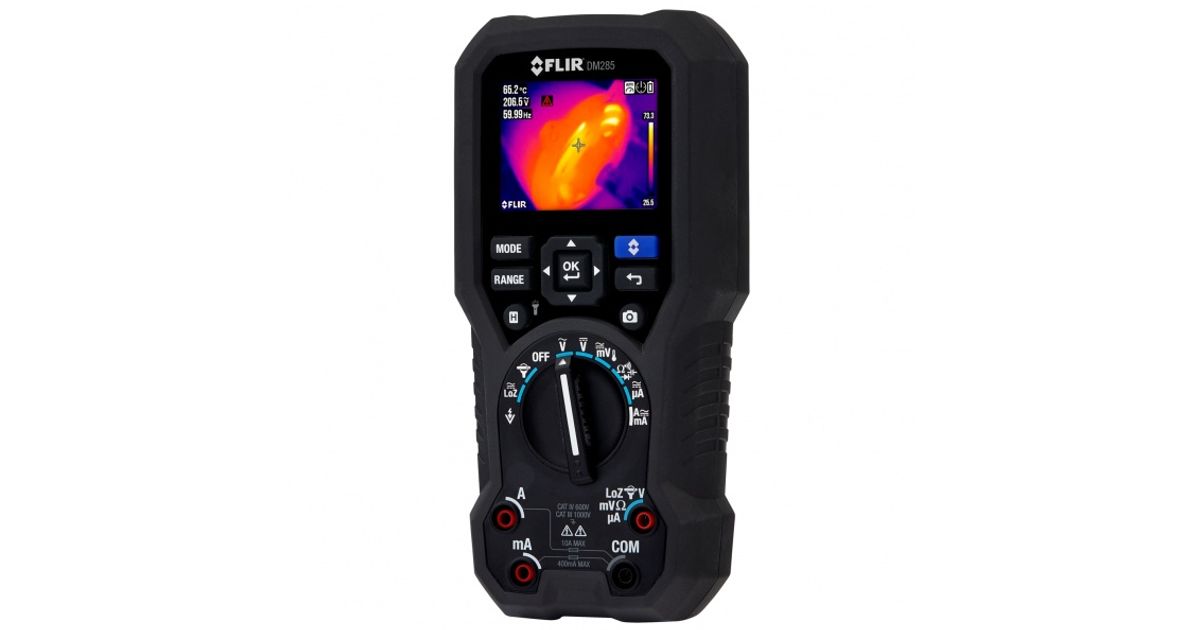

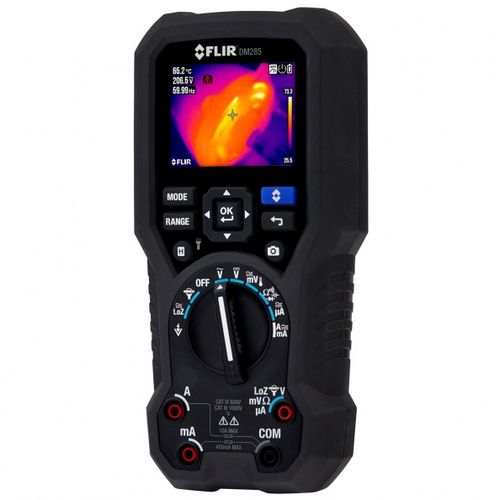

The FLIR DM285 thermal imaging digital multimeter is a professional, integrated digital multimeter with true RMS measurement and a thermal imaging module that allows you to locate electrical problems for faster resolution.
By using a thermal imaging module with a resolution of 160x120 and Infrared Assisted Measurement (IGM) technology, the DM285 allows you to visually locate an electrical problem, which speeds up your work and increases its efficiency.
Thanks to the IGM function, switchboards, connectors and cables can be checked from a safe distance without the need for direct contact.
Once the problem has been identified with IGM, the DM285 allows the results to be checked and confirmed with advanced contact measurement functions that enable the resolution of even the most complex electrical problems.
The device will be perfect for applications such as installation and service of electronic devices, electrical installations in commercial buildings, smaller industrial installations, field service and servicing of heating, ventilation and air conditioning systems.
The DM285 uses a unique Bluetooth® interface that enables wireless data transmission by connecting to the FLIR Tools Mobile ™ app on compatible mobile devices.
The DM285 is also compatible with the new FLIR InSite ™ workflow management tool for optimized inspection routing, accurate documentation, customer information sharing and instant reporting.
The FLIR DM285-FK set includes the flexible FLIR TA74 measuring clamps, which facilitate work and extend the capabilities of your multimeter. The slim 18-inch long flexible coil clamp and locking mechanism allow measurements to be taken in tight or awkward locations - making them ideal for multi-lead measurements that require double wrap and deeper access. The connection is a standard banana plug and the output is a voltage indicator, so they are compatible with most DMMs and clamp meters, regardless of brand.
The included Li-Poly FLIR TA04 battery extends the operating time of the device to 12 hours. The set includes a wall charger with EU, UK, US, AU and CN adapters.
Fast and safe troubleshooting
- Thermal imaging allows you to quickly scan for overheated components and use the DMM testing feature to diagnose failures.
- Exact localization of faults thanks to the thermal imaging module with a resolution of 160x120
- Scanning with IGM without the need for direct contact
- Streamlined audits and simplified collection, sharing and reporting with wireless connection to FLIR InSite ™
- Built-in memory allows you to save electrical parameters and thermal images
Easily troubleshoot difficult problems
- Comprehensive check of the condition of electrical installations thanks to readings that are always reliable, even with complex measurements.

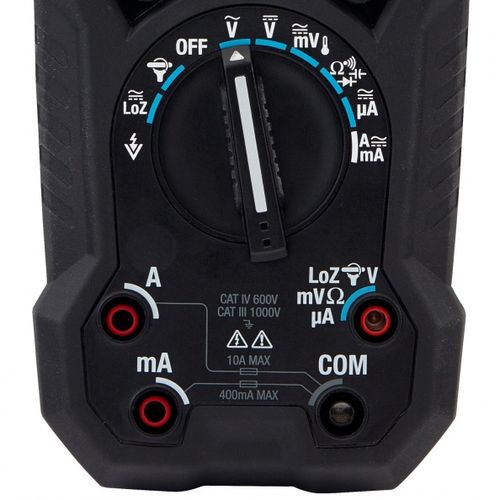

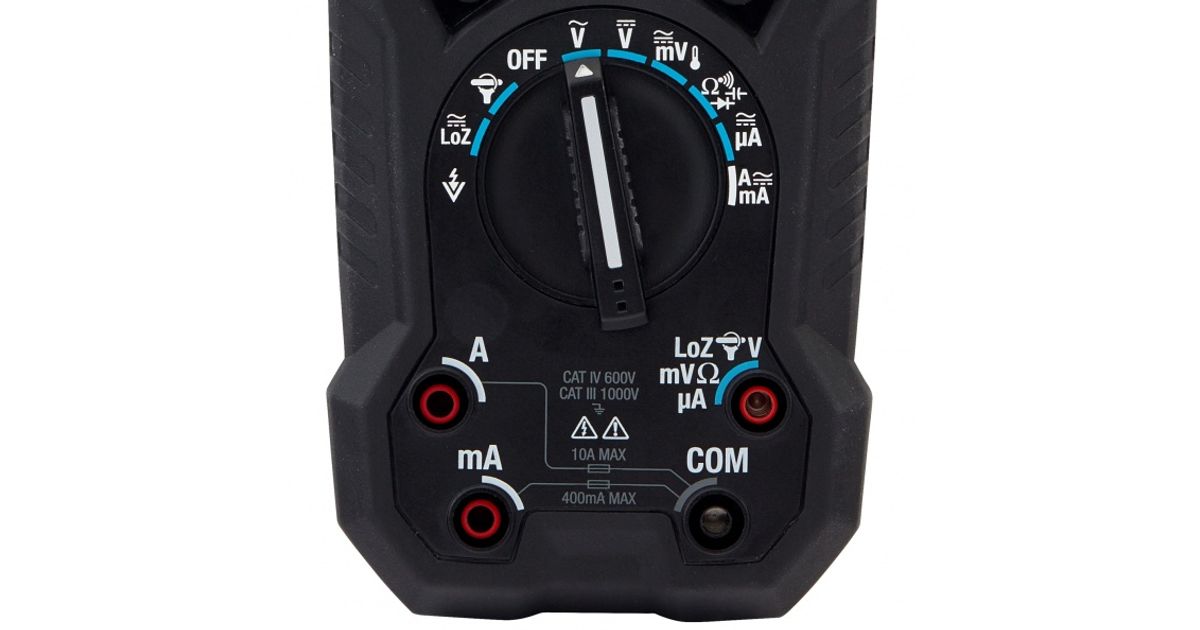

- Multimeter with 18 functions such as VFD mode, true RMS measurement, low impedance measurement and NCV
- Thermocouple input
- Simultaneous preview of thermal imaging and thermocouple measurements
Design and functionality tailored to the needs of specialists
- Integrated tool with high durability.
- Built-in work light and laser pointer for easy work
- Quick battery replacement thanks to the "no tool" compartment

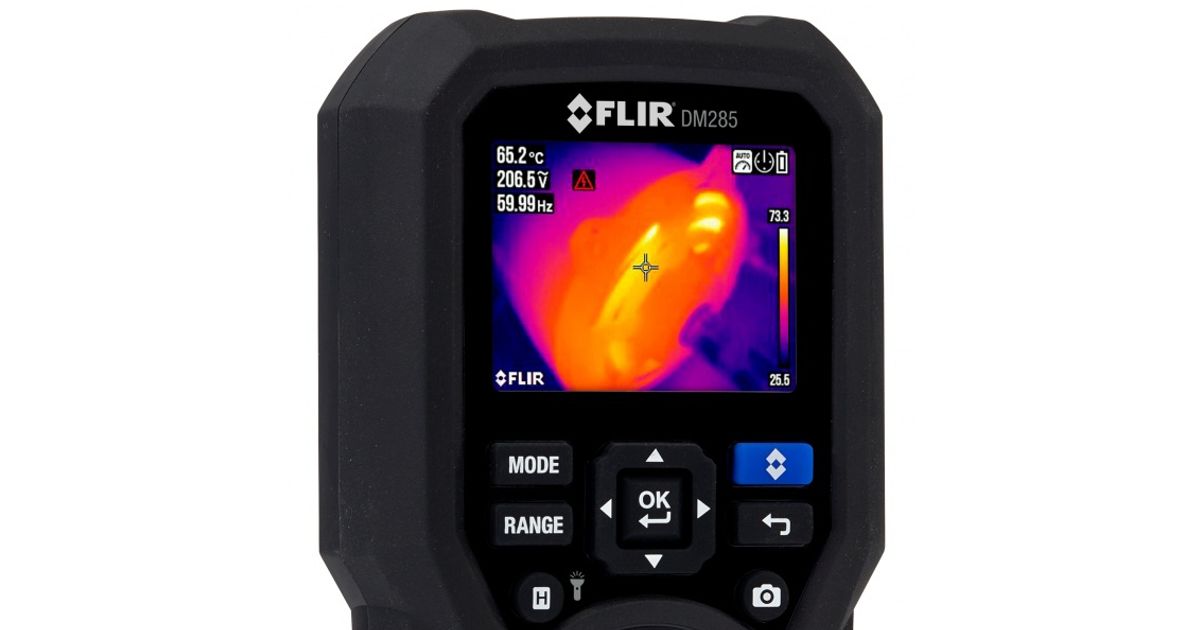

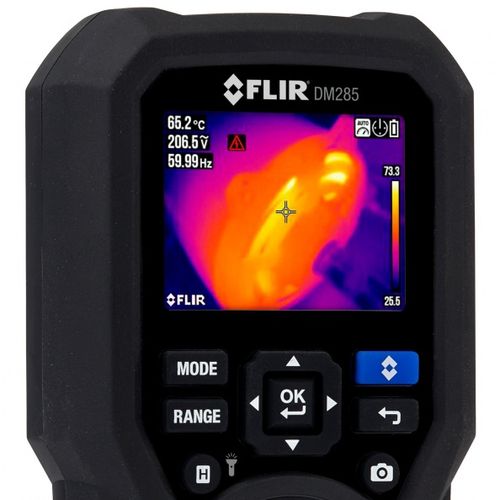

- Clear readings on TFT display with wide viewing angle and simple interface
- Robust device with proven drop resistance and 10-year warranty
Technical specification
Thermovision
- Simultaneous preview of thermovision and thermocouple measurements
- Image resolution: 19200px (160x120)

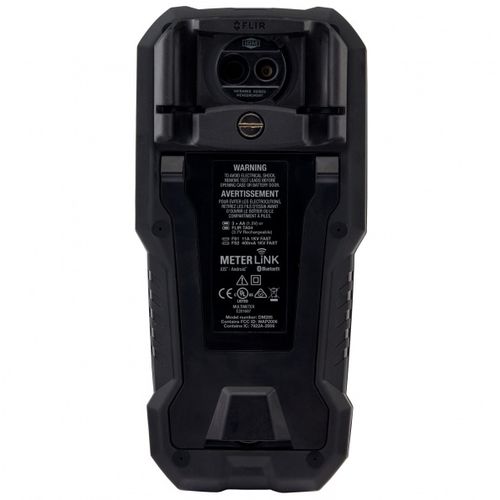

- Imaging detector: FLIR Lepton® microbolometer
- Thermal sensitivity (MRTD): ≤150mK
- Emissivity: 4 adjustable presets
- Accuracy: ± 3 ° C or ± 3.5%
- Measurement range: -10 ° C to 150 ° C (14 ° F to 302 ° F)
- Image sharpness: fixed focus
- Field of view: HFOV (horizontal) 50 °, VFOV (vertical) 38 °
- Laser pointer
- Color palettes: iron, rainbow and shades of gray
- Level and span: auto
Measurement functions
- True RMS measurement
- Automatic range selection with the option of manual adjustment
- Voltage AC / DC V: 1000V ± 1.0% / 0.09%, AC / DC mV: 600mV ± 1.0% / 0.5%, VFD AC V: 1000V ± 1.0%, AC / DC LoZ V: 1000V ± 1.0%
- Current AC / DC A: 10.00A ± 1.5%, AC / DC mA: 600.0mA ± 1.5%, AC / DC µA: 4000µA ± 1.0%
- Resistance: 6.000MΩ ± 0.9%, 50.00MΩ ± 3.0%
- Capacity: 10.00mF ± 1.9%
- Diode test: 1.500V ± 0.9%
- Frequency range: 99.99kHz ± 0.1%
- Thermocouple: K-type from -40 ° C to 400 ° C (from -40 ° F to 752 ° F) ± 1.0% + 3 ° C (IGM)
- Continuity check threshold: from 20Ω to 200Ω
- Min / Max / Avg function
- Measurement speed: 3 samples per second
- Measurement range of optional TA72 / 74 clamps: 3000A AC ± 3.0% + 5 digits
General Information
- Drop resistance: 3m
- Waterproof: IP40
- Lighting: LED lights
- Display: 2.8 "TFT
- Power supply: 3x AA batteries or TA04 Li-Poly battery
- Battery life (all modes on): AA batteries 3h, TA04 rechargeable battery 12h.
- Data logging and storage: 10 sets of 40K scalar measurements, 100 images
- Data transmission: Bluetooth®
- Automatic shutdown
- Safety category classification: CAT III 1000V, CAT IV 600V
- Warranty: 10 years (product and detector)
- Product dimensions: 200x95x49mm
- Product weight: 537g
- Package dimensions: 330x140x110mm
- Package weight: 1150g

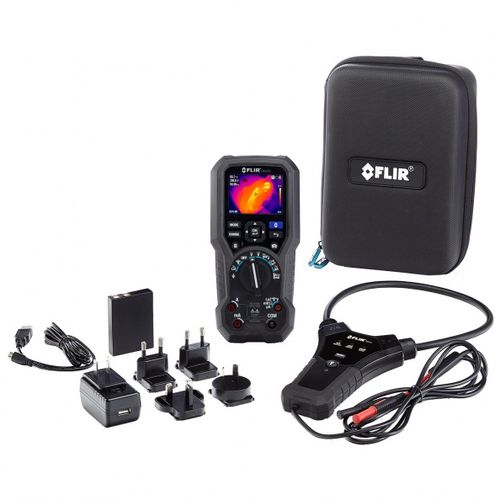

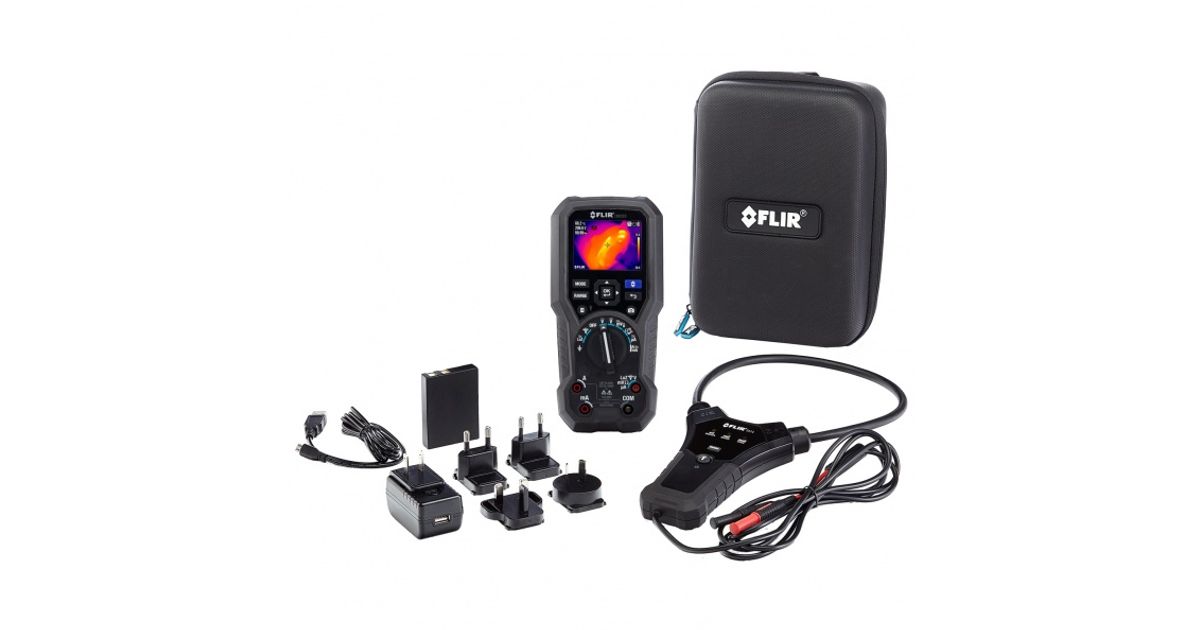

Composition of the kit
- Universal multimeter FLIR DM285-FK
- Flexible measuring clamp TA74
- K type thermocouple
- Silicone cables
- Measuring crocodile clips with CAT IV insulation
- TA04 Li-Poly battery + mains charger with a set of adapters
- 3x AA batteries
- Container for test lead / tripod accessory
- Convenient case
- Shortened multilingual instruction manual in printed version (including in Polish)
- Extended warranty registration card
