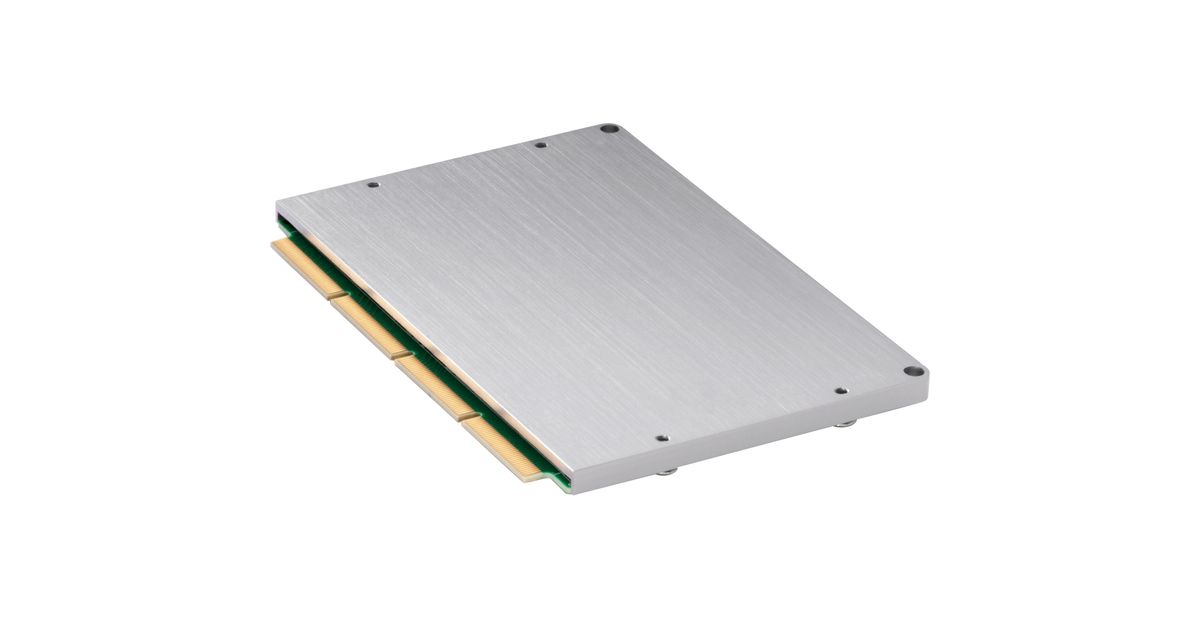

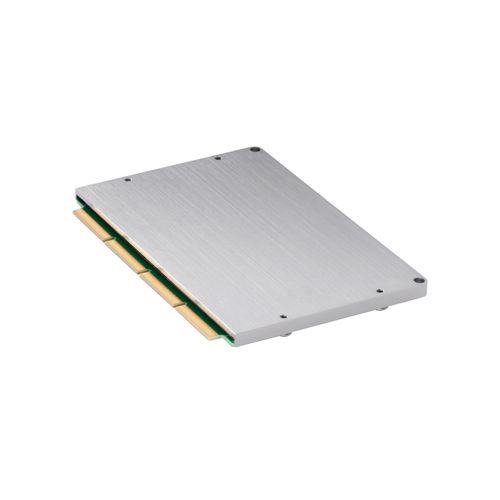

Intel NUC 12 Compute Element ELM12HBi7 Intel® Core™ i7 16 GB
Intel NUC 12 Compute Element ELM12HBi7, Intel® Core™ i7, Intel, i7-1255U, 12th gen Intel® Core™ i7, 4.7 GHz, 12 MB
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Intel |
| Product code | 229407512 |
| EAN | 05032037232814 |
| Manufacturer part number | BELM12HBI732W |
| Processor | |
|---|---|
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Processor model | i7-1255U |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor boost frequency | 4.7 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor threads | 12 |
| Configurable TDP-down | 12 W |
| Memory | |
|---|---|
| Memory types supported by processor | LPDDR-SDRAM |
| Internal memory | 16 GB |
| Internal memory type | LPDDR5 |
| Memory clock speed | 5200 MHz |
| ECC | N |
| Memory channels | Dual-channel |
| Supported memory types | LPDDR-SDRAM |
| Graphics | |
|---|---|
| On-board graphics adapter | N |
| On-board graphics adapter model | Intel Iris Xe Graphics |
| Discrete graphics adapter | N |
| On-board graphics adapter family | Intel Iris Xe Graphics |
| On-board graphics adapter dynamic frequency (max) | 1.2 MHz |
| On-board graphics adapter DirectX version | 12.1 |
| On-board graphics adapter OpenGL version | 4.6 |
| On-board graphics adapter ID | 0x46A8 |
| On-board graphics adapter 4K support | Y |
| Number of displays supported (on-board graphics) | 4 |
| Mounting | |
|---|---|
| Number of displays supported | 4 |
| Network | |
|---|---|
| Wi-Fi | Y |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Y |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Y |
| Bluetooth version | 5.3 |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 1 |
| Thunderbolt 4 ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Design | |
|---|---|
| Product colour | Grey |
| Performance | |
|---|---|
| Fanless | Y |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Software | |
|---|---|
| Operating system installed | N |
| Other features | |
|---|---|
| Compatible operating systems | Windows 10, 64-bit*|Windows 10 IoT Enterprise*|Linux* |
| Status | Launched |
| Processor special features | |
|---|---|
| Intel Flex Memory Access | Y |
| Intel® AES New Instructions (Intel® AES-NI) | Y |
| Execute Disable Bit | Y |
| Intel Trusted Execution Technology | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Embedded options available | N |
| Intel ME Firmware Version | 16 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel Virtualization Technology (VT-x) | Y |
| Processor ARK ID | 225816 |
| Intel® Platform Trust Technology (Intel® PTT) | Y |
| Weight & dimensions | |
|---|---|
| Width | 95 mm |
| Depth | 6 mm |
| Height | 65 mm |
| Features | |
|---|---|
| Harmonized System (HS) code | 8471500150 |
Product Description
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® ME Firmware Version
Intel® Management Engine Firmware (Intel® ME FW) uses built-in platform capabilities and management and security applications to remotely manage networked computing assets out-of-band.
Intel® Virtualization Technology (VT-x) ‡
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® ME Firmware Version
Intel® Management Engine Firmware (Intel® ME FW) uses built-in platform capabilities and management and security applications to remotely manage networked computing assets out-of-band.
Intel® Virtualization Technology (VT-x) ‡
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
