Holzmann TFM610V Table Router
Tuotetiedot
| Yleistä tietoa | |
|---|---|
| Valmistaja | Holzmann |
| Tuotekoodi | 117892003 |
| EAN | 09120058378010 |
| Valmistajan koodi | TFM610_230V |
| Kategoria | Siivousvälineiden tarvikkeet |
Tuotekuvaus
Holzmann TFM610V_230V Table Router
Features:
- table router in compact design perfect for the DIYers
- speed range adjustable from 11500-24000min-1 (6 steps)
- adjustable spindle height from 0-40mm (incl. indicator)
- powerful motor
- various serial accessories included
Technical Details:
Motor data
- motor power s1: 1500 W
- Voltage: 230V / 50Hz
- cable length: 2m
Measurements
- Table size: 610 x 360 mm
- Table height: 310 mm
- Table extension: 210 x 360 mm
- Total dimensions: 1035 x 690 x 555 mm
- Suction port: Ø 100 mm
Technical specification
- Milling spindle speed: 11500 - 24000 1/min
- Spindle stroke: 0-40 mm
- Table opening: 32/47/55 mm
- Max. tool diameter below table: 50 mm
- Max. tool diameter above table: 50 mm
Volume level and vibration
- Sound power level: 89 dB(A)
- Sound pressure level: 102 dB(A)
Included in Delivery:
- collets for ø6, ø8 and 12mm
- 2 times table extension (for both sides)

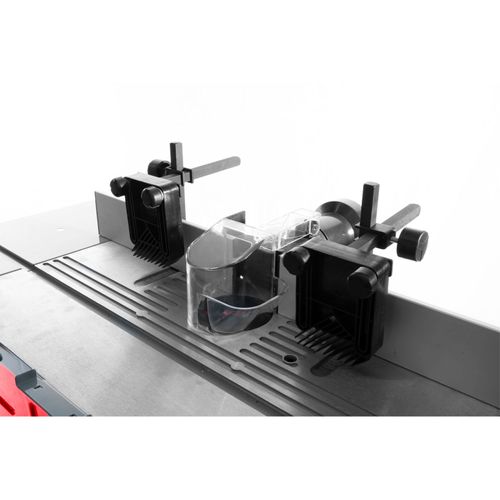

- miter gauge, milling stop/fence out of aluminium
- sliding wood
-
Technical Data
- Max. Milling Diameter (mm):
- 50
- Idle Speed (min-1):
- 11500 - 24000
- Sound Pressure (dB):
- 102
- Sound Power Level (LpA) in db(A):
- 89
- Tool Mounting System:
- Collet
- Diameter Tool Holder (mm):
- 6 / 8 / 12
- Lifting Height (mm):
- 0 - 40
-
Energy Supply
- Power (Watt):
- 1500
-
Type
- Type:
- Table Milling Machine
- Operating Mode:
- Mains
-
General
- Colour:
- Red / Black
- Weight (kg):
- 21,00
