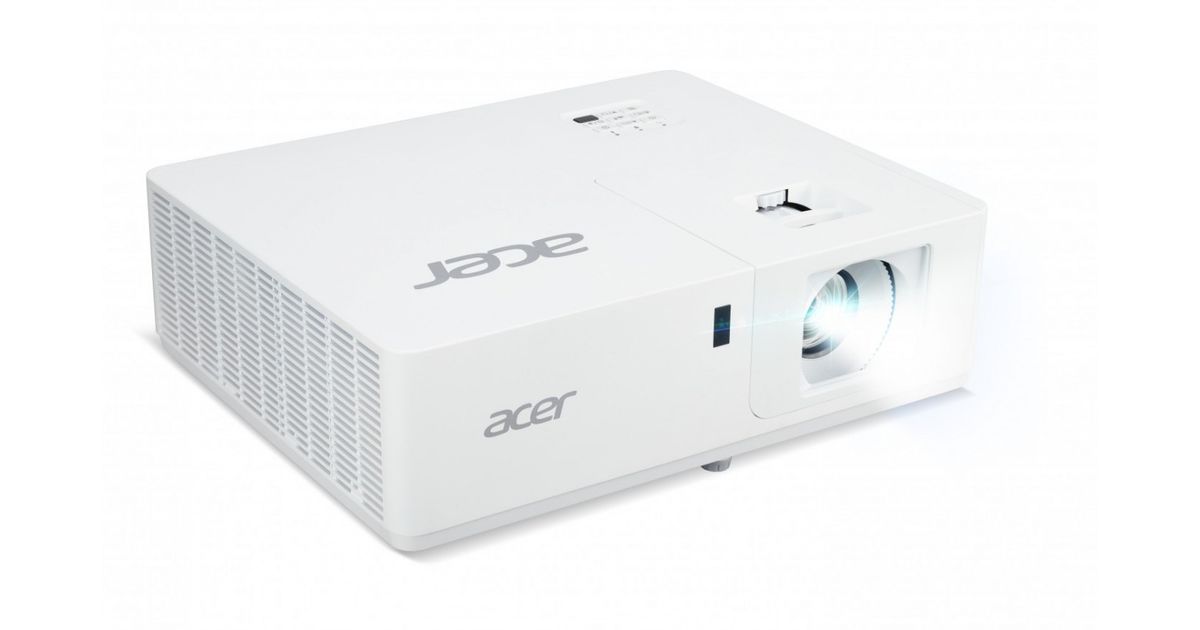

Acer PL6610T data projector Ceiling-mounted projector 5500 ANSI lumens DLP WUXGA (1920x1200) White
Acer PL6610T, 5500 ANSI lumens, DLP, WUXGA (1920x1200), 2000000:1, 16:10, 509.8 - 7620 mm (20.1 - 300")
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Acer |
| Product code | 01160274 |
| EAN | 04710180131321 |
| Manufacturer part number | MR.JR611.001 |
| Category | Projectors |
| Projector | |
|---|---|
| Projector brightness | 5500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Projection distance | 1 - 9.3 m |
| Number of colours | 1.073 billion colours |
| Projector brightness (economic mode) | 4400 ANSI lumens |
| Uniformity | 80% |
| Keystone correction, horizontal | -+30° |
| Keystone correction, vertical | -+30° |
| Horizontal synchronization (min) | 15 kHz |
| Horizontal synchronization (max) | 100 kHz |
| Vertical synchronization (min) | 0.024 kHz |
| Vertical synchronization (max) | 0.12 kHz |
| Display | |
|---|---|
| Contrast ratio (typical) | 2000000:1 |
| Native aspect ratio | 16:10 |
| Design | |
|---|---|
| Screen size compatibility | 509.8 - 7620 mm (20.1 - 300") |
| Product type | Ceiling-mounted projector |
| Product colour | White |
| Built-in display | N |
| Video | |
|---|---|
| Supported aspect ratios | 4:3,16:10,16:9 |
| 3D Ready | Y |
| Light source | |
|---|---|
| Light source type | Laser/LED hybrid |
| Service life of light source | 20000 h |
| Lens system | |
|---|---|
| Focal length range | 20.91 - 32.63 mm |
| Zoom ratio | 1.61:1 |
| Vertical lens shift range | 103 - 118% |
| Features | |
|---|---|
| Aperture range (F-F) | 2.5 - 3.26 |
| Throw ratio | 1.4 - 2.24:1 |
| Noise level (economic mode) | 28 dB |
| Projection modes | Ceiling, Front, Rear |
| Placement | Ceiling |
| Camera | |
|---|---|
| Zoom capability | Y |
| Digital zoom | 2x |
| Performance | |
|---|---|
| Full HD | Y |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| Composite video in | 1 |
| Serial interface type | RS-232 |
| S-Video inputs quantity | 1 |
| HDBaseT port | Y |
| Headphone outputs | 1 |
| Microphone in | Y |
| PC Audio in | Y |
| PC Audio out | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Other features | |
|---|---|
| Noise level | 31 dB |
| Remote control included | Y |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Number of built-in speakers | 2 |
| Multimedia | |
|---|---|
| RMS rated power | 20 W |
| Power | |
|---|---|
| Power source | AC |
| Power consumption (typical) | 321 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 120 - 230 V |
| AC adapter output voltage | 100 - 240 V |
| Weight & dimensions | |
|---|---|
| Weight | 6 kg |
| Width | 374 mm |
| Depth | 302 mm |
| Height | 117 mm |
| Package weight | 8.3 kg |
| Packaging data | |
|---|---|
| Package width | 520 mm |
| Package depth | 425 mm |
| Package height | 225 mm |
| Packaging content | |
|---|---|
| Cables included | AC, HDMI |
