For illustrative purpose only

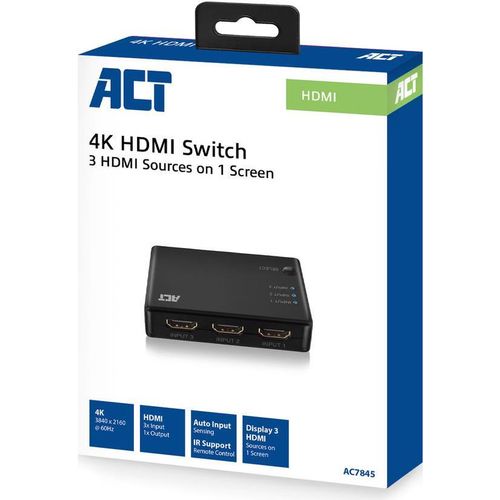

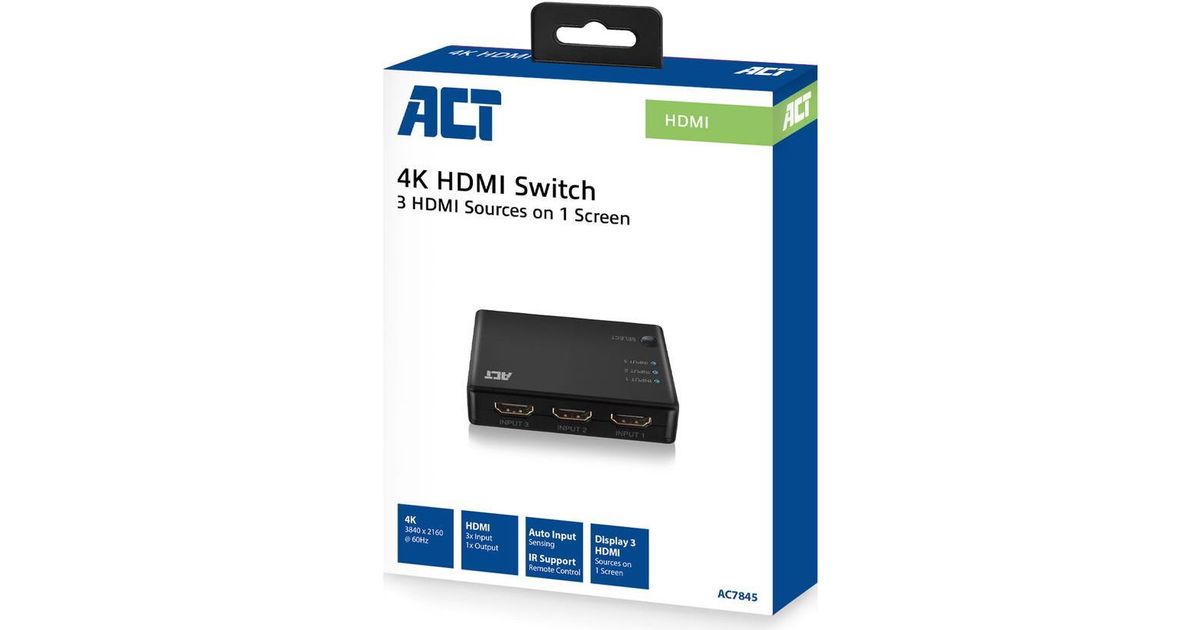

ACT AC7845 video switch HDMI
ACT AC7845, HDMI, Black, 60 Hz, 1920 x 1080 (HD 1080), 3840 x 2160, 1080p, 2160p, 3840 x 2160 pixels
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ACT |
| Product code | 166329377 |
| EAN | 08716065491340 |
| Manufacturer part number | AC7845 |
| Category | Audio/video/HDMI switches and splitters |
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| Design | |
|---|---|
| Product colour | Black |
| Features | |
|---|---|
| Extended display identification data (EDID) | Y |
| HDCP | Y |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes | 1080p, 2160p |
| Harmonized System (HS) code | 85176990 |
| Display | |
|---|---|
| Maximum refresh rate | 60 Hz |
| Graphics | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Packaging data | |
|---|---|
| Package width | 125 mm |
| Package depth | 25 mm |
| Package height | 160 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
|---|---|
| Package weight | 144 g |
| Other features | |
|---|---|
| Remote control included | Y |
| Packaging content | |
|---|---|
| Cables included | IR, USB |
Product Description
The AC7845 4K HDMI Switch 3x1 enables you to display 3 HDMI sources on one TV/screen. Switching between the sources is easy with the supplied remote control. The AC7845 switches automatically to the first available source thanks to the auto-input-sensing. The maximum supported resolution is 3840x2160 @ 60Hz.
Display three HDMI sources on one TV

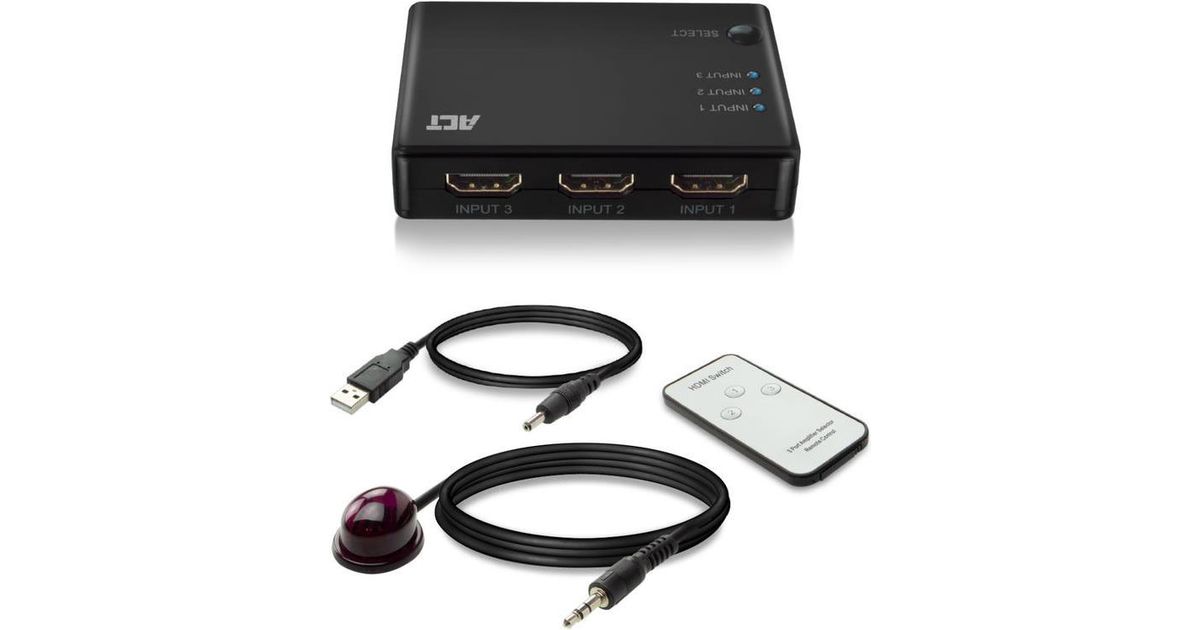

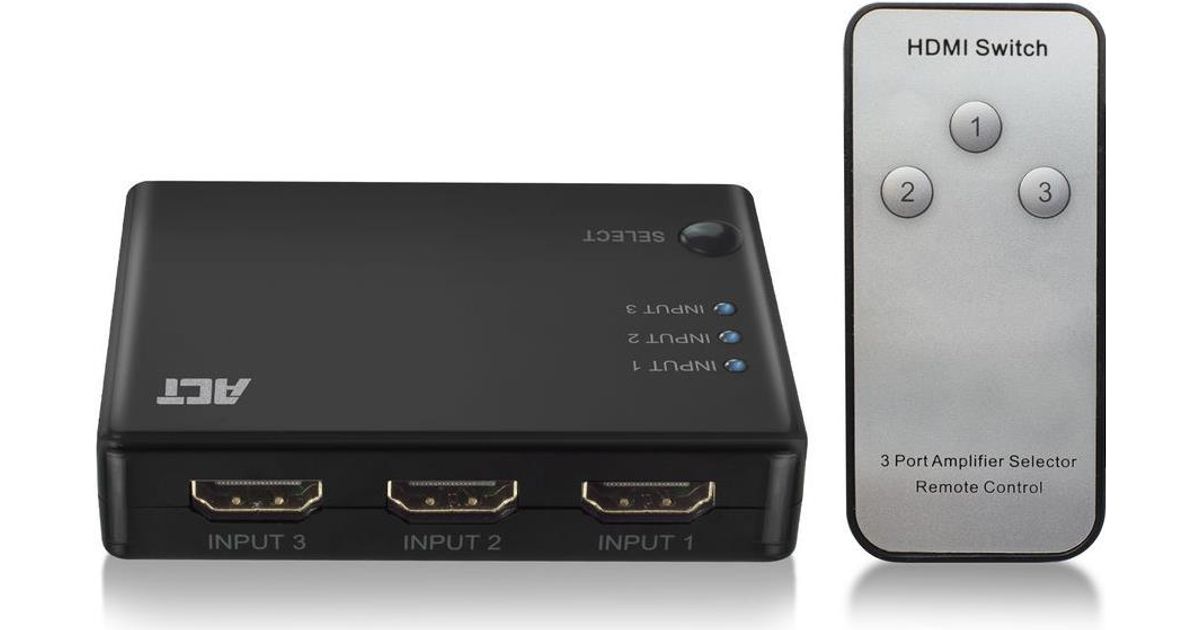

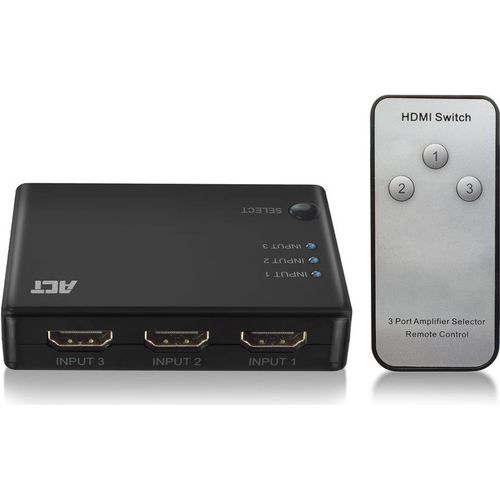

Use the AC7845 4K 3x1 HDMI Switch for switching between multiple video sources on a single TV. E.g. a laptop, game console or TV streamer. The AC7845 supports Auto-Input-Sensing which enables the switch to detect the first available source. With the included remote control you can easily select the HDMI source that should be displayed. The status LEDs show the occupied input ports.
Connect your devices
Connect the video sources with High Speed HDMI cables to the HDMI input ports of the AC7845 HDMI Switch. Connect a TV/monitor with a High Speed HDMI cable to the output port of the switch. The maximum recommended length for HDMI cables is 5 meters. The AC7845 is USB powered via the enclosed cable.
Display three HDMI sources on one TV
Use the AC7845 4K 3x1 HDMI Switch for switching between multiple video sources on a single TV. E.g. a laptop, game console or TV streamer. The AC7845 supports Auto-Input-Sensing which enables the switch to detect the first available source. With the included remote control you can easily select the HDMI source that should be displayed. The status LEDs show the occupied input ports.
Connect your devices
Connect the video sources with High Speed HDMI cables to the HDMI input ports of the AC7845 HDMI Switch. Connect a TV/monitor with a High Speed HDMI cable to the output port of the switch. The maximum recommended length for HDMI cables is 5 meters. The AC7845 is USB powered via the enclosed cable.
