AG Neovo HX-24G LED display 59.9 cm (23.6") 1920 x 1080 pixels Full HD LCD Black
AG Neovo HX-24G, 59.9 cm (23.6"), 1920 x 1080 pixels, Full HD, LCD, 3 ms, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | AG Neovo |
| Product code | 576099091 |
| EAN | 04710739595949 |
| Manufacturer part number | HX-24G |
| Category | Monitors |
| Display | |
|---|---|
| Display diagonal | 59.9 cm (23.6") |
| Display resolution | 1920 x 1080 pixels |
| Panel type | TN |
| HD type | Full HD |
| Display technology | LCD |
| Screen shape | Flat |
| Display number of colours | 16.78 million colours |
| Display brightness (typical) | 300 cd/m² |
| Response time | 3 ms |
| Contrast ratio (dynamic) | 20000000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.272 x 0.272 mm |
| Horizontal scan range | 24 - 83 kHz |
| Vertical scan range | 50 - 75 Hz |
| Surface hardness | 9H |
| Design | |
|---|---|
| Backlight type | LED |
| Market positioning | Business |
| Product colour | Black |
| Cable lock slot type | Kensington |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Number of speakers | 2 |
| Camera | |
|---|---|
| Built-in camera | N |
| Multimedia | |
|---|---|
| RMS rated power | 4 W |
| Features | |
|---|---|
| Certification | CB, CE, FCC, WEEE, REACH |
| VESA mounting | Y |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Ports & interfaces | |
|---|---|
| Built-in USB hub | N |
| HDMI | Y |
| USB Type-A downstream ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Y |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| Audio input | Y |
| Rear panel I/O ports | |
|---|---|
| DVI-D ports quantity | 1 |
| Performance | |
|---|---|
| Cable lock slot | Y |
| Ergonomics | |
|---|---|
| Tiltable | Y |
| Tilt angle range | 0 - 18° |
| Power | |
|---|---|
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 21 kWh |
| Power consumption (typical) | 25 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| Energy efficiency scale | A to G |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 562.4 mm |
| Depth (with stand) | 196 mm |
| Height (with stand) | 392.8 mm |
| Weight (with stand) | 8.1 kg |
| Width (without stand) | 56.2 cm |
| Depth (without stand) | 5.62 cm |
| Height (without stand) | 35.3 cm |
| Weight (without stand) | 7.3 kg |
| Package weight | 11.2 kg |
| Packaging content | |
|---|---|
| Stand included | Y |
| Cables included | AC, Audio (3.5mm), VGA |
| Power adapter included | Y |
| Other features | |
|---|---|
| Quick start guide | Y |
| Packaging data | |
|---|---|
| Package width | 672 mm |
| Package depth | 249 mm |
| Package height | 517 mm |
Product Description

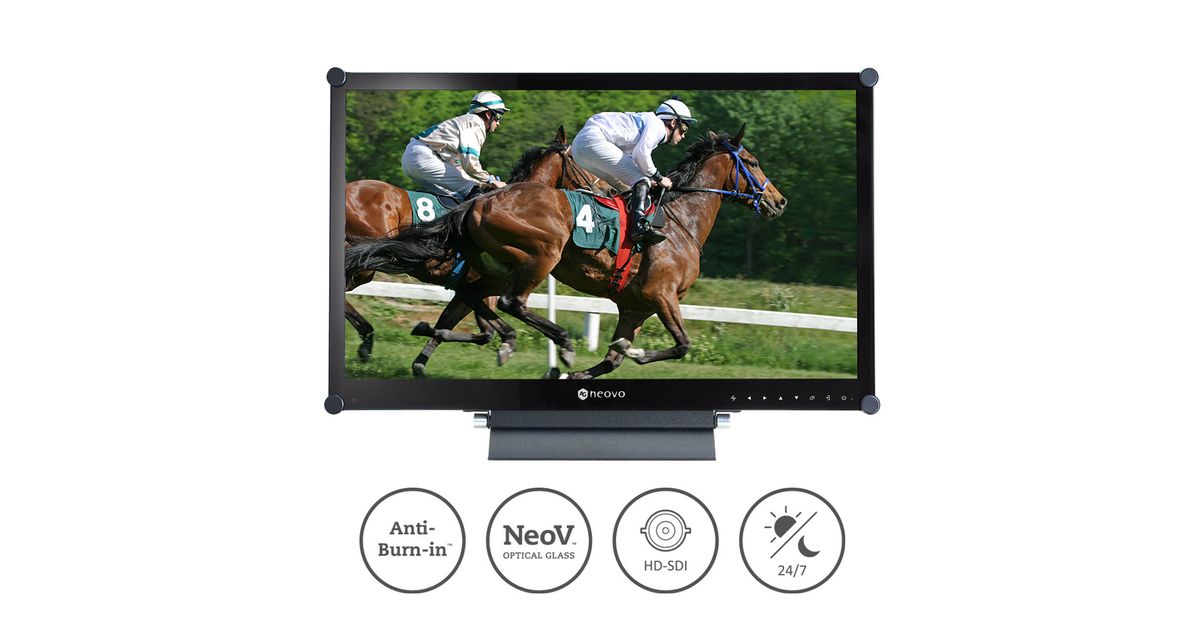

Tailored to the applications of uncompressed and high-definition video transmission, the HX-24G features SDI input and output that allow to receive and transmit the megapixel image directly from 3G/SD/HD-SDI devices. The HX-24G fulfills the critical need of broadcasting and studio production in the light of ultra-low latency and signal interruption over long-distance transmission. Its NeoV™ Optical Glass and metal casing offer the state-of-art protection that empowers HX-24G to survive the rigours of production in studios and surveillance environment. Real-time and uncompressed, HX-24G is the perfect choice for broadcast, security and public environments.
Uninterrupted Transmission
The HX-24G has been designed for broadcasting as well as surveillance applications, which supports multiple SDI video signals up to 3G-SDI to ensures all video formats can be broadcast uninterruptedly. Its high-quality SDI input and loop through SDI output makes it easy to connect other gear without the need for a splitter.
Unbeatable Image Clarity
Built with cutting-edge super-resolution technology, the HX-24G can upscale images at a higher and more detailed resolution for better clarity. The AG Neovo specialized image settings enhance colour, brightness, sharpness and contrast ratio, allowing the HX-24G to improve the light, shadows and colour balance of videos.
Industry-leading Reliability
The HX-24G is specially designed to transcend the challenge of enduring 24/7 operations. AG Neovo’s Anti-Burn-in™ technology also prevents image ghosting while performing nonstop mission-critical operations. Its metal casing and NeoV™ Optical Glass not only protect the HX-24G from damage but also keep maintenance easy.
