AG Neovo TX-1702 43.2 cm (17") 1280 x 1024 pixels SXGA LCD Touchscreen Tabletop Black
AG Neovo TX-1702, 43.2 cm (17"), 1280 x 1024 pixels, SXGA, LCD, 3 ms, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | AG Neovo |
| Product code | 797703938 |
| EAN | 04710739597264 |
| Manufacturer part number | TX-1702 |
| Category | Monitors |
| Display | |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | Y |
| HD type | SXGA |
| Panel type | TN |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Display number of colours | 16.7 million colours |
| Touchscreen type | Tabletop |
| Touch technology | Multi-touch |
| Display brightness (typical) | 250 cd/m² |
| Response time | 3 ms |
| Anti-glare screen | Y |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Digital horizontal frequency | 31 - 80 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Display diagonal (metric) | 43.1 cm |
| Haze rate | 25% |
| Surface hardness | 7H |
| RGB colour space | NTSC |
| NTSC coverage (typical) | 72% |
| Design | |
|---|---|
| Backlight type | LED |
| Market positioning | Business |
| Product colour | Black |
| Housing material | Metal |
| International Protection (IP) code | IP65 |
| Glass thickness | 3.1 mm |
| Cable lock slot type | Kensington |
| Tilt adjustment | Y |
| Performance | |
|---|---|
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| NVIDIA G-SYNC | N |
| AMD FreeSync | N |
| Operating hours (hours/days) | 24/7 |
| Cable lock slot | Y |
| Software | |
|---|---|
| Operating system installed | Windows 10 |
| Windows operating systems supported | Windows 2000, Windows CE, Windows Vista, Windows XP |
| Mac operating systems supported | Y |
| Features | |
|---|---|
| Linux operating systems supported | Y |
| Certification | CE, LVD, WEEE, RoHS, REACH, EAC |
| VESA mounting | Y |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Y |
| Plug and Play | Y |
| Power supply type | External |
| Harmonized System (HS) code | 85285210 |
| Audio | |
|---|---|
| Built-in speaker(s) | N |
| Built-in microphone | N |
| Camera | |
|---|---|
| Built-in camera | N |
| Ports & interfaces | |
|---|---|
| Built-in USB hub | N |
| HDMI | Y |
| Headphone out | N |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| Ergonomics | |
|---|---|
| Height adjustment | N |
| Tilt angle range | -5 - 90° |
| Power | |
|---|---|
| Power consumption (typical) | 10 W |
| Power consumption (standby) | 0.8 W |
| Power consumption (off) | 0.3 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Packaging content | |
|---|---|
| Stand included | Y |
| Cables included | AC, HDMI, USB, VGA |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 380 mm |
| Depth (with stand) | 343.4 mm |
| Height (with stand) | 214.2 mm |
| Weight (with stand) | 5.8 kg |
| Width (without stand) | 38 cm |
| Depth (without stand) | 31.8 cm |
| Height (without stand) | 4.95 cm |
| Weight (without stand) | 3.9 kg |
| Package weight | 8 kg |
| Packaging data | |
|---|---|
| Package width | 450 mm |
| Package depth | 418 mm |
| Package height | 277 mm |
| Sustainability | |
|---|---|
| Sustainability compliance | Y |
| Sustainability certificates | CE, Low Voltage Directive (LVD), REACH, RoHS, WEEE |
| System requirements | |
|---|---|
| Mobile operating systems supported | Android 2.3, Android 4.0 |
Product Description
AG Neovo TX-1702 17-inch touch screen monitor provides a smooth and responsive touch experience with 10-point projected capacitive (PCAP) multi-touch screens, including responsiveness to latex gloves. With DisplayPort, HDMI and VGA input connectivity, the TX-1702 supports analogue and digital signals respectively, making them flexible for various applications such as factory automation, information displays, digital signage, and self-service kiosks. The TX-1702 touch monitor is complemented by a metal housing with an edge-to-edge tempered glass design which enhances durability for continuous operation in demanding and high-traffic areas.
PREMIUM PCAP MULTI TOUCH SCREEN
Based on PCAP touch screen technology, the TX-1702 touch screen monitor can register up to 10 simultaneous touch points with fast, accurate, and extremely sensitive touch responses. These seamless touch senses are identical to those used in smartphones and tablets.
CROSS-PLATFORM TOUCH CAPABILITY
Multi-Touch capability is optimized to work with various operating systems, providing compatibility with Windows, Linux, macOS, and certain Android versions. This enables more choice to the operating system you use.
IP65 DUST AND WATER PROTECTION
The TX-1702 front IP65 touch screen monitor is designed to protect against dust and liquid spills. This makes the TX-1702 a durable touch monitor ideal for the industrial workplace or the demanding, high-use, and high-traffic public locations.
CONSISTENT FORM FACTOR DESIGN
Replacing AG Neovo touch screens never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.
DURABLE AND SCRATCH RESISTANT TOUCH SCREEN
For 24/7 operations in public settings, the TX-1702 uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.
ERGONOMIC MONITORS WITH FLEXIBLE MOUNTING

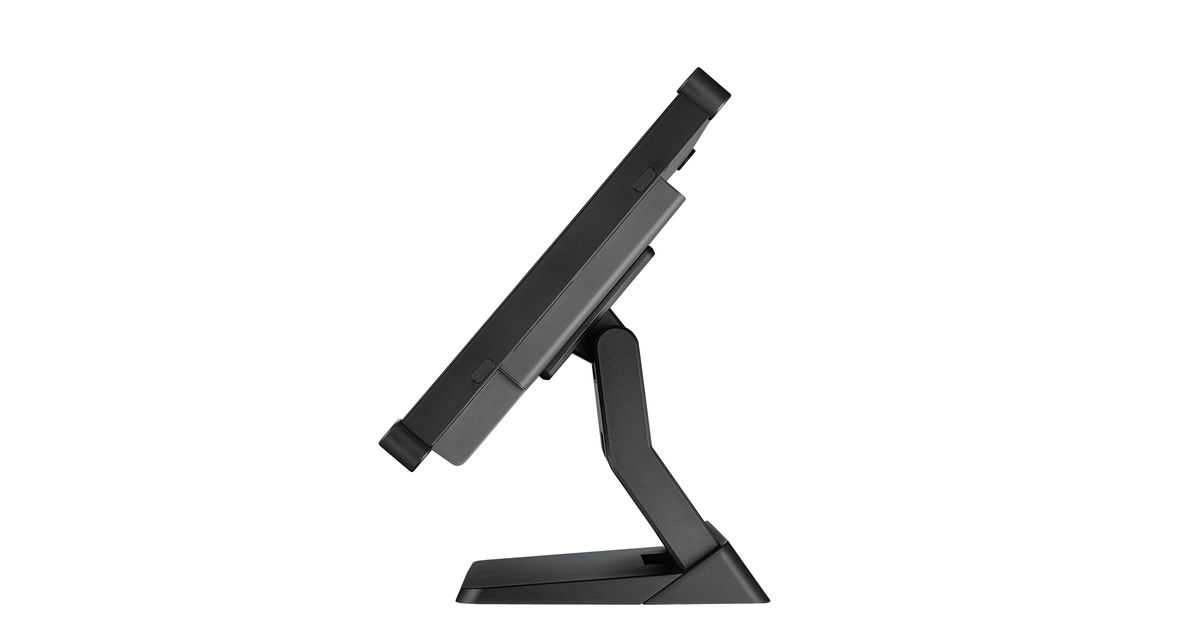

The TX-1702 touch monitor offers flexible mounting options, from the adjustable stand that come with the monitor to desk mounts, wall mounts, and all monitor mounts feature VESA mounting patterns. The TX-1702 features adjustable tilt stands. With a tilt capacity ranging from -5 to 90 degrees, users can work in the position most comfortable for them. Tilt stands are beneficial for facilitating public access by non-disabled and disabled users.
VERSATILE CONNECTIVITY

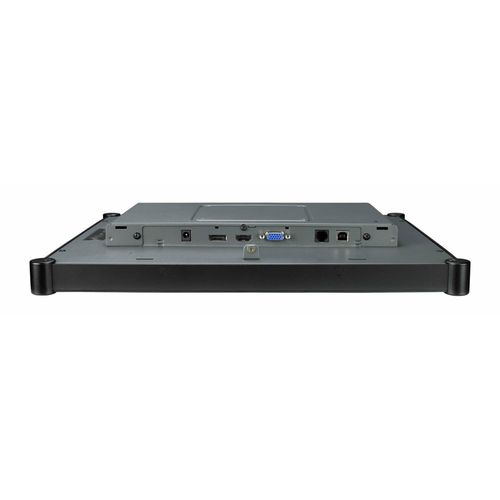

The TX-1702 provides new and legacy systems the best of both worlds since it has both analogue (VGA) and digital (DisplayPort and HDMI) video inputs, which provide maximum versatility and facilitate users to connect to a variety of devices.
PREMIUM PCAP MULTI TOUCH SCREEN
Based on PCAP touch screen technology, the TX-1702 touch screen monitor can register up to 10 simultaneous touch points with fast, accurate, and extremely sensitive touch responses. These seamless touch senses are identical to those used in smartphones and tablets.
CROSS-PLATFORM TOUCH CAPABILITY
Multi-Touch capability is optimized to work with various operating systems, providing compatibility with Windows, Linux, macOS, and certain Android versions. This enables more choice to the operating system you use.
IP65 DUST AND WATER PROTECTION
The TX-1702 front IP65 touch screen monitor is designed to protect against dust and liquid spills. This makes the TX-1702 a durable touch monitor ideal for the industrial workplace or the demanding, high-use, and high-traffic public locations.
CONSISTENT FORM FACTOR DESIGN
Replacing AG Neovo touch screens never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.
DURABLE AND SCRATCH RESISTANT TOUCH SCREEN
For 24/7 operations in public settings, the TX-1702 uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.
ERGONOMIC MONITORS WITH FLEXIBLE MOUNTING
The TX-1702 touch monitor offers flexible mounting options, from the adjustable stand that come with the monitor to desk mounts, wall mounts, and all monitor mounts feature VESA mounting patterns. The TX-1702 features adjustable tilt stands. With a tilt capacity ranging from -5 to 90 degrees, users can work in the position most comfortable for them. Tilt stands are beneficial for facilitating public access by non-disabled and disabled users.
VERSATILE CONNECTIVITY
The TX-1702 provides new and legacy systems the best of both worlds since it has both analogue (VGA) and digital (DisplayPort and HDMI) video inputs, which provide maximum versatility and facilitate users to connect to a variety of devices.
