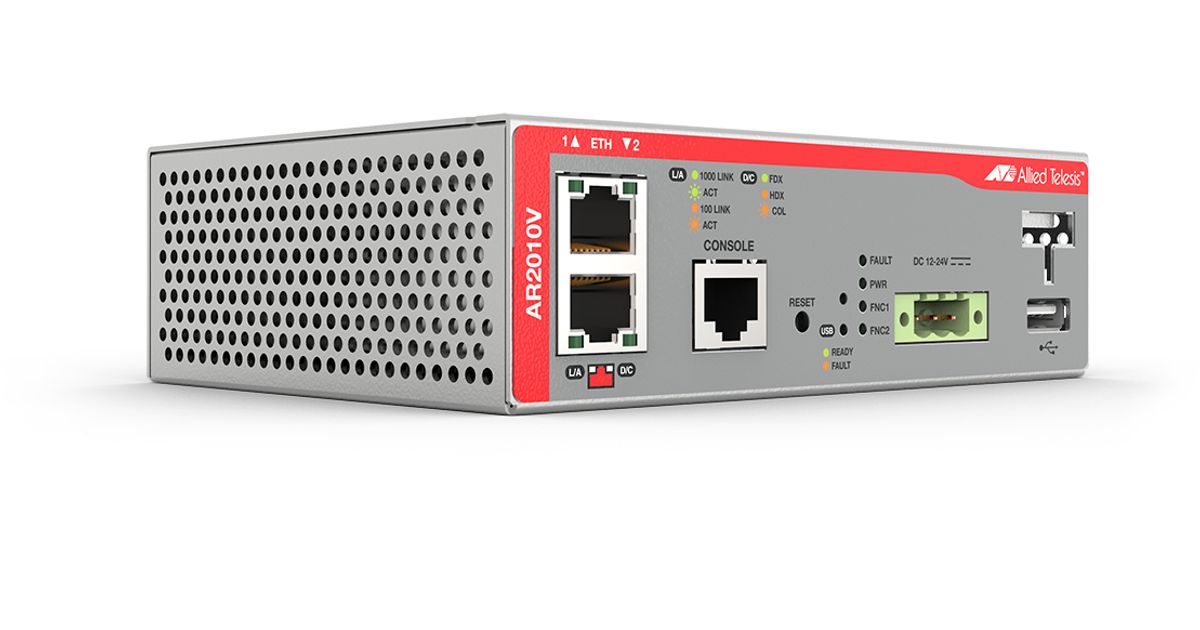

Allied Telesis AT-AR2010V-30 hardware firewall 750 Mbit/s
Allied Telesis AT-AR2010V-30, 750 Mbit/s, 400 Mbit/s, 200 Mbit/s, 800 MHz, EN55022 class A, FCC class A, VCCI class A, 100 user(s)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Allied Telesis |
| Product code | 229889571 |
| EAN | 00767035208213 |
| Manufacturer part number | AT-AR2010V-30 |
| Data transmission | |
|---|---|
| Firewall throughput | 750 Mbit/s |
| VPN throughput | 400 Mbit/s |
| IPS/IDS throughput | 200 Mbit/s |
| Maximum firewall connections per second | 3600 |
| Features | |
|---|---|
| Built-in processor | Y |
| Certification | EN55022 class A, FCC class A, VCCI class A |
| Processor | |
|---|---|
| Processor frequency | 800 MHz |
| Processor cores | 2 |
| Performance | |
|---|---|
| Concurrent connections | 100000 |
| Syslog | Y |
| Number of users | 100 user(s) |
| DHCP server | Y |
| Flash memory | 4096 MB |
| Design | |
|---|---|
| Reset button | Y |
| LED indicators | Y |
| Built-in display | N |
| Network | |
|---|---|
| Wi-Fi | N |
| DHCP client | Y |
| Port forwarding | Y |
| Point-to-point protocol over Ethernet (PPPoE) | Y |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, IPSec, SHA-1, SHA-256, SSL/TLS |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Security | |
|---|---|
| VPN tunnels quantity | 50 |
| DDoS protection | Y |
| URL filtering | Y |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Protocols | |
|---|---|
| Routing protocols | BGP, OSPF, RIP |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Gigabit Ethernet (copper) ports quantity | 2 |
| Console port | RJ-45 |
| WAN connection | Ethernet (RJ-45) |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Internal memory | 512 MB |
| Dimensions (WxDxH) | 140 x 105 x 42.5 mm |
| Power | |
|---|---|
| AC input voltage | 100-240 V |
| Power consumption (max) | 13 W |
| Redundant power supply (RPS) support | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 2000 m |
| Weight & dimensions | |
|---|---|
| Weight | 556 g |
Product Description
With the advent of the Internet of Things (IoT) and the development of Smart Cities, connected infrastructure that is easy to install and manage has become a critical requirement.
The Allied Telesis AR2010V is the ideal choice for applications that require reliable, high-capacity data transfer in demanding scenarios—including IP video surveillance, outdoor digital signage, kiosks, remote office VPN back-up, as well as critical Machine-to-Machine (M2M) telemetry in remote or mobile environments.
Powerful VPN functionality, combined with comprehensive routing, provides innovative high performance device connectivity that is easy to use and very secure.
The Allied Telesis AR2010V is the ideal choice for applications that require reliable, high-capacity data transfer in demanding scenarios—including IP video surveillance, outdoor digital signage, kiosks, remote office VPN back-up, as well as critical Machine-to-Machine (M2M) telemetry in remote or mobile environments.
Powerful VPN functionality, combined with comprehensive routing, provides innovative high performance device connectivity that is easy to use and very secure.
