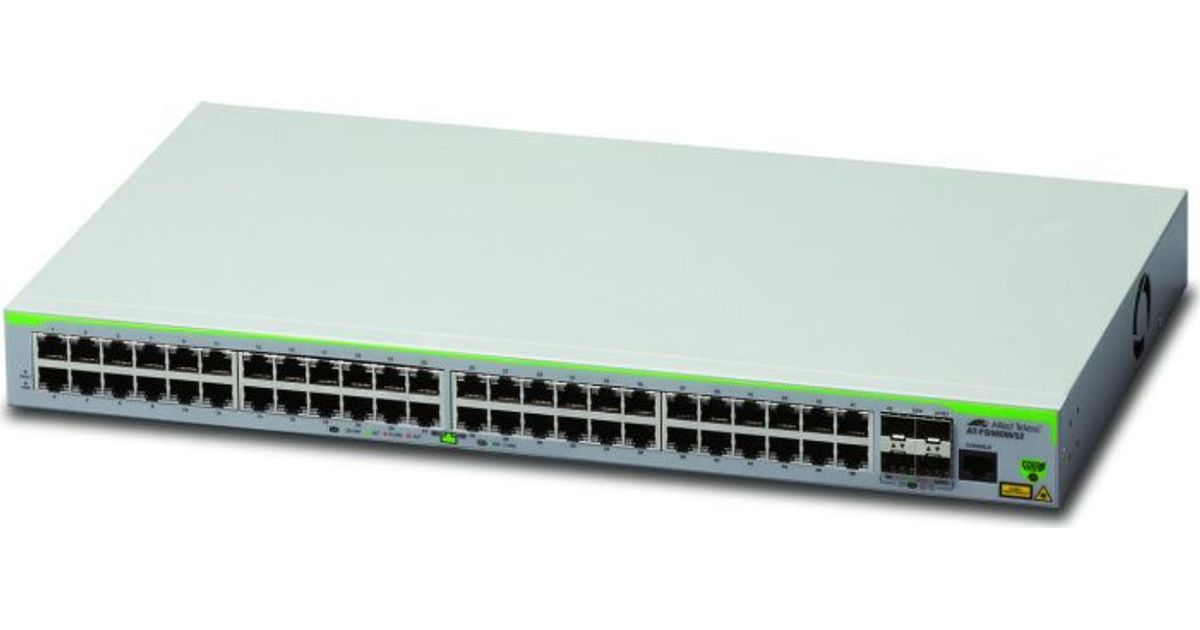

Allied Telesis AT-FS980M/52-50 Managed Fast Ethernet (10/100) Grey
Allied Telesis AT-FS980M/52-50, Managed, Fast Ethernet (10/100)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Allied Telesis |
| Product code | 327100025 |
| EAN | 00767035209036 |
| Manufacturer part number | 990-005052-50 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| System event log | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 4 |
| Console port | RJ-45 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x,IEEE 802.3z |
| Internal memory | 512 MB |
| Noise level | 51 dB |
| Network | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T,100BASE-T |
| Port mirroring | Y |
| Link aggregation | Y |
| Spanning tree protocol | Y |
| VLAN support | Y |
| Virtual LAN features | Private VLAN,Port-based VLAN |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 17.6 Gbit/s |
| Throughput | 13.09 Mpps |
| Static route | Y |
| Jumbo frames support | Y |
| Jumbo frames | 10000 |
| Security | |
|---|---|
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Protocols | |
|---|---|
| IPv4 & IPv6 features | IPv6 tracert,Dual stack IPv4/IPv6 |
| Design | |
|---|---|
| Rack mounting | N |
| Product colour | Grey |
| LED indicators | Y |
| Performance | |
|---|---|
| Safety | FCC, EN55022, CISPR22:2006, VCCI, C-Tick, UL 60950-1, C22.2 NO.60950-1, EN 60950-1, IEC60950-1, EN60950-1 |
| Flash memory | 128 MB |
| Heat dissipation | 120 BTU/h |
| Features | |
|---|---|
| Certification | CE, cULus, TUV, RoHS |
| Memory type | DDR2-SDRAM |
| Power | |
|---|---|
| Power consumption (max) | 36 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 257 mm |
| Height | 43.2 mm |
| Weight | 3.4 kg |
Product Description
Fast Ethernet Managed Access Switch
The FS980M/52 features 48 x 10/100TX ports and 4 x 100/1000X SFP uplink/stacking ports.
CentreCOM FS980M switches are cost-effective, fully managed, and can be stacked for increased resiliency and port density at the edge of the network. As part of an Autonomous Management Framework™ (AMF) network, the FS980M switches utilize automated management and zero-touch recovery to lower running costs.
The FS980M/52 features 48 x 10/100TX ports and 4 x 100/1000X SFP uplink/stacking ports.
CentreCOM FS980M switches are cost-effective, fully managed, and can be stacked for increased resiliency and port density at the edge of the network. As part of an Autonomous Management Framework™ (AMF) network, the FS980M switches utilize automated management and zero-touch recovery to lower running costs.
