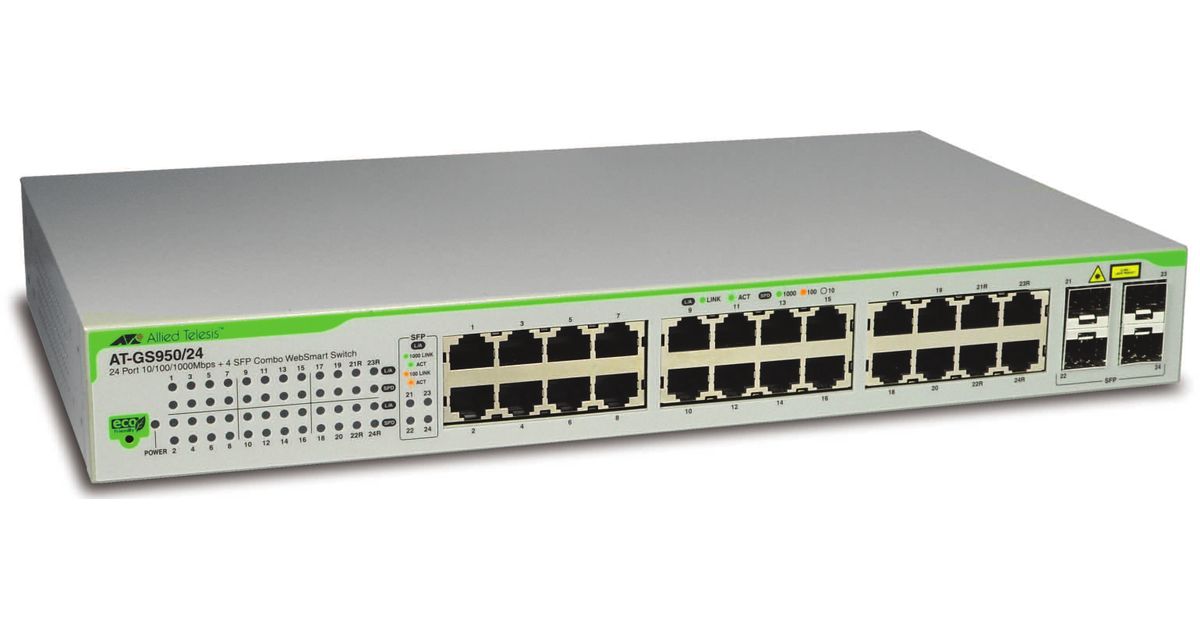

Allied Telesis AT-GS950/24-50 Managed
Allied Telesis AT-GS950/24-50, Managed
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Allied Telesis |
| Product code | 175414616 |
| EAN | 00767035178479 |
| Manufacturer part number | ATGS950/24 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Combo SFP ports quantity | 4 |
| Other features | |
|---|---|
| SFP/SFP+ slots quantity | 2 |
| Internal memory | 8 MB |
| Dimensions (WxDxH) | 440 x 257 x 43.2 mm |
| Power requirements | 100-240V AC, 50/60H |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
| Network | |
|---|---|
| Port mirroring | Y |
| Link aggregation | Y |
| Security features | 802.1X |
| Features | |
|---|---|
| Flow control support | Y |
| Maximum data transfer rate | 1 Gbit/s |
| Certification | UL 1950 FCC/EN55022 Class A VCCI Class A C-Tick EN60950 (TUV) EN55024 CE |
| Data transmission | |
|---|---|
| Packet buffer memory | 0.5 MB |
| Performance | |
|---|---|
| Flash memory | 2 MB |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 330 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 2.3 kg |
Product Description
The Allied Telesis AT-GS950/24 eco-friendly WebSmart switch upholds the Allied Telesis commitment to environmentally friendly processes and products. It is designed to minimize power consumption through the use of a high-efficiency power supply and a low power chipset.
The AT-GS950/24 features 24 x 10/100/1000T ports and an additional four Gigabit SFP combo ports. This WebSmart switch integrates the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective solution for users to integrate management at the edge of their network. The AT-GS950/24 provides key features using the simple web-based management function, such as port-based VLANs, IEEE 802.1p QoS, port trunking/link aggregation, port mirroring, priority queues, and IEEE 802.1x security support.
The AT-GS950/24 features 24 x 10/100/1000T ports and an additional four Gigabit SFP combo ports. This WebSmart switch integrates the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective solution for users to integrate management at the edge of their network. The AT-GS950/24 provides key features using the simple web-based management function, such as port-based VLANs, IEEE 802.1p QoS, port trunking/link aggregation, port mirroring, priority queues, and IEEE 802.1x security support.
