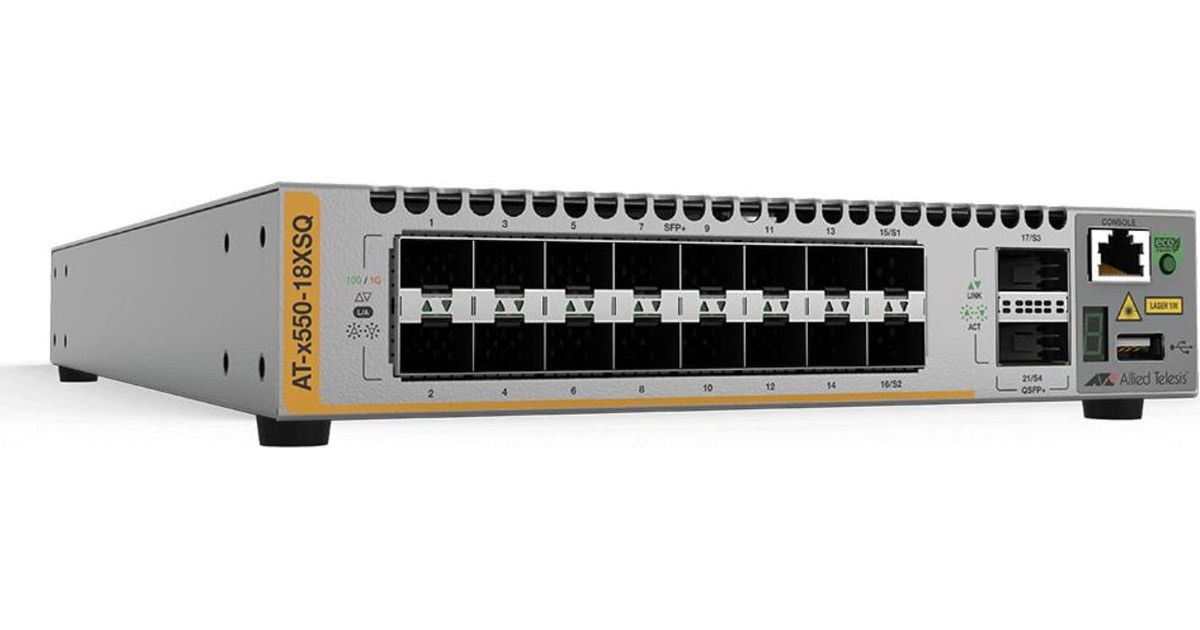

Allied Telesis AT-x550-18XSQ-50 Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
Allied Telesis AT-x550-18XSQ-50, Managed, L3, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Allied Telesis |
| Product code | 325869655 |
| EAN | 00767035210179 |
| Manufacturer part number | AT-x550-18XSQ-50 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Traffic classification | Y |
| Traffic shaping | Y |
| ARP inspection | Y |
| System event log | Y |
| MIB support | SNMP |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Fiber ports quantity | 18 |
| Console port | RJ-45 |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Networking standards | IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3az,IEEE 802.3ba,IEEE 802.3x,IEEE 802.3z |
| Number of VLANs | 4094 |
| Internal memory | 1024 MB |
| Noise level | 46 dB |
| Network | |
|---|---|
| Policy-based routing | Y |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 480 Gbit/s |
| Packet buffer memory | 4 MB |
| Security | |
|---|---|
| DHCP features | DHCP server,DHCPv6 relay,DHCPv6 server,DHCP client |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Design | |
|---|---|
| Rack mounting | Y |
| Stackable | Y |
| Product colour | Grey |
| LED indicators | Y |
| Features | |
|---|---|
| Memory type | DDR-SDRAM |
| Power plug type | Type C |
| Performance | |
|---|---|
| Flash memory | 1024 MB |
| Heat dissipation | 378 BTU/h |
| Power | |
|---|---|
| AC input voltage | 90 - 260 V |
| AC input frequency | 47/63 Hz |
| Power consumption (typical) | 111 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Width | 210 mm |
| Depth | 346 mm |
| Height | 42.5 mm |
Product Description
Stackable 10 Gigabit Intelligent Switches
The x550-18XTQ stackable 10 Gigabit Layer 3 switch is a high-performing and feature-rich solution, with 16 x 1G/10G Gigabit Ethernet ports and 2 x 40G uplinks.
- AlliedWare Plus™ Enterprise-class operating system
- Ethernet Protection Switched Ring (EPSRing™) supports resilient high-speed ring-based networks
- SDN-ready with OpenFlow v1.3
- sFlow enables network performance monitoring and optimization
The x550-18XTQ stackable 10 Gigabit Layer 3 switch is a high-performing and feature-rich solution, with 16 x 1G/10G Gigabit Ethernet ports and 2 x 40G uplinks.
- AlliedWare Plus™ Enterprise-class operating system
- Ethernet Protection Switched Ring (EPSRing™) supports resilient high-speed ring-based networks
- SDN-ready with OpenFlow v1.3
- sFlow enables network performance monitoring and optimization
