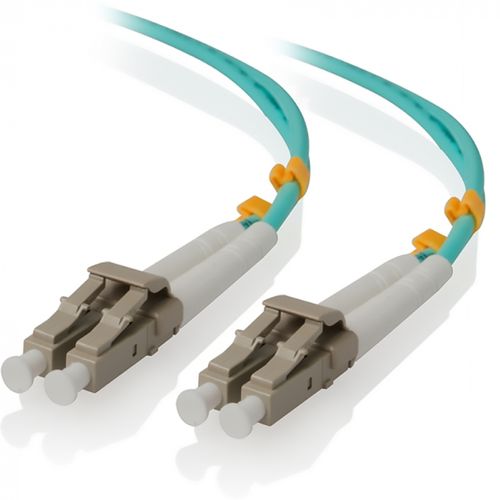

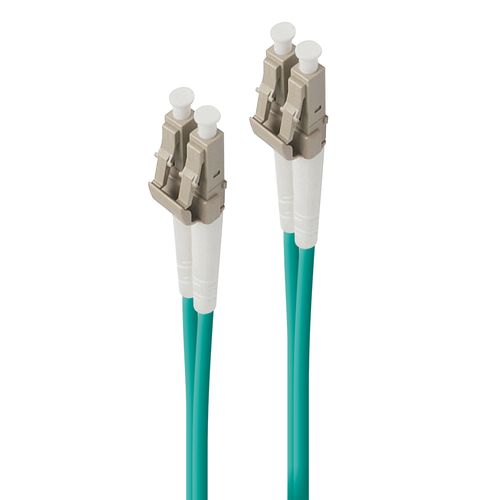

ALOGIC 5m LC-LC 10G Multi Mode Duplex LSZH Fibre Cable 50/125 OM3
ALOGIC 5m LC-LC 10G Multi Mode Duplex LSZH Fibre Cable 50/125 OM3, 5 m, OM3, LC, LC
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ALOGIC |
| Product code | 2210248591 |
| EAN | 09350784004543 |
| Manufacturer part number | LCLC-05-OM3 |
| Category | Fibre Optic Cables |
| Features | |
|---|---|
| Cable length | 5 m |
| Fibre optic type | OM3 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Wavelengths supported | 850,1300 nm |
| Data transfer rate | 10 Gbit/s |
| Insertion loss | 0.2 dB |
| Certification | ETL/c-ETL |
| Harmonized System (HS) code | 85447000 |
| Design | |
|---|---|
| Product colour | Turquoise |
| Network | |
|---|---|
| Ethernet interface type | 10 Gigabit Ethernet |
| Weight & dimensions | |
|---|---|
| Cable diameter | 2 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| Number of optical fibres | 2 |
Product Description
The Multi Mode OM3 cables are designed to support high transfer speed, the cables are capable of supporting up to 10gigabit applications at the same time being backward compatible with 50/125 OM2 infrastructure. The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports.The ALOGIC OM3 Patch Cables are available in various lengths starting from 0.5m to 100m length
