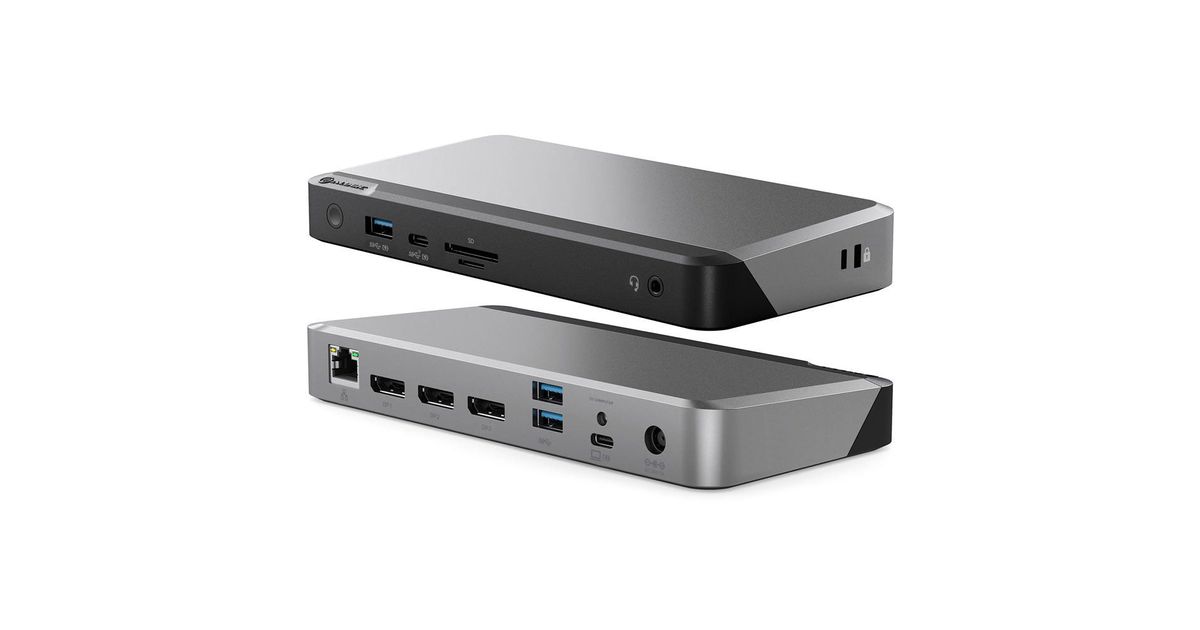

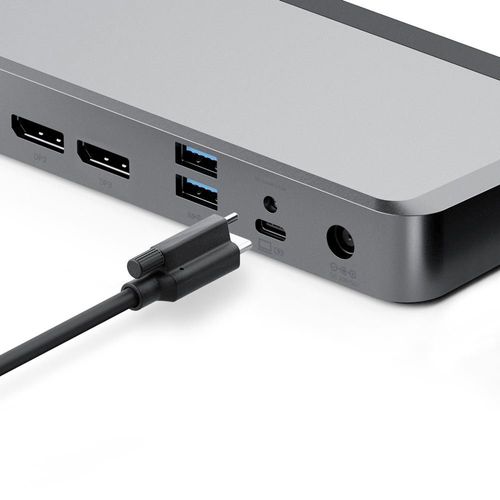

ALOGIC MX3 USB-C TripleDisplay DP Alt. Mode Docking Station – With 100W Power Delivery
ALOGIC MX3 USB-C TripleDisplay DP Alt. Mode Docking Station – With 100W Power Delivery, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 3.5 mm, 1000 Mbit/s, Black, Grey
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ALOGIC |
| Product code | 2210247075 |
| EAN | 09350784023834 |
| Manufacturer part number | DUPRMX3-WW |
| Category | Dockingstations |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |

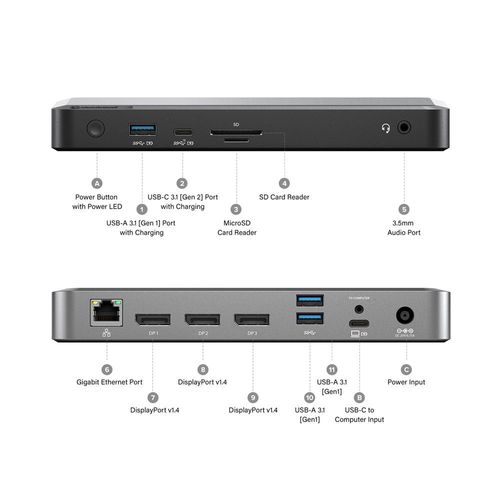

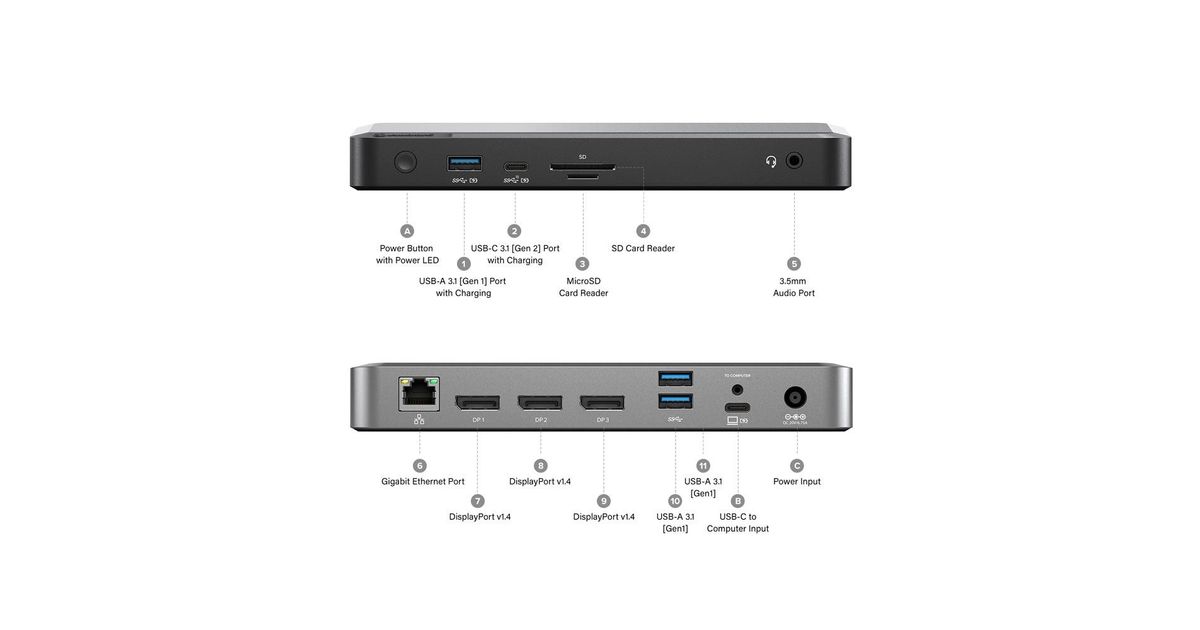

| Ports & interfaces | |
|---|---|

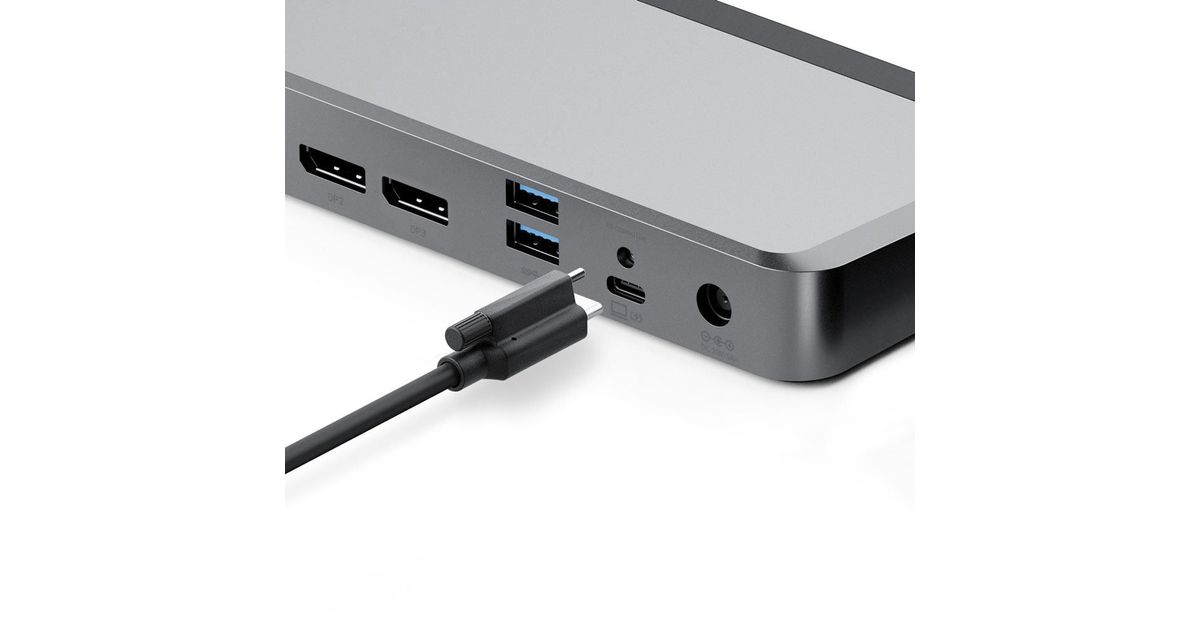

| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Headphone outputs | 1 |
| USB Power Delivery up to | 100 W |
| DisplayPorts quantity | 3 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| USB Sleep-and-Charge | Yes |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Features | |
|---|---|
| USB Power Delivery | Yes |
| DisplayPort version | 1.4 |
| Plug and Play | Yes |
| Brand compatibility | Universal |
| Certification | FCC |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Design | |
|---|---|
| Product colour | Black, Grey |
| On/off switch | Yes |
| LED indicators | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Storage | |
|---|---|

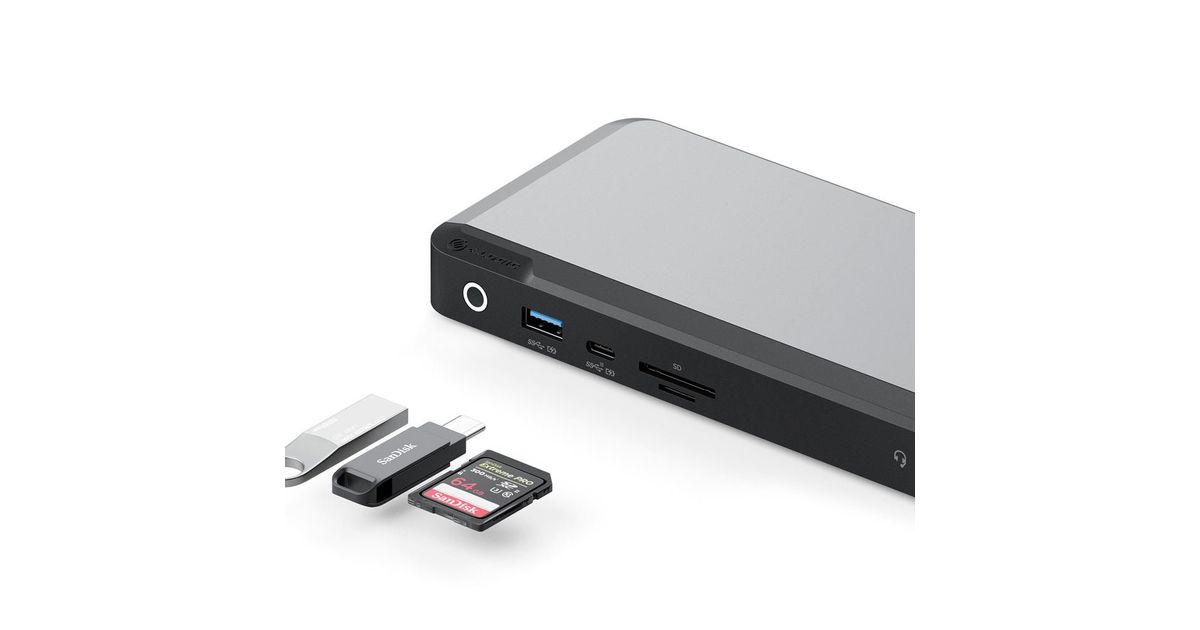

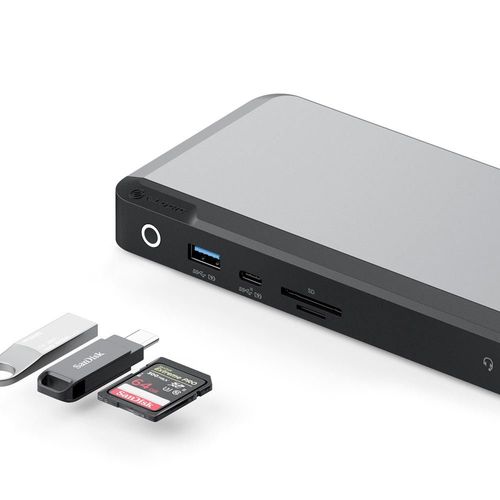

| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Performance | |
|---|---|
| Maximum digital resolution | 5120 x 2880 pixels |
| Cable lock slot | Yes |
| Charging function | Yes |
| Power source type | AC |
| Mounting | |
|---|---|
| Number of displays supported | 3 |
| Power | |
|---|---|
| Power supply | 135 W |
| Compatible power plug types | AU, EU, UK, US |
| Software | |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Sustainability | |
|---|---|
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Width | 190 mm |
| Depth | 90 mm |
| Height | 6.5 mm |
| Weight | 535 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Cables included | AC, USB Type-C |
| AC adapter included | Yes |
| Manual | Yes |
| Interface adapters included | USB Type-C male - USB Type-A female |
Product Description
Designed to expand the capabilities of any laptop. Engineered for compatibility across all Windows and MacOS OS laptops, the MX3 dock provides access to all of the ports required in a home office, education, or corporate environment.
Immersive Triple 4K
Sometimes you need more screen real estate. The MX3 can connect up to three external displays at up to 4K resolutions*
Whether you need to view big spreadsheets on multiple screens, compare designs, enter data or more, the MX3 is the perfect way to see more work on your screen, and do more work on your screen.
LED Power Light

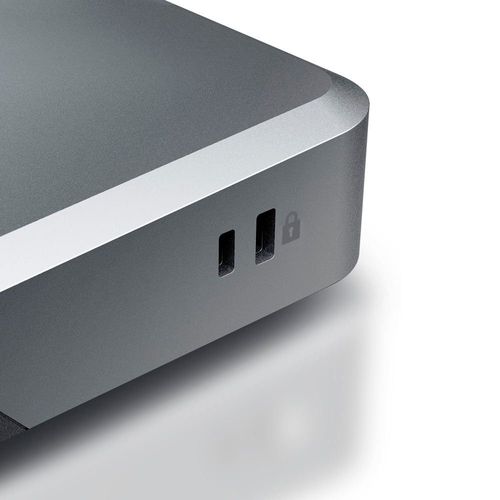

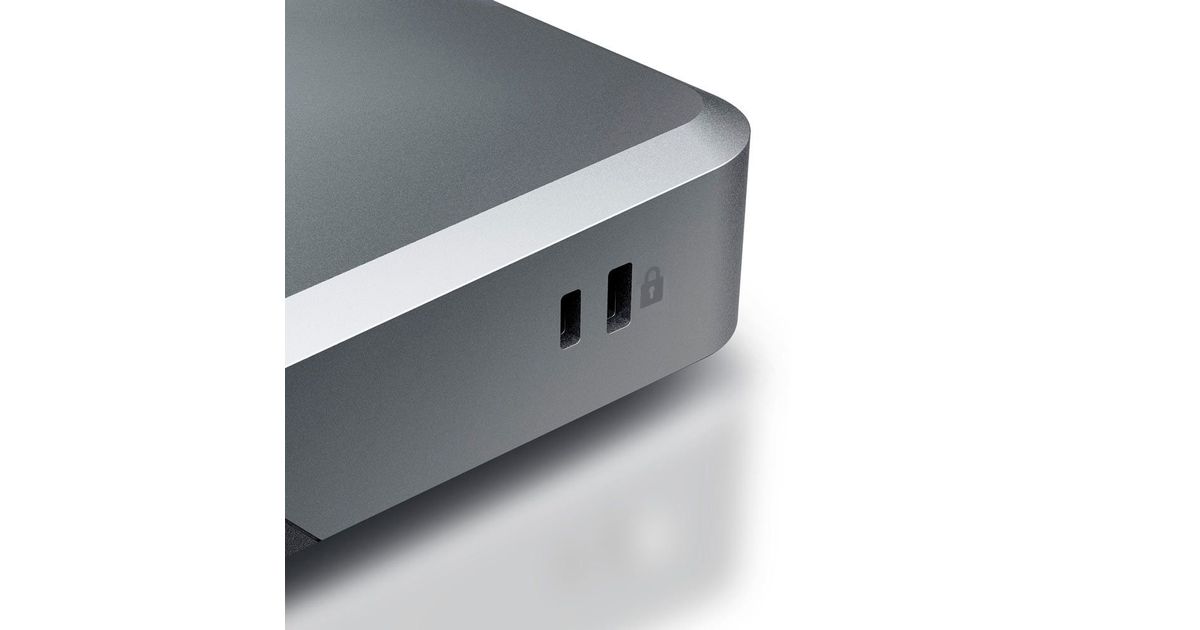

Lock Slot

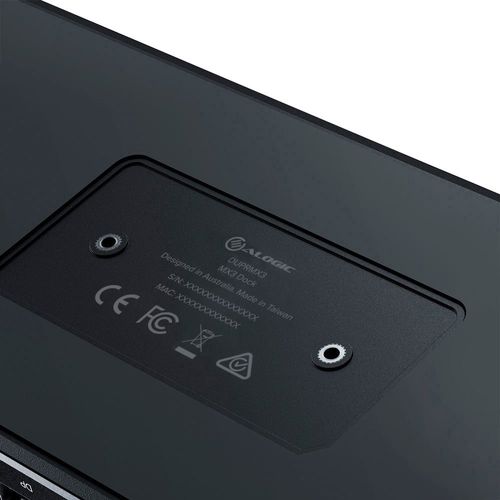

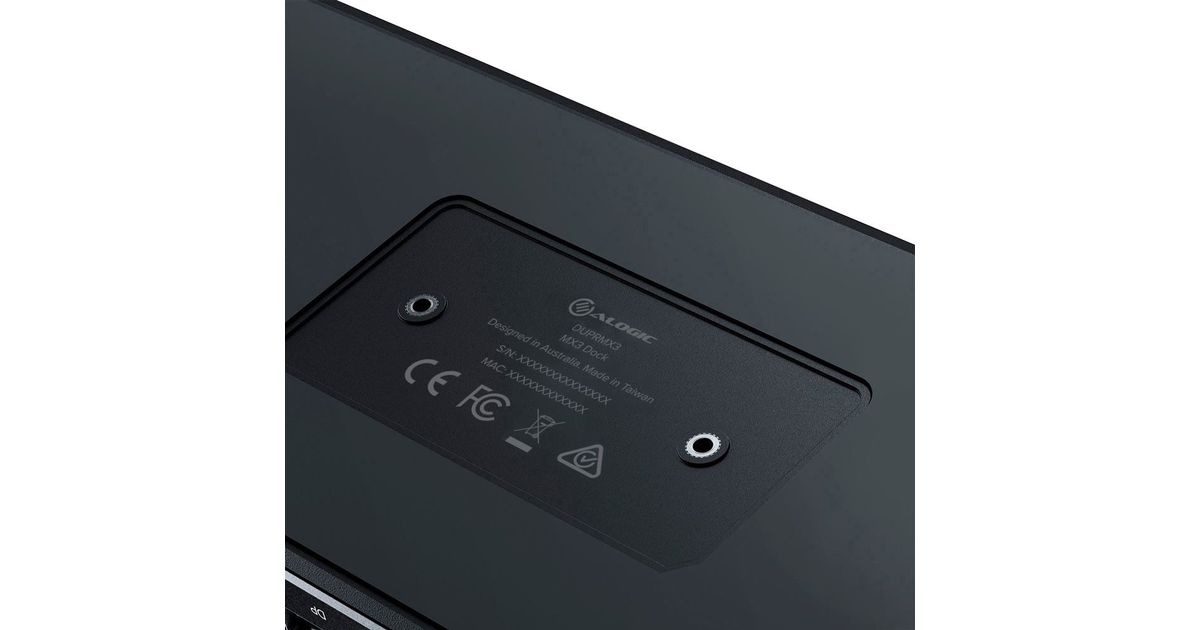

VESA Mount
SIMPLIFIED
CONNECTIVITY
DP Alt. Mode Technology
The MX3 makes multi-display set ups simple. Featuring DP Alt Mode technology, it connects directly with up to three displays and multiple other accessories. No need to install drivers or software. Plug in and go.
SINGLE 5K DISPLAY WITH MAC
The MX3 is a powerful docking station for Mac users seeking to add a picture-perfect single display for their desk set up.
TRIPLE 4K DISPLAYS WITH WINDOWS
Windows users can plug into the MX3 to run up to three ultra-polished external displays.
Immersive Triple 4K
Sometimes you need more screen real estate. The MX3 can connect up to three external displays at up to 4K resolutions*
Whether you need to view big spreadsheets on multiple screens, compare designs, enter data or more, the MX3 is the perfect way to see more work on your screen, and do more work on your screen.
LED Power Light
Lock Slot
VESA Mount
SIMPLIFIED
CONNECTIVITY
DP Alt. Mode Technology
The MX3 makes multi-display set ups simple. Featuring DP Alt Mode technology, it connects directly with up to three displays and multiple other accessories. No need to install drivers or software. Plug in and go.
SINGLE 5K DISPLAY WITH MAC
The MX3 is a powerful docking station for Mac users seeking to add a picture-perfect single display for their desk set up.
TRIPLE 4K DISPLAYS WITH WINDOWS
Windows users can plug into the MX3 to run up to three ultra-polished external displays.
