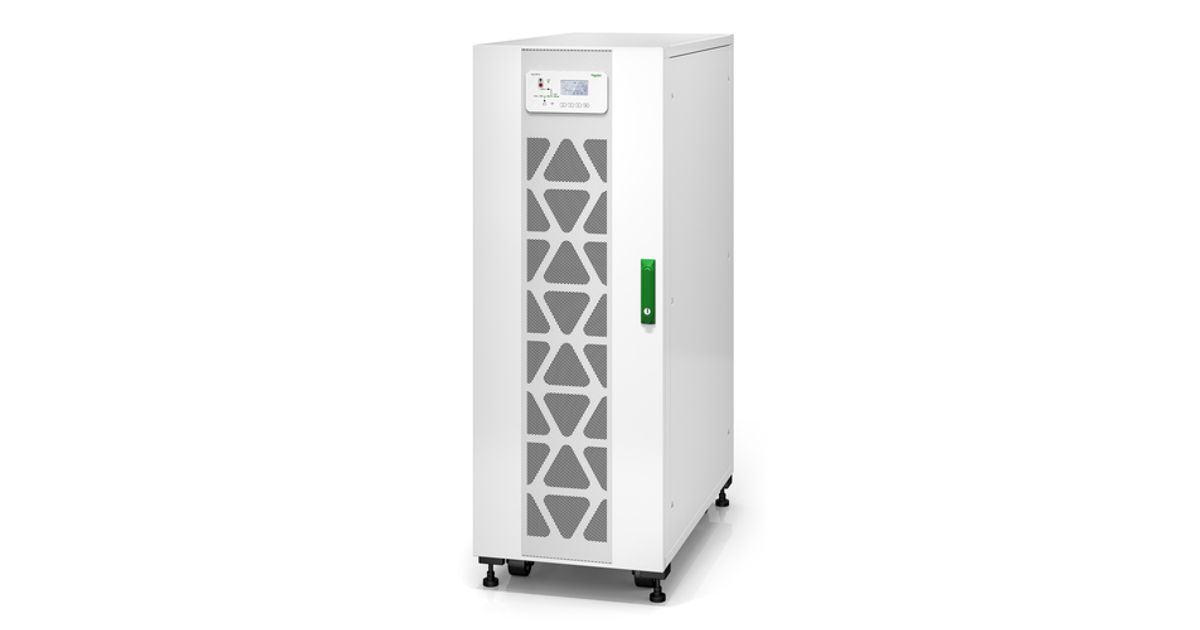

APC E3SUPS30K3IB uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 30000 W
APC E3SUPS30K3IB, Double-conversion (Online), 30 kVA, 30000 W, 304 V, 477 V, 45/65 Hz
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 577775394 |
| EAN | 00731304340805 |
| Manufacturer part number | E3SUPS30K3IB |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 1.5% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Certification | REACH, CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Maximum current | 55 A |
| Other features | |
|---|---|
| Noise level | 63 dB |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Number of batteries supported | 4 |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 984.3 m |
| Non-operating altitude | 0 - 15000 m |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 500 mm |
| Depth | 996 mm |
| Height | 1400 mm |
| Package weight | 185 kg |
| Packaging data | |
|---|---|
| Package width | 683 mm |
| Package depth | 1114 mm |
| Package height | 1640 mm |
Product Description
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.
