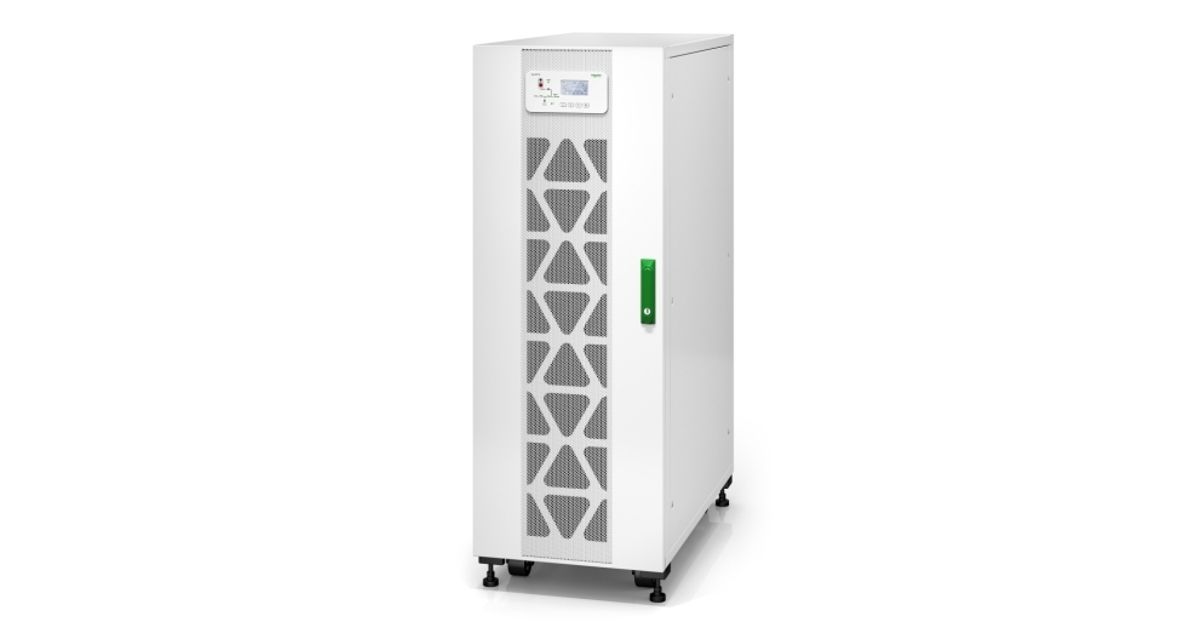

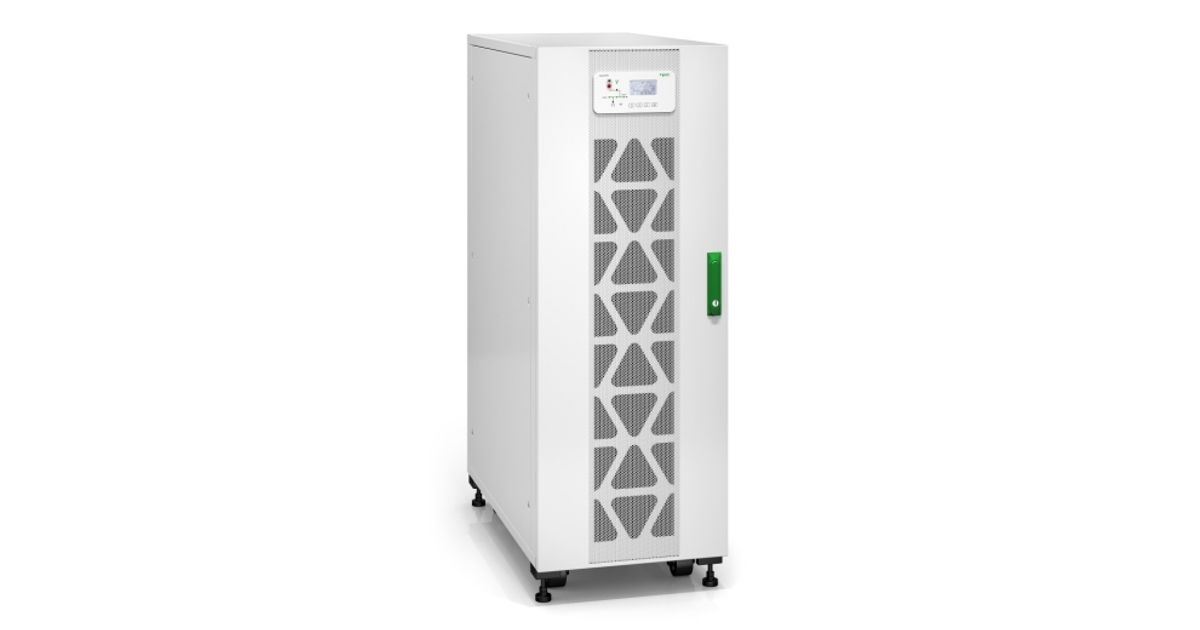

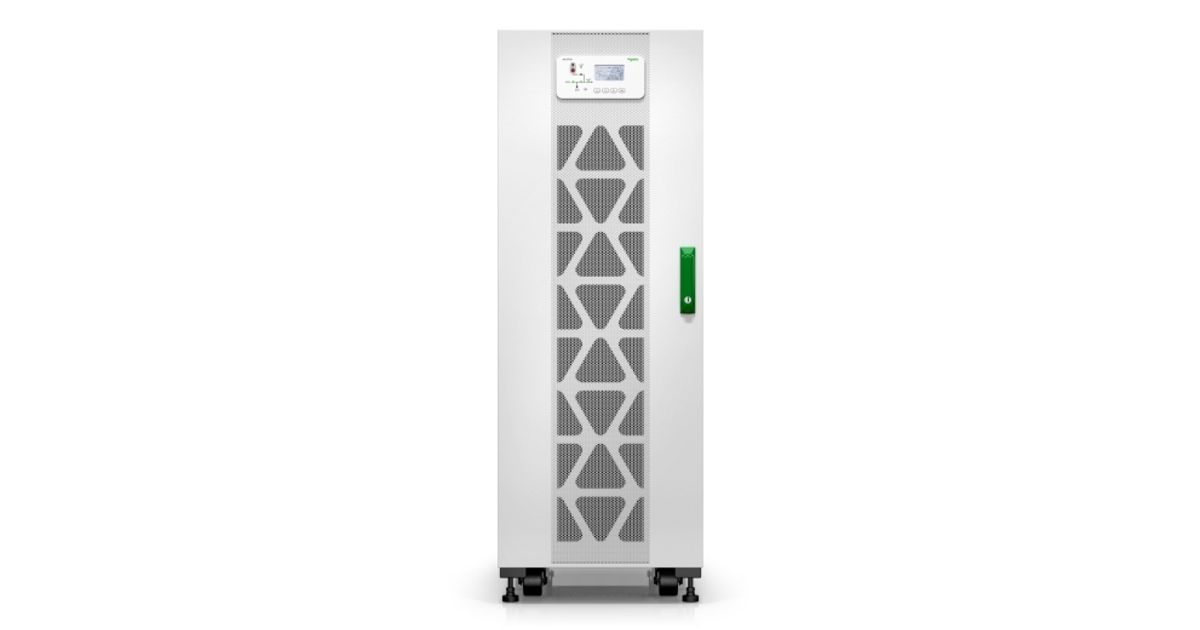

APC E3SUPS30K3IB1 uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 30000 W
APC E3SUPS30K3IB1, Double-conversion (Online), 30 kVA, 30000 W, 304 V, 477 V, 45/65 Hz
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 229421720 |
| EAN | 00731304428251 |
| Manufacturer part number | E3SUPS30K3IB1 |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Output power | 30000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 5.5% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Power protection features | Overload |
| Certification | REACH CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Maximum current | 55 A |
| Other features | |
|---|---|
| Noise level | 63 dB |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Number of batteries supported | 2 |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | White |
| International Protection (IP) code | IP20 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 984.3 m |
| Non-operating altitude | 0 - 15000 m |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 500 mm |
| Depth | 996 mm |
| Height | 1400 mm |
| Weight | 212 kg |
| Battery width | 68.3 cm |
| Battery depth | 111.4 cm |
| Battery height | 164 cm |
| Battery weight | 213 kg |
| Packaging data | |
|---|---|
| Quick installation guide | Y |
Product Description
High-efficiency 3-phase UPS with internal batteries providing a runtime of 9 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.
Protection
Replaceable dust filters
protect the UPS in harsh environments.
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!
Convenience
Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
Protection
Replaceable dust filters
protect the UPS in harsh environments.
Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.
Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements
Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!
Convenience
Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.
Easy to install fast
Quickly roll the compact and lightweight UPS into position.
Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.
Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.
