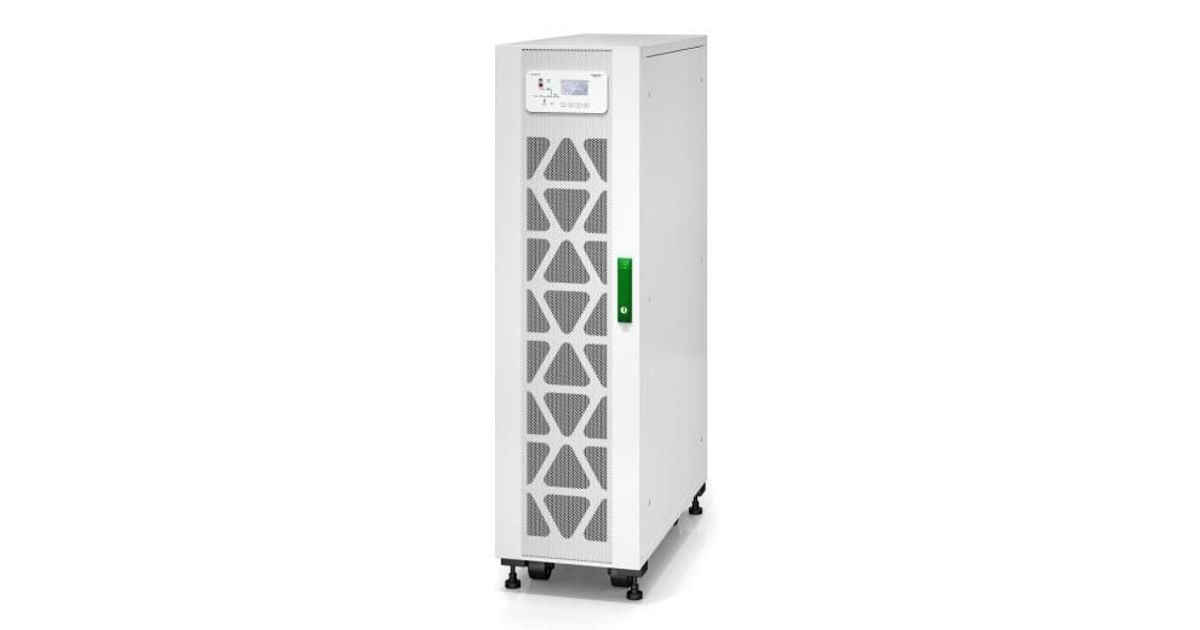

APC Easy 3S Double-conversion (Online) 10 kVA 10000 W

Manufacturer: APC Product Code: 228117764 EAN: 03606489697983 MPN: E3SUPS10K3IB2

APC Easy 3S, Double-conversion (Online), 10 kVA, 10000 W, 304 V, 477 V, 45/65 Hz
Read more...

Product Information

Information
Manufacturer	APC
Product code	228117764
EAN	03606489697983
Manufacturer part number	E3SUPS10K3IB2
Category	UPS hardware

Features
UPS topology	Double-conversion (Online)
Output power capacity	10 kVA
Output power	10000 W
Input operation voltage (min)	304 V
Input operation voltage (max)	477 V
Input frequency	45/65 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Input power factor	0.99
Crest factor	3:1
Output voltage Total Harmonic Distortion (THD)	3%
Input current Total Harmonic Distortion (THD)	4%
Power protection features	Overload
Certification	CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH
Harmonized System (HS) code	85078000

Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery voltage	240 V
Number of batteries supported	2

Design
Form factor	Tower
Product colour	White
International Protection (IP) code	IP20

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 984.3 m
Non-operating altitude	0 - 15000 m

Sustainability
Sustainability certificates	RoHS

Weight & dimensions
Width	380 mm
Depth	907 mm
Height	1400 mm
Weight	211 kg
Package weight	229 kg

Packaging data
Package width	563 mm
Package depth	1014 mm
Package height	1640 mm

Power
Output voltage	230 V

Product Description

High-efficiency 3-phase UPS with internal batteries providing a runtime of 40 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.

Convenience

Intuitive user interface
The intuitive graphical user interface allows for easy system configuration.

Easy to install fast
Quickly roll the compact and lightweight UPS into position.

Easy Loop Test
Verifies UPS performance before you connect your load, without the need for a load bank.

Front-access servicing
Simplifies installation and UPS maintenance while minimizing space requirements.

ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Straightforward installation
Including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment.

Protection

Optional SNMP Card
When you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT's cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT.

Wide Input Voltage Window
Saves your battery power for when you really need it - during power cuts!

Parallel capability
Multiple units can be placed in parallel to meet power capacity and redundancy requirements

Replaceable dust filters
protect the UPS in harsh environments.
