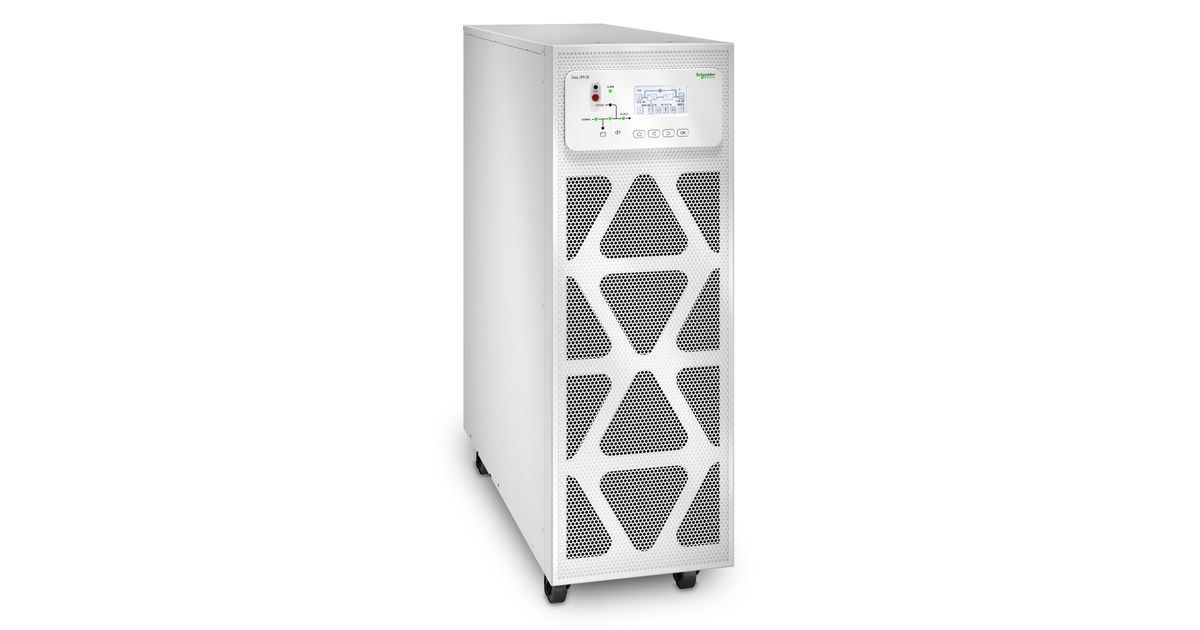

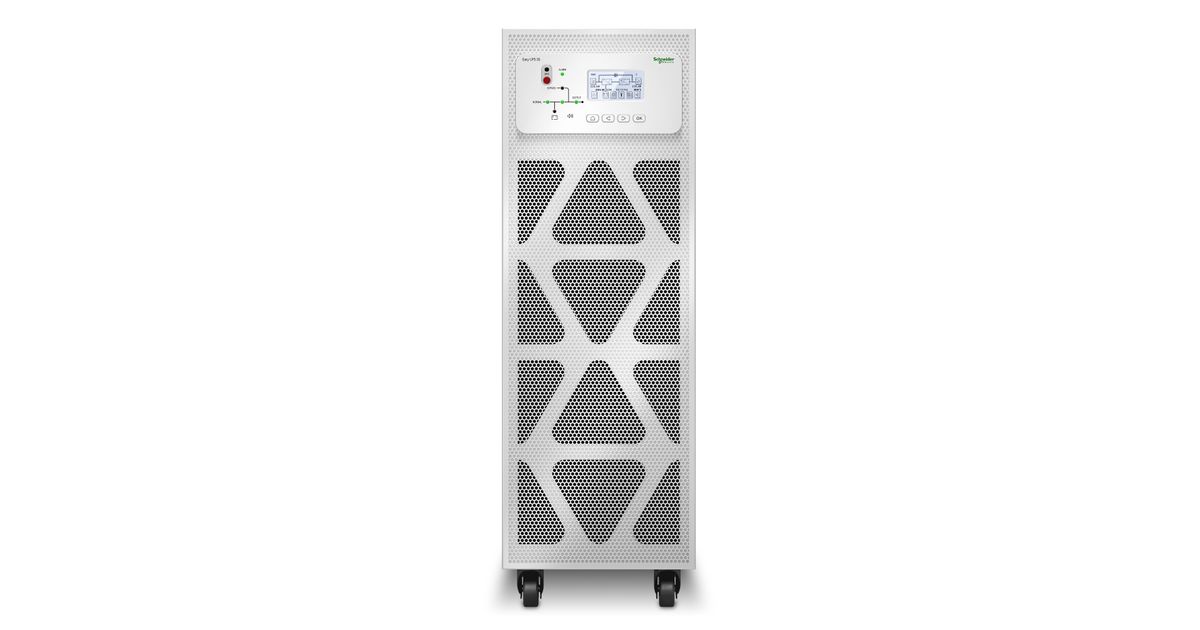

APC Easy 3S Double-conversion (Online) 20 kVA 20000 W

Manufacturer: APC Product Code: 187478097 EAN: 00731304339557 MPN: E3SUPS20KH

APC Easy 3S, Double-conversion (Online), 20 kVA, 20000 W, Pure sine, 304 V, 477 V
Read more...

Product Information

Information
Manufacturer	APC
Product code	187478097
EAN	00731304339557
Manufacturer part number	E3SUPS20KH
Category	UPS hardware

Features
UPS topology	Double-conversion (Online)
Output power capacity	20 kVA
Output power	20000 W
Waveform	Pure sine
Input operation voltage (min)	304 V
Input operation voltage (max)	477 V
Input frequency	45/65 Hz
Output operation voltage (min)	277 V
Output operation voltage (max)	415 V
Output frequency	50/60 Hz
Number of input phases	3
Number of output phases	3
Input power factor	0.99
Crest factor	3:1
Output voltage Total Harmonic Distortion (THD)	3%
Input current Total Harmonic Distortion (THD)	3%
Certification	CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH
Harmonized System (HS) code	85078000

Power
Maximum current	37 A
Output voltage	400 V

Other features
Noise level	60 dB

Design
Form factor	Tower
Product colour	White
Display type	LED
International Protection (IP) code	IP20

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 984.3 m
Non-operating altitude	0 - 14763 m

Sustainability
Sustainability certificates	RoHS

Weight & dimensions
Width	250 mm
Depth	800 mm
Height	770 mm
Weight	58 kg
Package weight	75 kg

Packaging data
Package width	400 mm
Package depth	982 mm
Package height	1015 mm
Quick installation guide	Y
