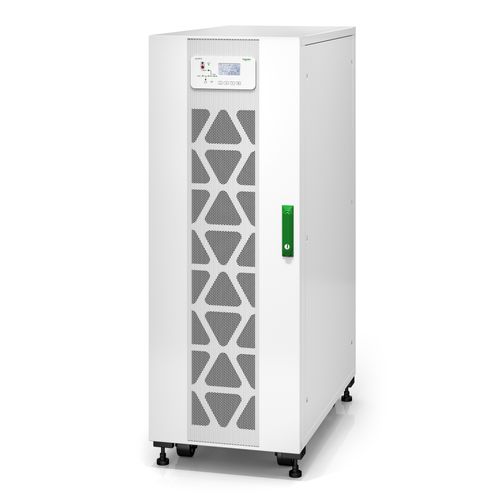

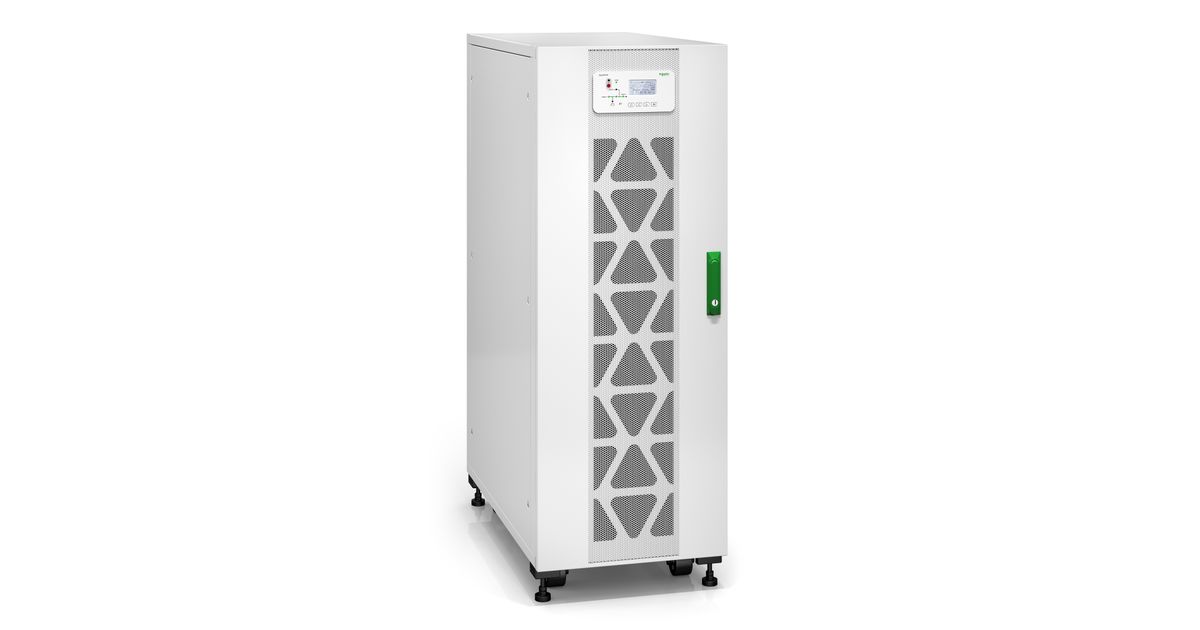

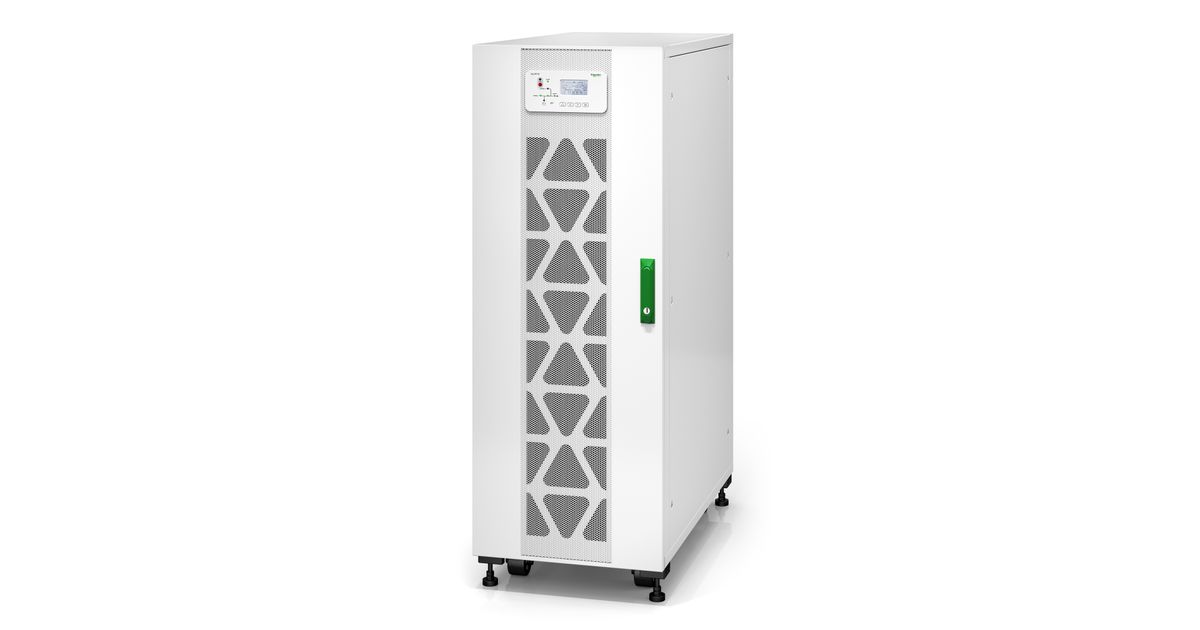

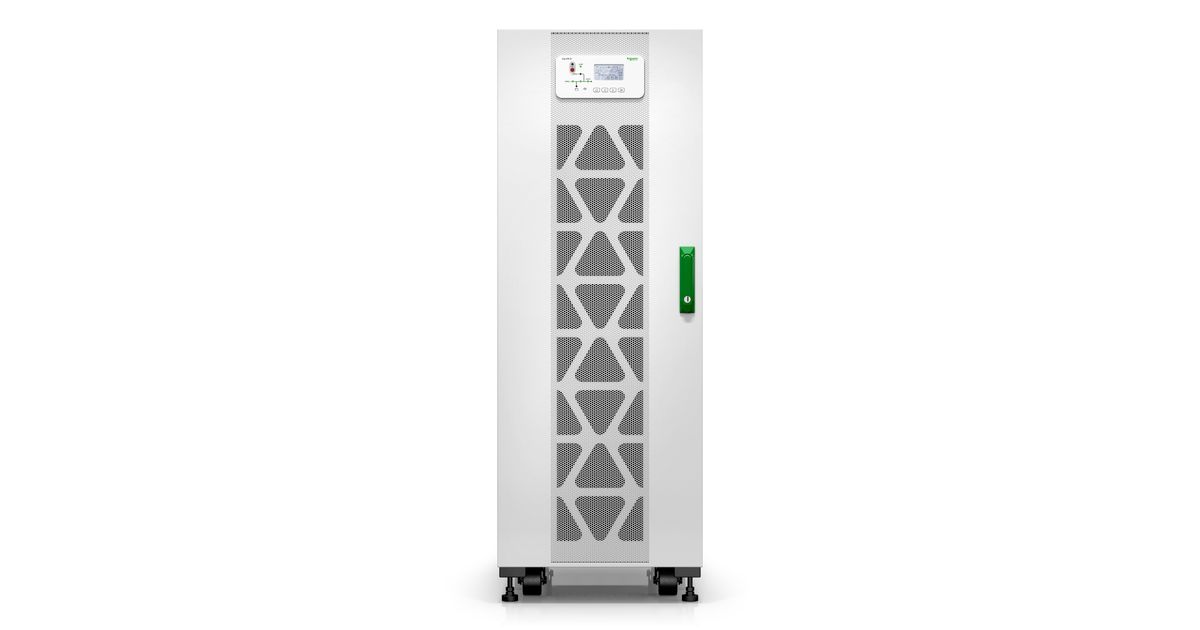

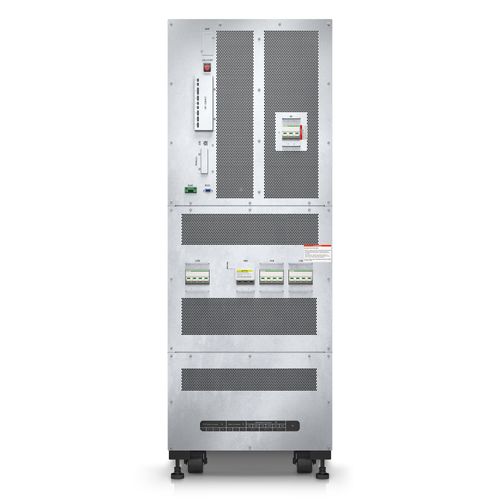

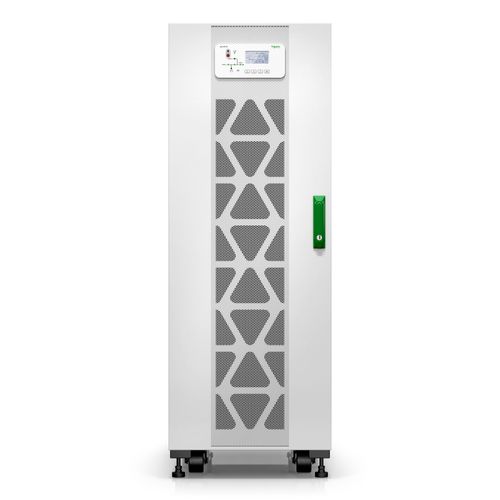

APC Easy UPS 3S Double-conversion (Online) 40 kVA 40000 W

Manufacturer: APC Product Code: 187478104 EAN: 00731304340829 MPN: E3SUPS40KHB

APC Easy UPS 3S, Double-conversion (Online), 40 kVA, 40000 W, Pure sine, 304 V, 477 V
Read more...

Product Information

Information
Manufacturer	APC
Product code	187478104
EAN	00731304340829
Manufacturer part number	E3SUPS40KHB
Category	UPS hardware

Features
UPS topology	Double-conversion (Online)
Output power capacity	40 kVA
Output power	40000 W
Waveform	Pure sine
Input operation voltage (min)	304 V
Input operation voltage (max)	477 V
Output operation voltage (min)	380 V
Output operation voltage (max)	400 V
Output frequency regulation	45 - 65 Hz
Number of input phases	3
Number of output phases	3
Emergency Power Off (EPO)	Y
Certification	CE, EAC, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH
Harmonized System (HS) code	85078000

Power
Maximum current	73 A
Efficiency	96%

Other features
Noise level	63 dB

Ports & interfaces
USB port	Y
Serial interface	Y
Serial interface type	RS-232

Design
Form factor	Tower
Product colour	White
Display type	LCD
International Protection (IP) code	IP20

Performance
Safety	IEC 62040-1-1

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 9999 m
Non-operating altitude	0 - 15000 m

Sustainability
Sustainability certificates	RoHS

Weight & dimensions
Width	500 mm
Depth	760 mm
Height	1400 mm
Weight	158 kg
Package weight	195 kg

Packaging data
Package width	683 mm
Package depth	1114 mm
Package height	1640 mm
