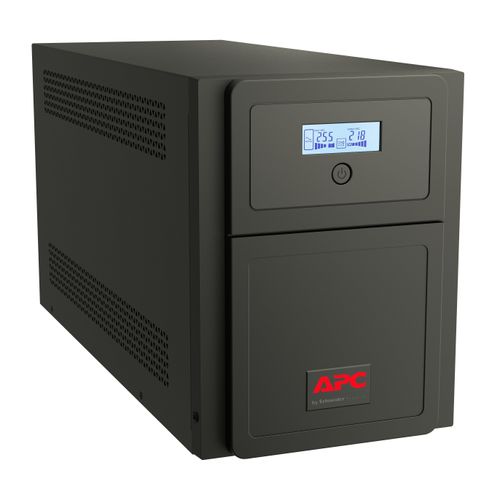

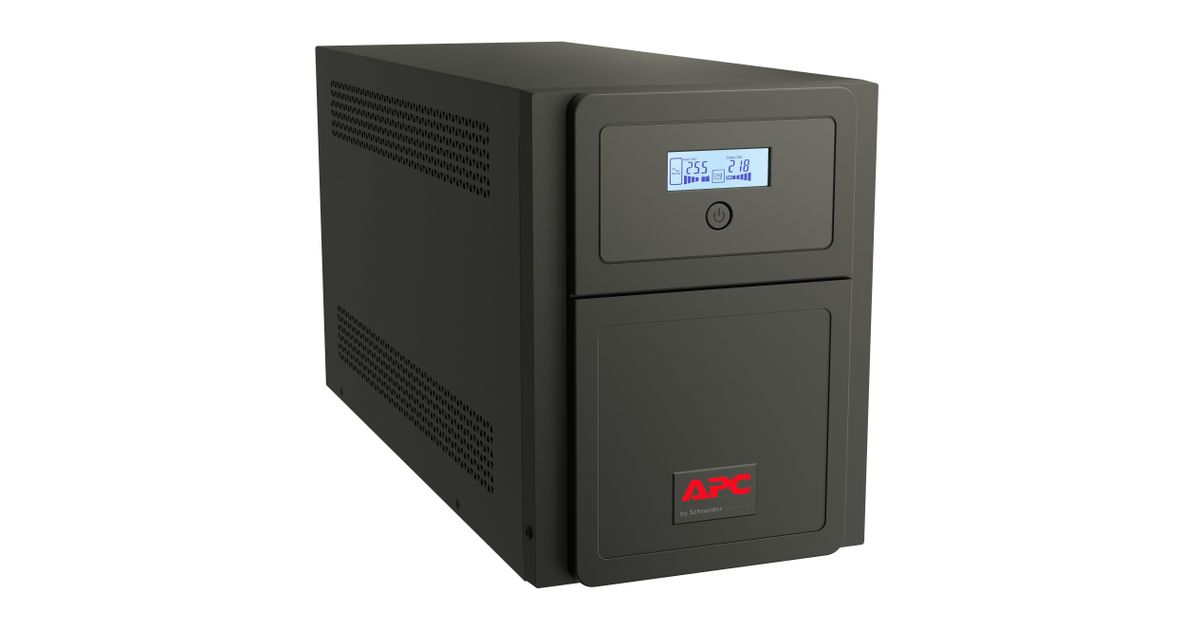

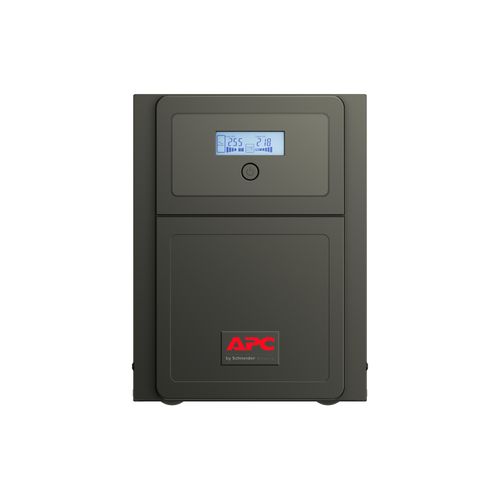

APC Easy UPS SMV Line-Interactive 3 kVA 2100 W 6 AC outlet(s)
APC Easy UPS SMV, Line-Interactive, 3 kVA, 2100 W, Sine, 157 V, 303 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 16546943 |
| EAN | 07313043465556 |
| Manufacturer part number | SMV3000CAI |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 3 kVA |
| Output power | 2100 W |
| Waveform | Sine |
| Input operation voltage (min) | 157 V |
| Input operation voltage (max) | 303 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | -1 - 1% |
| Automatic Voltage Regulation (AVR) | Y |
| Crest factor | 3:1 |
| Power protection features | Overload, Short circuit |
| Audible alarm(s) | Y |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Certification | CE |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Maximum current | 25 A |
| Other features | |
|---|---|
| Noise level | 45 dB |
| Ports & interfaces | |
|---|---|

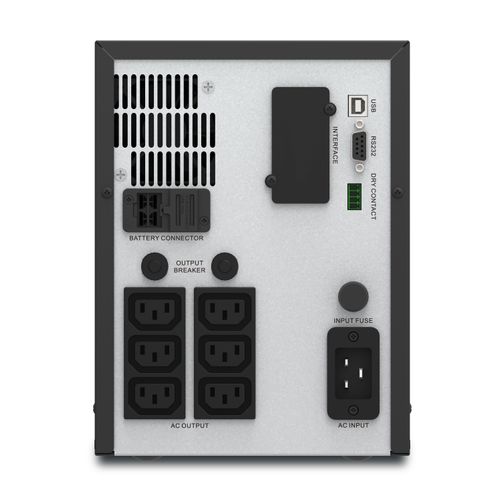

| AC outlet types | IEC 320 |
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Y |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 4 |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 4 h |
| Cold start | Y |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Y |
| International Protection (IP) code | IP20 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
|---|---|
| Width | 180 mm |
| Depth | 455 mm |
| Height | 240 mm |
| Weight | 25.2 kg |
| Battery width | 32.6 cm |
| Battery depth | 60.1 cm |
| Battery height | 41 cm |
| Battery weight | 28.9 kg |
| Packaging content | |
|---|---|
| Cables included | USB cable |
| Manual | Y |
