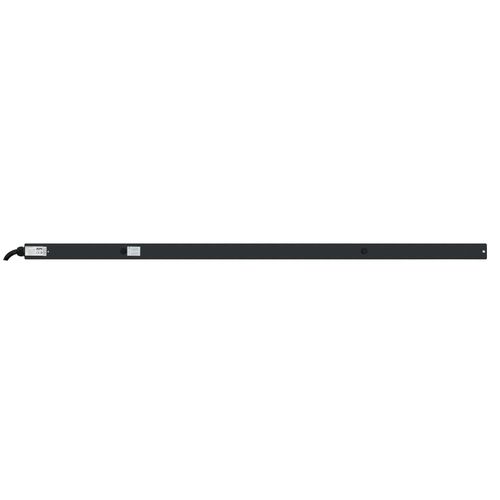

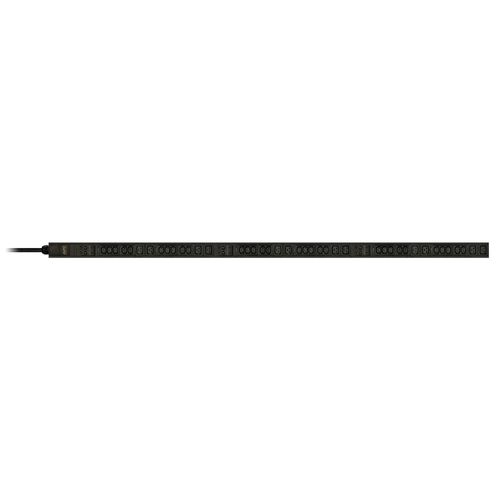

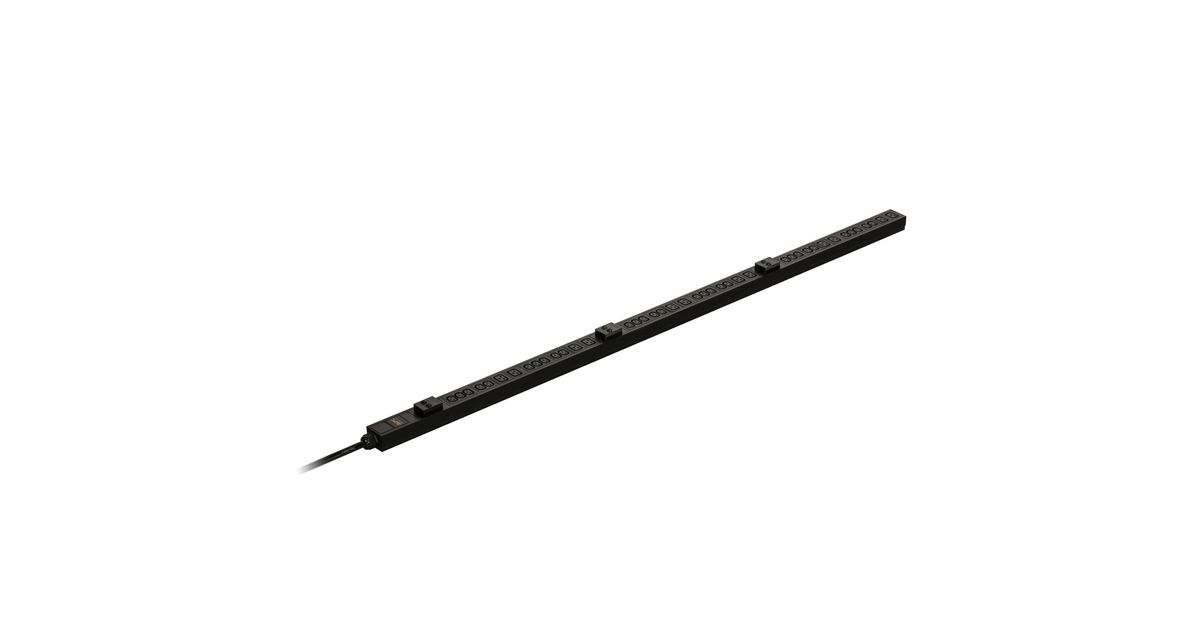

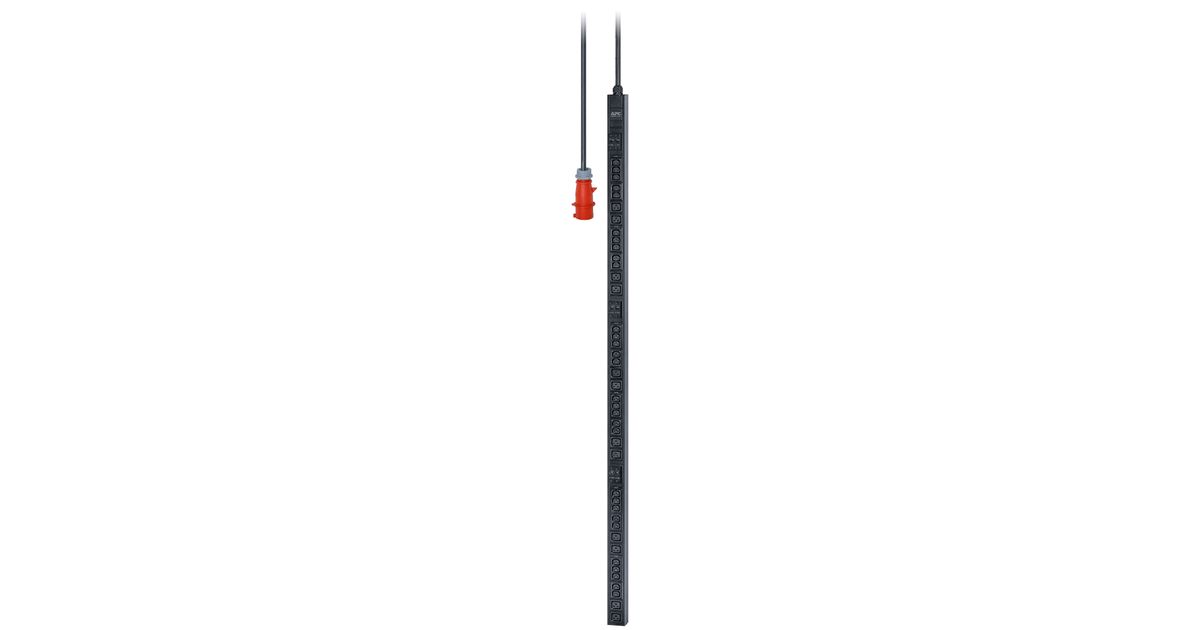

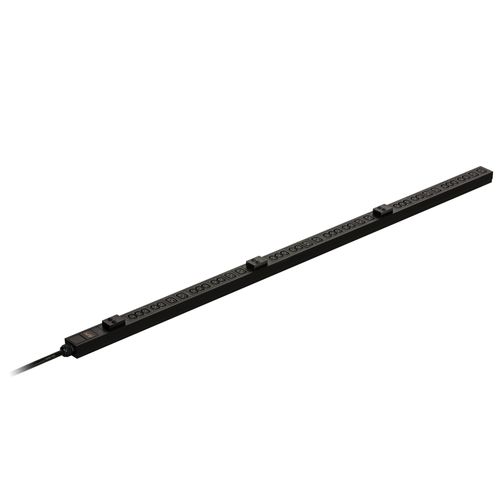

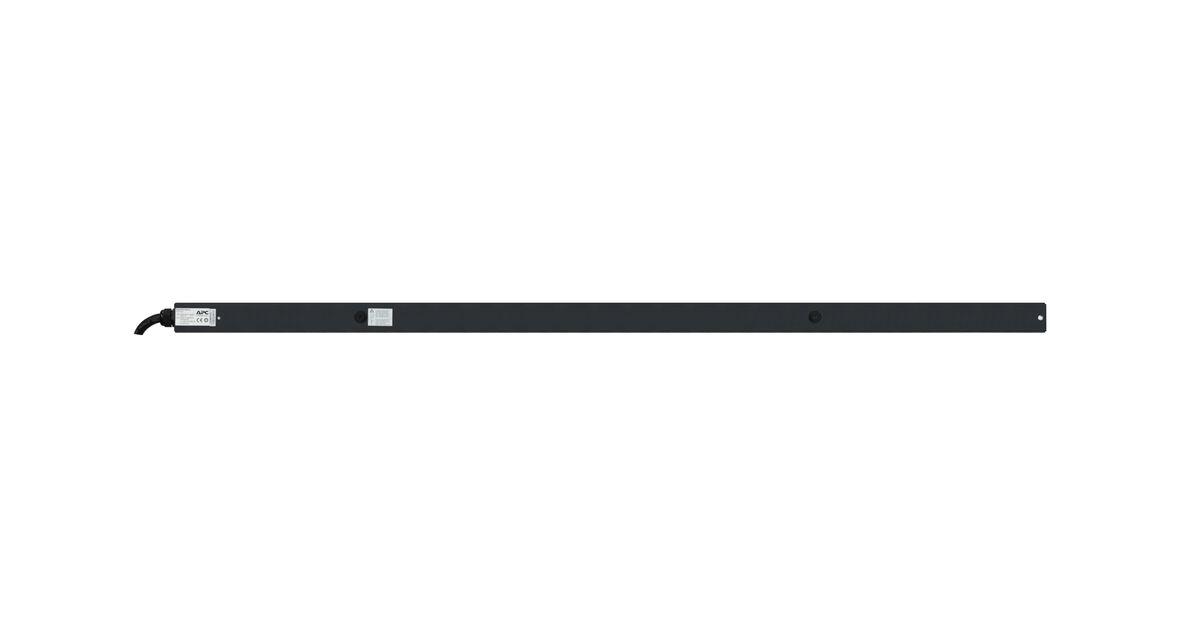

APC EPDU1232B power distribution unit (PDU) 42 AC outlet(s) 0U Black
APC EPDU1232B, Basic, 0U, Three-phase, Vertical, Black, 42 AC outlet(s)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 181176658 |
| EAN | 00731304405061 |
| Manufacturer part number | EPDU1232B |
| Category | UPS hardware |
| Design | |
|---|---|
| PDU types | Basic |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Features | |
|---|---|
| Type | Three-phase |
| Cable length | 2 m |
| Certification | CE, TUV |
| Ports & interfaces | |
|---|---|
| AC outlets quantity | 42 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC 60309 |
| Power | |
|---|---|
| Nominal input voltage | 400 V |
| Maximum current | 32 A |
| AC input frequency | 50/60 Hz |
| Load capacity | 22000 VA |
| Maximum input current per phase | 32 A |
| Other features | |
|---|---|
| Nominal output voltage | 230 V |
| Weight & dimensions | |
|---|---|
| Width | 62 mm |
| Depth | 44 mm |
| Height | 1794 mm |
| Weight | 5.14 kg |
| Package weight | 6.2 kg |
| Packaging data | |
|---|---|
| Package width | 160 mm |
| Package depth | 110 mm |
| Package height | 1950 mm |
| Packaging content | |
|---|---|
| Manual | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
Product Description
Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions.
Resettable circuit breakers
Enables a quick recovery from overload events.
Toolless Rack Mounting Capabilities
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Zero U Rack Mounting Abilities
Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space.
Agility
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Cost Savings
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
