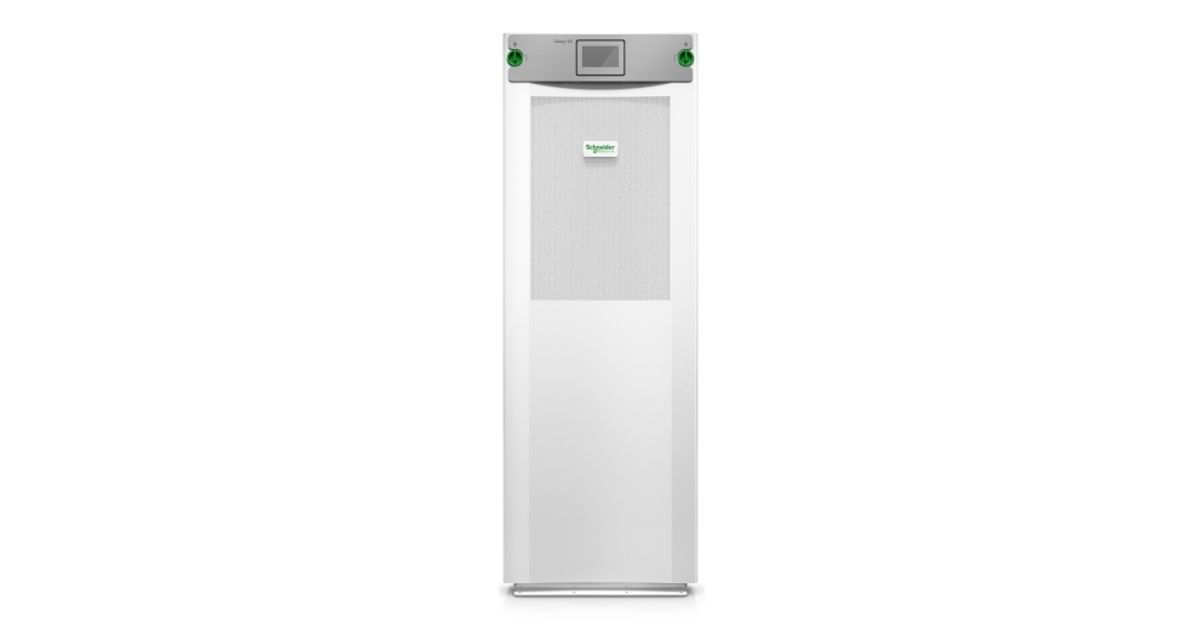

APC GALAXY VS Double-conversion (Online) 50 kVA 50000 W
APC GALAXY VS, Double-conversion (Online), 50 kVA, 50000 W, Sine, 340 V, 460 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 229421794 |
| EAN | 04064575130810 |
| Manufacturer part number | GVSUPS50K0B4HS |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 50 kVA |
| Output power | 50000 W |
| Waveform | Sine |
| Input operation voltage (min) | 340 V |
| Input operation voltage (max) | 460 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Audible alarm(s) | Y |
| Certification | IEC 62040-1-1, IEC 62040-2, OSHPD |
| Harmonized System (HS) code | 85078000 |
| Other features | |
|---|---|
| Noise level | 61 dB |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 480 V |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | White |
| LED indicators | Y |
| International Protection (IP) code | IP20 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1005.8 m |
| Sustainability | |
|---|---|
| Sustainability compliance | Y |
| Sustainability certificates | CE |
| Weight & dimensions | |
|---|---|
| Width | 521 mm |
| Depth | 847 mm |
| Height | 1485 mm |
| Weight | 200 kg |
| Package weight | 200 kg |
| Packaging data | |
|---|---|
| Package width | 640 mm |
| Package depth | 990 mm |
| Package height | 1680 mm |
