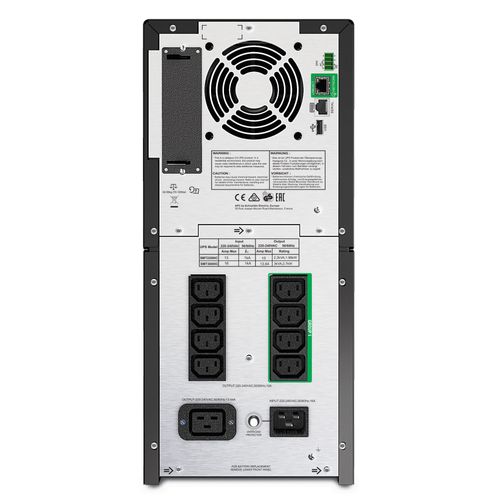

For illustrative purpose only

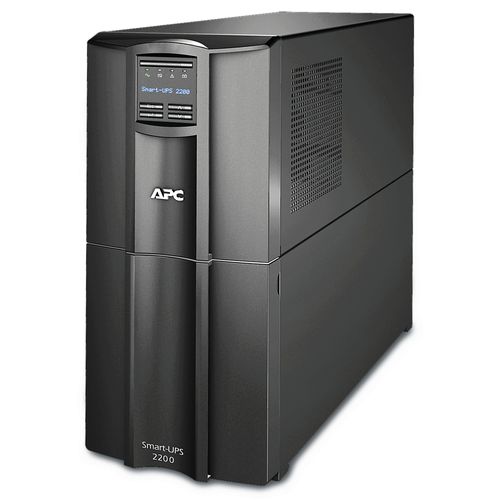

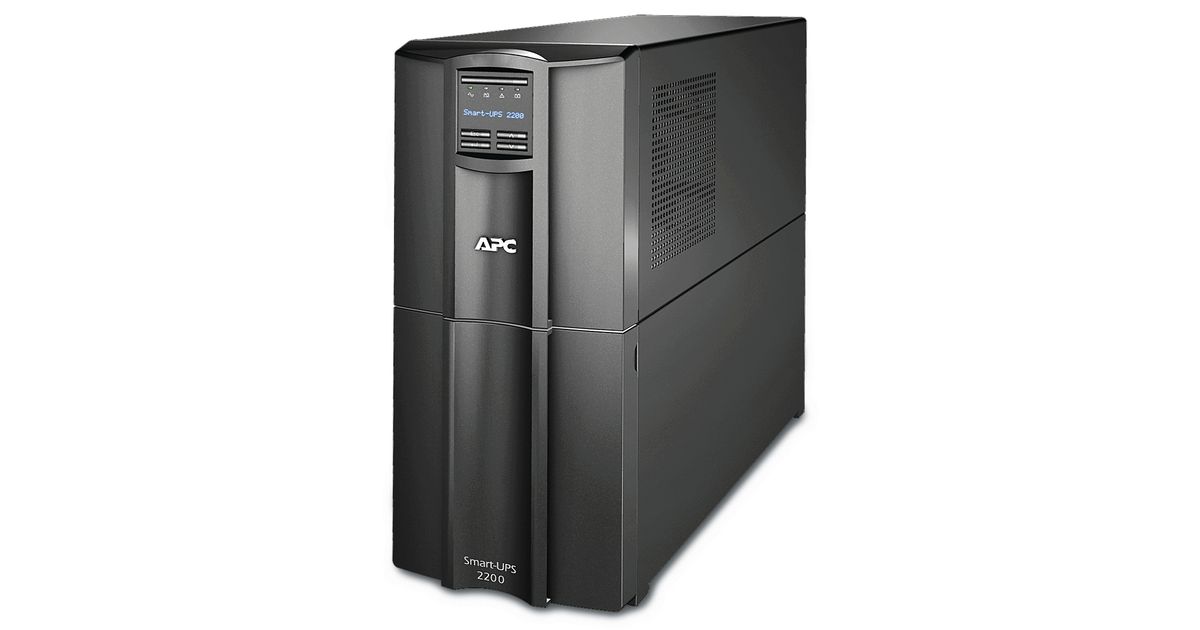

APC Smart-UPS 2200VA Line-Interactive 2.2 kVA 1980 W 9 AC outlet(s)
APC Smart-UPS 2200VA, Line-Interactive, 2.2 kVA, 1980 W, Sine, 151 V, 302 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 425693619 |
| EAN | 00731304337317 |
| Manufacturer part number | SMT2200IC?STOCK |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 2.2 kVA |
| Output power | 1980 W |
| Waveform | Sine |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Emergency Power Off (EPO) | Y |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Power protection features | Over voltage, Overload |
| Audible alarm(s) | Y |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Battery replacement |
| Auto-restart | Y |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Surge energy rating | 365 J |
| Display | |
|---|---|
| Response time | 6 ms |
| Other features | |
|---|---|
| Noise level | 45 dB |
| USB 2.0 ports quantity | 1 |

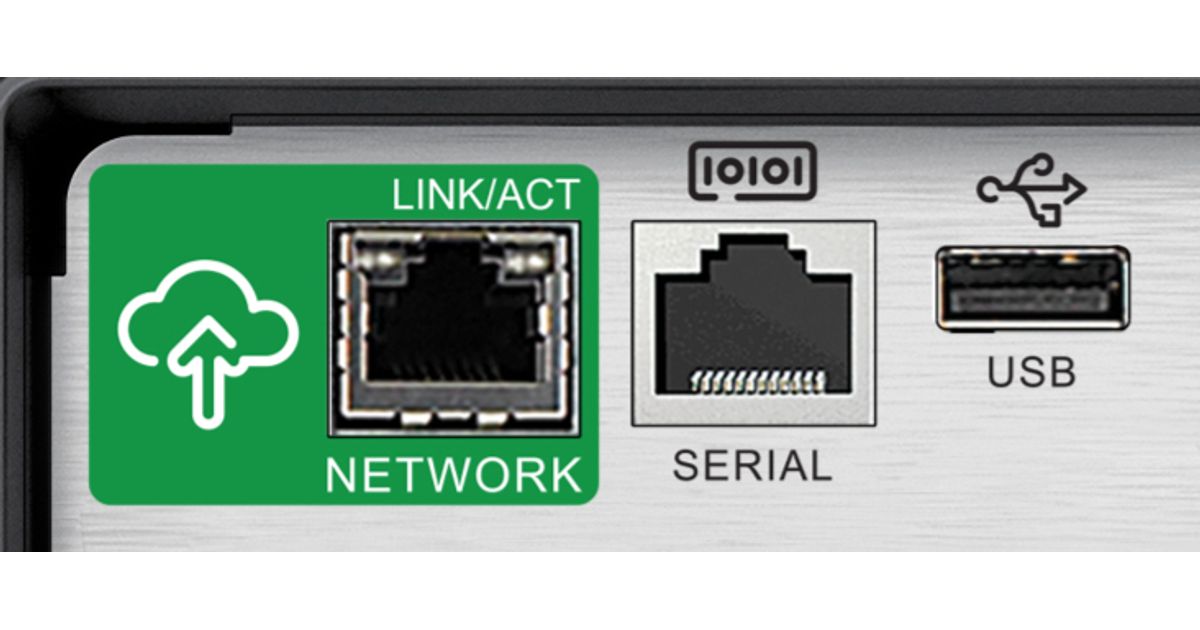

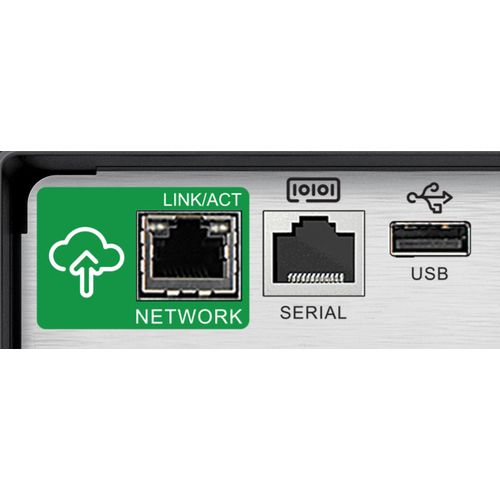

| Ports & interfaces | |
|---|---|
| AC outlets quantity | 9 AC outlet(s) |
| USB port | Y |
| USB port type | USB Type-A |
| Serial interface | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| SmartSlot | Y |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |

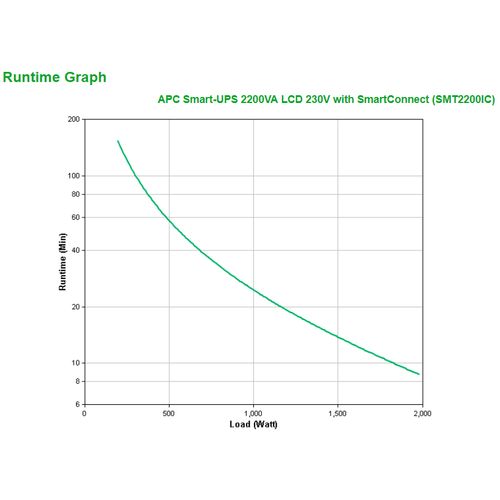

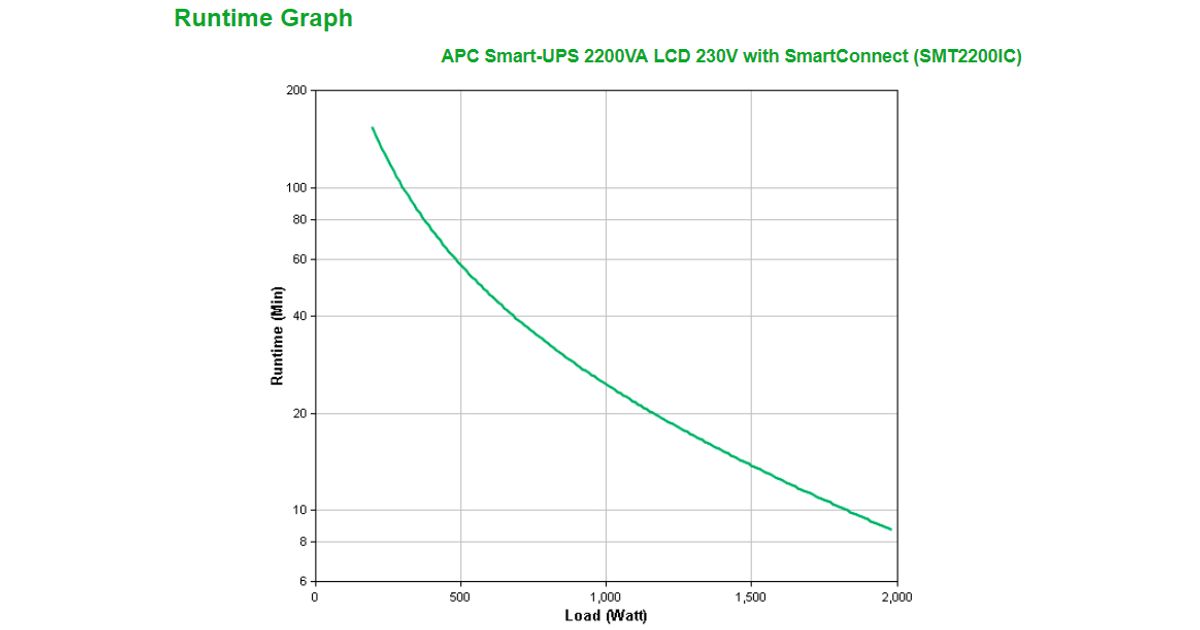

| Typical backup time at full load | 8.7 min |
| Typical backup time at half load | 25 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Design | |
|---|---|
| Product colour | Black |
| Display type | LCD |
| LED indicators | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
|---|---|
| Width | 197 mm |
| Depth | 544 mm |
| Height | 435 mm |
| Weight | 48.8 kg |
| Package weight | 61.9 kg |
| Packaging data | |
|---|---|
| Package width | 381 mm |
| Package depth | 762 mm |
| Package height | 699 mm |
| Software CD | Y |
| Packaging content | |
|---|---|
| Cables included | RS-232, USB cable |
| Logistics data | |
|---|---|
| Products per pallet | 9 pc(s) |
Product Description

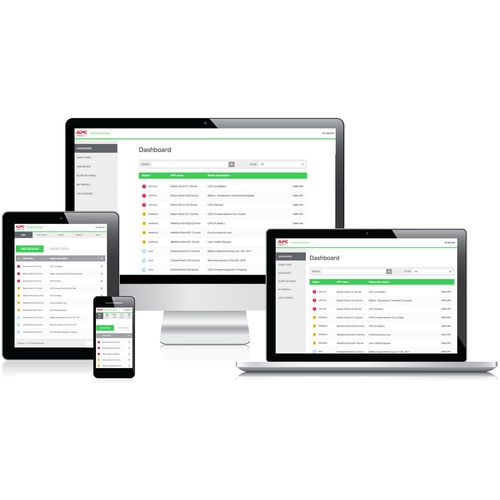

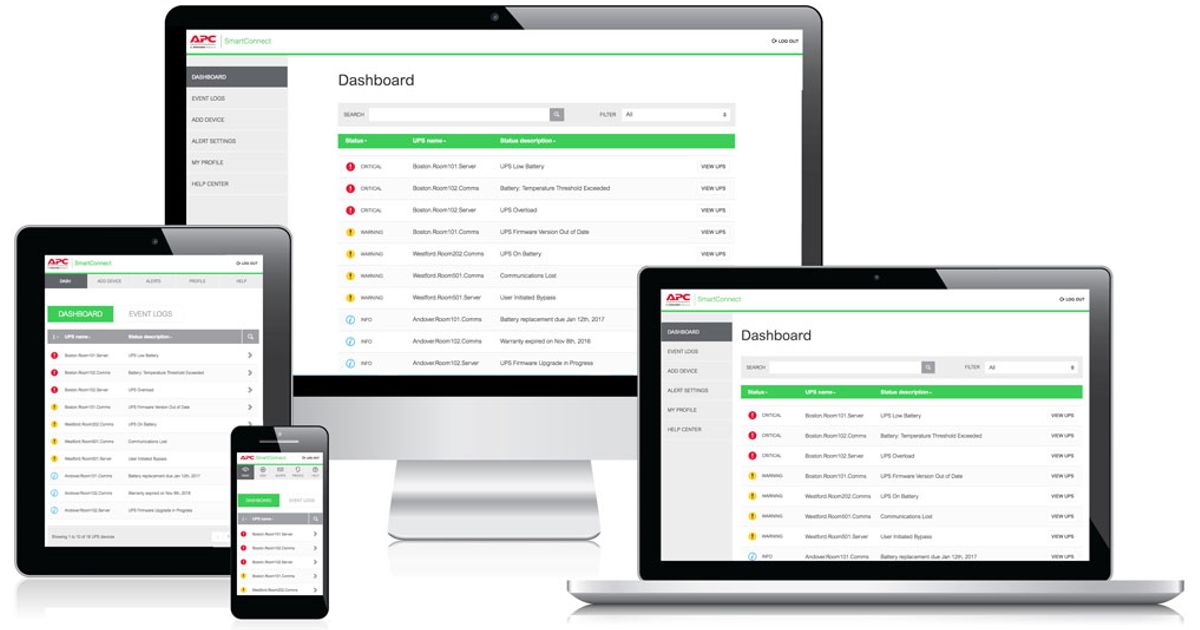

Smart-UPS, Line Interactive, 2200VA, Tower, 230V, 8x IEC C13+2x IEC C19 outlets, SmartConnect Port+SmartSlot, AVR, LCD
