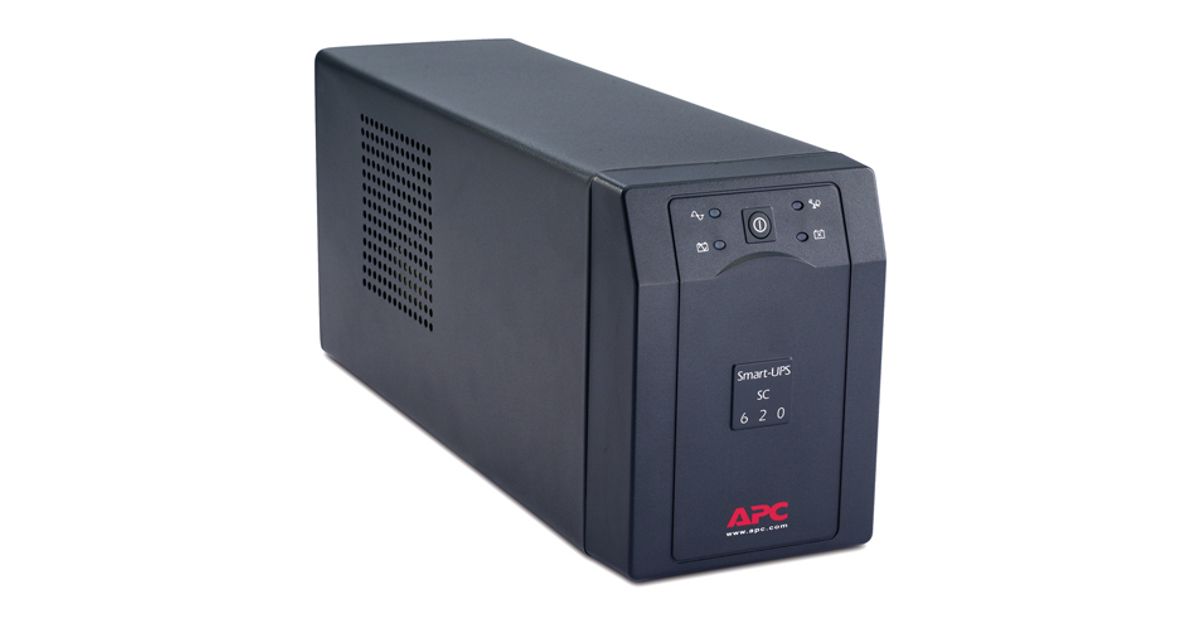

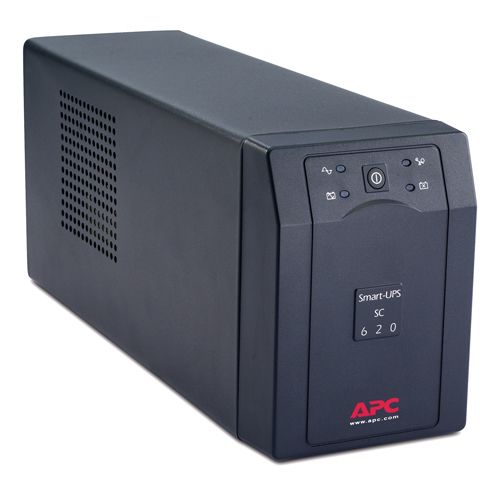

APC Smart-UPS Line-Interactive 0.62 kVA 390 W 4 AC outlet(s)
APC Smart-UPS, Line-Interactive, 0.62 kVA, 390 W, Sine, 50/60 Hz, 320 J
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 07174044 |
| EAN | 00747126255852 |
| Manufacturer part number | SC620i |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 0.62 kVA |
| Output power | 390 W |
| Waveform | Sine |
| Input frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Y |
| Hold time (max) | 2 ms |
| Emergency Power Off (EPO) | N |
| Surge protection | Y |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Network |
| Audible alarm(s) | Y |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Auto-restart | Y |
| Certification | REACH, PEP, EOLI |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Surge energy rating | 320 J |
| Efficiency | 97.4% |
| Nominal input voltage | 230 V |
| Other features | |
|---|---|
| Noise level | 45 dB |
| Nominal output voltage | 230 V |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| Serial interface | Y |
| Serial interface type | RS-232 |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 132 VAh |
| Typical backup time at full load | 5.5 min |
| Typical backup time at half load | 15.8 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 5.5 h |
| Automatic battery test | Y |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | Grey |
| LED indicators | Battery replacement |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 119 mm |
| Depth | 375 mm |
| Height | 168 mm |
| Weight | 12.3 kg |
| Package weight | 13.2 kg |
| Packaging data | |
|---|---|
| Package width | 262 mm |
| Package depth | 508 mm |
| Package height | 318 mm |
| Software CD | Y |
| Packaging content | |
|---|---|
| Cables included | RS-232 |
| Manual | Y |
| Logistics data | |
|---|---|
| Products per pallet | 12 pc(s) |
Product Description
APC Smart-UPS SC is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection. Included PowerChute Business Edition management software allows you to configure safe system shutdowns and take advantage of advanced UPS management features like automated risk assessments and runtime capacity calculations. (All major operating systems supported). Communications are through your server's standard serial port. When you are ready to take your business to the next level you can use the same software environment found on Smart-UPS SC to seamlessly manage other Smart-UPS models, allowing you to grow your IT infrastructure without having to replace your software or retrain your administrators. Built on the same standards as the award winning Smart-UPS UPS, the Smart-UPS SC is the UPS to start your business with.
