APC Smart-UPS Line-Interactive 1 kVA 800 W 8 AC outlet(s)
APC Smart-UPS, Line-Interactive, 1 kVA, 800 W, Sine, 151 V, 302 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 07178567 |
| EAN | 00747126256125 |
| Manufacturer part number | SMX1000i |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 1 kVA |
| Output power | 800 W |
| Waveform | Sine |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Input frequency | 50/60 Hz |
| Output frequency regulation | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Y |
| Emergency Power Off (EPO) | Y |
| Surge protection | Y |
| Audible alarm(s) | Y |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Auto-restart | Y |
| Cable length | 1.83 m |
| Certification | CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Surge energy rating | 600 J |
| Efficiency | 98.2% |
| Nominal input voltage | 230 V |
| Other features | |
|---|---|
| Noise level | 40 dB |
| Nominal output voltage | 230 V |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| USB port | Y |
| SmartSlot | Y |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 299 VAh |

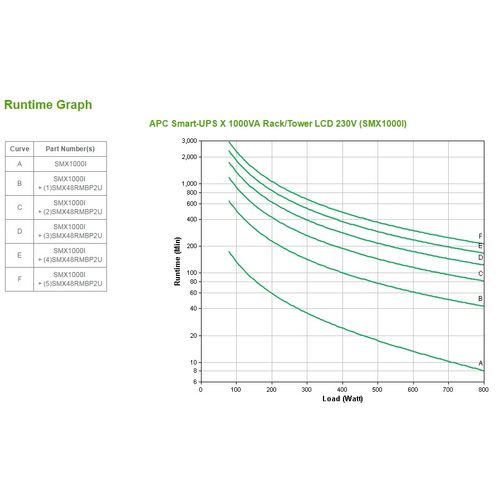

| Typical backup time at full load | 8.1 min |
| Typical backup time at half load | 24.2 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | N |
| Automatic battery test | Y |
| Cold start | Y |
| Design | |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 2U |
| LED indicators | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 432 mm |
| Depth | 490 mm |
| Height | 89 mm |
| Weight | 22.9 kg |
| Package weight | 27.3 kg |
| Packaging content | Removable support feet |
| Packaging data | |
|---|---|
| Package width | 589 mm |
| Package depth | 620 mm |
| Package height | 246 mm |
| Quick installation guide | Y |
| Software CD | Y |
| Packaging content | |
|---|---|
| Rack mount kit | Y |
| Cables included | RS-232, USB cable |
| Logistics data | |
|---|---|
| Products per pallet | 8 pc(s) |
Product Description
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
