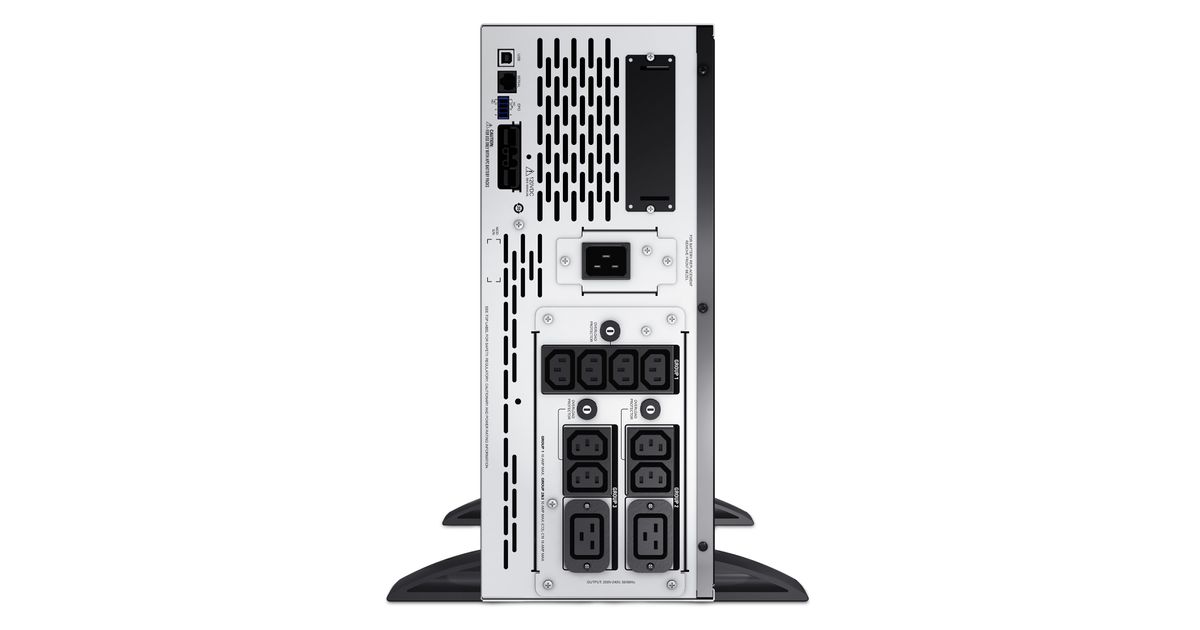

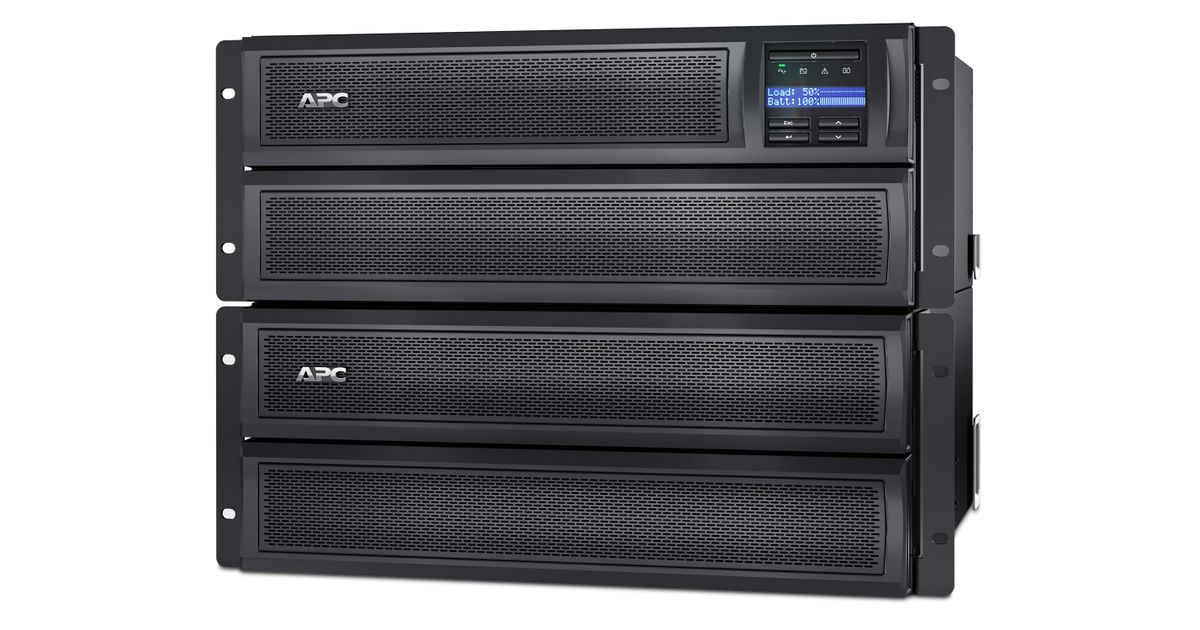

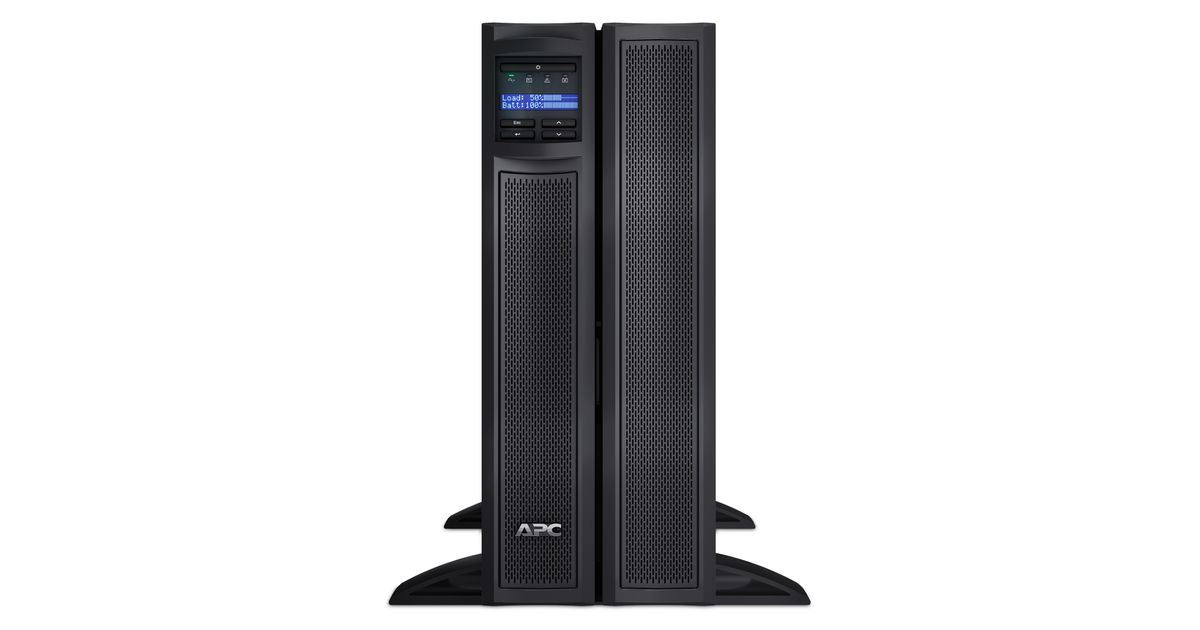

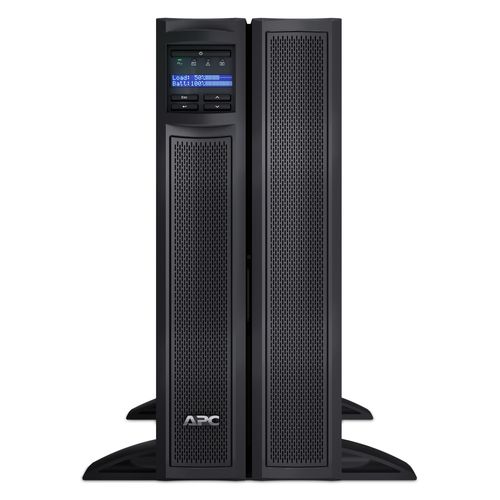

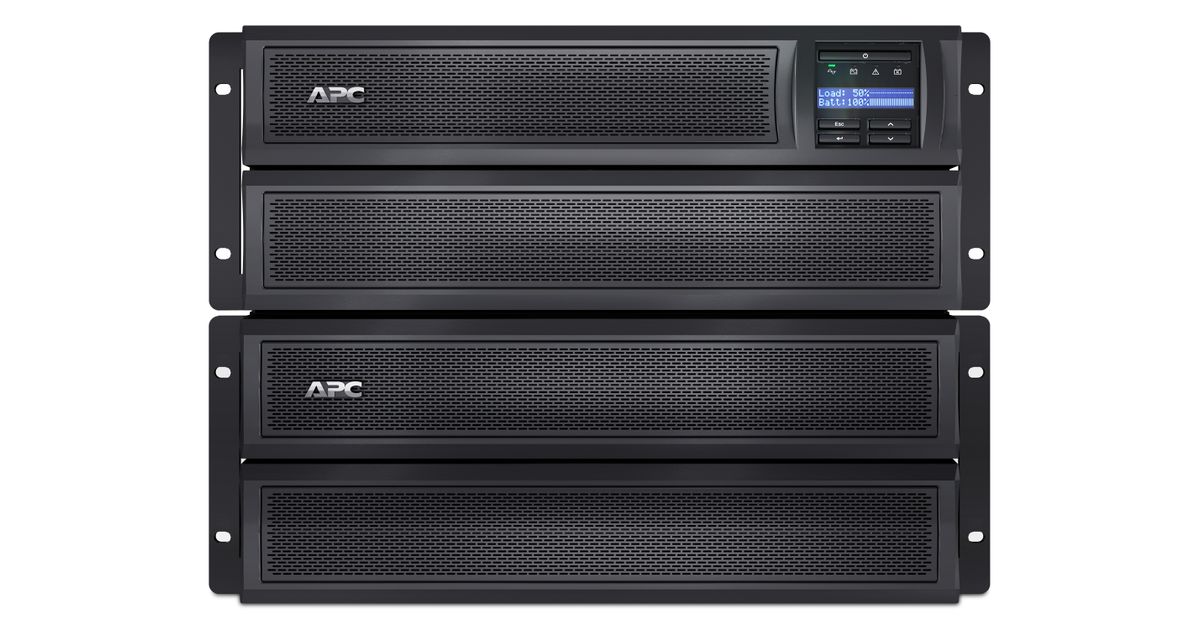

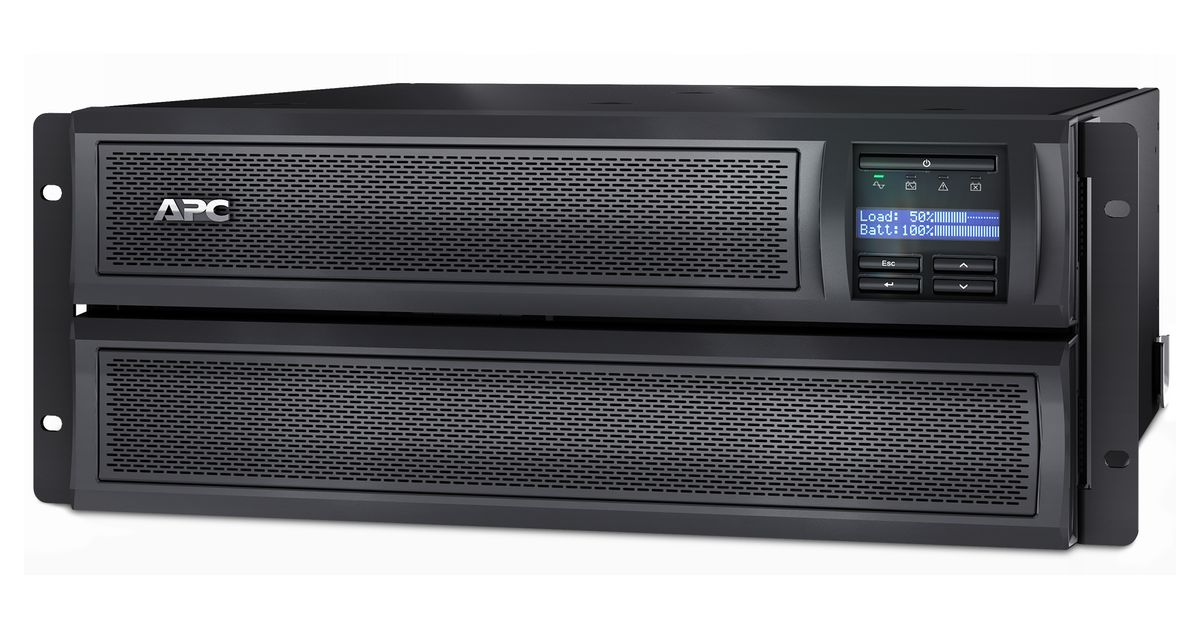

For illustrative purpose only

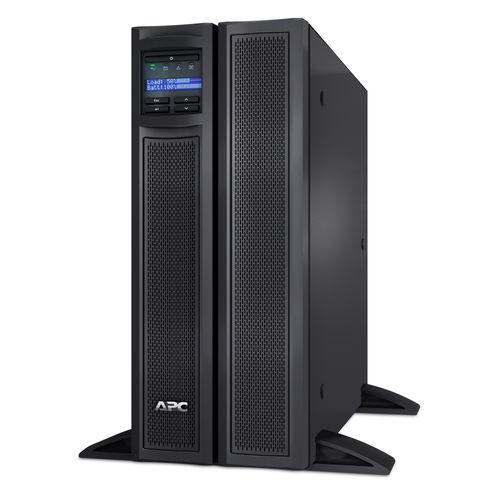

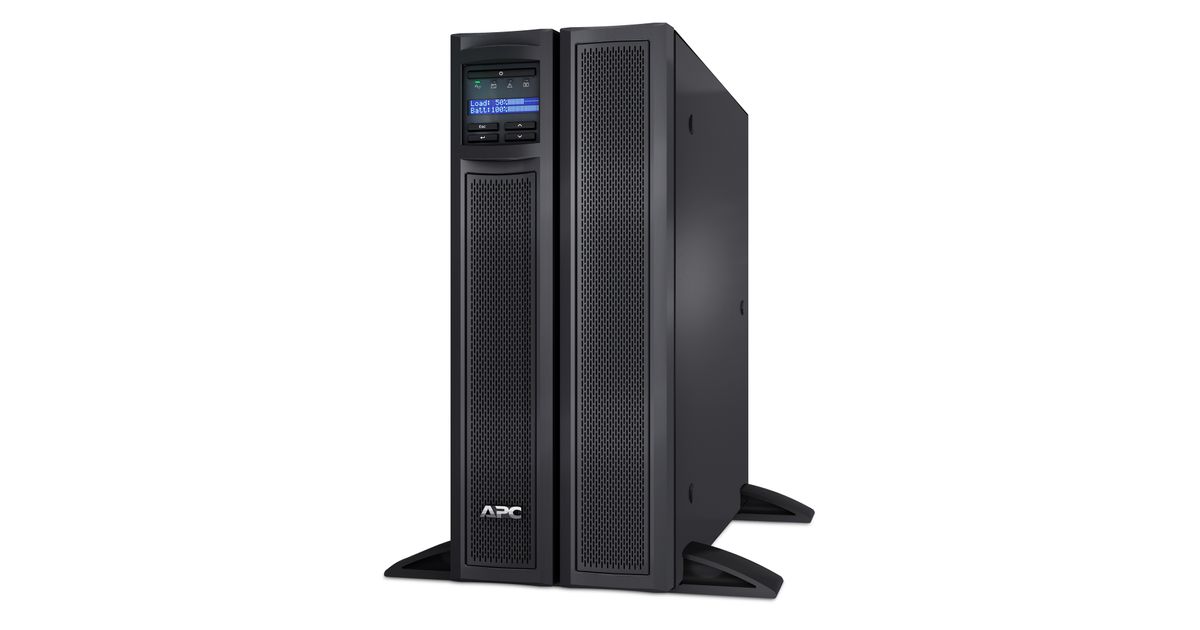

APC Smart-UPS Line-Interactive 2.2 kVA 1980 W 10 AC outlet(s)
APC Smart-UPS, Line-Interactive, 2.2 kVA, 1980 W, Sine, 140 V, 280 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 07178593 |
| EAN | 00731330429260 |
| Manufacturer part number | SMX2200HV |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 2.2 kVA |
| Output power | 1980 W |
| Waveform | Sine |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Output frequency regulation | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Y |
| Hold time (min) | 2 ms |
| Hold time (max) | 10 ms |
| Emergency Power Off (EPO) | Y |
| Surge protection | Y |
| Audible alarm(s) | Y |
| Auto-restart | Y |
| Cable length | 2 m |
| Certification | CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 CL A, IEC 60950, IRAM, RCM, UL 1778, VDE, WEEE, REACH |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Surge energy rating | 645 J |
| Efficiency | 98.1% |
| Other features | |
|---|---|
| Noise level | 55 dB |
| Ports & interfaces | |
|---|---|

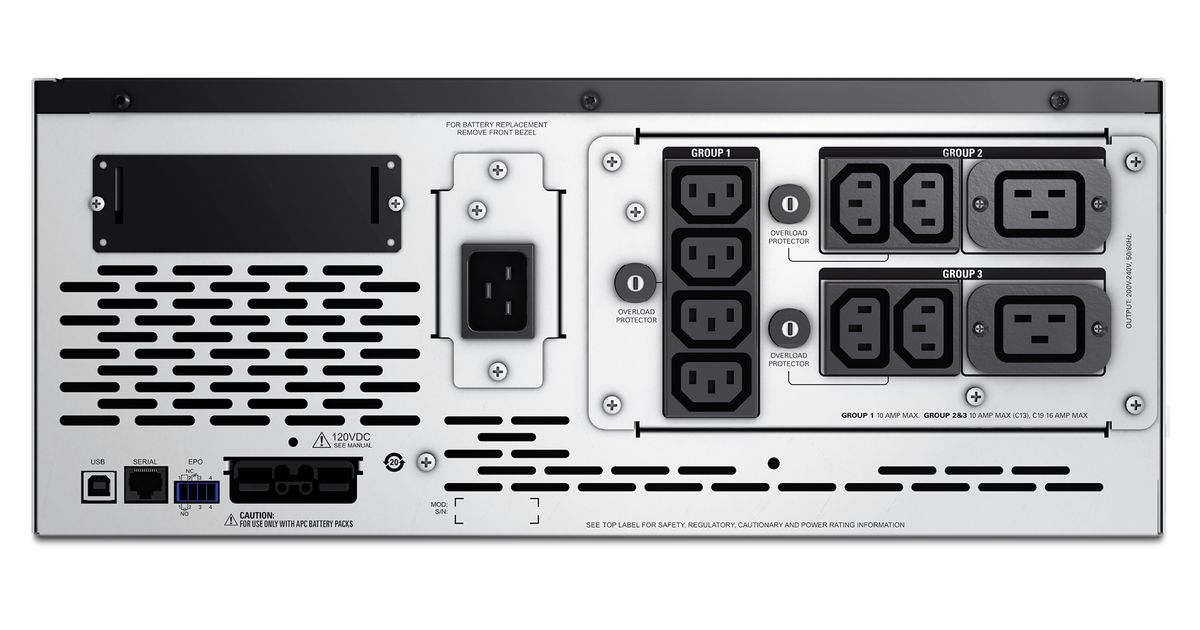

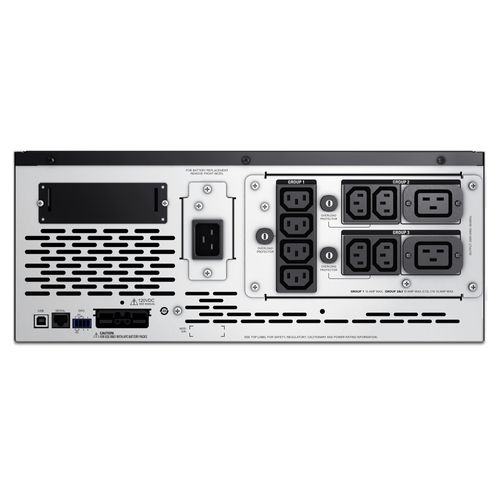

| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| USB port | Y |
| SmartSlot | Y |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 702 VAh |

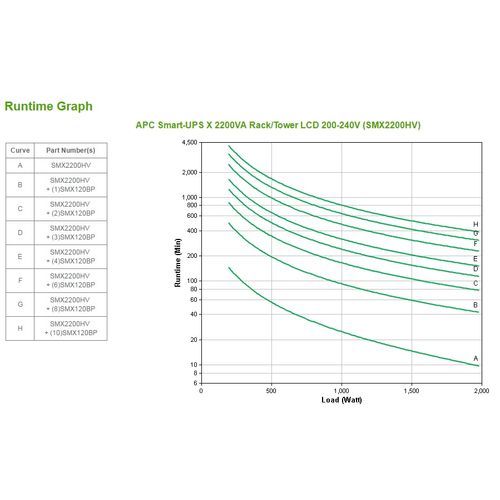

| Typical backup time at full load | 9.8 min |
| Typical backup time at half load | 25.3 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Y |
| Automatic battery test | Y |
| Cold start | Y |
| Design | |
|---|---|

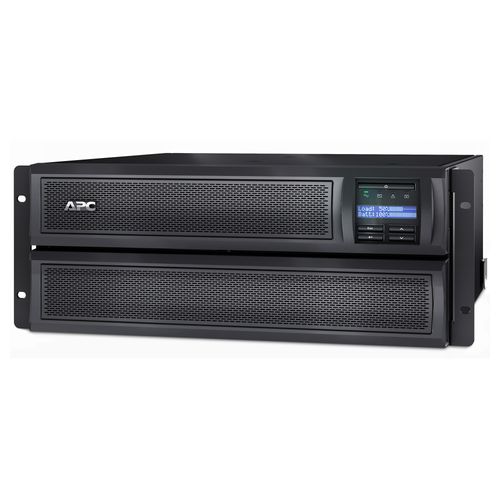

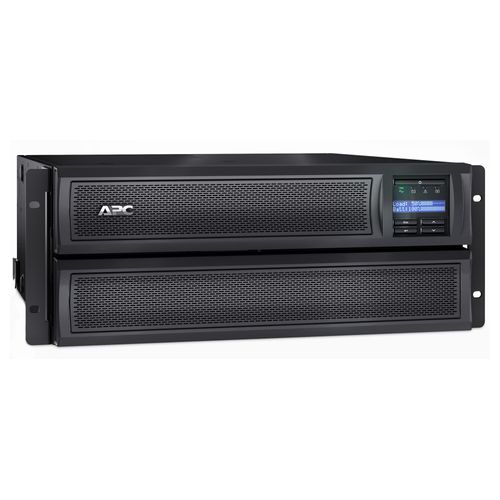

| Form factor | Rackmount/Tower |
| Product colour | Black, Stainless steel |
| Rack capacity | 4U |
| Display type | LCD |
| LED indicators | Status, Battery replacement |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 178 mm |
| Depth | 483 mm |
| Height | 432 mm |
| Weight | 38.6 kg |
| Package weight | 47.7 kg |
| Packaging content | Web/SNMP Management Card |
| Packaging data | |
|---|---|
| Package width | 586 mm |
| Package depth | 633 mm |
| Package height | 330 mm |
| Quick installation guide | Y |
| Software CD | Y |
| Packaging content | |
|---|---|
| Rack mount kit | Y |
| Cables included | RS-232, USB cable |
| Manual | Y |
| Security | |
|---|---|
| Temperature sensor | Y |
| Logistics data | |
|---|---|
| Products per pallet | 6 pc(s) |
Product Description
Smart-UPS,1980 Watts /2200 VA,Input 230V, 230V /Output 230V, Interface Port SmartSlot, USB, Extended runtime model, Rack Height 4 U
Includes: CD with software, Rack Mounting brackets, Smart UPS signalling RS-232 cable, USB cable, User Manual
