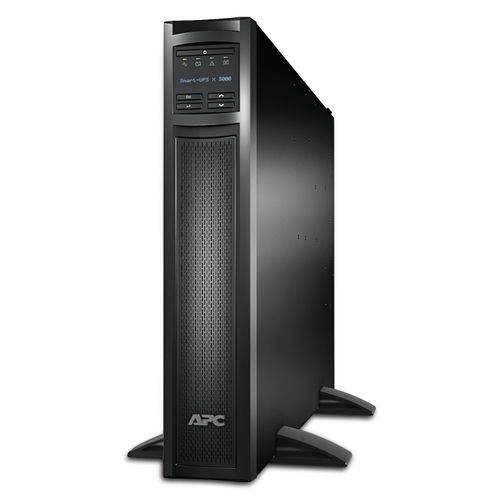

APC Smart-UPS Line-Interactive 3 kVA 2700 W 9 AC outlet(s)
APC Smart-UPS, Line-Interactive, 3 kVA, 2700 W, Sine, 50/60 Hz, 208 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 07175666 |
| EAN | 00747126256248 |
| Manufacturer part number | AUAPCMX30HN |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Sine |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Output frequency regulation | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Y |
| Hold time (min) | 2 ms |
| Hold time (max) | 10 ms |
| Emergency Power Off (EPO) | Y |
| Surge protection | Y |
| Audible alarm(s) | Y |
| Auto-restart | Y |
| Cable length | 2.44 m |
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH, PEP, EOLI |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Surge energy rating | 645 J |
| Efficiency | 98.5% |
| Nominal input voltage | 230 V |
| Other features | |
|---|---|
| Noise level | 55 dB |
| Nominal output voltage | 230 V |
| Ports & interfaces | |
|---|---|

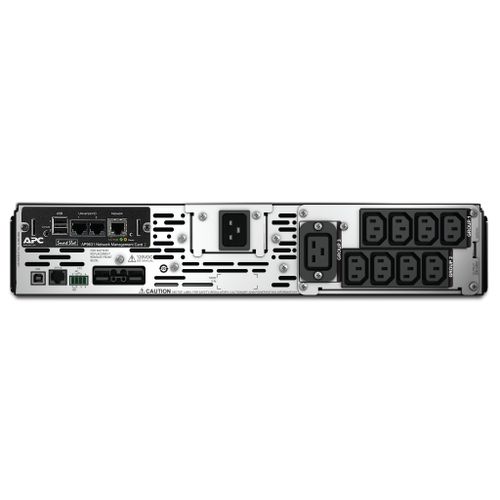

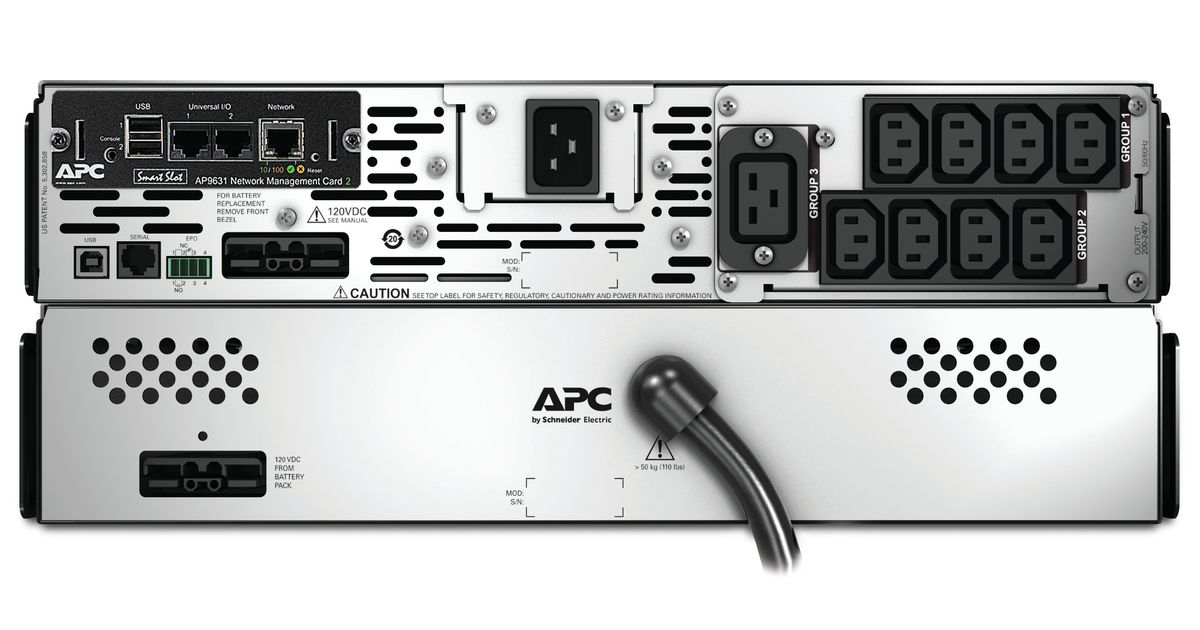

| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 9 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| SmartSlot | Y |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 738 VAh |
| Typical backup time at full load | 6.3 min |
| Typical backup time at half load | 18 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Y |
| Automatic battery test | Y |
| Design | |
|---|---|

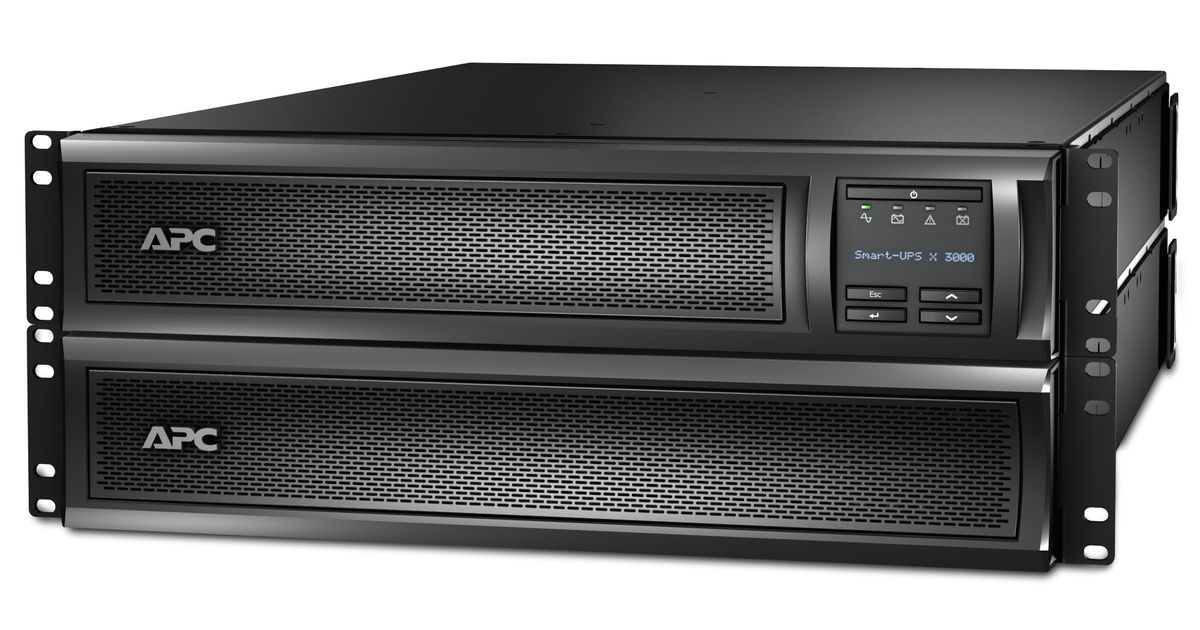

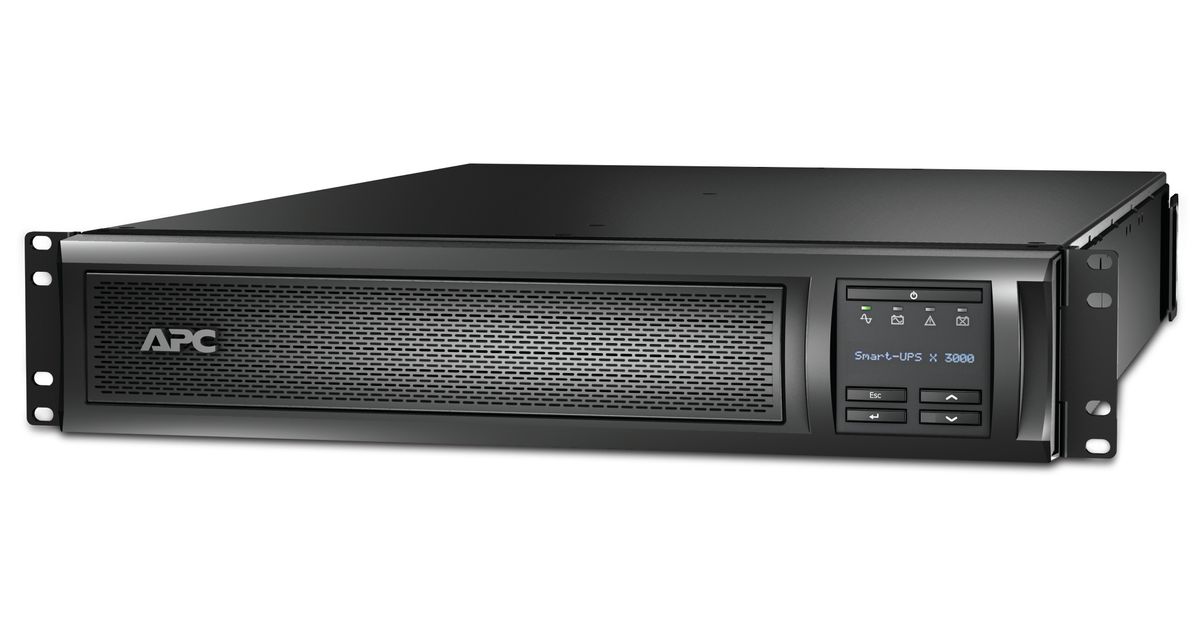

| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 2U |
| LED indicators | Battery replacement |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 432 mm |
| Depth | 667 mm |
| Height | 85 mm |
| Weight | 37.3 kg |
| Package weight | 45.4 kg |
| Packaging content | Web/SNMP Management Card |
| Packaging data | |
|---|---|
| Package width | 596 mm |
| Package depth | 869 mm |
| Package height | 85 mm |
| Software CD | Y |
| Packaging content | |
|---|---|
| Rack mount kit | Y |
| Cables included | RS-232 |
| Manual | Y |
| Security | |
|---|---|
| Temperature sensor | Y |
| Logistics data | |
|---|---|
| Products per pallet | 8 pc(s) |
Product Description
Availability
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Manageability
Network manageable
Provides remote management of the UPS over the network.
Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial Connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Serviceability
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers
Enables a quick recovery from overload events.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Adaptability
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Manageability
Network manageable
Provides remote management of the UPS over the network.
Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial Connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Serviceability
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers
Enables a quick recovery from overload events.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Adaptability
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
