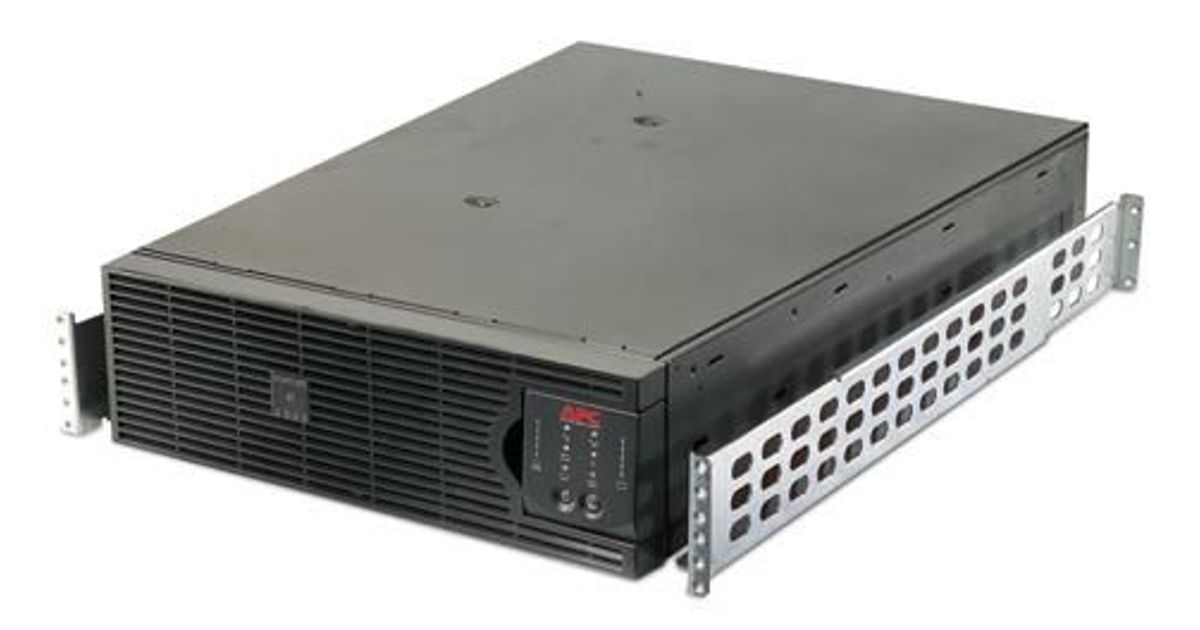

APC Smart-UPS RT 2200VA 2.2 kVA 1540 W 10 AC outlet(s)
APC Smart-UPS RT 2200VA, 2.2 kVA, 1540 W, 100 V, 280 V, 50/60 Hz, 220 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 188026872 |
| EAN | 00731304286929 |
| Manufacturer part number | SURTD2200XLIM |
| Category | UPS hardware |
| Features | |
|---|---|
| Output power capacity | 2.2 kVA |
| Output power | 1540 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Y |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Audible alarm(s) | Y |
| Cable length | 2.5 m |
| Certification | CE, DNV, EN 50091-1, EN 50091-2, EN 55022 Cl. A, EN 60950, EN 61000-3-2. |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Surge energy rating | 480 J |
| Efficiency | 92% |
| Nominal input voltage | 230 V |
| Other features | |
|---|---|
| Noise level | 55 dB |
| Dimensions (WxDxH) | 130 x 660 x 432 mm |
| Nominal output voltage | 230 V |
| Package dimensions (WxDxH) | 603 x 980 x 347 mm |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 2.5 h |
| Design | |
|---|---|
| Form factor | Rackmount |
| Product colour | Black |
| Rack capacity | 3U |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 130 mm |
| Depth | 660 mm |
| Height | 432 mm |
| Weight | 54.5 kg |
| Package weight | 63.6 kg |
Product Description
APC Smart-UPS On-Line, 1540 Watts / 2200 VA, Input 230V / Output 230V , Interface Port RJ-45 Serial, Smart-Slot , Extended runtime model , Rack Height 3 U
Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Smart UPS signalling RS-232 cable, User Manual
Standard Lead Time: Usually in Stock
Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Smart UPS signalling RS-232 cable, User Manual
Standard Lead Time: Usually in Stock
