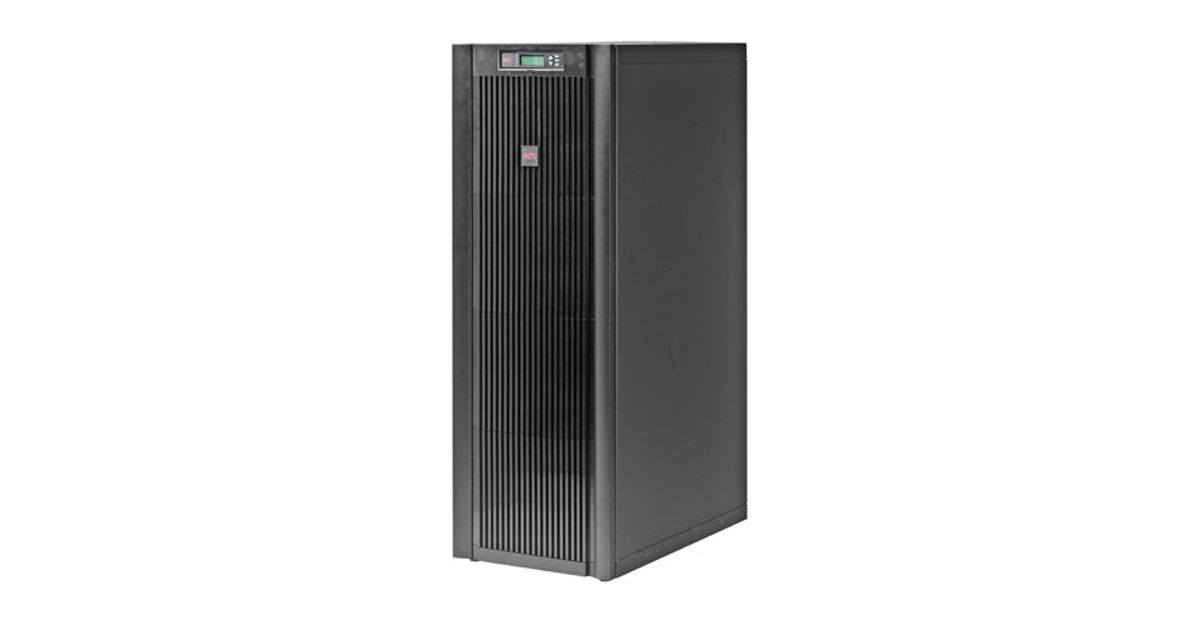

APC Smart-UPS VT 15kVA uninterruptible power supply (UPS) 12000 W 1 AC outlet(s)
APC Smart-UPS VT 15kVA, 15 kVA, 12000 W, 93%, 5%, 54 dB, 1 AC outlet(s)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 229888560 |
| EAN | 00731304257080 |
| Manufacturer part number | SUVTP15KF4B4S |
| Category | UPS hardware |
| Features | |
|---|---|
| Output power capacity | 15 kVA |
| Output power | 12000 W |
| Emergency Power Off (EPO) | Y |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Audible alarm(s) | Y |
| Certification | cUL,ISO 14001,ISO 9001,UL 1778 |
| Input connection type | 3PH + N + G |
| Power | |
|---|---|
| Efficiency | 93% |
| Battery type | VRLA |
| Nominal input voltage | 208 V |
| Other features | |
|---|---|
| Noise level | 54 dB |
| Output connections | 1x 3PH + N + G |
| Nominal output voltage | 120-208 V |
| Package dimensions (WxDxH) | 650 x 1062 x 1643 mm |
| Ports & interfaces | |
|---|---|
| AC outlets quantity | 1 AC outlet(s) |
| Interface | DB-9 RS-232, SmartSlot |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 5 h |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -50 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
|---|---|
| Width | 523 mm |
| Depth | 813 mm |
| Height | 1499 mm |
| Weight | 599.1 kg |
| Package weight | 630 kg |
Product Description
Parallel-capacity capable
Increases total power capacity by using multiple UPSs simultaneously.
Parallel-redundant capable
Power the connected equipment with multiple UPSs to increase system redundancy
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
Scalable runtime
Allows additional run time to be quickly added as needed.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
Increases total power capacity by using multiple UPSs simultaneously.
Parallel-redundant capable
Power the connected equipment with multiple UPSs to increase system redundancy
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
Scalable runtime
Allows additional run time to be quickly added as needed.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
