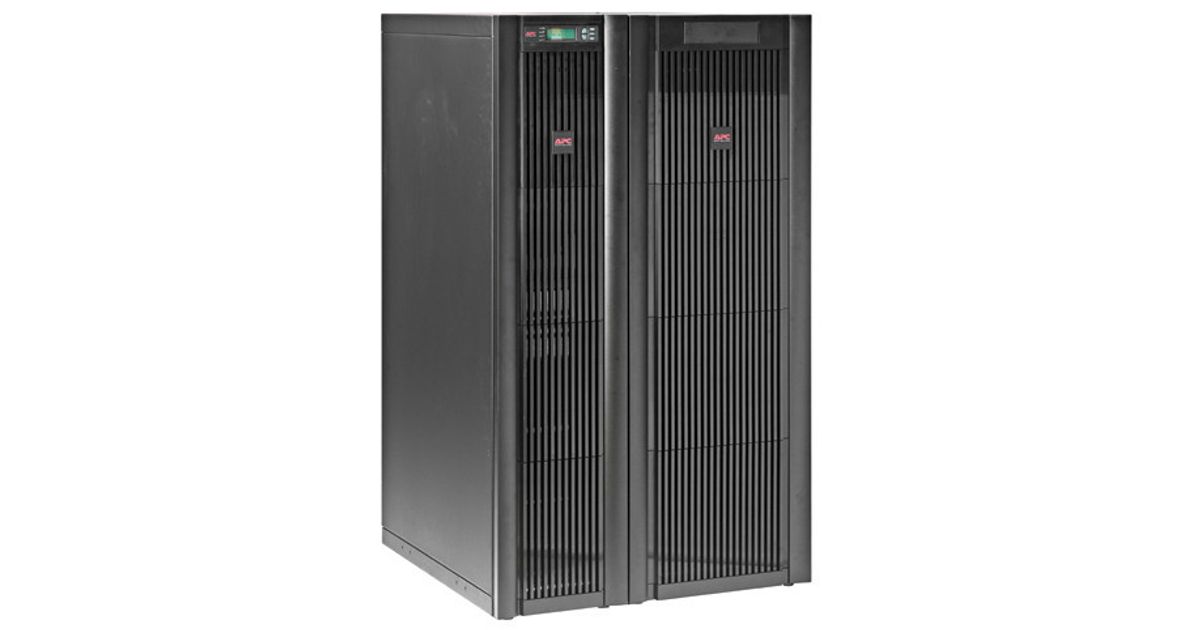

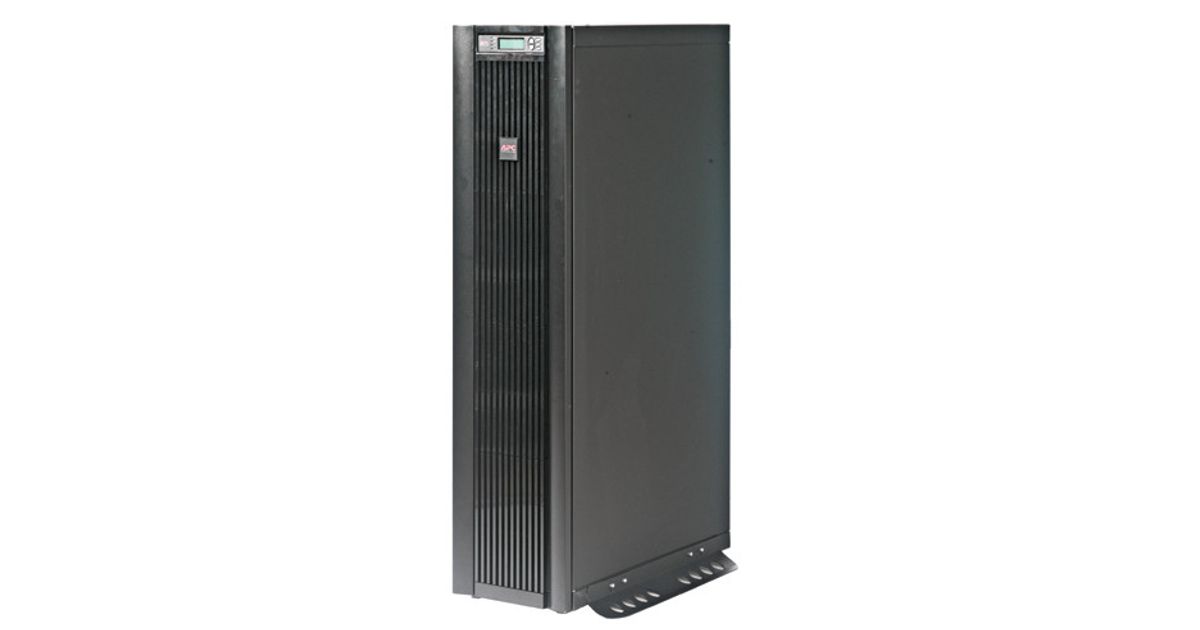

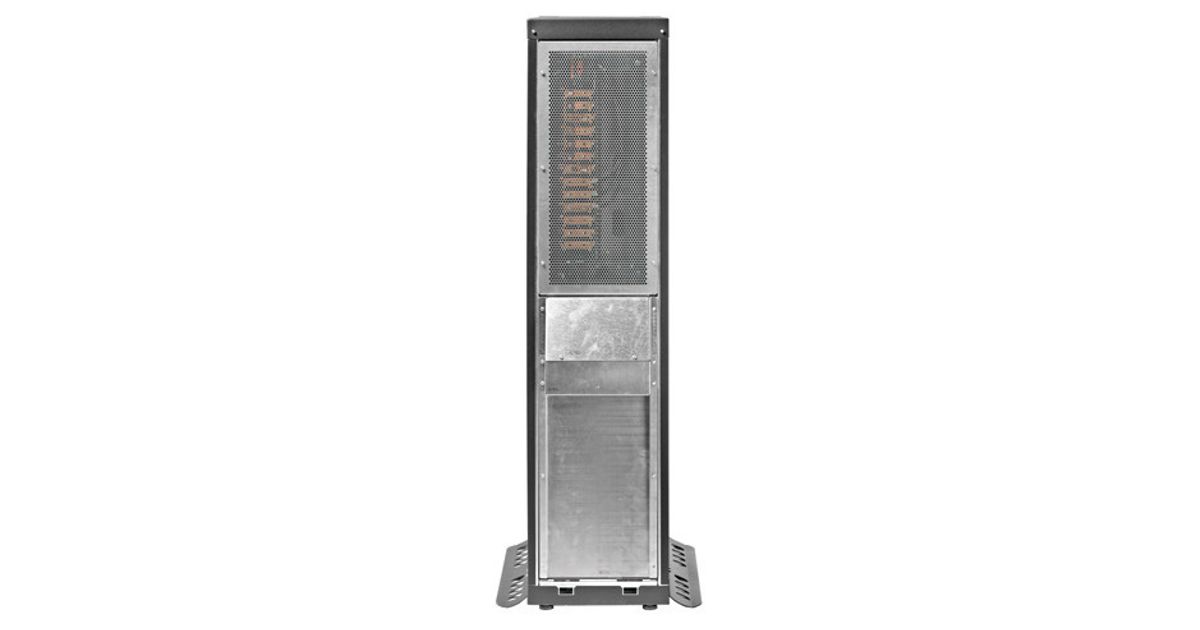

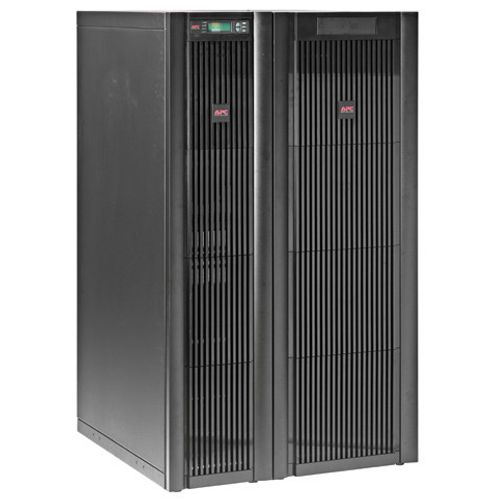

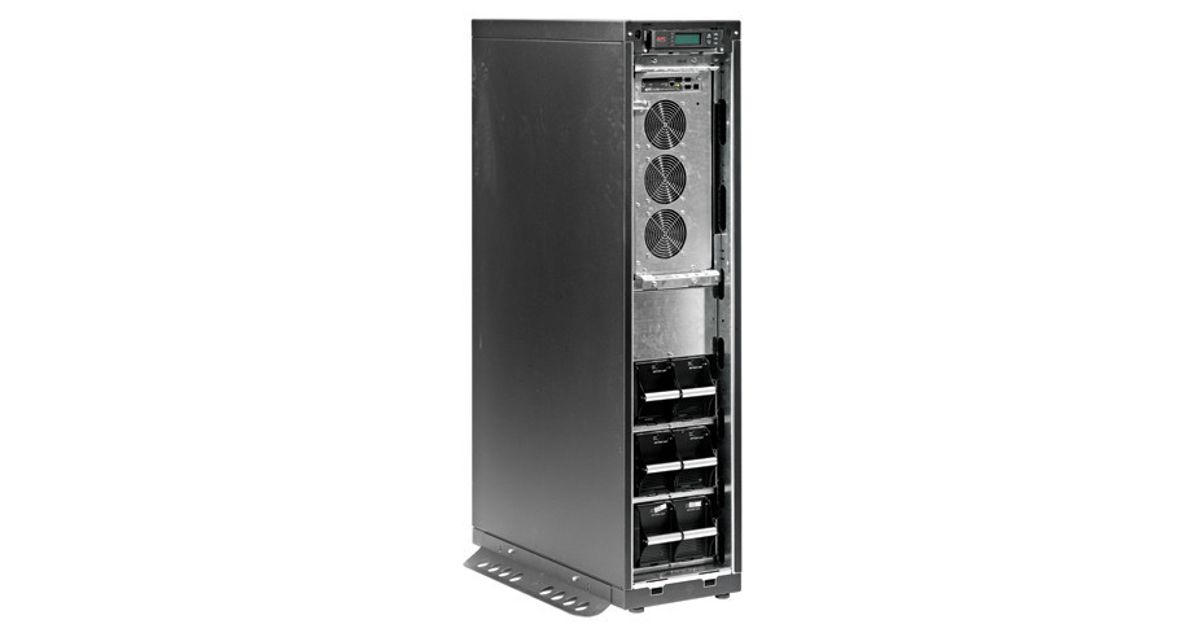

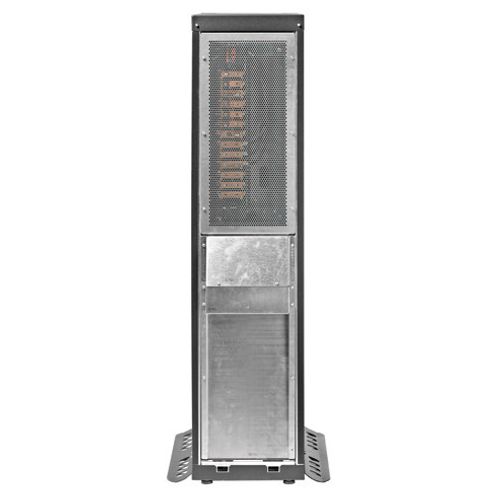

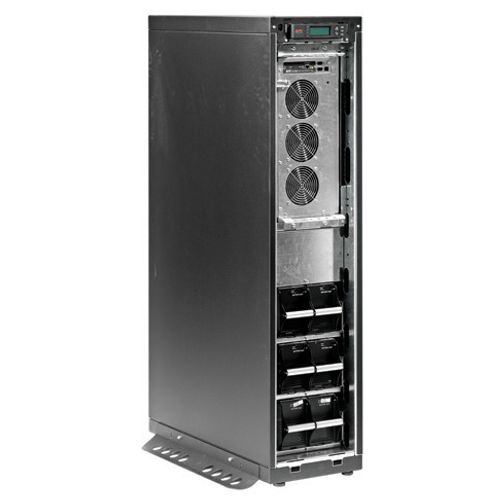

For illustrative purpose only
APC Smart-UPS VT 20kVA 400V 16000 W
APC Smart-UPS VT 20kVA 400V, 20 kVA, 16000 W, 40/70 Hz, 27 A, 64 dB, Sealed Lead Acid (VRLA)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 229076579 |
| EAN | 00731304257189 |
| Manufacturer part number | SUVTP20KH2B2S |
| Category | UPS hardware |
| Features | |
|---|---|
| Output power capacity | 20 kVA |
| Output power | 16000 W |
| Input frequency | 40/70 Hz |
| Emergency Power Off (EPO) | Y |
| Certification | C-tick,CE,EN 50091-2,EN/IEC 62040-3,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO 9001,VFI-SS-112 |
| Harmonized System (HS) code | 85078000 |
| Input connection type | Hard Wire 5-wire (3PH + N + G) |
| Power | |
|---|---|
| Maximum current | 27 A |
| Battery type | VRLA |
| Nominal input voltage | 400 V |
| Other features | |
|---|---|
| Noise level | 64 dB |
| Output connections | 1 x Hard Wire 4-wire (3PH + G) 1 x Hard Wire 5-wire (3PH + N + G) 1 x Screw Terminals |
| Dimensions (WxDxH) | 356 x 812 x 1499 mm |
| Package dimensions (WxDxH) | 650 x 1062 x 1643 mm |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 5 h |
| Replacement battery cartridge | 2 |
| Design | |
|---|---|
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
|---|---|
| Weight | 396.8 kg |
| Package weight | 428.2 kg |
| Logistics data | |
|---|---|
| Products per pallet | 1 pc(s) |
Product Description
APC Smart-UPS VT, 16 kW / 20 kVA,Input 400V 3PH / Output 230V, 400V 3PH, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model.
Includes: Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Network Management Card, Smart UPS signalling RS-232 cable, Start up included, User Manual.
- Parallel-capacity capable
Increases total power capacity by using multiple UPSs simultaneously.
- Parallel-redundant capable
Power the connected equipment with multiple UPSs to increase system redundancy.
Availability
- Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
- Scalable runtime
Allows additional run time to be quickly added as needed.
- Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
- Battery modules connected in parallel
Delivers higher availability through redundant batteries.
Serviceability
- User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Battery replacement without tools
Allows quick, easy battery replacement.
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Shippable with modules installed
Enables pre-installation UPS staging and testing and faster installation.
- Modular design
Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
Manageability
- Network manageable
Provides remote management of the UPS over the network.
- InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
- LCD display
Alpha-Numeric Display which displays system parameters and alarms.
- Audible alarms
Provides notification of changing utility power and UPS conditions.
- Programmable frequency
Ensures compatibility with different input frequencies.
- LED status indicators
Quickly understand unit and power status with visual indicators.
- SmartSlot
Customize UPS capabilities with management cards.
Total Cost of Ownership
- Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
- Manual maintenance bypass
Reduces installation costs by eliminating the need for an external mechanical bypass.
- Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Protection
- Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
- Cold-start capable
Provides temporary battery power when the utility power is out.
