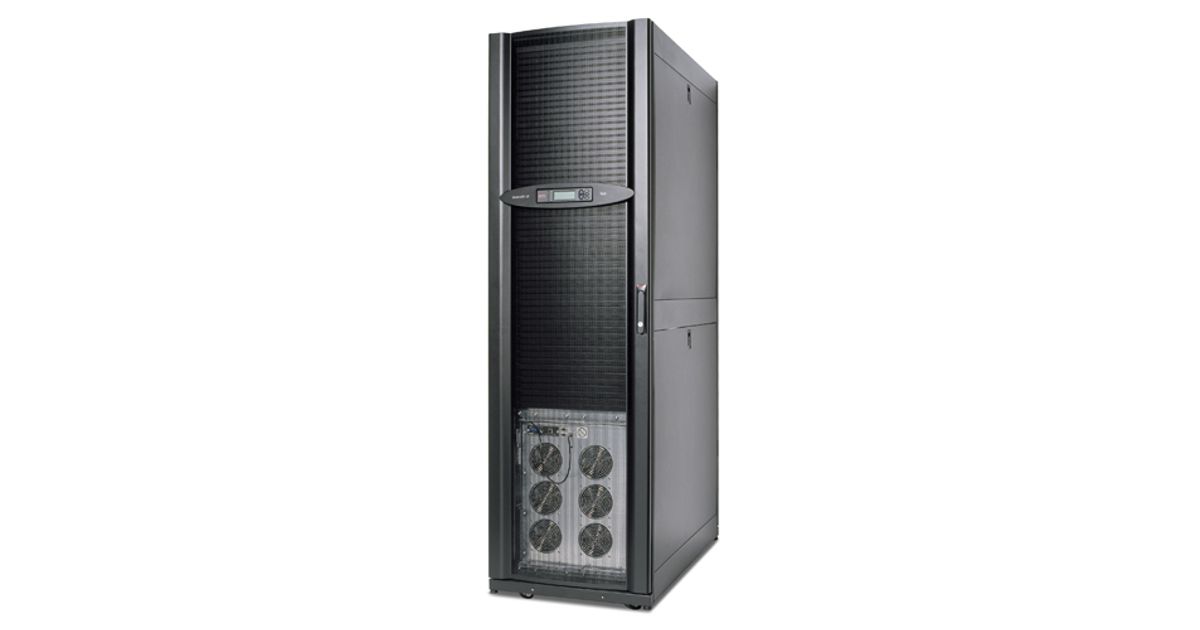

For illustrative purpose only
APC Smart-UPS VT 40 kVA 32000 W
APC Smart-UPS VT, 40 kVA, 32000 W, 40/70 Hz, 67 dB, 3 h, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 229423243 |
| EAN | 00731304242802 |
| Manufacturer part number | SUVTR40KHS |
| Category | UPS hardware |
| Features | |
|---|---|
| Output power capacity | 40 kVA |
| Output power | 32000 W |
| Input frequency | 40/70 Hz |
| Emergency Power Off (EPO) | Y |
| Audible alarm(s) | Y |
| Certification | C-tick,CE,EN 50091-2,EN/IEC 62040-3,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO 9001,VFI-SS-112 |
| Harmonized System (HS) code | 85078000 |
| Input connection type | Hard Wire 5-wire (3PH + N + G) |
| Other features | |
|---|---|
| Noise level | 67 dB |
| Output connections | - Hard Wire 5-wire (3PH + N + G) - IEC 320 C19 |
| Dimensions (WxDxH) | 600 x 1075 x 1995 mm |
| Ports & interfaces | |
|---|---|
| Number of output IEC jumpers | 12 |
| Interface | Smart-Slot |
| Battery | |
|---|---|
| Battery recharge time | 3 h |
| Design | |
|---|---|
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -50 - 40 °C |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
|---|---|
| Weight | 301 kg |
| Package weight | 370.9 kg |
| Power | |
|---|---|
| Battery type | VRLA |
| Nominal input voltage | 400 V |
Product Description
Resettable circuit breakers
Enables a quick recovery from overload events.
Field-replaceable power distribution panel
Ensures compatibility with equipment that has different plug types.
Multiple cable-entry points
Provides flexibility of UPS placement in the room and easy access to install cabling to the terminal blocks.
Locking cabinet
Prevents unauthorized access to the UPS.
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
Scalable runtime
Allows additional run time to be quickly added as needed.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Battery replacement without tools
Allows quick, easy battery replacement.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Shippable with modules installed
Enables pre-installation UPS staging and testing and faster installation.
Modular design
Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
Network manageable
Provides remote management of the UPS over the network.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure® Manager.
LCD display
Alpha-Numeric Display which displays system parameters and alarms.
Audible alarms
Provides notification of changing utility power and UPS conditions.
Programmable frequency
Ensures compatibility with different input frequencies.
LED status indicators
Quickly understand unit and power status with visual indicators.
SmartSlot
Customize UPS capabilities with management cards.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Manual maintenance bypass
Reduces installation costs by eliminating the need for an external mechanical bypass.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
Cold-start capable
Provides temporary battery power when the utility power is out.
