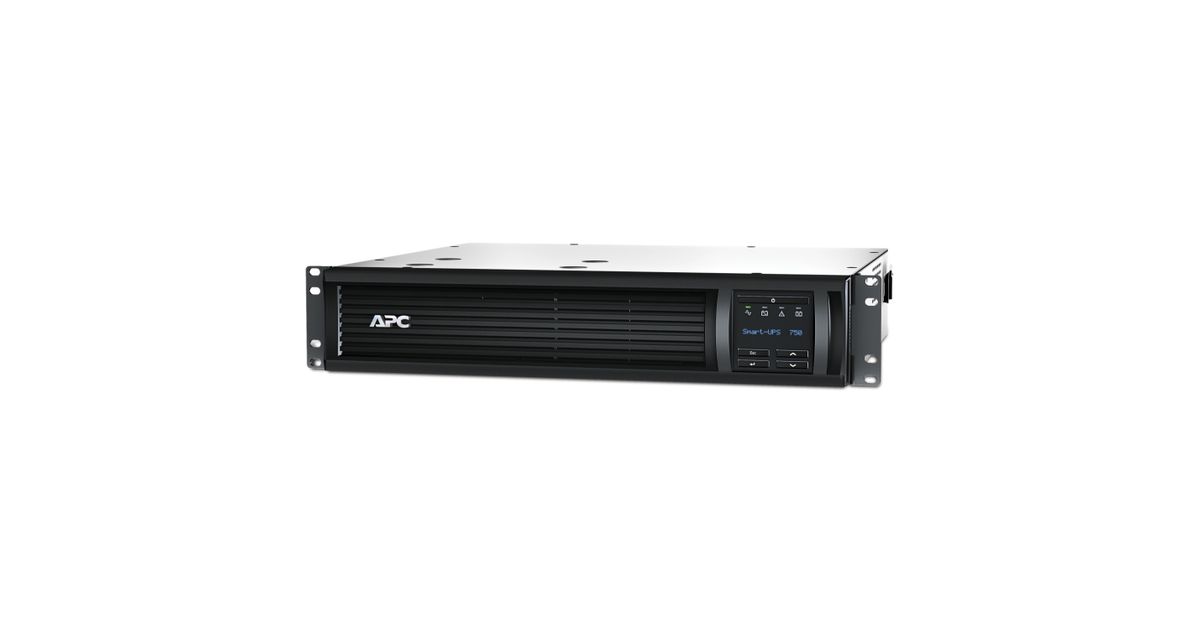

APC SMT750RMI2UC uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 500 W 4 AC outlet(s)
APC SMT750RMI2UC, Line-Interactive, 0.75 kVA, 500 W, Pure sine, 151 V, 302 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 03193625 |
| EAN | 00731304284765 |
| Manufacturer part number | AUAPCL1RMTC0750 |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 0.75 kVA |
| Output power | 500 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Automatic Voltage Regulation (AVR) | Y |
| Hold time (max) | 2 ms |
| Surge protection | Y |
| Audible alarm(s) | Y |
| Auto-restart | Y |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Surge energy rating | 459 J |
| Efficiency | 97.7% |
| Other features | |
|---|---|
| Noise level | 42 dB |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| USB port | Y |
| Serial interface | Y |
| Serial interface type | RJ-45 |
| SmartSlot | Y |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 168 VAh |
| Typical backup time at full load | 5.5 min |
| Typical backup time at half load | 16 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Y |
| Automatic battery test | Y |
| Cold start | Y |
| Design | |
|---|---|
| Form factor | Rackmount |
| Product colour | Black |
| Rack capacity | 2U |
| LED indicators | Battery replacement |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 432 mm |
| Depth | 406 mm |
| Height | 89 mm |
| Weight | 17.3 kg |
| Package weight | 21.2 kg |
| Packaging data | |
|---|---|
| Package width | 546 mm |
| Package depth | 584 mm |
| Package height | 241 mm |
| Quick installation guide | Y |
| Software CD | Y |
| Packaging content | |
|---|---|
| Rack mount kit | Y |
| Cables included | RS-232, USB cable |
| Logistics data | |
|---|---|
| Products per pallet | 16 pc(s) |
Product Description
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, USB cable
Cold-start capable
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utility costs, generates less heat.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
SmartSlot
Customize UPS capabilities with management cards.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generat
Resettable circuit breakers
Enables a quick recovery from overload events.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
