APC SRT1000XLI uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 1000 W 12 AC outlet(s)
APC SRT1000XLI, Double-conversion (Online), 1 kVA, 1000 W, Sine, 220 V, 240 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 16546940 |
| EAN | 00731304340270 |
| Manufacturer part number | AUAPCO2USRT0AT0 |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1 kVA |
| Output power | 1000 W |
| Waveform | Sine |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 50 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Crest factor | 3:1 |
| ECO mode | Y |
| Emergency Power Off (EPO) | Y |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Audible alarm(s) | Y |
| Audible alarm modes | Alarm when on battery, Battery replacement |
| Auto-restart | Y |
| Cable length | 1.8 m |
| Certification | CE, EAC |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Surge energy rating | 432 J |
| Nominal input voltage | 230 V |
| Other features | |
|---|---|
| Noise level | 50 dB |
| Nominal output voltage | 230 V |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 12 AC outlet(s) |
| USB port | Y |
| Serial interface | Y |
| Serial interface type | RJ-45 |
| SmartSlot | Y |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 48 V |
| Typical backup time at full load | 8 min |
| Typical backup time at half load | 21 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Y |
| Automatic battery test | Y |
| Cold start | Y |
| Design | |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 2U |
| Cooling type | Active |

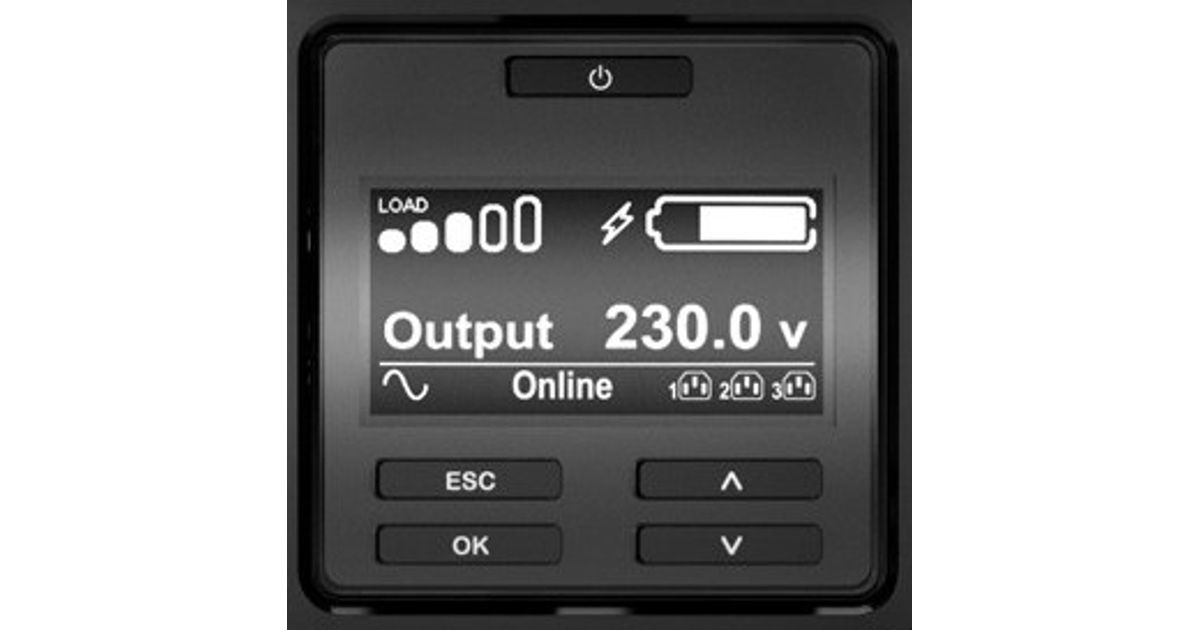

| Display type | LCD |
| LED indicators | Y |
| International Protection (IP) code | IP20 |
| Performance | |
|---|---|
| Built-in fan | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Sustainability | |
|---|---|
| Sustainability compliance | Y |
| Sustainability certificates | CE |
| Weight & dimensions | |
|---|---|
| Width | 432 mm |
| Depth | 505 mm |
| Height | 85 mm |
| Weight | 20.5 kg |
| Battery width | 59.4 cm |
| Battery depth | 74.9 cm |
| Battery height | 24.6 cm |
| Battery weight | 29.6 kg |
| Packaging content | |
|---|---|
| Cables included | USB cable |
| Packaging data | |
|---|---|
| Quick installation guide | Y |
Product Description
High density, double-conversion on-line power protection with scalable runtime
A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
