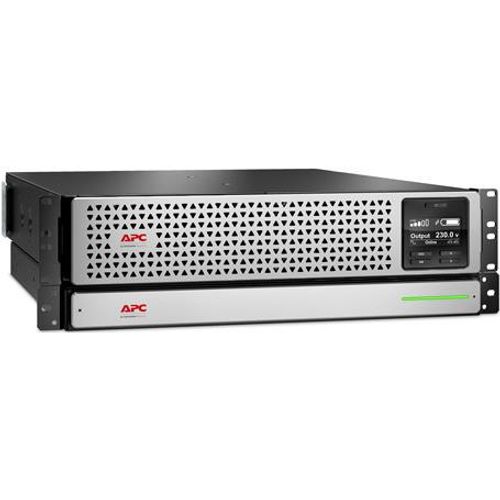

For illustrative purpose only
APC SRTL1500RMXLI-NC uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 8 AC outlet(s)
APC SRTL1500RMXLI-NC, Double-conversion (Online), 1.5 kVA, 1350 W, Sine, 220 V, 240 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 16546764 |
| EAN | 07330381621055 |
| Manufacturer part number | AUAPCO2USRT01RN |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1.5 kVA |
| Output power | 1350 W |
| Waveform | Sine |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Y |
| Surge protection | Y |
| Audible alarm(s) | Y |
| Auto-restart | Y |
| Certification | CE, EAC, RCM, VDE |
| Power | |
|---|---|
| Surge energy rating | 340 J |
| Output voltage | 230 V |
| Other features | |
|---|---|
| Noise level | 50 dB |
| Display | LCD |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Y |
| Serial interface | Y |
| Serial interface type | RJ-45 |
| Ethernet LAN (RJ-45) ports | 1 |
| SmartSlot | Y |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| Network | |
|---|---|
| Cabling technology | 10/100Base-T |
| Battery | |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (max) | 10 year(s) |
| Battery recharge time | 6 h |
| Hot-swap battery | Y |
| Automatic battery test | Y |
| Cold start | Y |
| Design | |
|---|---|
| Form factor | Rackmount |
| Product colour | Black, Grey |
| Rack capacity | 3U |
| LED indicators | Status |
| International Protection (IP) code | IP20 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
|---|---|
| Width | 432 mm |
| Depth | 590 mm |
| Height | 128 mm |
| Weight | 25.7 kg |
| Package weight | 37.4 kg |
| Packaging data | |
|---|---|
| Package width | 600 mm |
| Package depth | 850 mm |
| Package height | 445 mm |
| Logistics data | |
|---|---|
| Products per pallet | 6 pc(s) |
Product Description
Availability
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Scalable runtime
Allows additional run time to be quickly added as needed.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Manageability
Serial connectivity
Provides management of the UPS via a serial port.
LED status indicators
Quickly understand unit and power status with visual indicators.
Network manageable
Provides remote power management of the UPS over the network.
SmartSlot
Customize UPS capabilities with management cards.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
Adaptability
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Serviceability
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Protection
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Cold-start capable
Provides temporary battery power when the utility power is out.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Marketing Features
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Save time with easy and convenient remote accessibility.
Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
