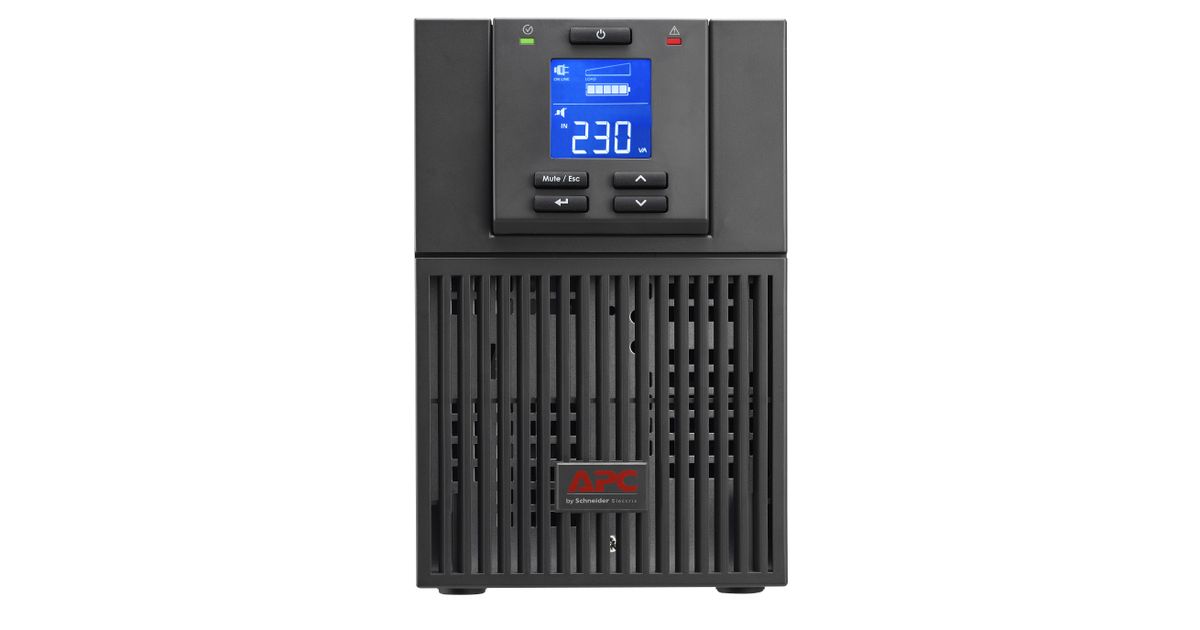

APC SRV1KIL uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 800 W 3 AC outlet(s)
APC SRV1KIL, Double-conversion (Online), 1 kVA, 800 W, Pure sine, 160 V, 280 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 2210484231 |
| EAN | 08592978188047 |
| Manufacturer part number | SRV1KIL |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1 kVA |
| Output power | 800 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Auto-restart | Yes |
| Certification | CE, IEC 62040-1-1, IEC 62040-1-2 REACH |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Surge energy rating | 600 J |
| Nominal input voltage | 230 V |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 3 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Nominal output voltage | 230 V |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 h |
| Automatic battery test | Yes |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 14763.6 m |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 290 mm |
| Depth | 400 mm |
| Height | 238 mm |
| Weight | 24 kg |
| Battery width | 23.5 cm |
| Battery depth | 36.5 cm |
| Battery height | 33 cm |
| Battery weight | 10.6 kg |
| Packaging content | |
|---|---|
| Cables included | USB cable |
| Manual | Yes |
Product Description
For small to medium businesses, APC by Schneider Electric delivers a new category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, inconsistent power conditions and delivering the quality millions of IT professionals trust around the world.
