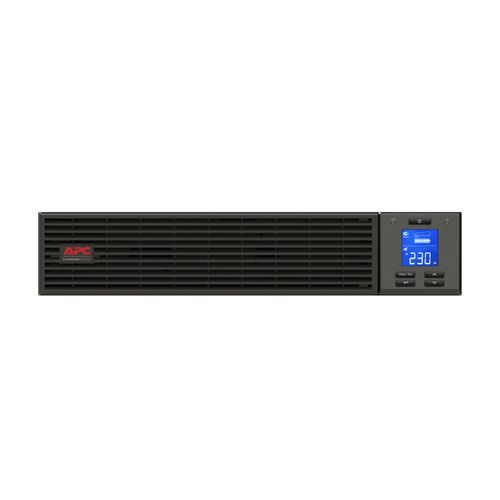

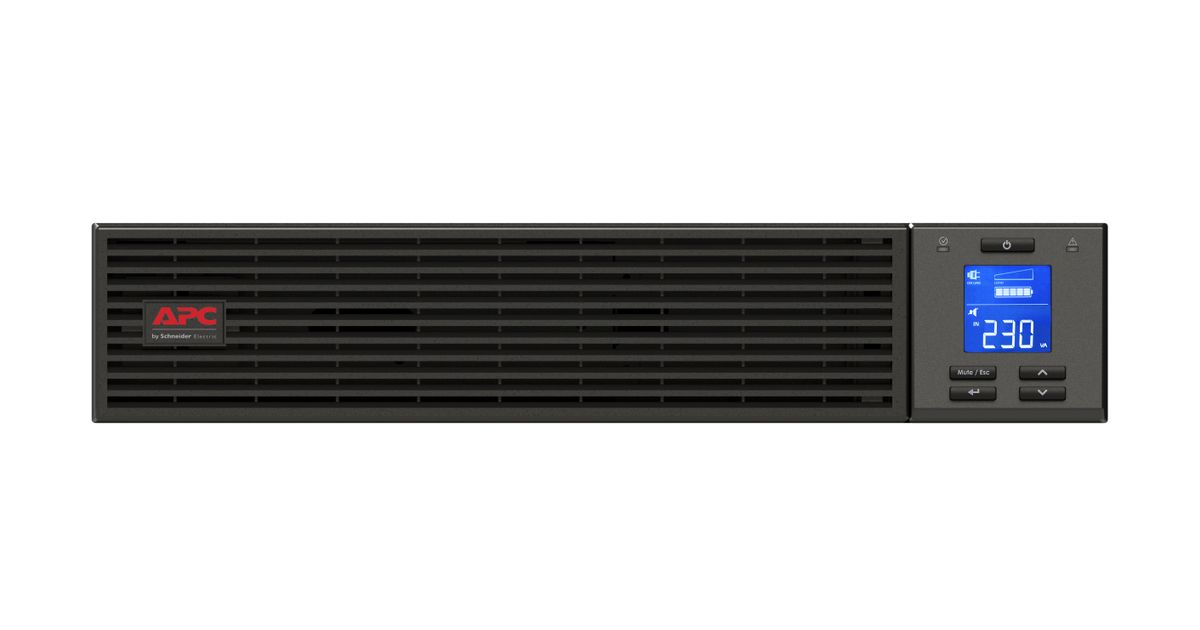

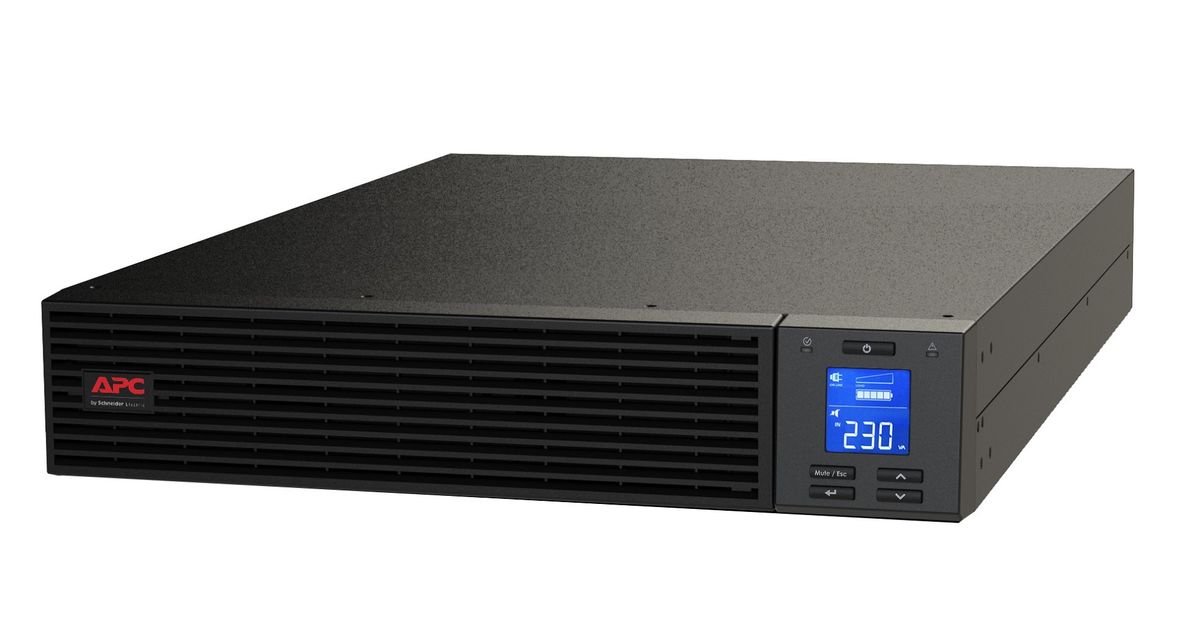

APC SRV2KRIRK uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1600 W
APC SRV2KRIRK, Double-conversion (Online), 2 kVA, 1600 W, Sine, 160 V, 280 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | APC |
| Product code | 16546903 |
| EAN | 05054444237794 |
| Manufacturer part number | SRV2KRIRK |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 2 kVA |
| Output power | 1600 W |
| Waveform | Sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| ECO mode | Y |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Audible alarm(s) | Y |
| Certification | CE, IEC 62040-1-1, IEC 62040-1-2 REACH |
| Harmonized System (HS) code | 85078000 |
| Power | |
|---|---|
| Surge energy rating | 600 J |
| Nominal input voltage | 230 V |
| Ports & interfaces | |
|---|---|
| Power plug | C14 coupler |
| USB port | Y |
| Serial interface | Y |
| Serial interface type | RS-232 |
| SmartSlot | Y |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Nominal output voltage | 230 V |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| Battery | |
|---|---|
| Automatic battery test | Y |
| Design | |
|---|---|
| Form factor | Rackmount |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 14763.6 m |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 437 mm |
| Depth | 462 mm |
| Height | 86 mm |
| Weight | 18.2 kg |
| Battery width | 55.1 cm |
| Battery depth | 59.9 cm |
| Battery height | 14.2 cm |
| Battery weight | 20.7 kg |
| Packaging content | |
|---|---|
| Rack mount kit | Y |
| Manual | Y |
Product Description
APC Easy UPS On-Line SRV RM 2000 VA 230V with Rail Kit.
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

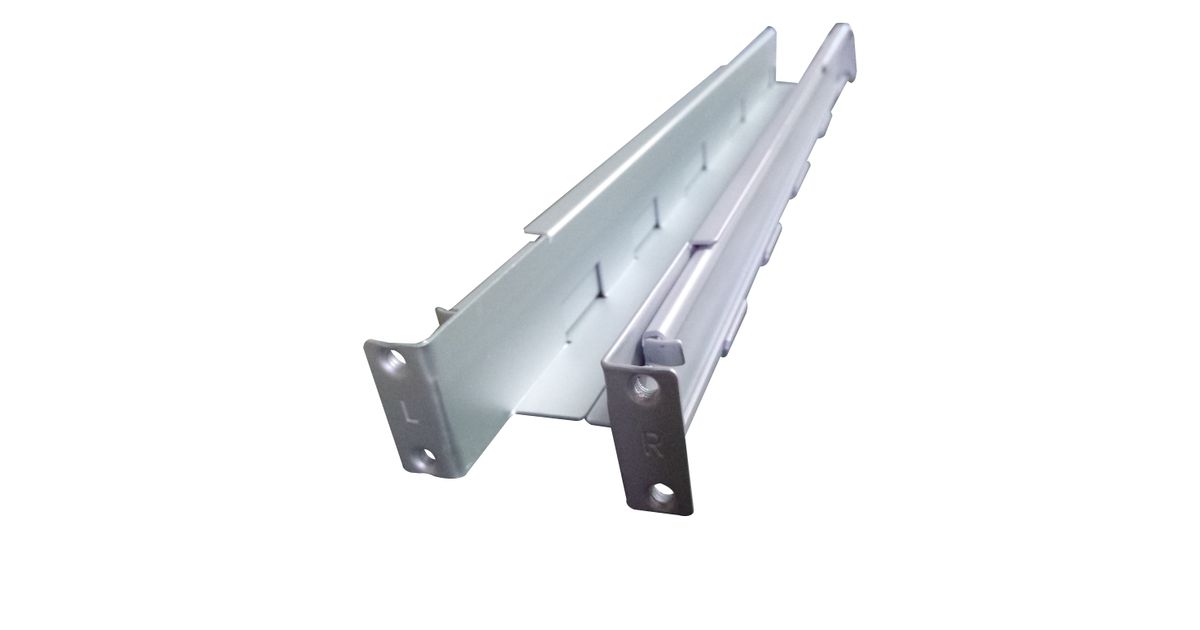

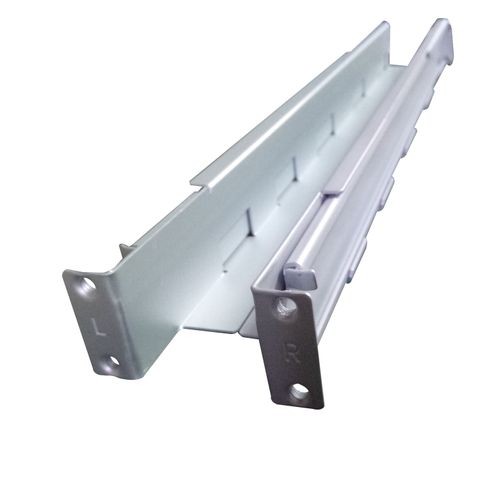

Includes: CD with software, Rack Mounting support rails, User Manual.
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Includes: CD with software, Rack Mounting support rails, User Manual.
