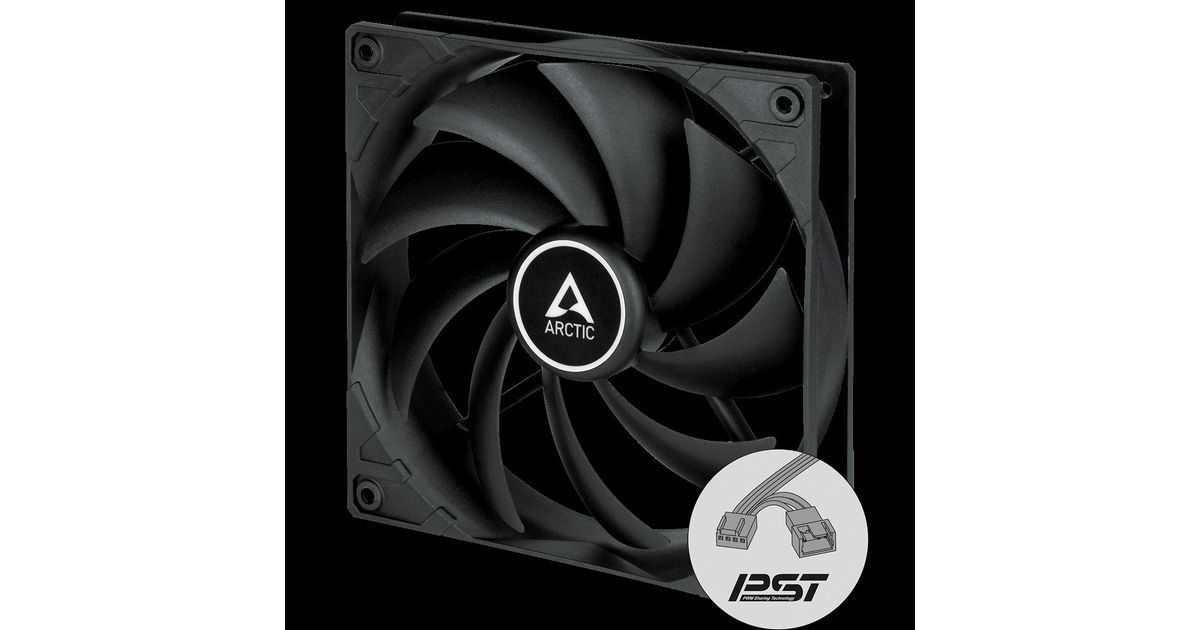

ARCTIC F14 PWM PST CO 140mm PWM with PST Case Fan for Continuous Operation
ARCTIC F14 PWM PST CO 140mm PWM with PST Case Fan for Continuous Operation, Fan, 14 cm, 1350 RPM, 24.5 dB, 74 cfm, 126 m³/h
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ARCTIC |
| Product code | 566208749 |
| EAN | 04895213703031 |
| Manufacturer part number | ACFAN00220A |
| Category | Cooling & other accessories |
| Features | |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Material | Plastic |
| Cable length | 0.4 m |
| Harmonized System (HS) code | 84733080 |
| Performance | |
|---|---|
| Fan diameter | 14 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 200 RPM |
| Rotational speed (max) | 1350 RPM |
| Noise level (high speed) | 24.5 dB |
| Noise level | 0.5 sone |
| Maximum airflow | 74 cfm |
| Airflow | 126 m³/h |
| Pulse-width modulation (PWM) support | Y |
| Bearing type | Dual ball bearing |
| Fan static pressure | 1.3 mmH2O |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 143 mm |
| Package depth | 29 mm |
| Package height | 143 mm |
| Screws included | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Design | |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin + 4-pin |
| Power | |
|---|---|
| Voltage | 12 V |
| Starting voltage | 6 V |
| Fan voltage | 12 V |
| Fan current | 0.3 A |
| Weight & dimensions | |
|---|---|
| Width | 140 mm |
| Depth | 140 mm |
| Height | 27 mm |
| Weight | 183 g |
Product Description
The F14 PWM PST CO fans aim to offer superior durability and cooling performance for demanding and continuous- operating PCs. With the PWM Sharing Technology (PST), the F14 PWM PST CO fans regulate the fan speed based on the actual needs with optimal cooling performance and noise control at all times.
