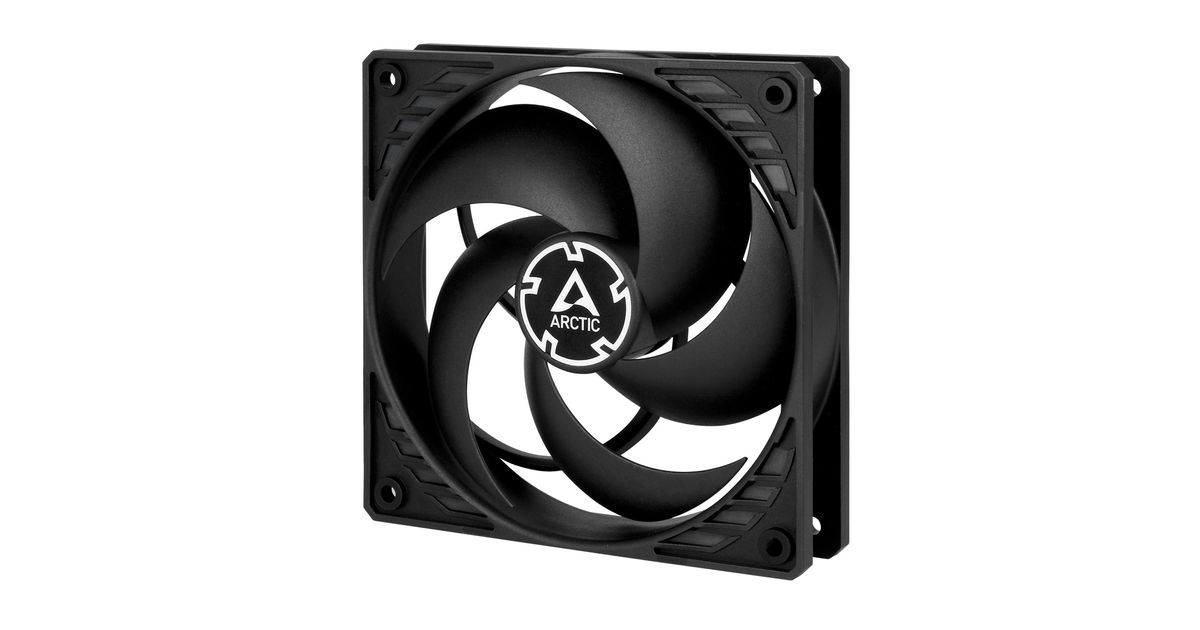

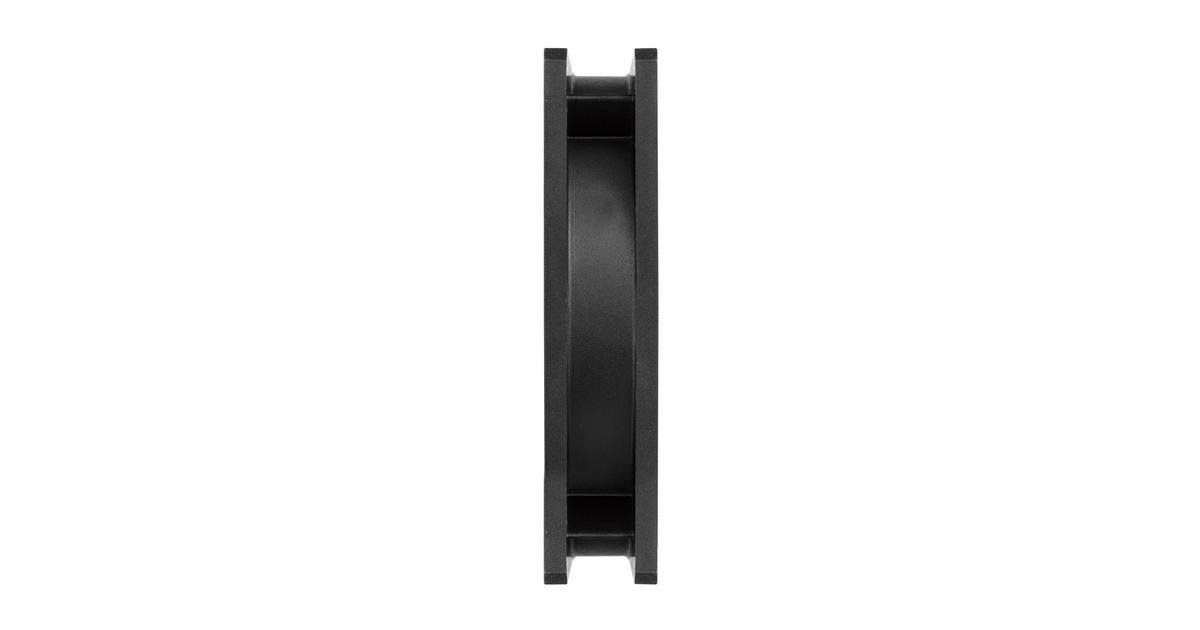

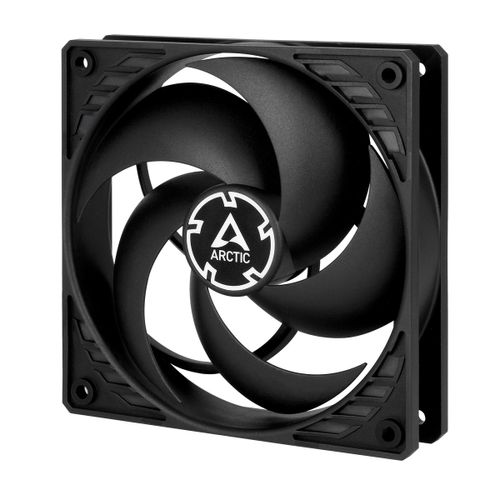

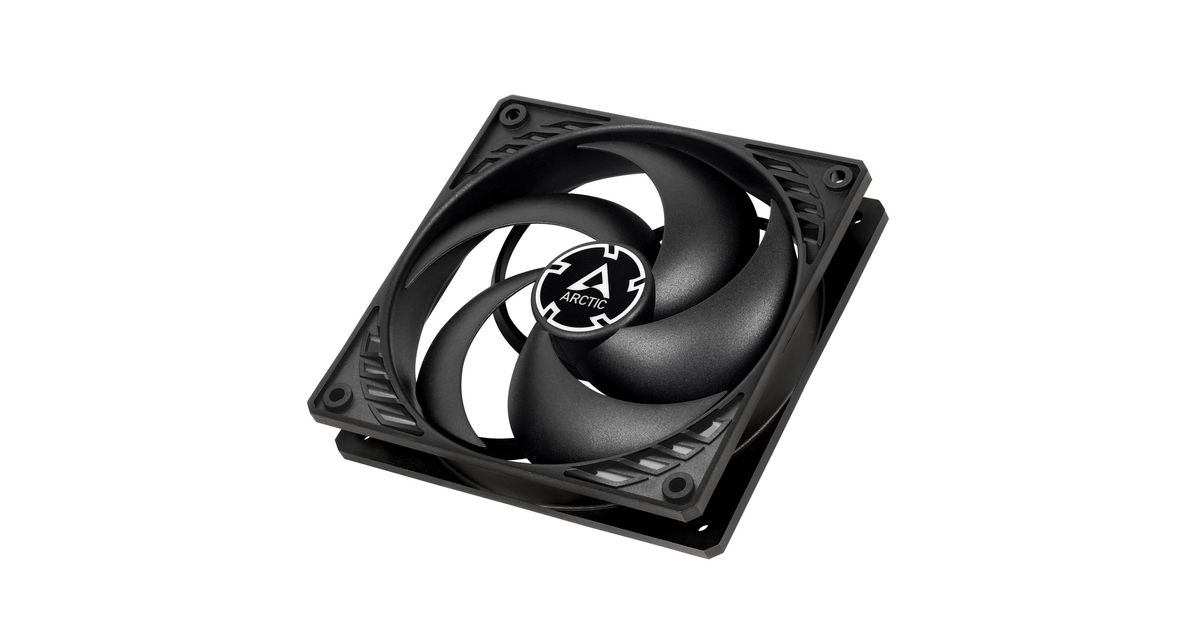

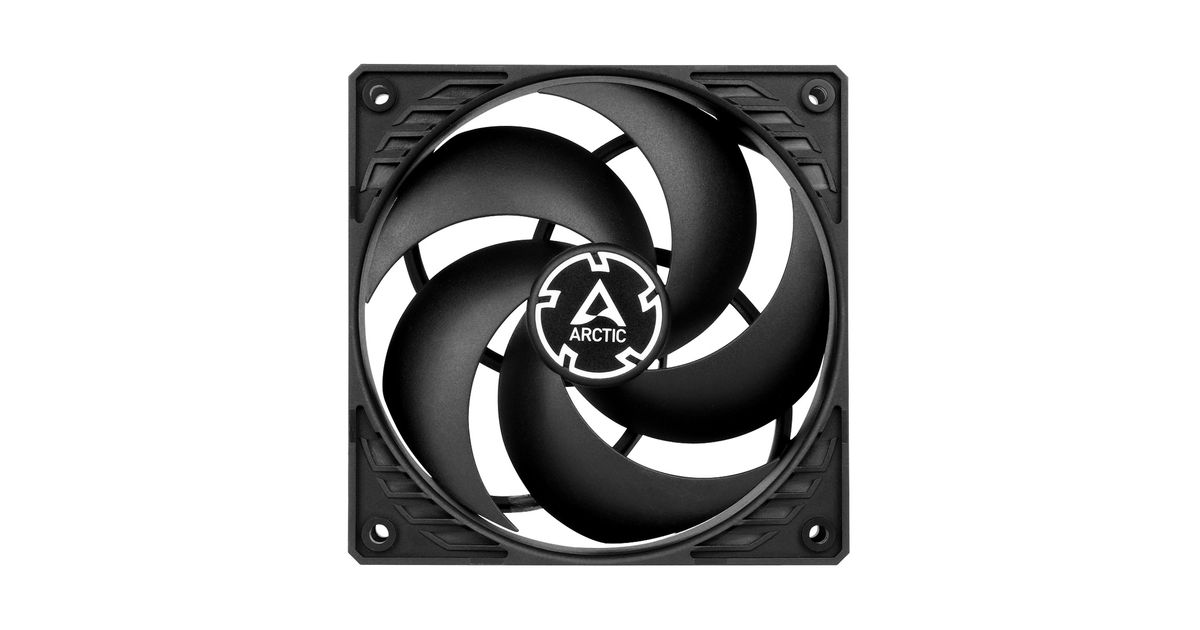

ARCTIC P12 - Pressure-optimised 120 mm Fan
ARCTIC P12 - Pressure-optimised 120 mm Fan, Fan, 12 cm, 1800 RPM, 0.3 sone, 56.3 cfm, 95.65 m³/h
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ARCTIC |
| Product code | 03117024 |
| EAN | 00872767009325 |
| Manufacturer part number | LUAR-071 |
| Category | Cooling |
| Features | |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Cable length | 0.4 m |
| Harmonized System (HS) code | 84733080 |
| Performance | |
|---|---|
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (max) | 1800 RPM |
| Noise level | 0.3 sone |
| Maximum airflow | 56.3 cfm |
| Airflow | 95.65 m³/h |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Design | |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Number of fan blades | 5 |
| Fan connector | 3-pin |
| Power | |
|---|---|
| Voltage | 12 V |
| Starting voltage | 2.8 V |
| Rated current | 0.2 A |
| Weight & dimensions | |
|---|---|
| Width | 120 mm |
| Depth | 120 mm |
| Height | 25 mm |
| Weight | 139 g |
| Package weight | 170 g |
| Packaging data | |
|---|---|
| Package width | 123 mm |
| Package depth | 123 mm |
| Package height | 27 mm |
| Package type | Box |
| Screws included | Y |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Logistics data | |
|---|---|
| Country of origin | China |
Product Description
The P12 fan features completely redesigned fan blades and is optimised for high static pressure. Thus, the P12 is especially effective when used on heatsinks and with higher air resistance.
