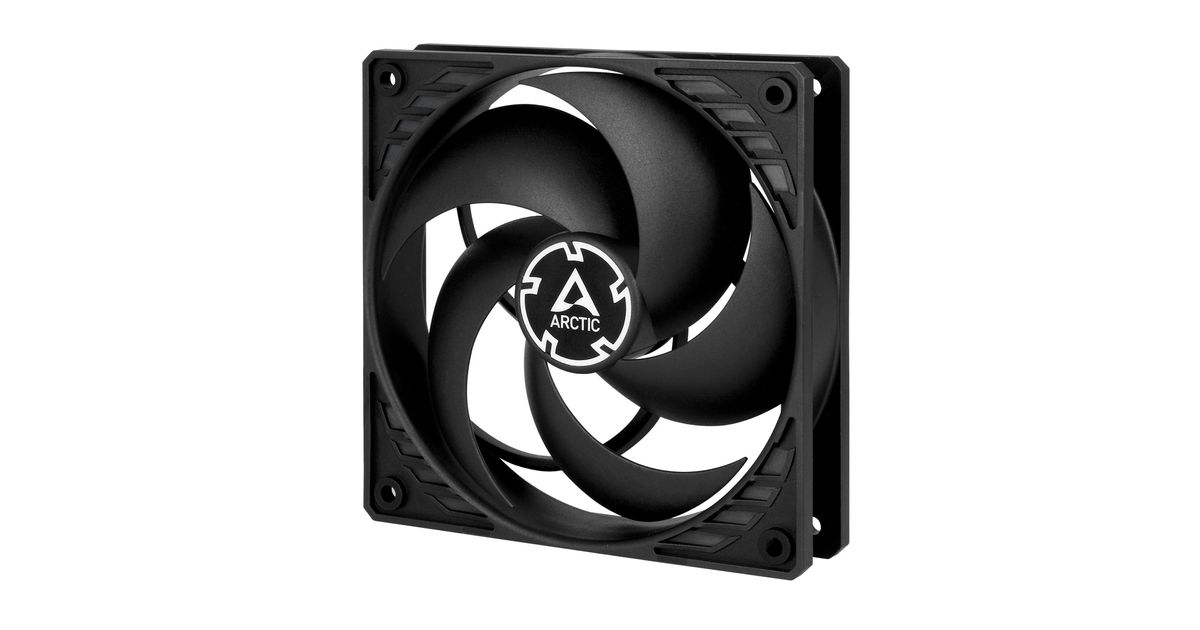

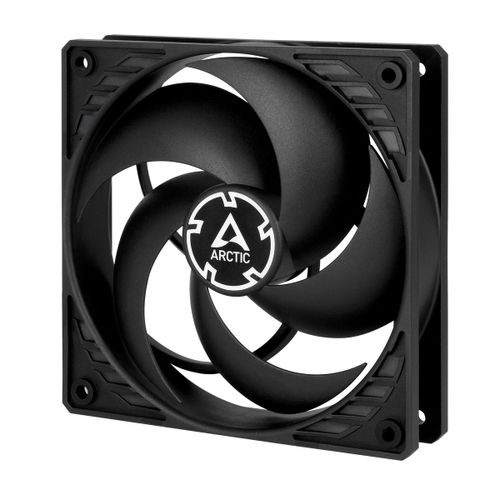

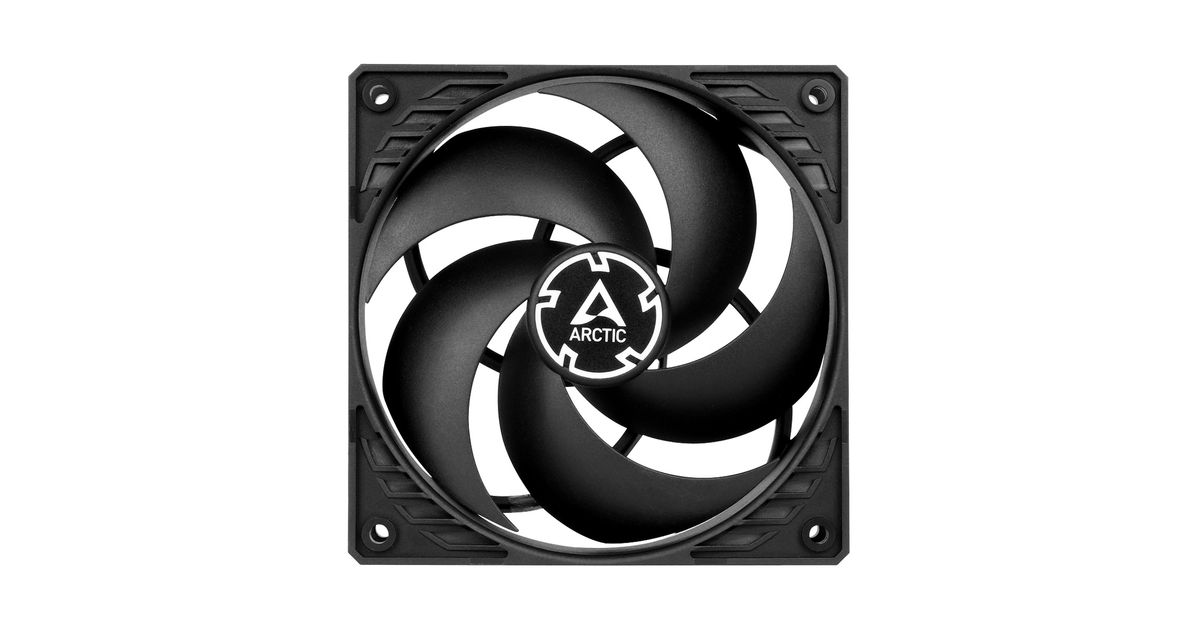

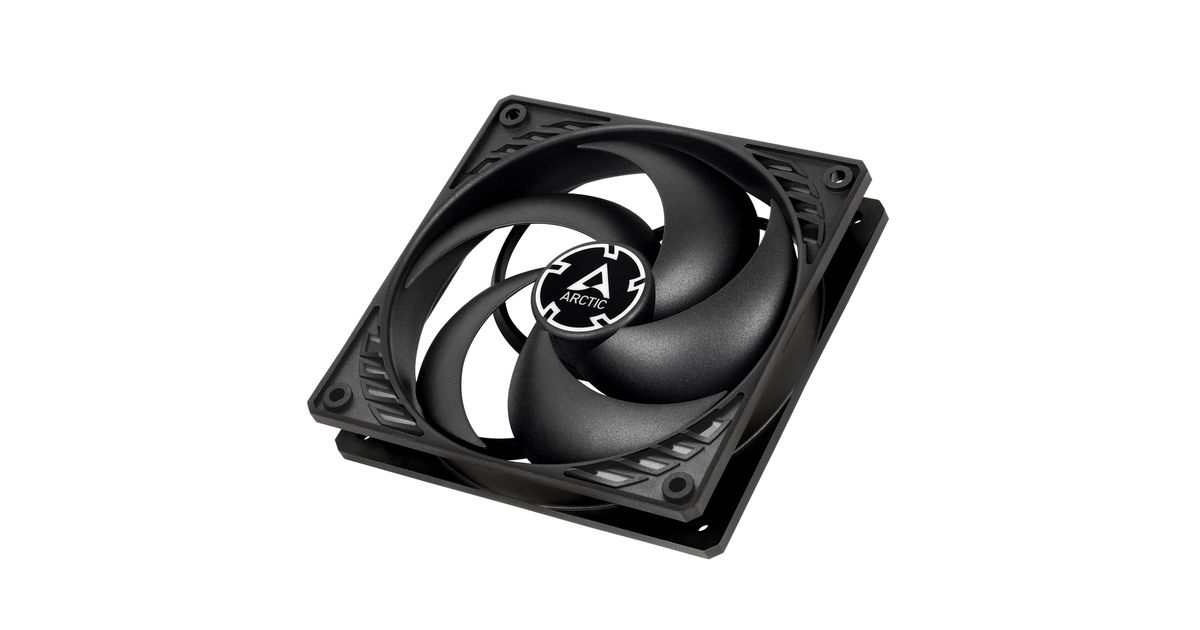

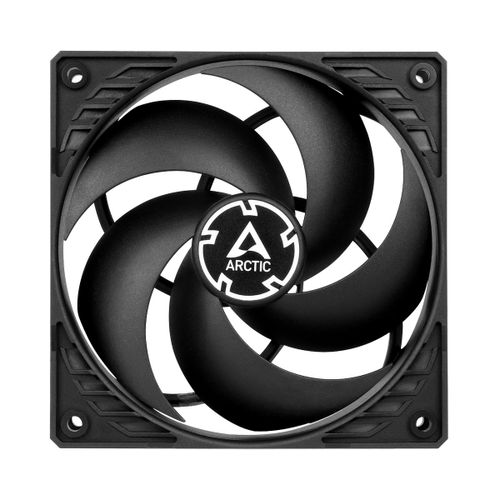

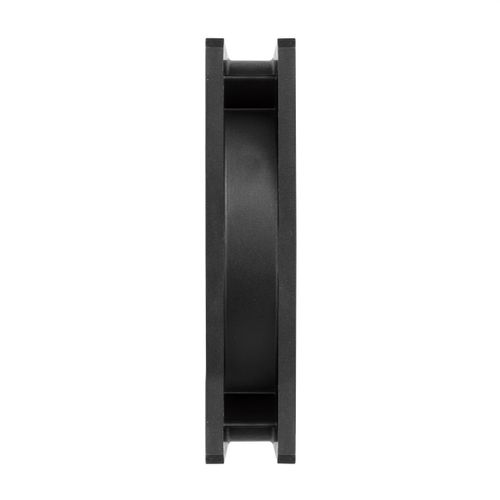

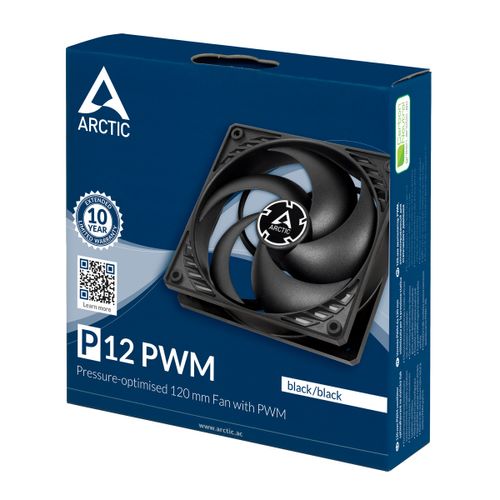

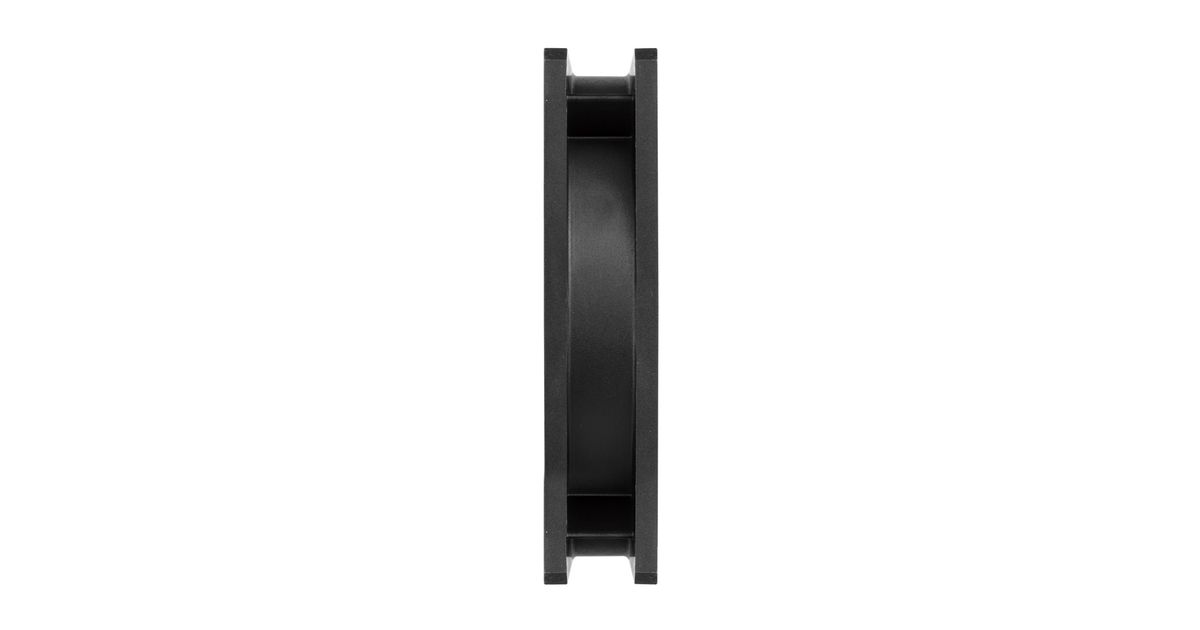

ARCTIC P12 PWM (Black/Black) Pressure-optimised 120 mm Fan with PWM
ARCTIC P12 PWM (Black/Black) Pressure-optimised 120 mm Fan with PWM, Fan, 12 cm, 1800 RPM, 24.5 dB, 56.3 cfm, 95.65 m³/h
Read more...
Read more...
Product Information
Information | |
---|---|
Manufacturer | ARCTIC |
Product code | 03117023 |
EAN | 00872767009332 |
Manufacturer part number | ACFAN00119A |
Category | Cooling & other accessories |
Features | |
---|---|
Suitable location | Computer case |
Type | Fan |
Cable length | 0.4 m |
Harmonized System (HS) code | 84733080 |
Performance | |
---|---|
Fan diameter | 12 cm |
Supported processor sockets | Not supported |
Compatible processor series | Not supported |
Rotational speed (min) | 200 RPM |
Rotational speed (max) | 1800 RPM |
Noise level (high speed) | 24.5 dB |
Noise level | 0.3 sone |
Maximum airflow | 56.3 cfm |
Airflow | 95.65 m³/h |
Maximum air pressure | 2.2 mmH2O |
Pulse-width modulation (PWM) support | Y |
Bearing type | Fluid Dynamic Bearing (FDB) |
Design | |
---|---|
Product colour | Black |
Number of fans | 1 fan(s) |
Number of fan blades | 5 |
Fan connector | 4-pin |
Power | |
---|---|
Power consumption (typical) | 0.96 W |
Voltage | 12 V |
Starting voltage | 3.9 V |
Rated current | 0.08 A |
Weight & dimensions | |
---|---|
Width | 120 mm |
Depth | 120 mm |
Height | 25 mm |
Weight | 139 g |
Package weight | 170 g |
Packaging data | |
---|---|
Package width | 123 mm |
Package depth | 123 mm |
Package height | 27 mm |
Package type | Box |
Screws included | Y |
Packaging content | |
---|---|
Number of screws | 4 |
Logistics data | |
---|---|
Country of origin | China |
Product Description
Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
