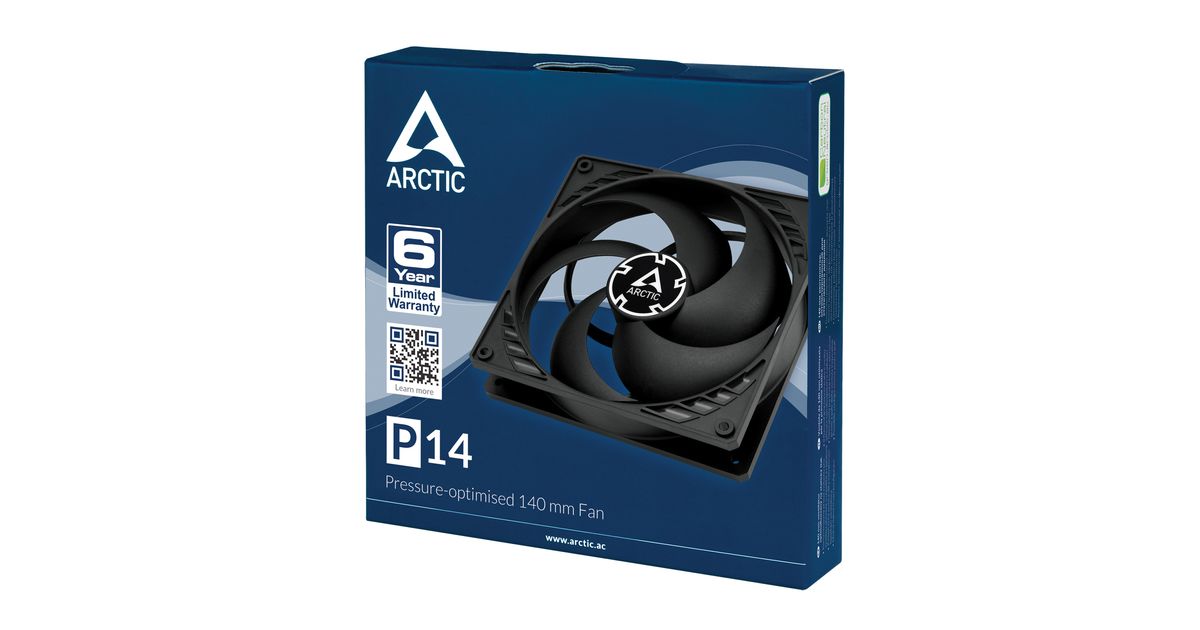

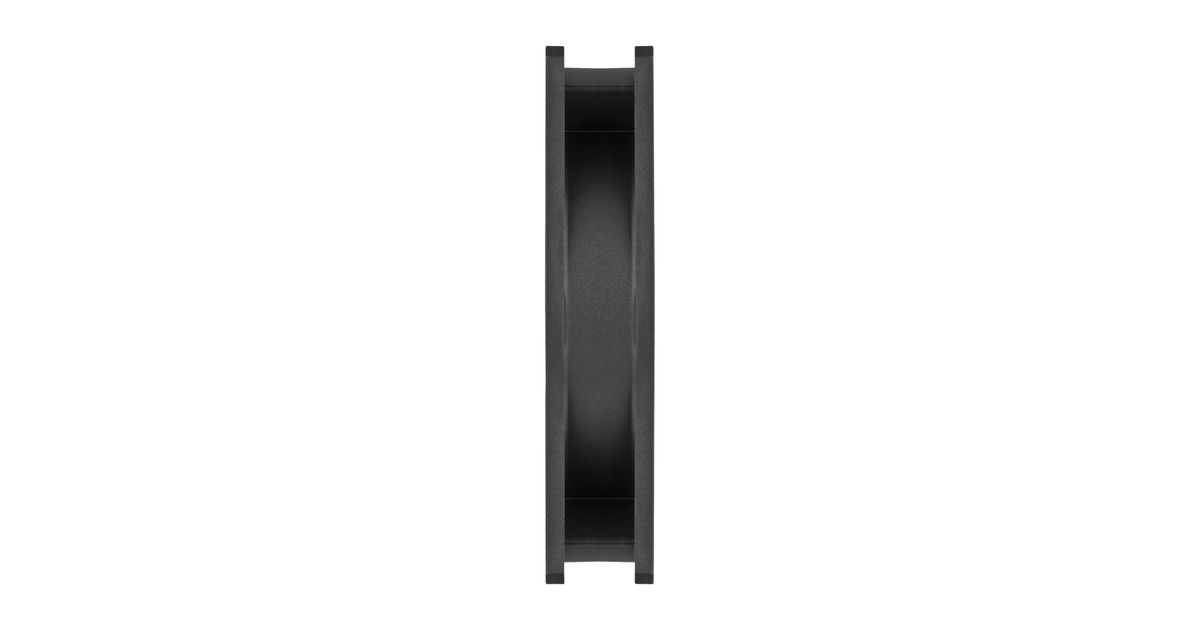

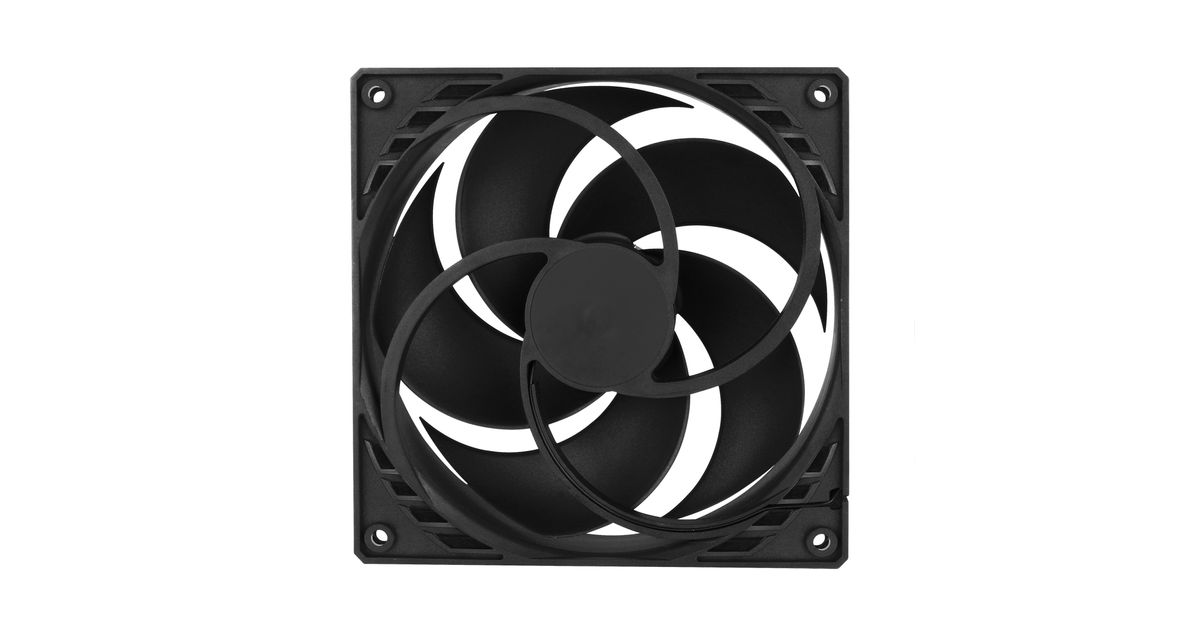

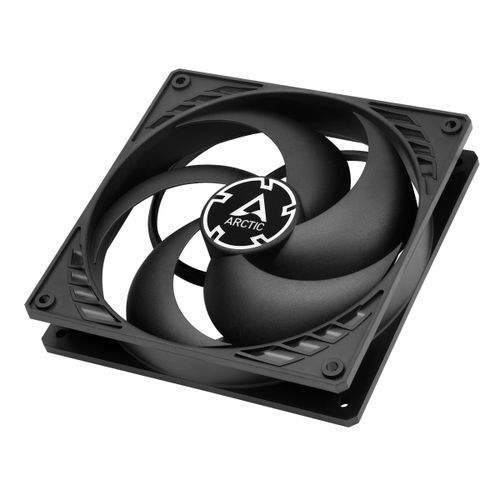

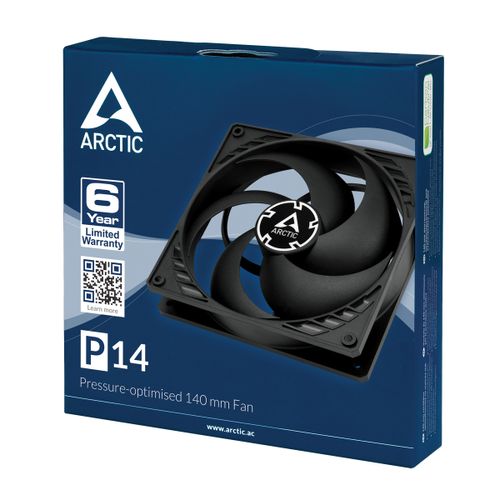

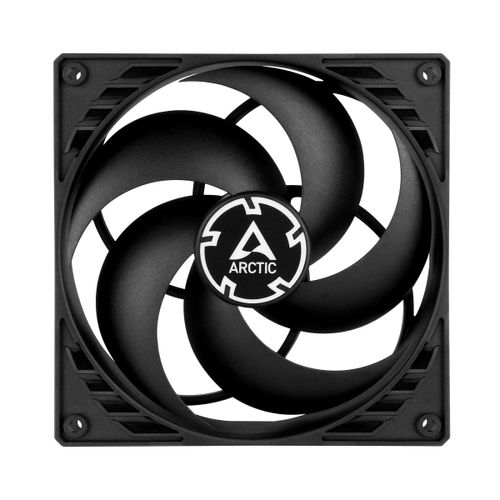

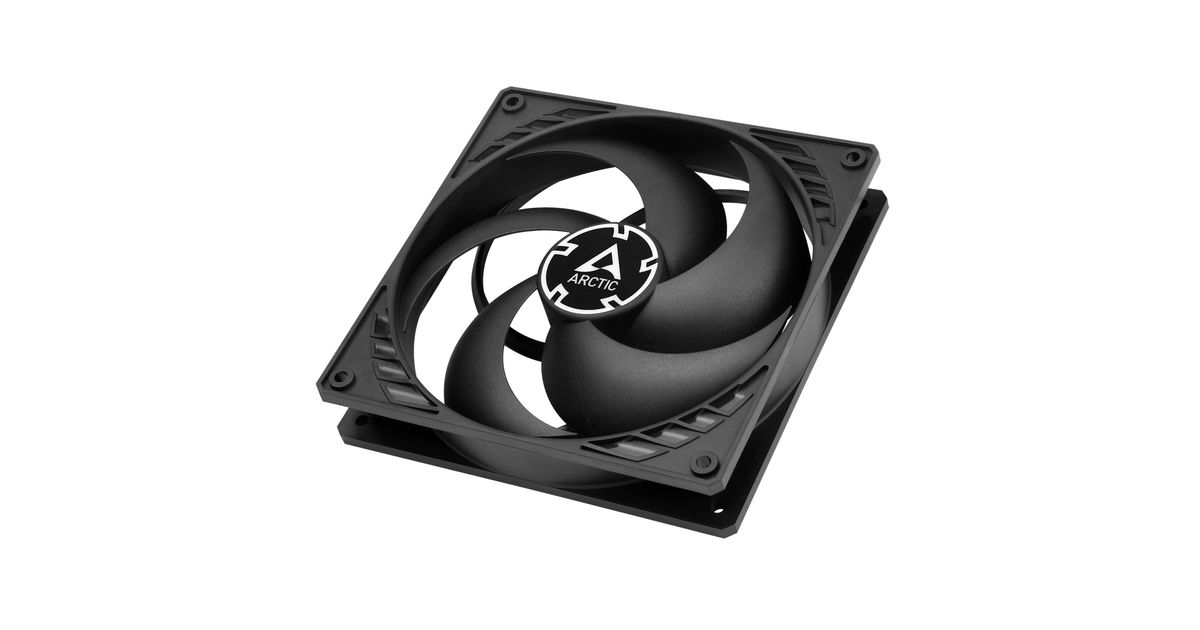

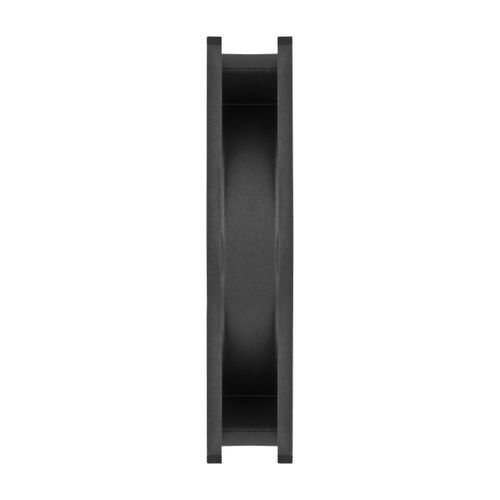

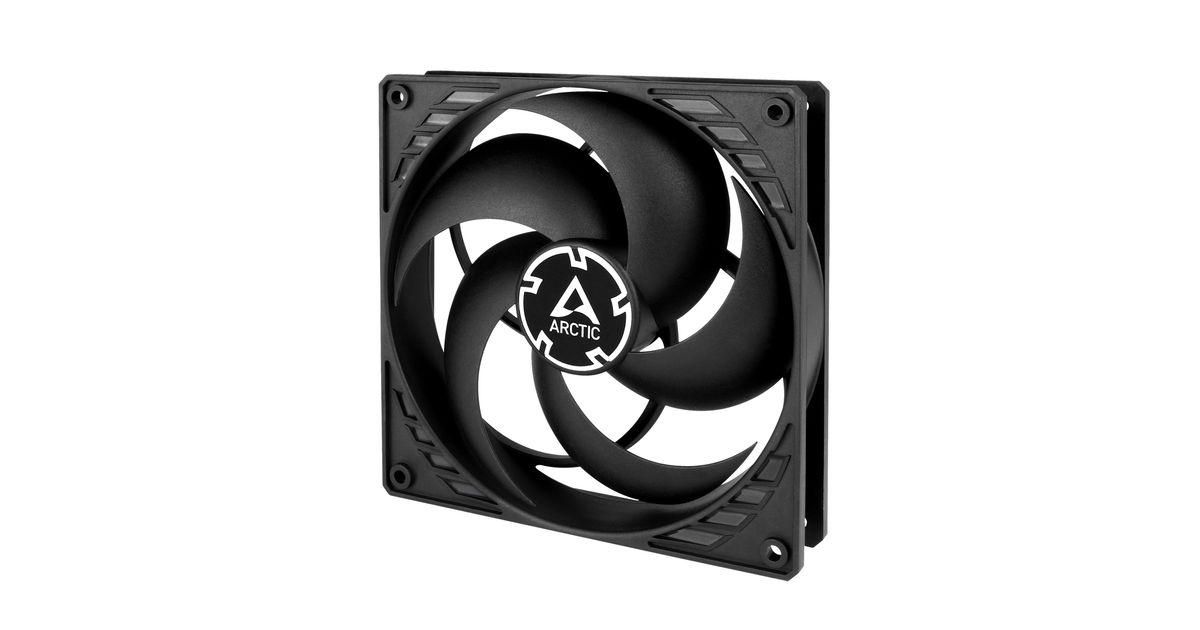

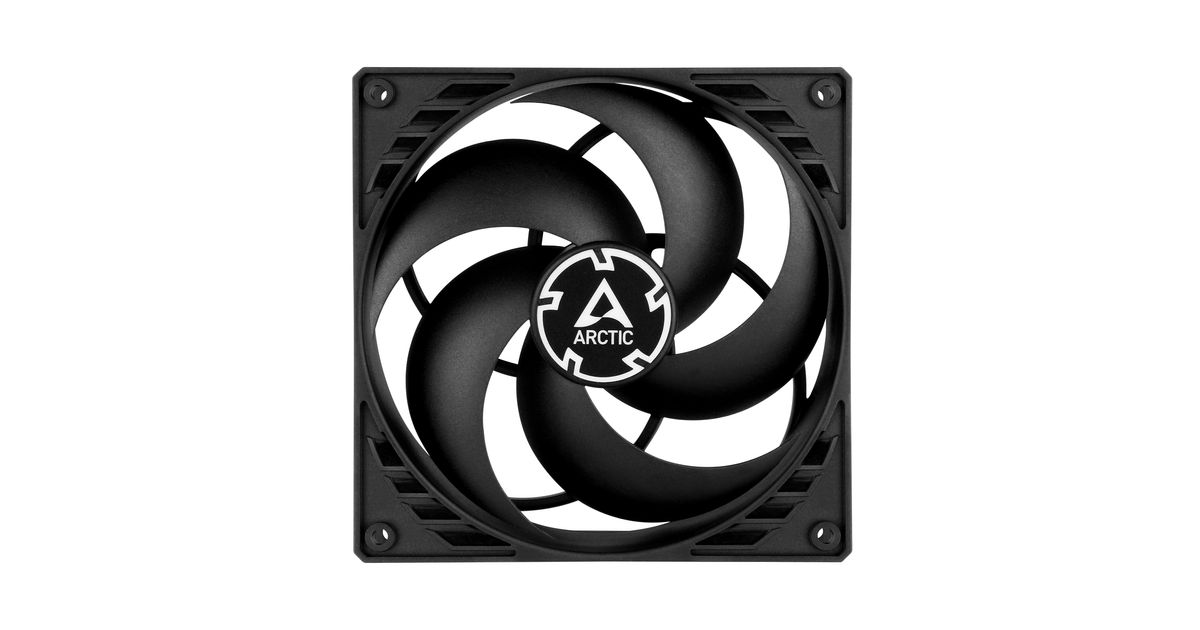

ARCTIC P14 – Pressure-optimised 140 mm Fan
ARCTIC P14 – Pressure-optimised 140 mm Fan, Fan, 14 cm, 1700 RPM, 24.5 dB, 72.8 cfm, 123.76 m³/h
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ARCTIC |
| Product code | 15400253 |
| EAN | 00872767009486 |
| Manufacturer part number | ACFAN00123A |
| Category | Cooling & other accessories |
| Features | |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Cable length | 0.4 m |
| Harmonized System (HS) code | 84733080 |
| Performance | |
|---|---|
| Fan diameter | 14 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (max) | 1700 RPM |
| Noise level (high speed) | 24.5 dB |
| Noise level | 0.3 sone |
| Maximum airflow | 72.8 cfm |
| Airflow | 123.76 m³/h |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Design | |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan connector | 3-pin |
| Power | |
|---|---|
| Voltage | 12 V |
| Starting voltage | 2.1 V |
| Rated current | 0.15 A |
| Weight & dimensions | |
|---|---|
| Width | 140 mm |
| Depth | 140 mm |
| Height | 27 mm |
| Weight | 191 g |
| Package weight | 227 g |
| Packaging data | |
|---|---|
| Package width | 143 mm |
| Package depth | 143 mm |
| Package height | 29 mm |
| Package type | Box |
| Screws included | Y |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Logistics data | |
|---|---|
| Country of origin | China |
Product Description
The P14 fan features completely redesigned fan blades and is optimised for high static pressure.
Thus, the P14 is especially effective when used on heatsinks and with higher air resistance.
Thus, the P14 is especially effective when used on heatsinks and with higher air resistance.
