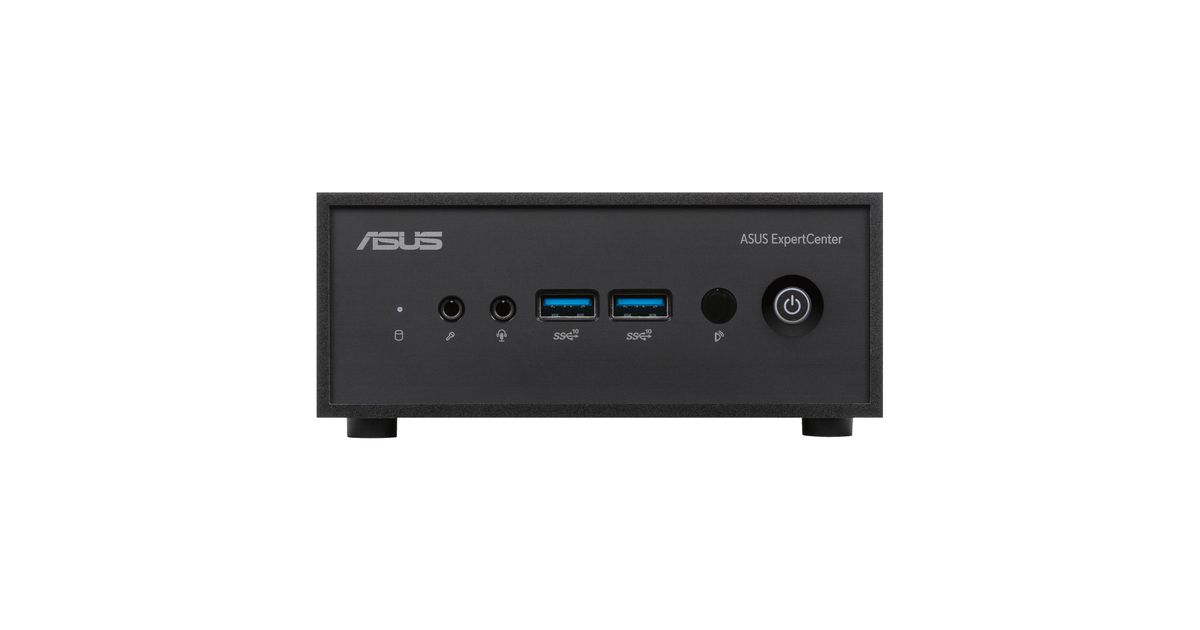

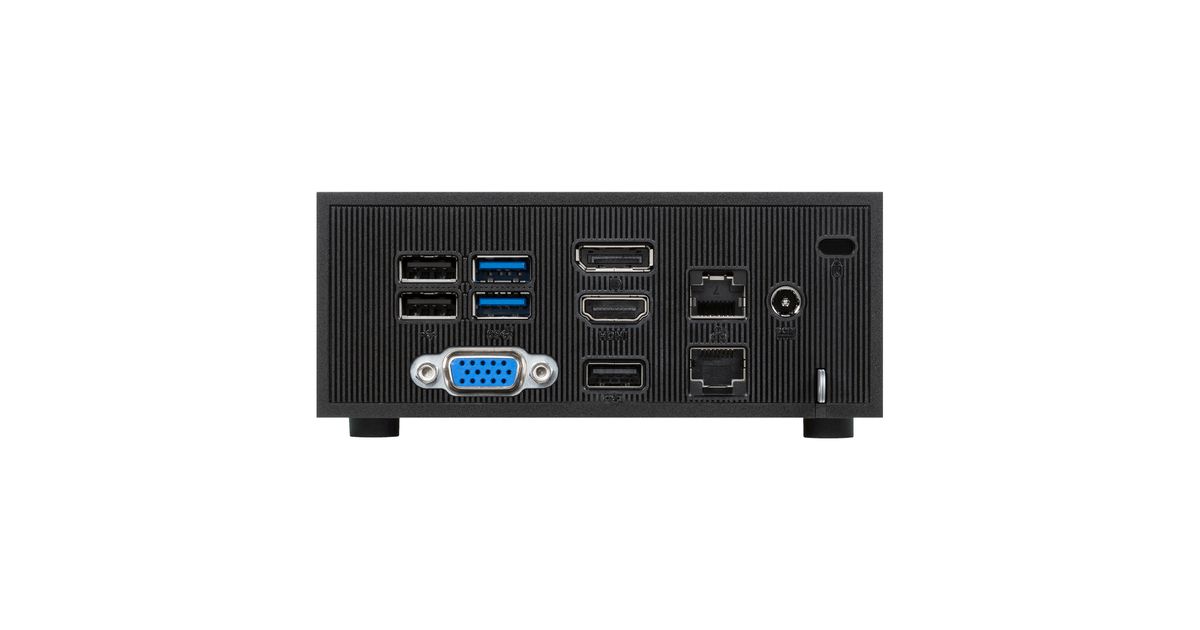

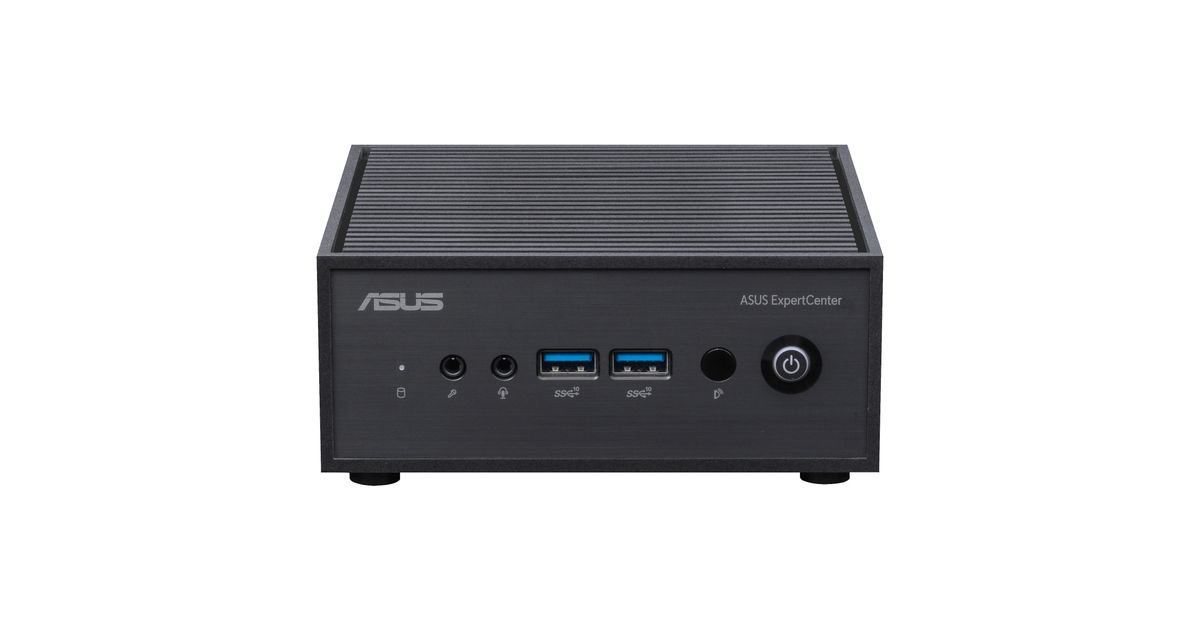

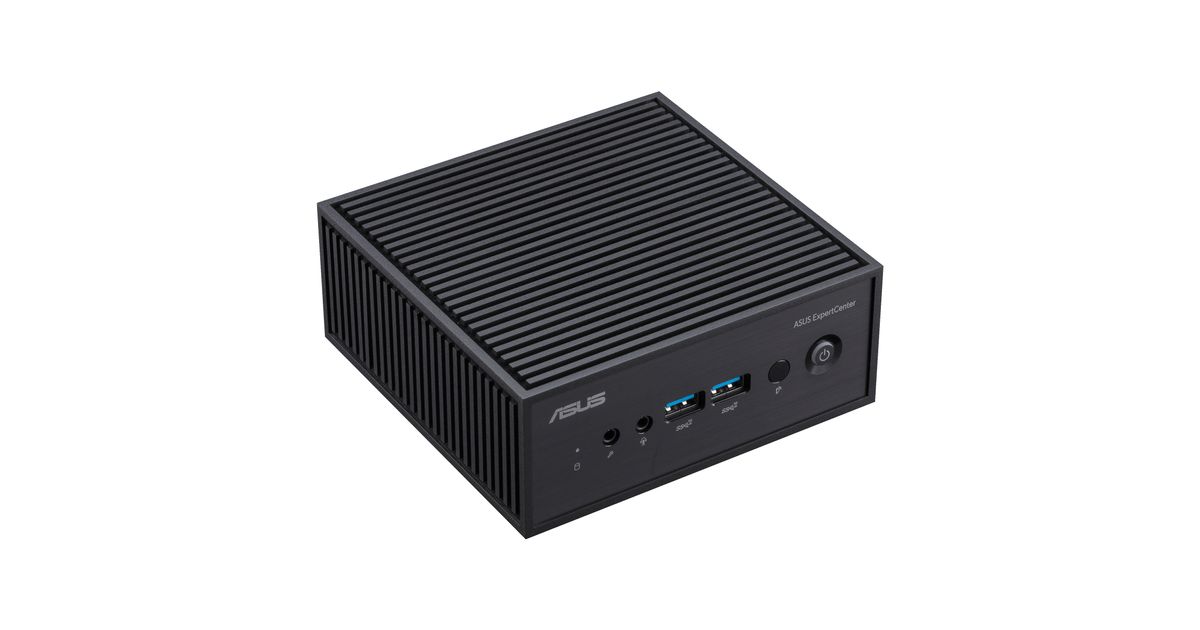

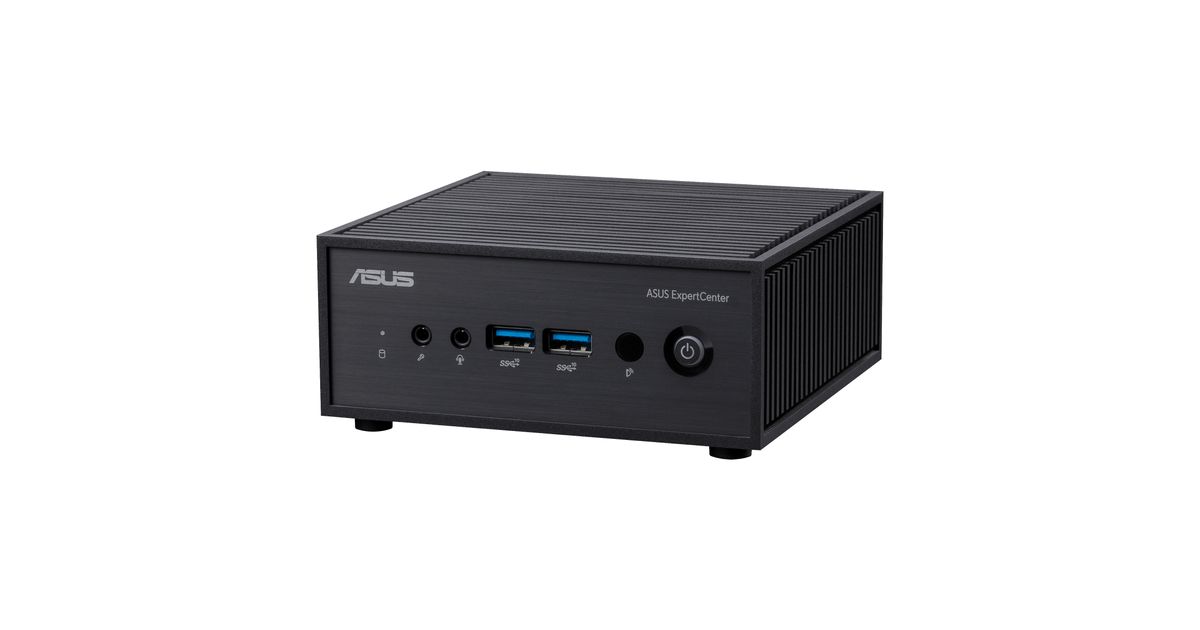

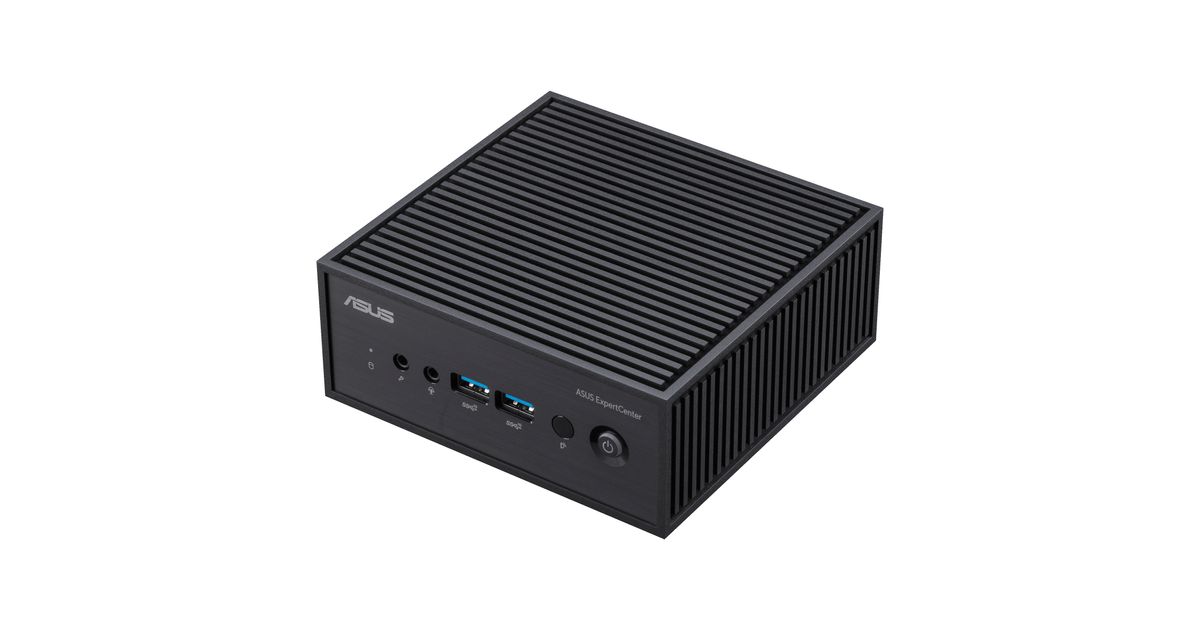

ASUS ExpertCenter PN42-BBN200MV Black N200
ASUS ExpertCenter PN42-BBN200MV, Mini PC barebone, Ethernet LAN, Wi-Fi 6 (802.11ax), 65 W
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ASUS |
| Product code | 229408209 |
| EAN | 00197105170810 |
| Manufacturer part number | 90MR00X2-M00020 |
| Category | Barebone PC-s |
| Features | |
|---|---|
| Built-in processor | Y |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| NVMe | Y |
| DisplayPort version | 1.4 |
| Power supply type | External AC adapter |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor model | N200 |
| Processor cores | 4 |
| Processor boost frequency | 3.7 GHz |
| Processor cache | 6 MB |
| Storage controllers | |
|---|---|
| Supported storage drive types | SSD |
| Graphics | |
|---|---|
| On-board graphics adapter | Y |
| Graphics adapter family | Intel |
| On-board graphics adapter model | Intel® UHD Graphics |
| Discrete graphics adapter model | Not available |
| Audio | |
|---|---|
| Built-in speaker(s) | N |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| LAN controller | Realtek RTL8125B-CG |
| Bluetooth | Y |
| Bluetooth version | 5.0 |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 3 |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 1 |
| Microphone in | Y |
| Headphone outputs | 1 |
| Consumer infrared headers | Y |
| DC-in jack | Y |
| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
| Product type | Mini PC barebone |
| On/off switch | Y |
| Storage | |
|---|---|
| Optical drive type | N |
| Power | |
|---|---|
| Power supply | 65 W |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
| Weight & dimensions | |
|---|---|
| Width | 127.5 mm |
| Depth | 132 mm |
| Height | 57.6 mm |
| Weight | 840 g |
| Package weight | 1.62 kg |
| Packaging data | |
|---|---|
| Package width | 286 mm |
| Package depth | 175 mm |
| Package height | 68 mm |
Product Description
The ultracompact ASUS ExpertCenter PN42 mini PC is powered by an Intel® processor N100 & N200 with Intel UHD Graphics and is designed to easily handle a wide variety of home and business applications. ExpertCenter PN42 can support up to three displays, or two 4K displays, simultaneously for efficient multitasking. Plus, it can be specified with up to two 2.5 Gb Ethernet ports, and offers wide- ranging connectivity with up to seven USB ports plus an additional configurable port for either DisplayPortTM 1.4, VGA, COM, HDMI®, or USB-C® DisplayPort (DP Alt Mode) options. The diminutive size of ExpertCenter PN42 makes it well-suited for spaces where traditional PCs won't fit - from digital signage to small home-office setups.
