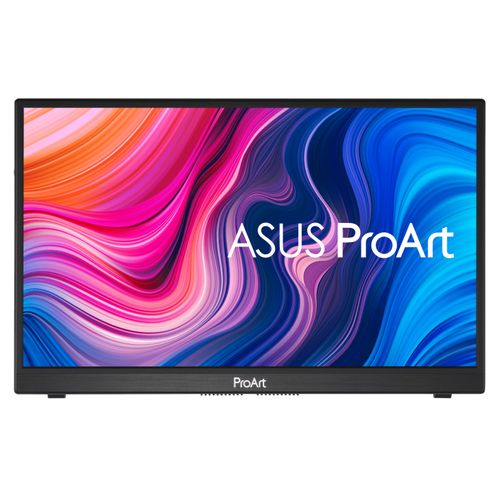

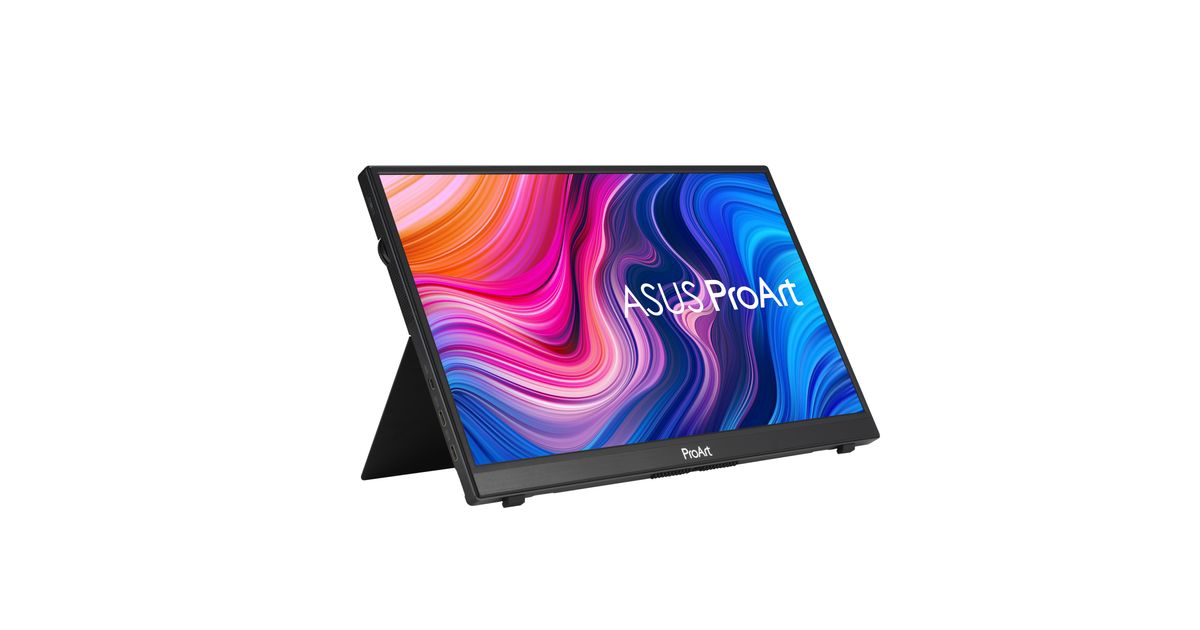

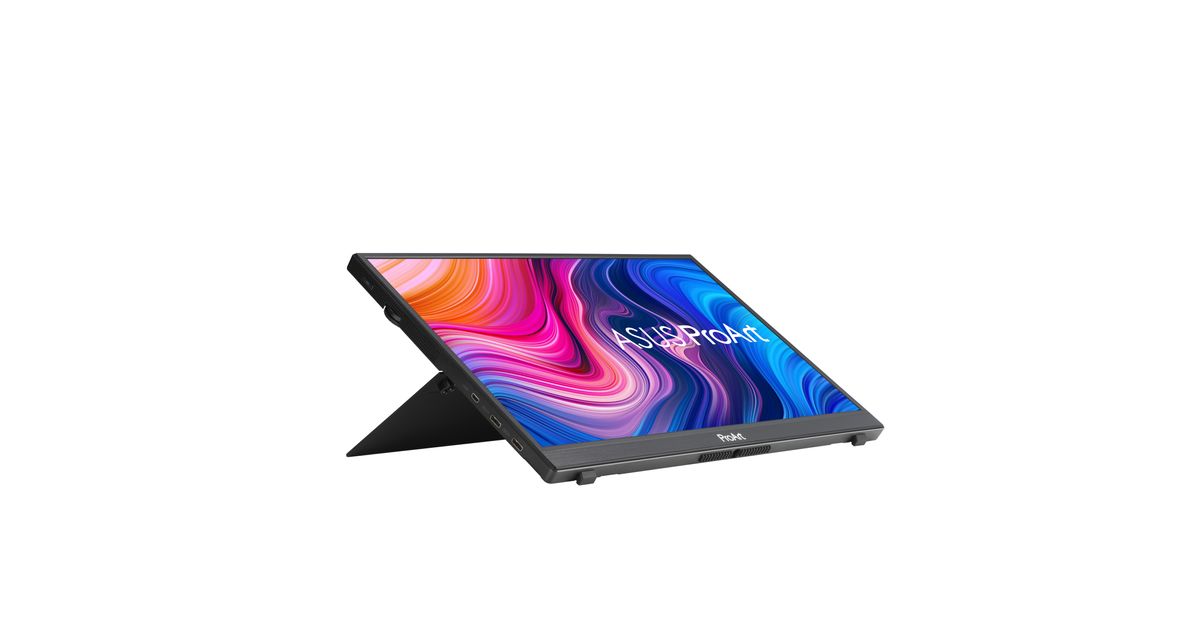

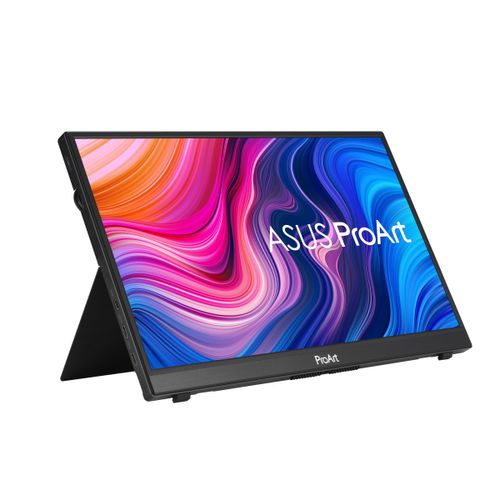

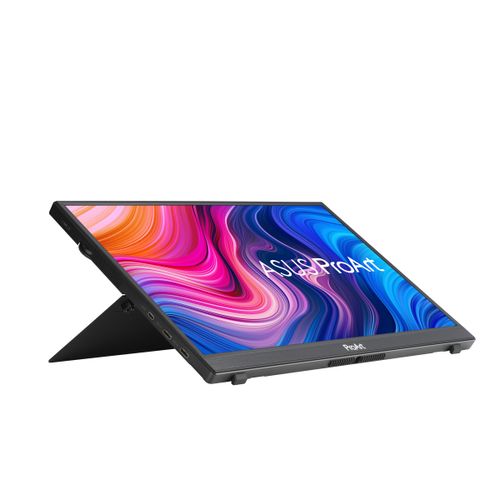

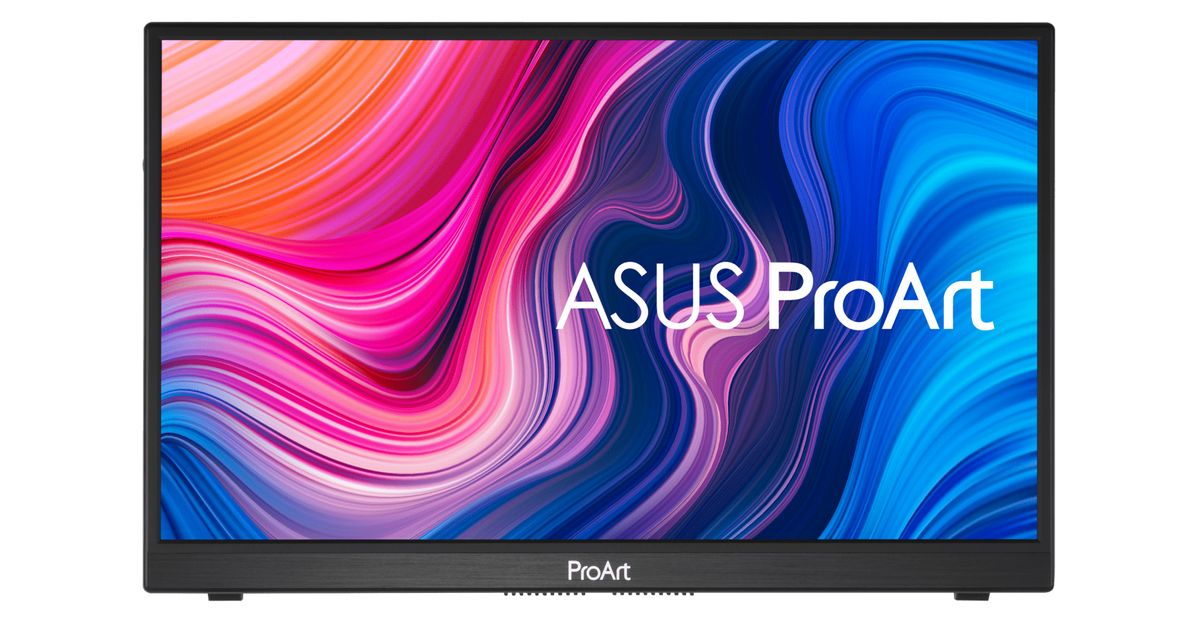

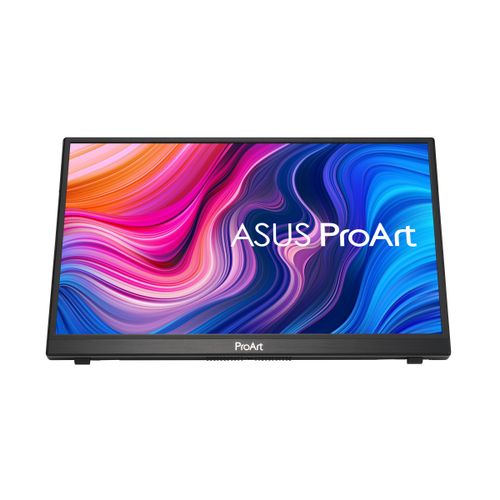

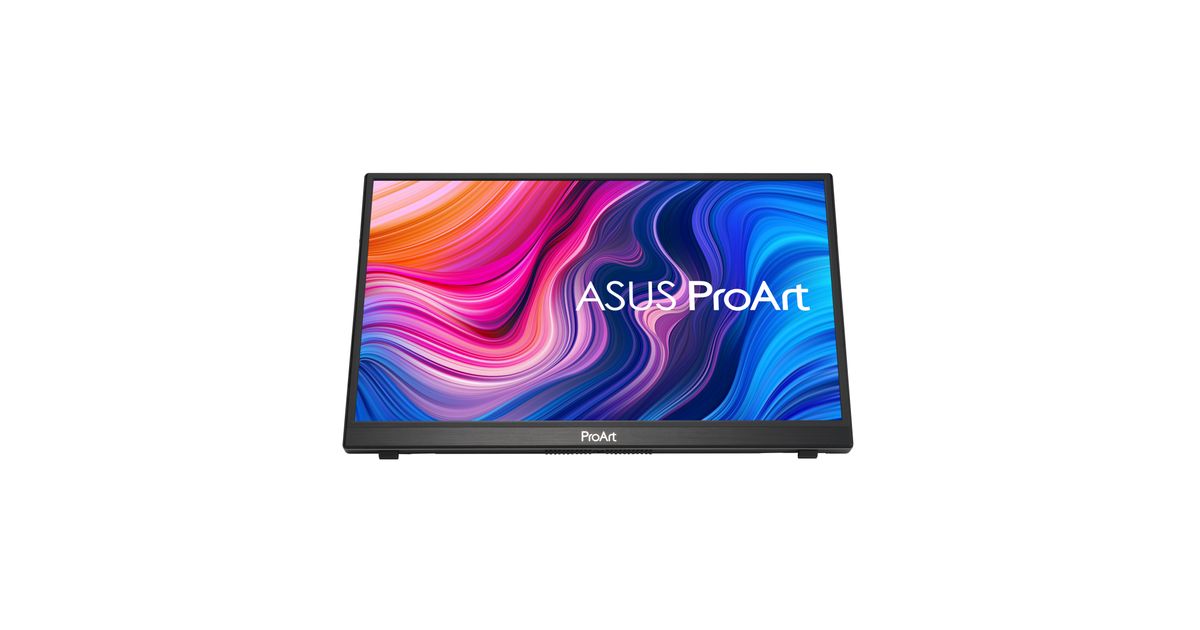

ASUS PA148CTV 35.6 cm (14") 1920 x 1080 pixels Full HD LED Touchscreen Tabletop Black
ASUS PA148CTV, 35.6 cm (14"), 1920 x 1080 pixels, Full HD, LED, 5 ms, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ASUS |
| Product code | 214486268 |
| EAN | 04718017862226 |
| Manufacturer part number | UPASU014XSPA8CT |
| Category | Touchscreen monitors |
| Display | |
|---|---|
| Display diagonal | 35.6 cm (14") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Y |
| HD type | Full HD |
| Panel type | IPS |
| Screen shape | Flat |
| Contrast ratio (typical) | 700:1 |
| Maximum refresh rate | 60 Hz |
| Display number of colours | 16.7 million colours |
| Touchscreen type | Tabletop |
| Touch technology | Multi-touch |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Aspect ratio | 16:9 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.16 x 0.16 mm |
| Viewable size, horizontal | 30.9 cm |
| Viewable size, vertical | 17.4 cm |
| sRGB coverage (typical) | 100% |
| Display brightness | 300 cd/m² |
| Design | |
|---|---|
| Backlight type | LED |
| Market positioning | Graphics design |
| Product colour | Black |
| Front bezel colour | Black |
| Feet colour | Black |
| Cable lock slot type | Kensington |
| Performance | |
|---|---|
| Touchscreen technology | Projected capacitive system |
| NVIDIA G-SYNC | N |
| AMD FreeSync | N |
| Low Blue Light technology | Y |
| Cable lock slot | Y |
| Features | |
|---|---|
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Harmonized System (HS) code | 85285210 |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Number of speakers | 1 |
| Built-in microphone | N |
| Camera | |
|---|---|
| Built-in camera | N |
| Multimedia | |
|---|---|
| RMS rated power | 2 W |
| Ports & interfaces | |
|---|---|
| Built-in USB hub | Y |
| HDMI | N |
| Headphone out | N |
| Number of upstream ports | 1 |
| Number of USB Type-C upstream ports quantity | 1 |
| USB Type-C downstream ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| DVI port | N |
| Micro HDMI ports quantity | 1 |
| Audio input | N |
| Ergonomics | |
|---|---|
| Height adjustment | N |
| Power | |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Energy efficiency scale | A to G |
| Packaging content | |
|---|---|
| Cables included | Micro-HDMI, USB Type-C to USB Type-A |
| Power adapter included | Y |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 326.1 mm |
| Depth (with stand) | 12 mm |
| Height (with stand) | 204.4 mm |
| Weight (with stand) | 740 g |
| Package weight | 2.5 kg |
| Packaging data | |
|---|---|
| Package width | 413 mm |
| Package depth | 90 mm |
| Package height | 342 mm |
| Package type | Box |
Product Description
A Shortcut to Creators’ Workflow
ASUS ProArt PA148CTV is a 14-inch FHD portable monitor designed for creators. Its ASUS Dial and Virtual Control Panel streamlines the creative process with shortcuts and programmable hotkeys that work seamlessly with Adobe creative tools. PA148CTV delivers exceptional color thanks to 100% sRGB and 100% Rec. 709 color spaces, and it is world’s 1st portable monitor that reach Calman Verified certification and factory pre-calibrated to provide a Delta E < 2 color difference. The anti-glare IPS panel features wide viewing angles with minimal color shift, even when viewed from off-center positions.
Built for Creators
PA148CTV offers a host of features to help you get the most out of creative pursuits. The ASUS Dial and the Virtual Control Panel provide shortcuts and hotkeys to popular Adobe software, allowing you to work more efficiently. The Calman Verified PA148CTV has a Delta E < 2 color value and wide color gamut to ensure the colors you see are true to life. ProArt Preset software lets you quickly adjust color gamut, while ProArt Palette lets you adjust various color settings.
Creativity with a Spin

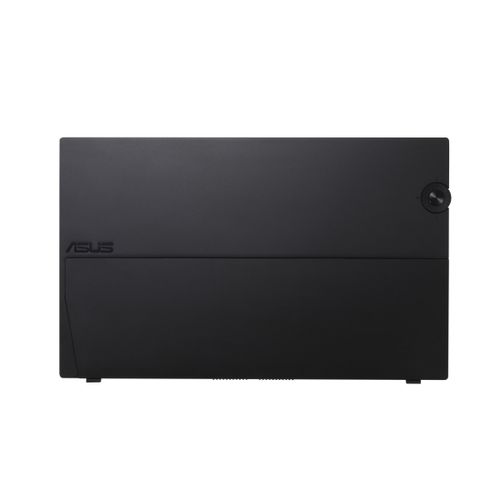

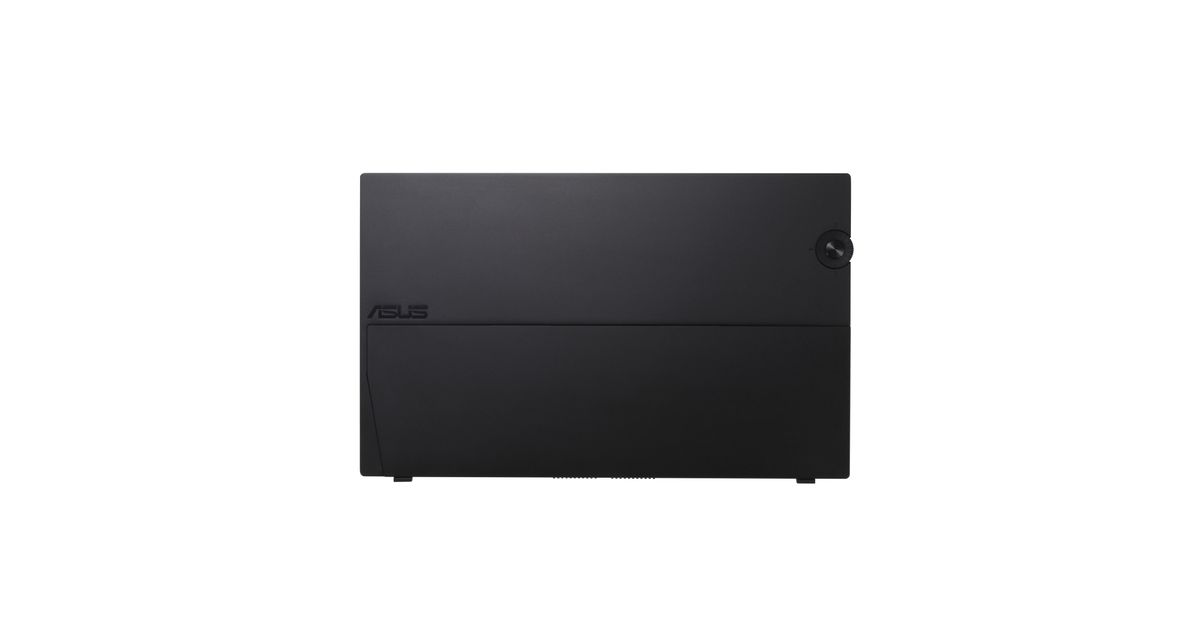

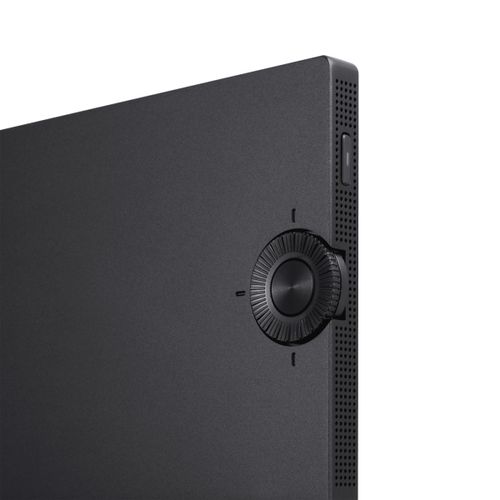

ASUS Dial is a physical dial at the rear of the display that works seamlessly with compatible Adobe software and Microsoft Surface Dial controls, allowing you to make adjustments while keeping focused on the task at hand. The integrated on screen display (OSD) controller allows you to make monitor adjustments quickly and easily.
Works with
Adobe Software
ASUS Dial is designed to work with compatible Adobe software* (for example, Adobe Photoshop, Photoshop Lightroom Classic, Premiere Pro and After Effects). Turning the dial gives you access to customized shortcuts for tasks such as zooming in and out of images and adjusting brush size or brightness settings. You can even tailor the default interface to suit your own work style.
*Support for additional Adobe software will be available in the future. ProArt Creator Hub is required and will be available in Q2 2021
**Adobe, Adobe Premiere, After Effects, Lightroom, Photoshop, and the Photoshop logo are either registered trademarks or trademarks of Adobe in the United States and/or other countries.
Supports Windows
Surface Dial Features
ASUS Dial works seamlessly with Microsoft Surface Dial features. Simply turn ASUS Dial to adjust volume, scroll through web pages, or to perform other functions.
Intuitive Control at Your Fingertips
The Virtual Control Panel provides an intuitive interface that’s unique to each supported Adobe software* (for example, Adobe Photoshop, Photoshop Lightroom Classic, Premiere Pro and After Effects), so the controls and shortcuts you need are right in front of you. Tweak image exposure or contrast when working with Photoshop, or slide through video time bars on Premiere – it’s all neatly laid out so you can work more quickly and efficiently.
*Support for additional Adobe software will be available in the future. ProArt Creator Hub is required and will be available in Q2 2021
**Adobe, Adobe Premiere, After Effects, Lightroom, Photoshop, and the Photoshop logo are either registered trademarks or trademarks of Adobe in the United States and/or other countries.
Experience Full Color
Wide 100% sRGB and 100% Rec. 709 color gamut offers more vivid colors, ensuring deeper primary colors like red, green and blue, and richer secondary colors.
Revel in pure, expressive hues — thanks to accurate, true-to-life color reproduction. Delta E < 2 color accuracy means your images are accurately reproduced on screen, so you can see exactly how they’ll turn out.
Pre-Calibrated for
Out-of-the-Box Accuracy
Color professionals rely on color-accurate displays to ensure that their creations render as intended. PA148CTV is pre-calibrated at the factory and Calman Verified to guarantee industry-leading color accuracy. Every ProArt display undergoes meticulous testing to ensure smooth color gradation and to guarantee the very best visuals.
Quick Color Gamut Adjustment
ASUS-exclusive ProArt Preset provides multiple modes for quick color-gamut adjustment. Whether you're grading colors, editing videos or manipulating photos, you can switch and match your needs easily.
Personalized Editing Experience
ASUS ProArt Palette lets you customize numerous display parameters, including color hue, temperature and gamma adjustments, via intuitive on-screen menus. With two-point grayscale sliders for all six colors, it provides greater color-adjustment flexibility than many competing monitors. ProArt Palette empowers you to produce quickly and consistently, and makes it easy to keep your color management in check.

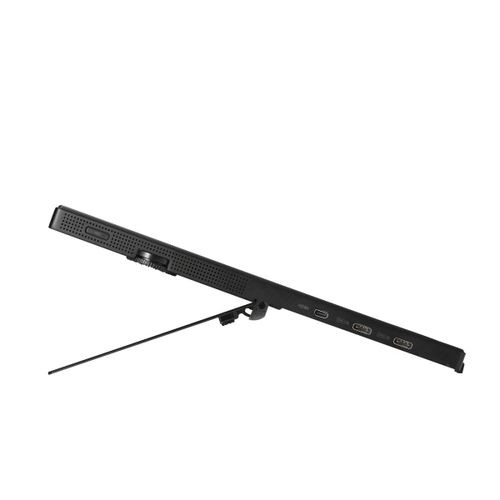

Rich Connectivity

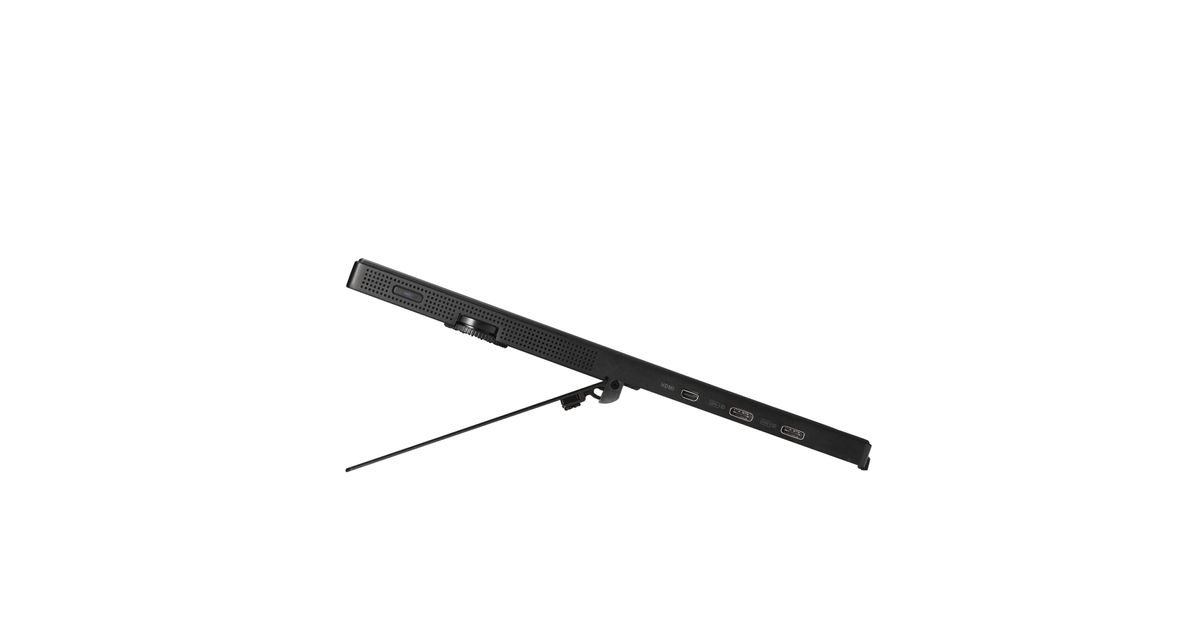

PA148CTV offers a host of ports to cater to your creative needs. The two USB-C ports deliver audio / video signals, touch and plus power input over a single cable*. The micro HDMI port provides a connection to various input sources, while the tripod socket allows you to mount PA148CTV onto a tripod.
*Connected device requires USB Type-C (DisplayPort Alt Mode and at least 10W power output.)

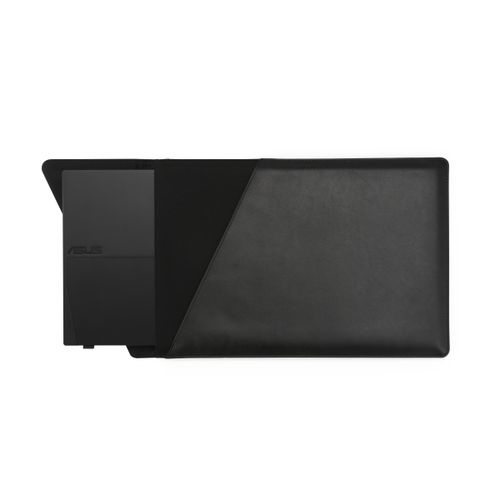

Effortless Mobility

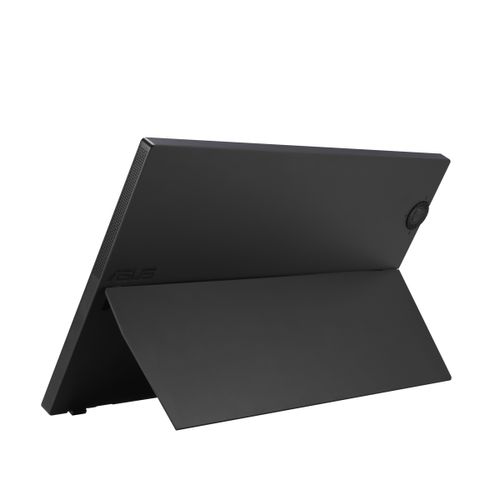

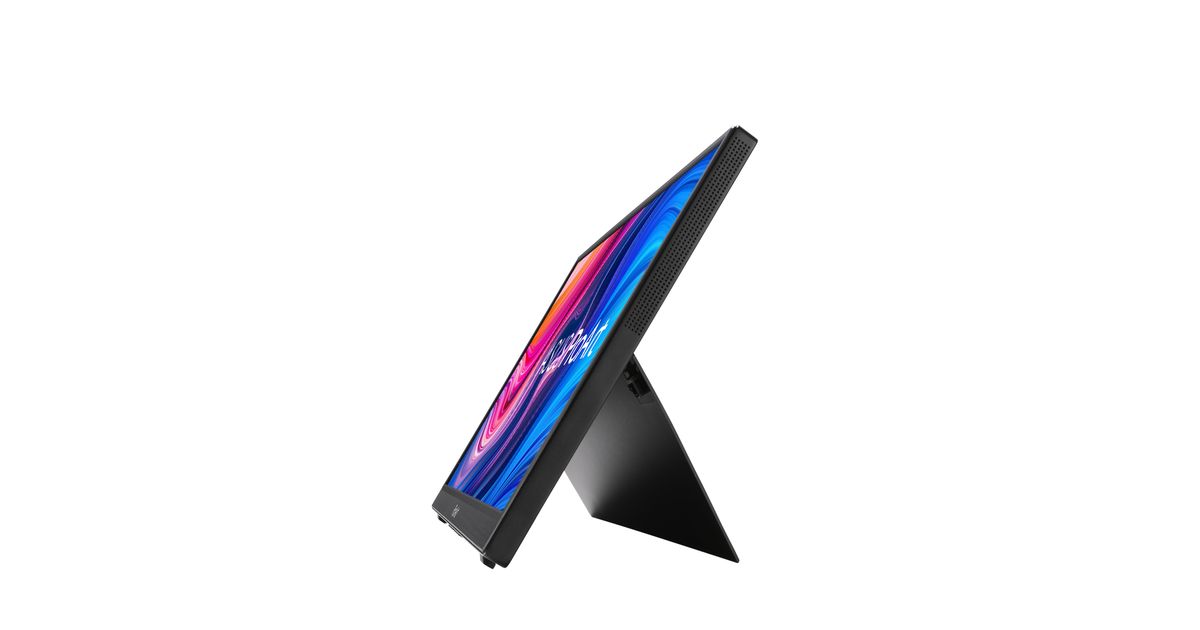

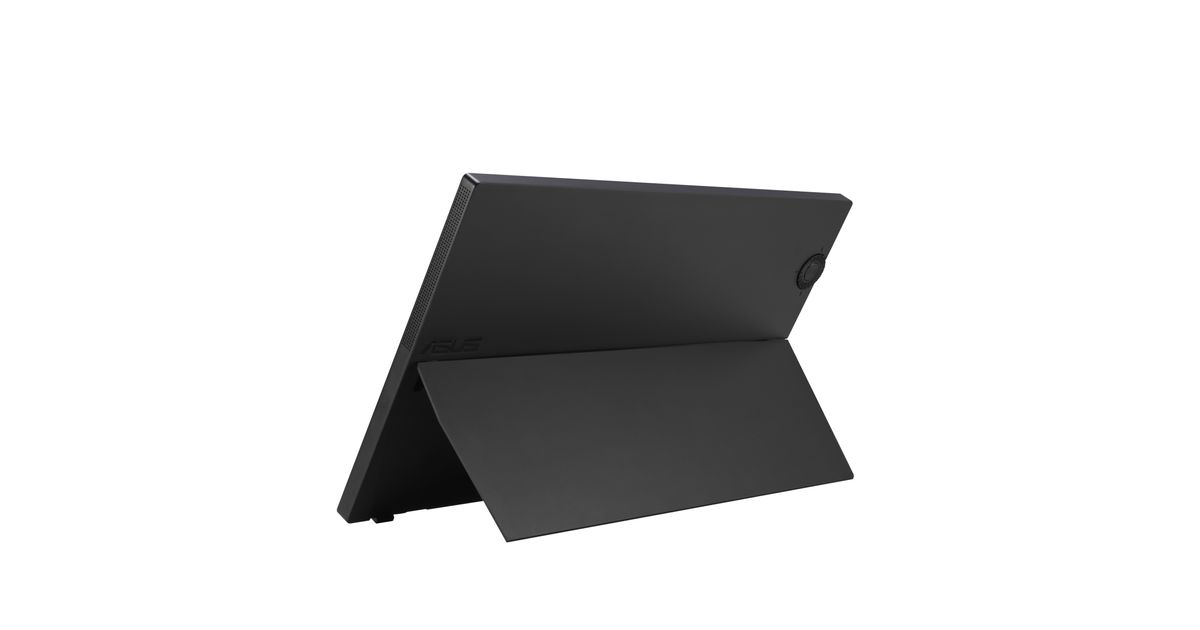

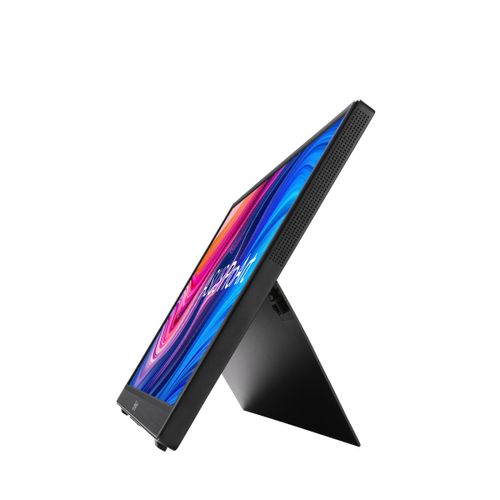

PA148CTV fits into a travel bag or backpack, so you can easily take it on location. An integrated adjustable metal kickstand props it up to provide comfortable viewing angles and working positions, anywhere.
Caring for Your Eyes
ASUS Flicker-Free technology ensures a more comfortable viewing experience by reducing on-screen flicker to minimize eye strain, headaches and eye fatigue that can occur when spending long hours in front of a display. Exclusive ASUS Ultra-Low Blue Light technology protects your eyes from harmful blue light emissions with four blue-light filter settings that are easily accessed through the on-screen menu via the hotkey
