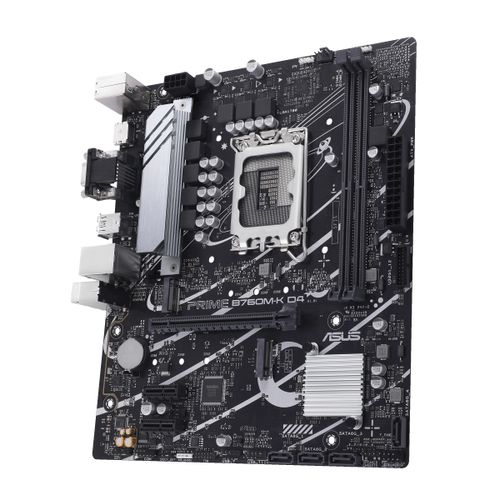

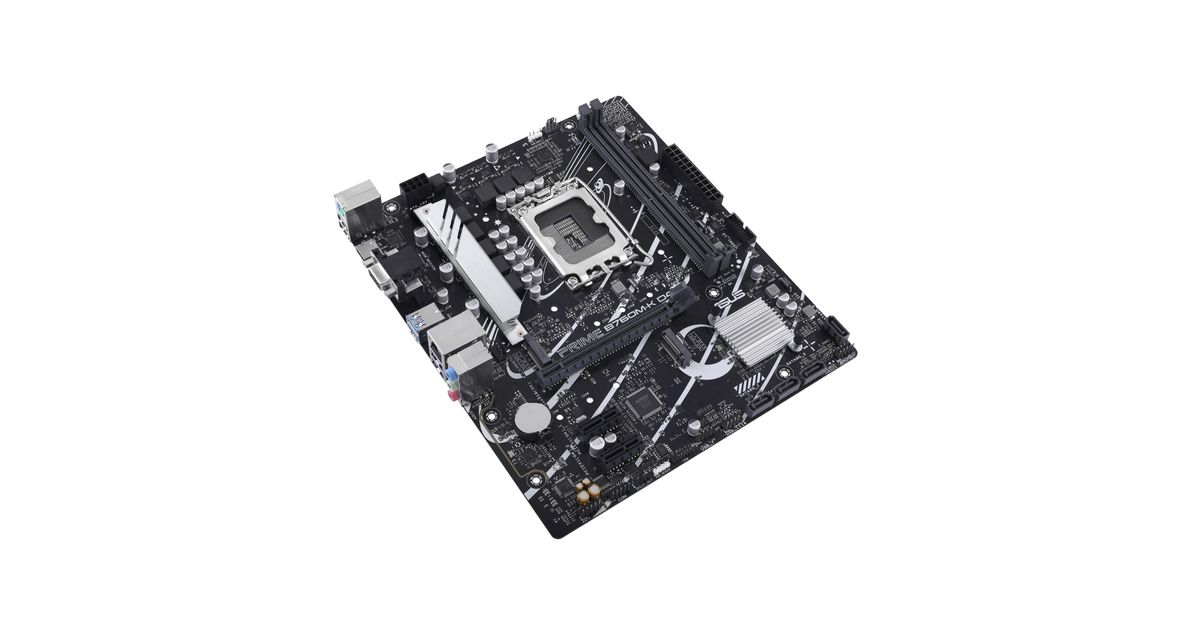

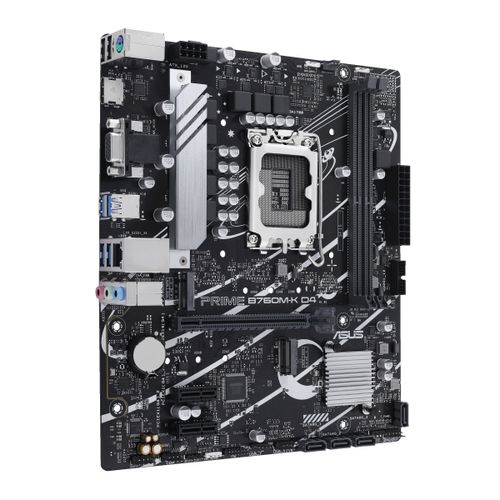

ASUS PRIME B760M-K D4 Intel B760 LGA 1700 micro ATX
ASUS PRIME B760M-K D4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR4-SDRAM, 64 GB
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ASUS |
| Product code | 2210366898 |
| EAN | 04711387006917 |
| Manufacturer part number | 90MB1DS0-M0EAY0 |
| Category | Motherboards |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Performance | |
|---|---|
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz |
| Supported memory clock speed (max) | 5333 MHz |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Storage | |
|---|---|
| Number of HDDs supported | 4 |
| Features | |
|---|---|
| Number of storage drives supported | 6 |
| USB connector type | USB Type-A |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| Rear panel I/O ports | |
|---|---|
| PS/2 ports quantity | 1 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
| Design | |
|---|---|
| Component for | PC |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Packaging data | |
|---|---|
| Package width | 270 mm |
| Package depth | 51.5 mm |
| Package height | 263 mm |
| Weight & dimensions | |
|---|---|
| Package weight | 926.3 g |
| Width | 244 mm |
| Depth | 211 mm |
| Height | 36 mm |
| Weight | 528 g |
| Packaging content | |
|---|---|
| Cables included | SATA |
