ASUS PROART B760-CREATOR Intel B760 LGA 1700 ATX
ASUS PROART B760-CREATOR, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 128 GB
Read more...
Read more...
| Select | Supplier | Availability | Price | ETA |
|---|---|---|---|---|
| E1 | 0 | 401.44 € | ~ Tu 22.04 |
Estimated delivery time of the product from selected supplier: ~ Tu 22.04
401.44 €
tk
Returns Policy
14-day money back guaranteeFlexible Payment Options
- Payment by invoice or e-invoice possible for individuals, companies and public authorities
- Payment via bank link - Coop, LHV, SEB, Swedbank, Luminor, Citadele
- Credit card payment
Pay later or in installments
Installment calculator
-
MTS Järelmaks
100 € - 10 000 € -
Liisi Järelmaks
10 € - 25 000 € -
Inbank järelmaks
100 € - 10 000 € -
LHV Järelmaks
50 € - 15 000 €
Monthly payment:
12.34 €
All calculations made on the calculator supplied on this site are guidelines only and are subject to confirmation at the time of finalising any transactions.
Product Information
| Information | |
|---|---|
| Manufacturer | ASUS |
| Product code | 2210247449 |
| EAN | 04711387179727 |
| Manufacturer part number | 90MB1F20-M0EAY0 |
| Category | Motherboards |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Performance | |
|---|---|
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| Thunderbolt headers | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 4 |
| Number of M.2 (E) slots | 1 |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Design | |
|---|---|
| Component for | PC |
| Features | |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| BIOS | |
|---|---|
| BIOS memory size | 128 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
|---|---|
| Package width | 338 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Weight & dimensions | |
|---|---|
| Package weight | 2.43 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 50 mm |
| Packaging content | |
|---|---|
| Cables included | SATA |
Product Description

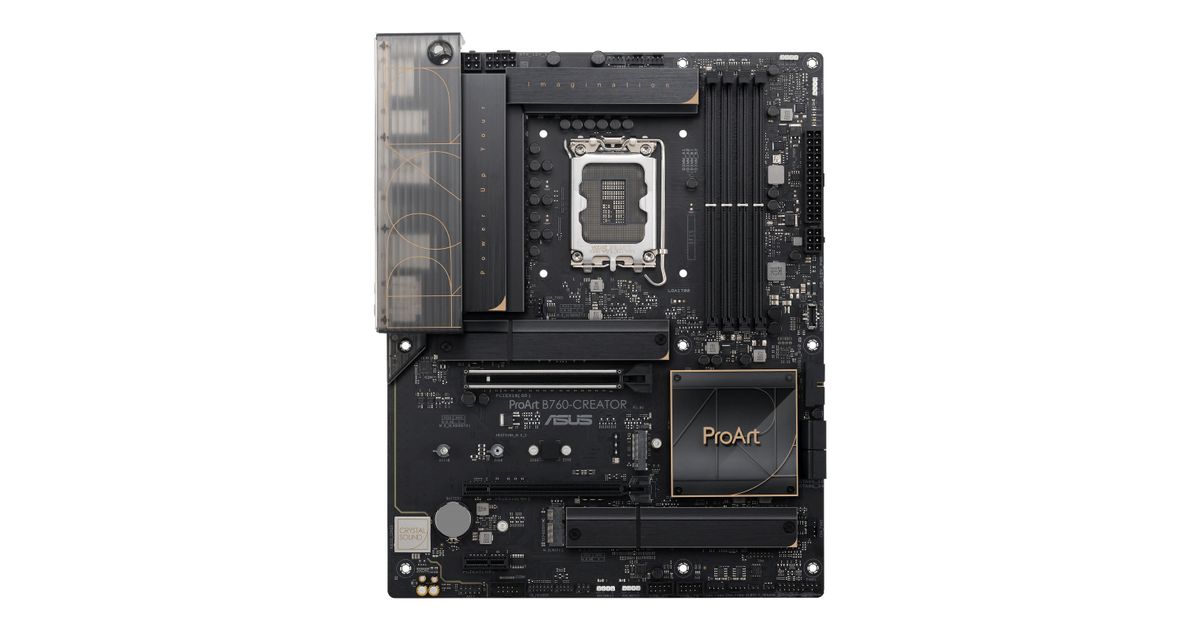

B760-CREATOR
ProArt B760-Creator is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with 60W Quick Charge 4+ and a Thunderbolt™ 4 header.
Comprehensive Connectivity
PCIe 5.0 for graphics cards
The 13th Gen Intel processors offer PCIe 5.0 support, which offers twice the data transfer speed of PCIe 4.0 , making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions.
USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+
USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.
Thunderbolt™ / USB4® support
The ProArt B760-Creator features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card*, this ProArt motherboard can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connections, and it supports a display resolution of up to 8K. It can also provide up to 100 watts of power to fast-charge devices.
*ASUS add-on card is sold separately.
Networking
Dual Ethernet
2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS), allowing for improved data organization and security.
M.2 Slot (Key E)
The ProArt B760-Creator features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules*.
*WiFi/BT modules are sold separately.
PCIe 4.0 M.2 Storage
The ProArt B760-Creator features three onboard M.2 slots, two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives.
ProArt B760-Creator is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with 60W Quick Charge 4+ and a Thunderbolt™ 4 header.
Comprehensive Connectivity
PCIe 5.0 for graphics cards
The 13th Gen Intel processors offer PCIe 5.0 support, which offers twice the data transfer speed of PCIe 4.0 , making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions.
USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+
USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.
Thunderbolt™ / USB4® support
The ProArt B760-Creator features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card*, this ProArt motherboard can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connections, and it supports a display resolution of up to 8K. It can also provide up to 100 watts of power to fast-charge devices.
*ASUS add-on card is sold separately.
Networking
Dual Ethernet
2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS), allowing for improved data organization and security.
M.2 Slot (Key E)
The ProArt B760-Creator features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules*.
*WiFi/BT modules are sold separately.
PCIe 4.0 M.2 Storage
The ProArt B760-Creator features three onboard M.2 slots, two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives.
