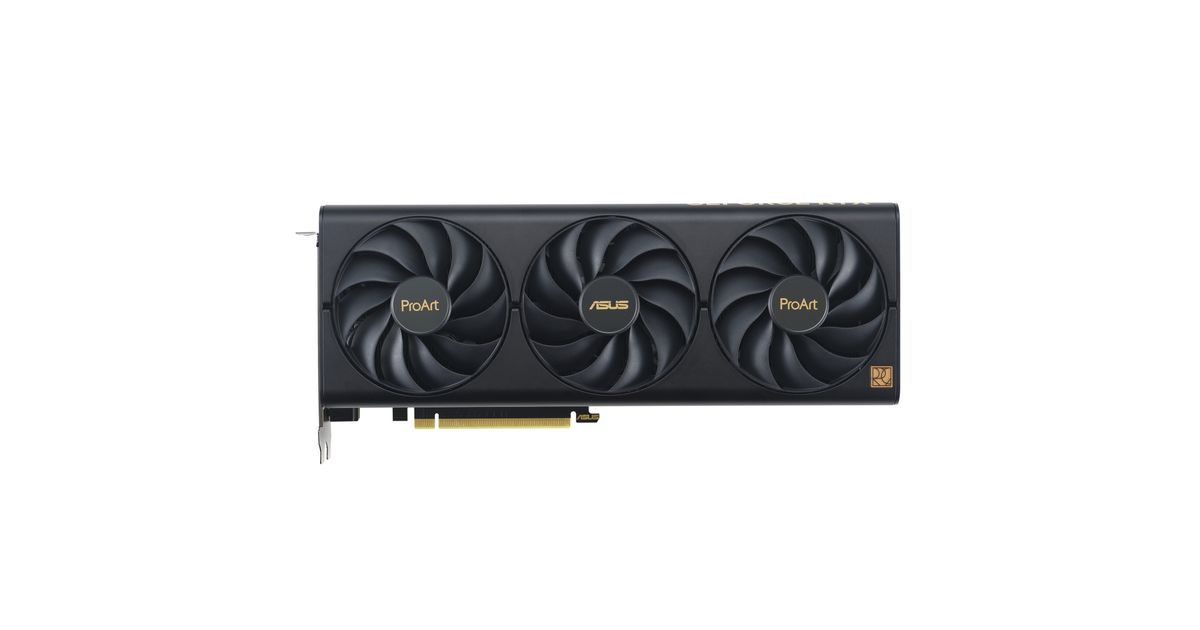

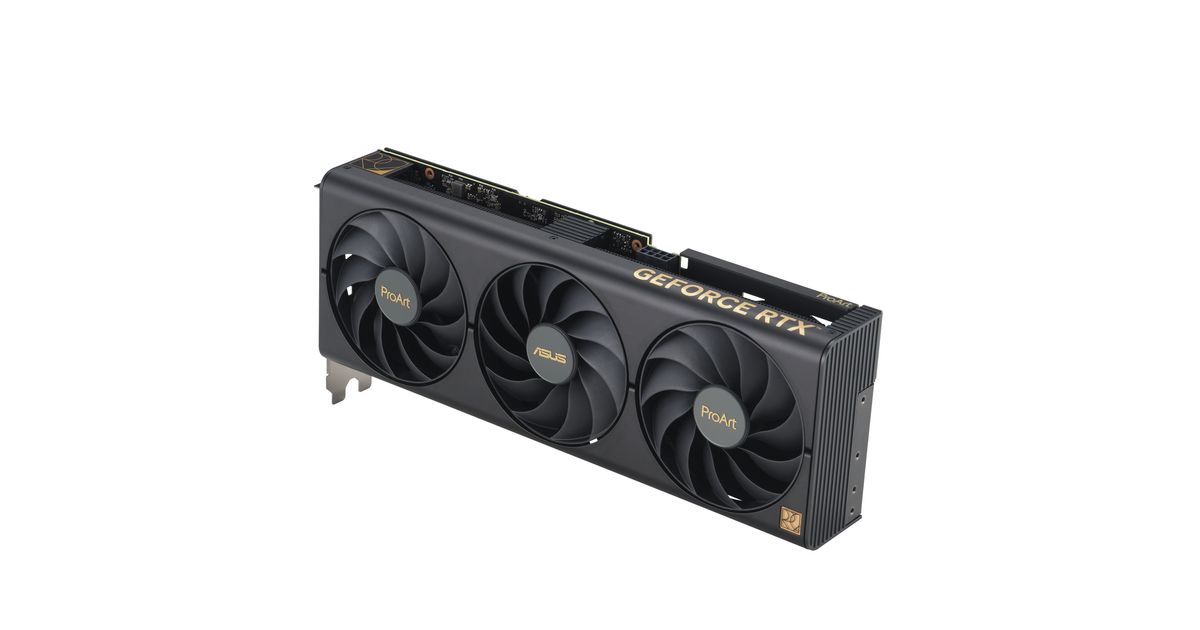

ASUS ProArt -RTX4060-O8G NVIDIA GeForce RTX 4060 8 GB GDDR6
ASUS ProArt -RTX4060-O8G, GeForce RTX 4060, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ASUS |
| Product code | 2210248408 |
| EAN | 00197105299412 |
| Manufacturer part number | 90YV0JM0-M0NA00 |
| Category | Graafikakaardid |
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4060 |
| CUDA | Yes |
| CUDA cores | 3072 |
| Processor boost clock speed | 2550 MHz |
| Processor frequency (OC mode) | 2580 MHz |
| Maximum displays per videocard | 4 |
| Graphics | |
|---|---|
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Discrete graphics adapter memory | 8 GB |
| Memory | |
|---|---|
| Graphics adapter memory type | GDDR6 |
| Memory bus | 128 bit |
| Features | |
|---|---|
| Data transfer rate | 17 Gbit/s |
| DisplayPort version | 1.4a |
| Dual Link DVI | No |
| HDCP | Yes |
| HDCP version | 2.3 |
| Supplementary power connectors | 1x 8-pin |
| Ports & interfaces | |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1a |
| Performance | |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| NVIDIA G-SYNC | Yes |
| NVIDIA Ansel | Yes |
| Design | |
|---|---|
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2.5 |
| Product colour | Black |
| Other features | |
|---|---|
| Bracket height | Full-Height (FH) |
| Power | |
|---|---|
| Minimum system power supply | 550 W |
| Weight & dimensions | |
|---|---|
| Weight | 924 g |
| Depth | 300 mm |
| Height | 120 mm |
| Width | 50 mm |
| Package weight | 1.58 kg |
| Packaging content | |
|---|---|
| Manual | Yes |
| Packaging data | |
|---|---|
| Package width | 405 mm |
| Package depth | 233 mm |
| Package height | 88.5 mm |
| Package type | Box |
Product Description
COMPACT. CREATIVE. POWER.
Blur the lines between imagination, the digital world, and reality. The ProArt GeForce RTX™ 4060 packs the venerable Ada Lovelace architecture and potent cooling into a 2.5-slot frame, bringing immense creative power to compact builds and full-scale workstations.
Axial-tech Upgrades
A Fresh Spin
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Reverse Rotation and 0dB Technology
Orchestrated Chill
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 45 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 50 Celsius, referencing a speed curve that balances performance and acoustics for work or play.
2.5-slot Design
Custom Heatsink
Heatpipes efficiently wick heat into a fin stack optimized for airflow from the Axial-tech fans. The entire array is dressed in stealthy black to match the ProArt theme.
Premium Power Delivery
1st Responder
Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.
Compact PCB
Packs a Punch
Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent.
COMPACT. CREATIVE. POWER.
The ProArt GeForce RTX 4060 is a finely-crafted synthesis of brawn and beauty.
Auto−Extreme Technology
Reliability Boost
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Software
GPU Tweak III
ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make performance tuning even easier. Additional goodies, such as, 0dB fan technology, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card. And Profile Connect allows you to seamlessly bring it all together for every creative app and task.
QuantumCloud
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!
Your Ideas, Accelerated by NVIDIA Studio
Creativity that’s all in. NVIDIA Studio delivers RTX and AI acceleration in top creative apps, NVIDIA Studio drivers for max stability, and a suite of exclusive tools to ignite your next big idea.
