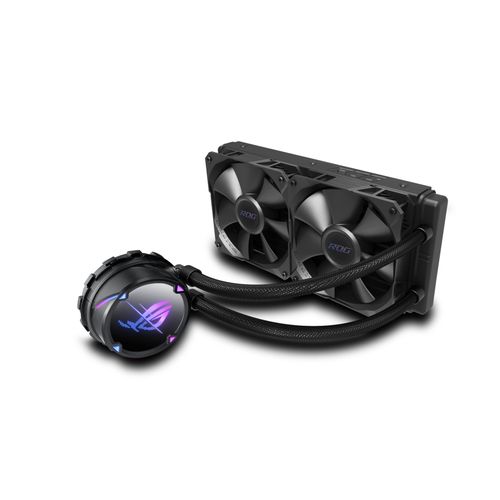

ASUS ROG STRIX LC II 240 Processor All-in-one liquid cooler 12 cm Black
ASUS ROG STRIX LC II 240, All-in-one liquid cooler, 12 cm, 80.95 cfm, 137.5 m³/h, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ASUS |
| Product code | 216302541 |
| EAN | 00195553145886 |
| Manufacturer part number | 90RC00E0-M0UAY0 |
| Category | Jahutus |
| Features | |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Material | Aluminium, Copper |
| Harmonized System (HS) code | 84733080 |
| Performance | |
|---|---|
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket TR4 |
| Maximum airflow | 80.95 cfm |
| Airflow | 137.5 m³/h |
| Pulse-width modulation (PWM) support | Y |
| Fan speed (min) | 800 RPM |
| Fan speed (max) | 2500 RPM |
| Fan static pressure | 5 mmH2O |
| Design | |
|---|---|
| Product colour | Black |
| Radiator material | Aluminium |
| Base plate material | Copper |
| Fan connector | 4-pin |
| Water block material | Copper |
| Fan controller | Y |
| Tube material | Rubber |
| Weight & dimensions | |
|---|---|
| Radiator width | 12.2 cm |
| Radiator depth | 15 cm |
| Radiator height | 2.7 cm |
| Tube length | 38 cm |
| Waterblock width | 8 cm |
| Waterblock depth | 8 cm |
| Waterblock height | 4.5 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan thickness | 2.5 cm |
| Packaging data | |
|---|---|
| Screws included | Y |
| Packaging content | |
|---|---|
| CPU socket spacer(s) | Y |
| CPU bracket(s) | Y |
| Logistics data | |
|---|---|
| Country of origin | China |
| Other features | |
|---|---|
| Noise level | 37.6 dB |
Product Description
ROG Strix LC II 240 delivers high-performance CPU liquid cooling with sleek, modern aesthetics. Featuring a closed-loop design and ROG radiator fans, the cooler unleashes the full potential of an Intel® or AMD CPU while enabling subtle multicolor lighting effects to accentuate your build.
NEXT-LEVEL CUSTOMIZATION
Emanate Your Style
From end to end, ROG Strix LC II 240 showcases the iconic ROG aesthetic. Engraved ROG lettering on the radiator’s side complements the iridescent lettering on the hubs of each fan. And the Aura Sync-compatible pump cover radiates the new ROG logo in any color you choose.
Optimized Fan Design
The ROG radiator fans are specifically tuned to deliver optimum performance on ROG Strix LC II series radiators. The fans generate 81 CFM / 5.0 mmH2O for exceptional cooling efficiency.

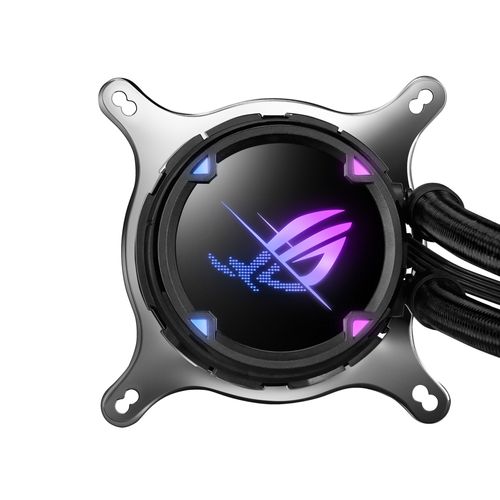

Enhanced Pump Design
ROG Strix LC II series is equipped with the latest cooling-plate design. Machined from pure copper, the plate features an array of fine micro-channels that reduce thermal resistance and increase surface area, resulting in lower CPU temperatures.
PWM-Controlled Pump and Fans
PWM control enables both the pump and radiator fans to spin at slower speeds when the CPU is idling or under light load, helping to keep noise levels to a minimum.
