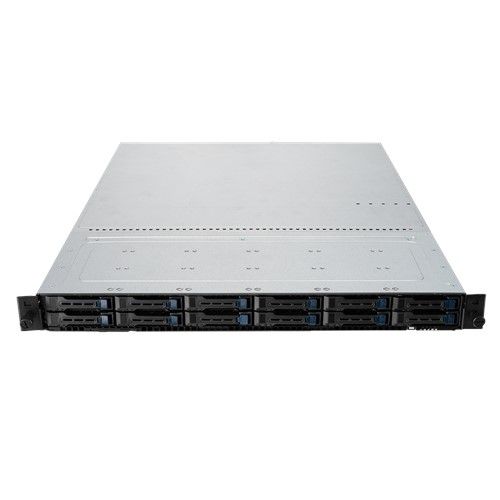

For illustrative purpose only

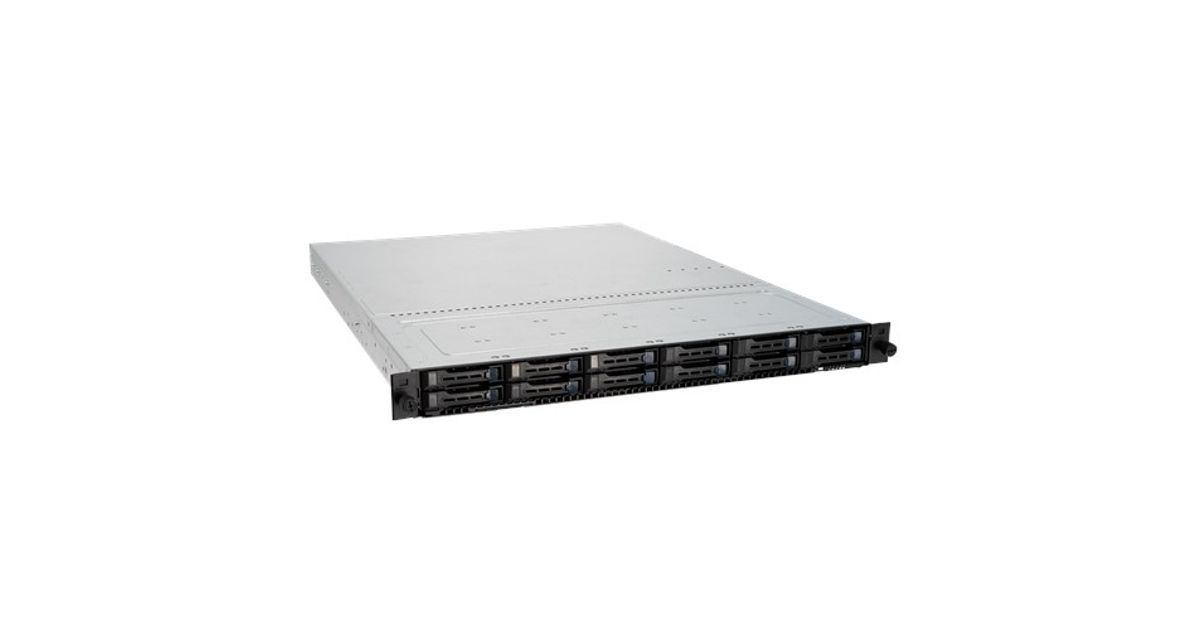

ASUS RS500A-E10-RS12-U Socket SP3 Rack (1U) Black, Grey
ASUS RS500A-E10-RS12-U, Socket SP3, AMD EPYC, DDR4-SDRAM, 2048 GB, 2666,2933,3200 MHz, Octa-channel
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ASUS |
| Product code | 21831042 |
| EAN | 04718017466004 |
| Manufacturer part number | 90SF00X1-M00080 |
| Category | Servers |
| Features | |
|---|---|
| Built-in processor | N |
| Number of storage drives supported | 12 |
| Storage drive sizes supported | 2.5" |
| Harmonized System (HS) code | 84714100 |
| Certification | CE, FCC |
| Processor | |
|---|---|
| Processor socket | Socket SP3 |
| Processor family | AMD EPYC |
| PCI Express slots version | 4.0 |
| Other features | |
|---|---|
| Number of processors supported | 1 |
| Number of DIMM slots | 16 |
| Supported RDIMM clock speeds | 2666,2933,3200 MHz |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Maximum RDIMM memory | 2048 GB |
| Memory channels | Octa-channel |
| Memory slots | 16 |
| Storage | |
|---|---|
| Hot-swap HDD bays | Y |
| Graphics | |
|---|---|
| On-board graphics adapter model | Aspeed AST2500 |
| On-board graphics adapter memory | 64 MB |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350-AM2 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |

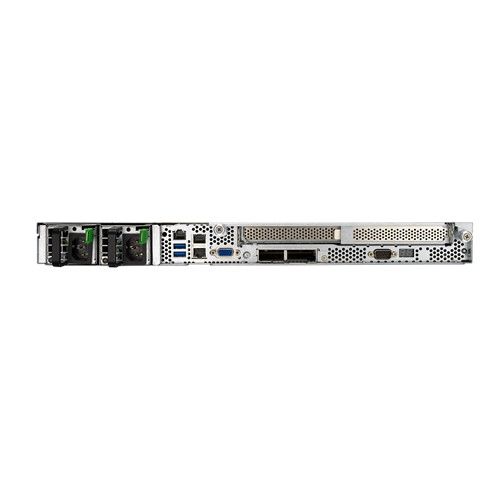

| Rear panel I/O ports | |
|---|---|
| COM ports quantity | 1 |
| Expansion slots | |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| Design | |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Grey |
| Power | |
|---|---|
| Power supply | 650 W |
| Number of redundant power supplies supported | 2 |
| AC input frequency | 50/60 Hz |
| Input current | 10/5 A |
| Performance | |
|---|---|
| 80 PLUS certification | 80 PLUS Platinum |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 11 kg |
| Package weight | 17 kg |
Product Description
Powered by AMD EPYC™ 7002 Series Processors
The AMD EPYC™ 7002 processor features the world’s first 7nm datacenter-design and a PCI Express® 4.0-capable x86 server processor with up to 2x the performance and 4x the floating point capability versus the previous 7001 generation. With support for up to 64 cores, 128 threads, 8-channels DDR4 3200, 128 PCIe 4.0 lanes and 225W of thermal design power (TDP), this processor is also designed with encryption features in memory and virtualization for security assurance.
Accelerate your workloads
To effectively manage the storage demands of growing amounts of data, RS500A-E10-RS12U supports for up to twelve 2.5-inch hot-swap SATA, SAS and NVMe drives in a 1U chassis for flexible expansion for storage. One M.2 slot accommodates 22110-size SSDs with support for additional OS storage and PCIe Gen3 x4 bandwidth — 5.3X faster than 6 Gb/s SATA III — for faster boot speeds.
Rich I/O expansion with PCIe 4.0
PCIe 4.0 offers a 16 GT/s that doubles the bandwidth of PCIe 3.0 and delivers lower power consumption, better lane scalability and backwards compatibility. RS500A-E10-RS12U features one PCIe x16 lane and one PCIe 4.0 x8 lane to allow optional HBA/RAID, NIC and InfiniBand (IB) cards for a diverse array of storage and networking applications.
Ultrafast Connectivity for HPC Applications
RS500A-E10-RS12U features two embedded Gigabit Ethernet ports and supports up to 100G or higher interconnect speeds with the addition of a PCIe 4.0 (Gen 4 x16 link) for its OCP 2.0 mezzanine card for HPC applications that require high-bandwidth, low-latency network support to connect multiple nodes and clusters. ASUS offers an authorized validation OCP mezzanine card for these models.
Thermal Radar 2.0 for energy efficiency
Featuring two innovative intelligent detection technologies and multi-fan zone design, ASUS Thermal Radar 2.0 places different sensors on the CPU, GPU, DIMM, HDD and in other areas to collect localized heating information to designate dedicated fan flow automatically to reduce consumption of overall fan capacity. Additionally, the multi-fan zone design enables multiple fan curves for different zones to reduce operating time and cost required for manual adjustments and effectively enhances system reliability and thermal efficiency.
Comprehensive IT infrastructure management
RS500A-E10-RS12U features an embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.
The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
