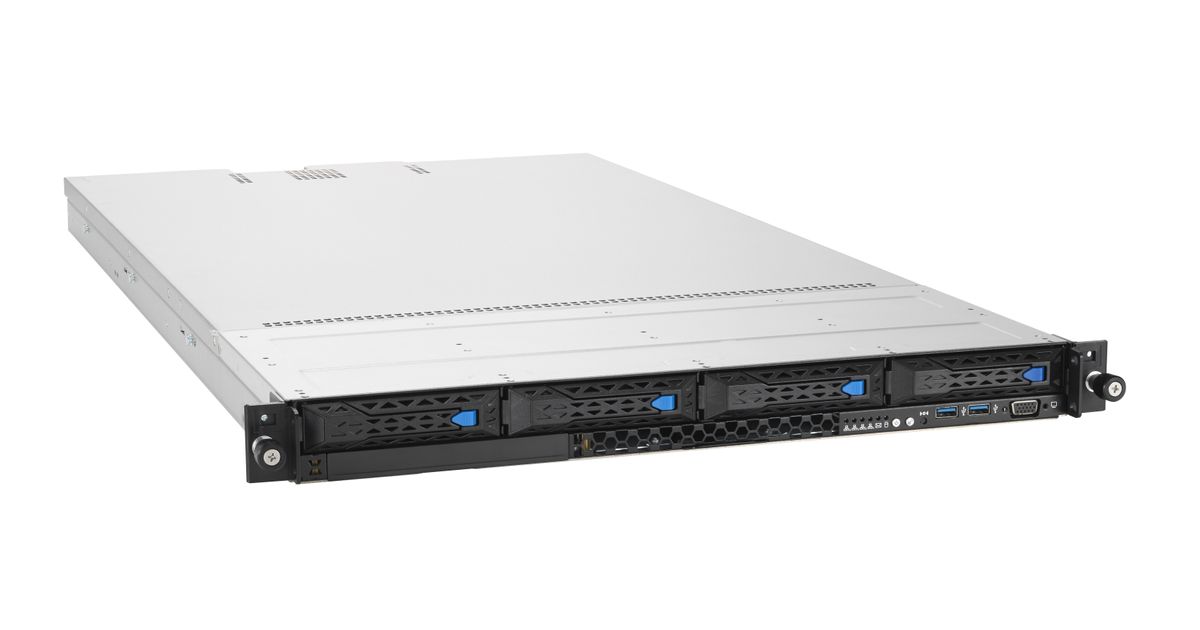

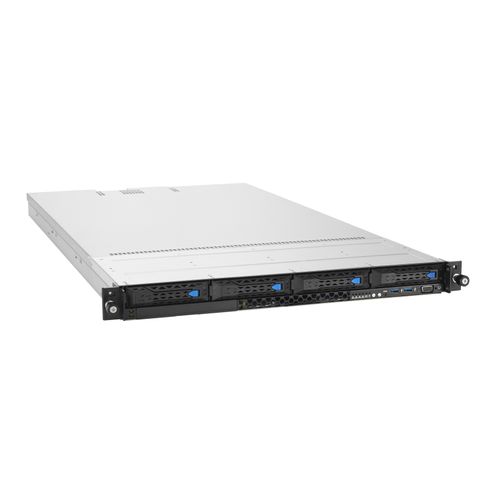

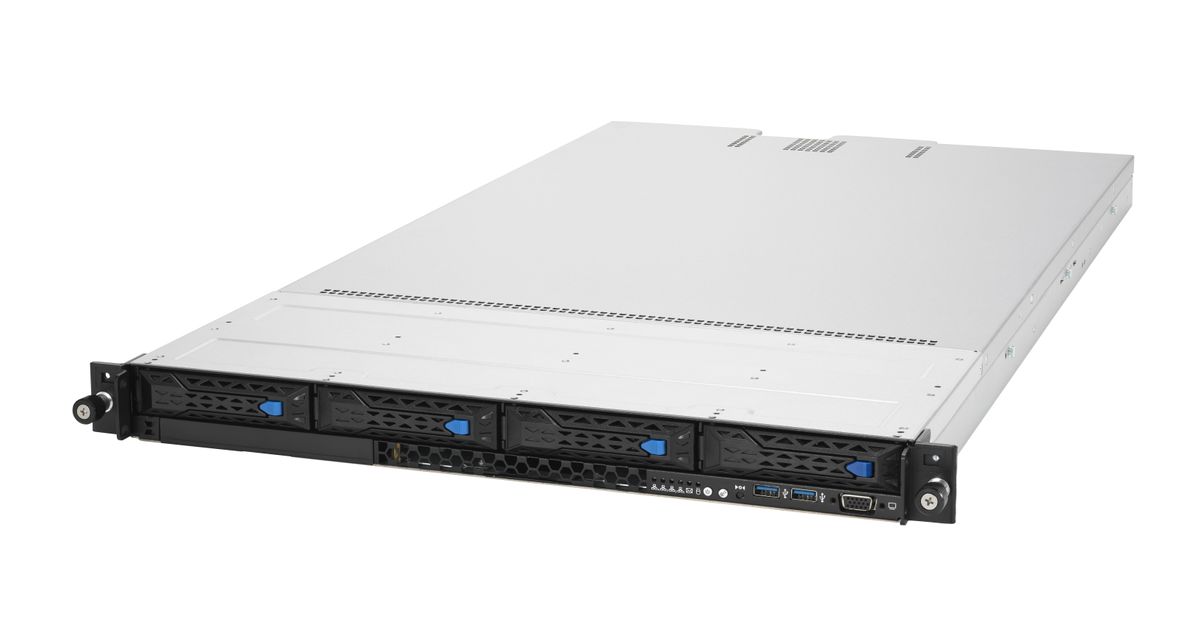

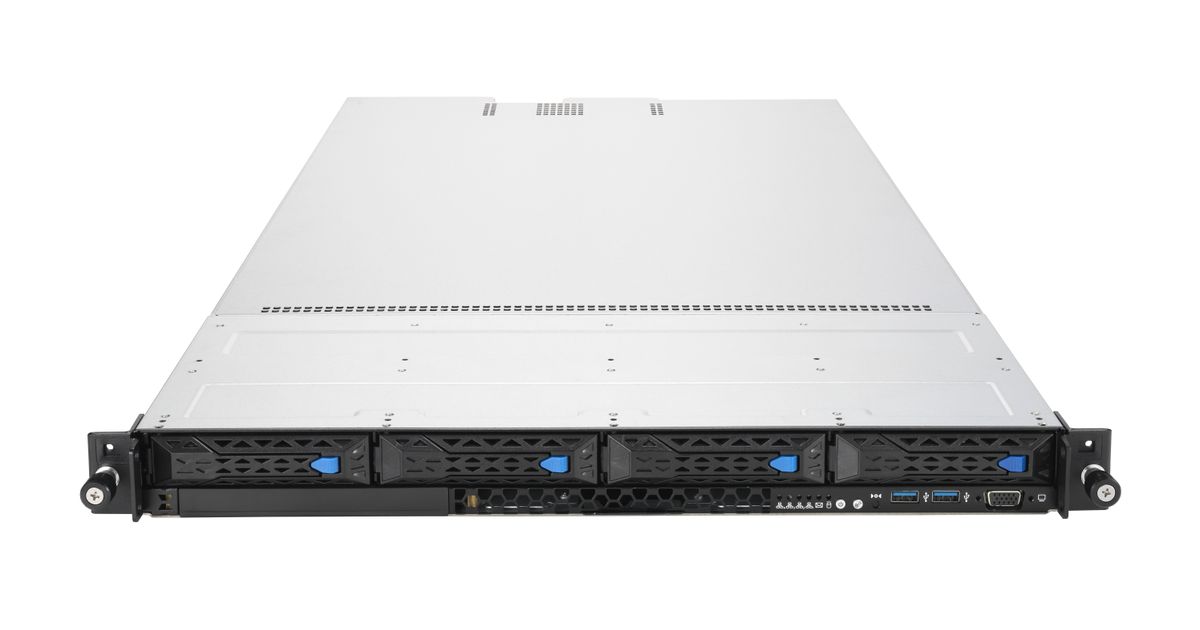

ASUS RS500A-E11-RS4U/4NVME(800W) Socket SP3 Rack (1U) Black
ASUS RS500A-E11-RS4U/4NVME(800W), Socket SP3, AMD, AMD, AMD EPYC, DDR4-SDRAM, 16GB, 32GB, 64GB, 128GB
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ASUS |
| Product code | 216294994 |
| EAN | 04711081439592 |
| Manufacturer part number | 90SF01R1-M00330 |
| Category | Servers |
| Features | |
|---|---|
| Built-in processor | N |
| Number of storage drives supported | 6 |
| Storage drive sizes supported | 3.5,M.2 |
| Harmonized System (HS) code | 84714100 |
| Processor | |
|---|---|
| Processor socket | Socket SP3 |
| Processor manufacturer | AMD |
| Processor family | AMD |
| PCI Express slots version | 4.0 |
| Other features | |
|---|---|
| Number of processors supported | 1 |
| Number of DIMM slots | 16 |
| Supported DIMM module capacities | 16GB, 32GB, 64GB, 128GB |
| Supported RDIMM clock speeds | 2933,3200 MHz |
| Performance | |
|---|---|
| Compatible processor series | AMD EPYC |
| 80 PLUS certification | 80 PLUS Platinum |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 4096 GB |
| Storage | |
|---|---|
| Hot-swap HDD bays | Y |
| Design | |
|---|---|
| Number of 3.5" bays | 4 |
| Chassis type | Rack (1U) |
| Product colour | Black |
| LED indicators | Y |
| On/off switch | Y |
| Reset button | Y |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350-AM2 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |

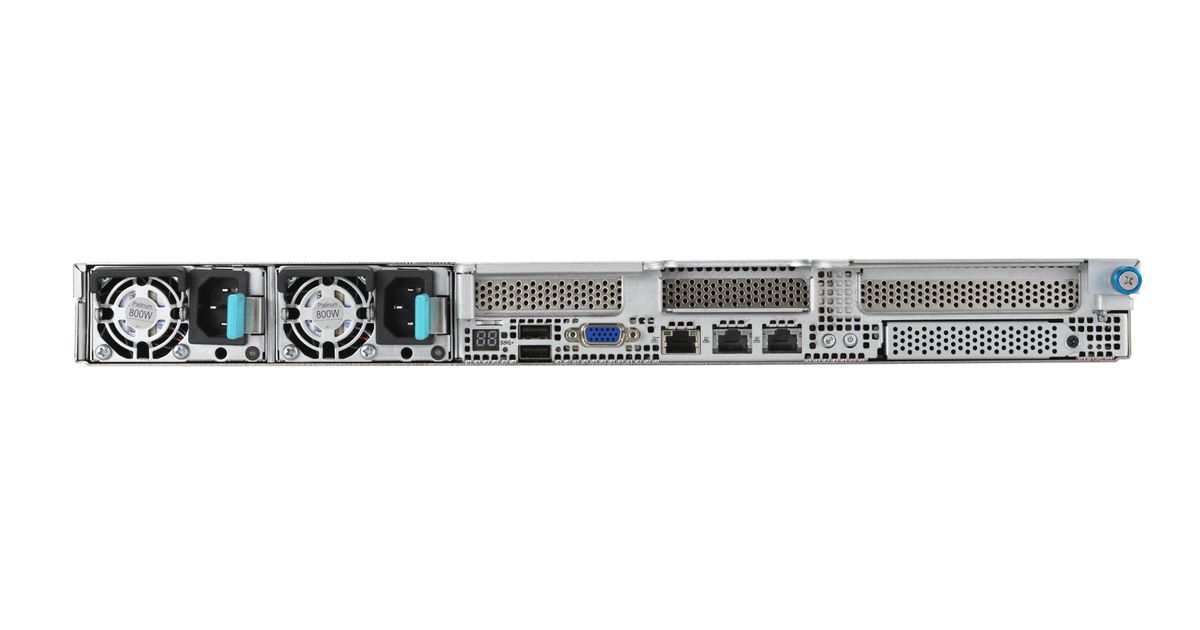

| Rear panel I/O ports | |
|---|---|
| IPMI LAN (RJ-45) port | Y |
| COM ports quantity | 1 |
| Expansion slots | |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 2 |
| Number of M.2 (M) slots | 2 |
| Power | |
|---|---|
| Power supply | 800 W |
| Number of main power supplies | 1 |
| Redundant power supply (RPS) support | Y |
| Number of redundant power supplies supported | 1 |
| Number of redundant power supplies installed | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 449 mm |
| Depth | 842 mm |
| Height | 44 mm |
| Weight | 16 kg |
| Package weight | 21 kg |
Product Description
AMD EPYC 7003 Series Processors
The latest AMD EPYC™ 7003 series processors are the new standard for modern data centers. AMD was first with X86 multi-chip-module server CPUs and continues to innovate with the 3rd Gen EPYC processors, including up to 32MB of L3 cache per core and synchronized fabric and memory-clock speeds designed for improved performance.
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS500A-E11 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.
More Storage in Middle Bay
RS500A-E11-RS12U features unique design of additional four 2.5” internal storage supporting NVMe and SATA in middle bay*, allowing up to 16 all-flash NVMe drives for different configurations.
Scalable Storage Solution
ASUS RS500A-E11 servers feature scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security.
Cooling Solutions
Data centers typically demand high-performance processors, GPUs or memory in dense configurations to run HPC or AI workloads. ASUS RS500A-E11 servers feature air-cooled solution with standard heatsink, achieving lower power-usage effectiveness (PUE) and optimized TCO for data centers.
Enhanced Security
ASUS RS500A-E11 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
In addition, all RS500A-E11 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
OCP 3.0
ASUS RS500A-E11 servers feature the latest OCP NIC 3.0 mezzanine card with PCIe 4.0 bandwidth for a faster time-to-market network solution, delivering the speeds of up to 200 Gbps for high bandwidth and low latency. It also features a too-less, hot-swappable design to simplify installation and serviceability.
ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.
ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
