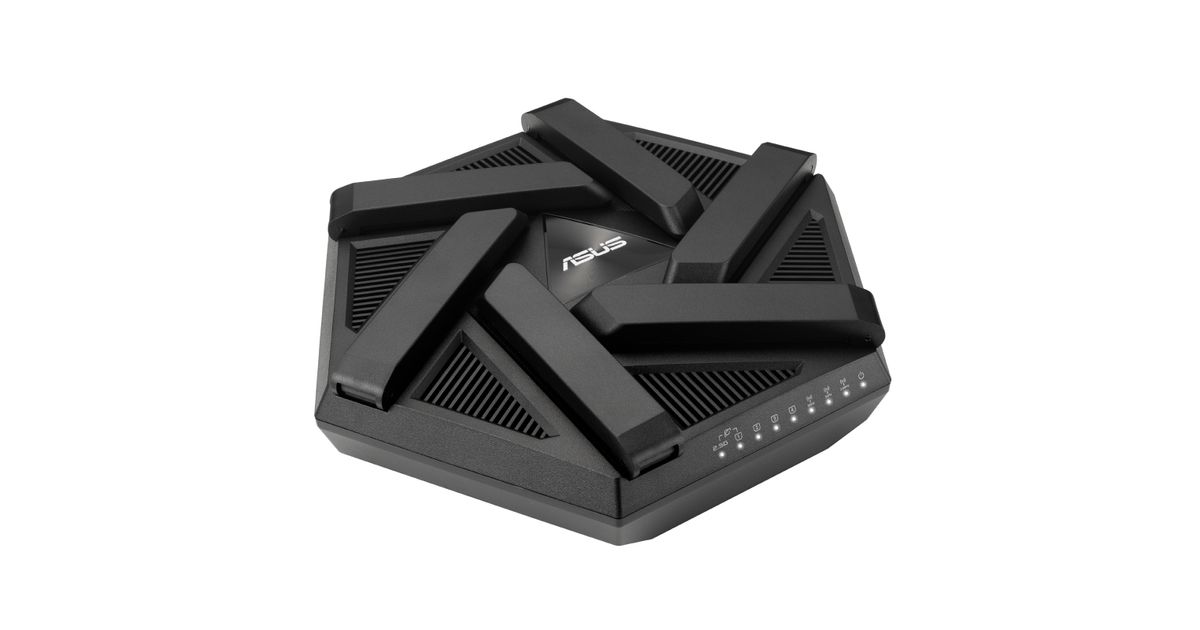

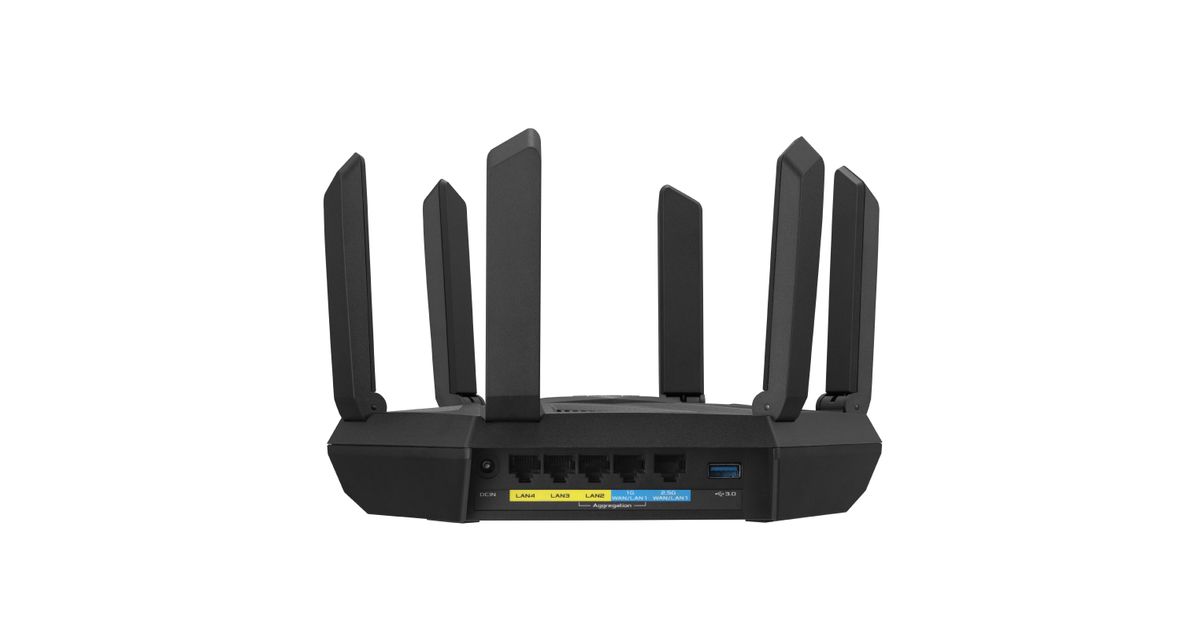

ASUS RT-AXE7800 wireless router Tri-band (2.4 GHz / 5 GHz / 6 GHz) Black
ASUS RT-AXE7800, Wi-Fi 6E (802.11ax), Tri-band (2.4 GHz / 5 GHz / 6 GHz), Ethernet LAN, Black, Tabletop router
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | ASUS |
| Product code | 127779429 |
| EAN | 04711081632917 |
| Manufacturer part number | 90IG07B0-MU9B00 |
| Category | Routers |
| WAN connection | |
|---|---|
| Ethernet WAN | Y |
| DSL WAN | N |
| SIM card slot | N |
| 3G/4G USB modem compatibility | Y |
| WAN connection type | RJ-45 |
| Network | |
|---|---|
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Port forwarding | Y |
| Port triggering | Y |
| Dynamic DNS (DDNS) | Y |
| Support Samba (storage) | Y |
| VPN server | IPSec, OVPN, PPTP |
| Media server | Y |
| Wake-on-LAN ready | Y |
| Security algorithms | SSH, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPS |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (max) | 4804 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 4804 Mbit/s |
| WLAN data transfer rate (third band) | 2402 Mbit/s |
| Features | |
|---|---|
| Number of guest networks (2.4 GHz) | 3 |
| Number of guest networks (5 GHz) | 3 |
| MU-MIMO technology | Y |
| Built-in processor | Y |
| Performance | |
|---|---|
| Built-in FTP server | Y |
| DHCP server | Y |
| Flash memory | 256 MB |
| Works with Amazon Alexa | Y |
| Firmware upgradeable | Y |
| Power source type | AC, DC |
| Security | |
|---|---|
| VPN support | VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
| WPS push button | Y |
| Firewall | Y |
| Guest access | Y |
| MAC address filtering | Y |
| URL filtering | Y |
| Network address translation (NAT) | Y |
| NAT functionality | PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Y |
| DC-in jack | Y |
| Management features | |
|---|---|
| Web-based management | Y |
| Bandwidth control | Y |
| Quality of Service (QoS) support | Y |
| Intelligent Mesh technology | Y |
| System event log | Y |
| Design | |
|---|---|
| Reset button | Y |
| Product type | Tabletop router |
| Product colour | Black |
| LED indicators | LAN, Power, WAN |
| On/off switch | Y |
| Antenna design | External |
| Ergonomics | |
|---|---|
| Parental control | Y |
| Protocols | |
|---|---|
| DMZ support | Y |
| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Y |
| Warranty card | Y |
| Other features | |
|---|---|
| Quick start guide | Y |
| Antennas quantity | 6 |
| Internal memory | 512 MB |
| Antenna | |
|---|---|
| Detachable antenna(s) | N |
| Processor | |
|---|---|
| Processor frequency | 1700 MHz |
| Processor cores | 4 |
| Power | |
|---|---|
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Output voltage | 12 V |
| Output current | 3 A |
| Weight & dimensions | |
|---|---|
| Weight | 1.03 kg |
Product Description
Low Latency & Less Interference
The newly available 6 GHz frequency band is dedicated purely to WiFi 6E devices. This means that older WiFi devices can’t interfere with 6E signals at all, enabling faster and more reliable connections for your 6E devices.
One-Tap Safe Browsing
In just a single tap, ASUS Safe Browsing helps you block malicious content, annoying ads, or explicit content to protect your family.pause
The internet can contain inappropriate content, intrusive ads or other dangers and safety risks. ASUS Safe Browsing helps block undesirable content in one tap -- no extra apps required. Its lightweight DNS-based filtering* won’t affect router performance. It can even filter explicit content from search engine results to protect your kids online.
*By using Safe Browsing, you acknowledge and agree that the standard for blocked and filtered content is established by a third-party DNS provider.
Complete Security for Your Home Network
Alongside the latest WPA3 security protocol, the ASUS RT-AXE7800 also features AiProtection Pro powered by Trend Micro™, with automatic, regularly updated security signatures to protect your devices and personal data from internet threats.
Multi-Gigabit Wired Connection
Equipped with a 2.5 Gbps WAN/LAN port, the ASUS RT-AXE7800 also features both WAN and LAN aggregation*, providing you with more options when assembling your network**. This flexibility lets you deliver massive bandwidth to your wired devices and takes advantage of ultra-high-speed internet connections in many scenarios***.
*To use the Link Aggregation Control Protocol (LACP) function, devices must support the IEEE 802.3ad protocol. WAN and LAN aggregation also leverage the same 1G WAN/LAN port and cannot be enabled at the same time.
**The 2.5G port does not support WAN aggregation. Please set the 1G WAN/LAN1 port as WAN to enable WAN aggregation. For more details, please visit the ASUS support site (https://www.asus.com/support/FAQ/1048826).
***Internet speeds are dependent on your ISP.
Network Control in Your Way
Easily setup and manage your RT-AXE7800 router with the intuitive ASUS Router app interface. You can also access the Web GUI to explore advanced settings and unlock more router features.
Simple but Complete Functions
The easy-to-use ASUS Router mobile app offers simple setup and management for your RT-AXE7800 router. There’s even more for you to explore with upgraded features including complete VPN settings, new parental control time scheduling, visualized connection diagnostics, and more.
The newly available 6 GHz frequency band is dedicated purely to WiFi 6E devices. This means that older WiFi devices can’t interfere with 6E signals at all, enabling faster and more reliable connections for your 6E devices.
One-Tap Safe Browsing
In just a single tap, ASUS Safe Browsing helps you block malicious content, annoying ads, or explicit content to protect your family.pause
The internet can contain inappropriate content, intrusive ads or other dangers and safety risks. ASUS Safe Browsing helps block undesirable content in one tap -- no extra apps required. Its lightweight DNS-based filtering* won’t affect router performance. It can even filter explicit content from search engine results to protect your kids online.
*By using Safe Browsing, you acknowledge and agree that the standard for blocked and filtered content is established by a third-party DNS provider.
Complete Security for Your Home Network
Alongside the latest WPA3 security protocol, the ASUS RT-AXE7800 also features AiProtection Pro powered by Trend Micro™, with automatic, regularly updated security signatures to protect your devices and personal data from internet threats.
Multi-Gigabit Wired Connection
Equipped with a 2.5 Gbps WAN/LAN port, the ASUS RT-AXE7800 also features both WAN and LAN aggregation*, providing you with more options when assembling your network**. This flexibility lets you deliver massive bandwidth to your wired devices and takes advantage of ultra-high-speed internet connections in many scenarios***.
*To use the Link Aggregation Control Protocol (LACP) function, devices must support the IEEE 802.3ad protocol. WAN and LAN aggregation also leverage the same 1G WAN/LAN port and cannot be enabled at the same time.
**The 2.5G port does not support WAN aggregation. Please set the 1G WAN/LAN1 port as WAN to enable WAN aggregation. For more details, please visit the ASUS support site (https://www.asus.com/support/FAQ/1048826).
***Internet speeds are dependent on your ISP.
Network Control in Your Way
Easily setup and manage your RT-AXE7800 router with the intuitive ASUS Router app interface. You can also access the Web GUI to explore advanced settings and unlock more router features.
Simple but Complete Functions
The easy-to-use ASUS Router mobile app offers simple setup and management for your RT-AXE7800 router. There’s even more for you to explore with upgraded features including complete VPN settings, new parental control time scheduling, visualized connection diagnostics, and more.
